Gloster Whittle, Gloster E.28/39, Gloster G40, Gloster Pioneer

hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
237
Reaction score
4
Hello all. Whatever you want to call it a quite important aircraft for (at least) British aviation. But scant information that I can find on the internet that isnt a repeated source.

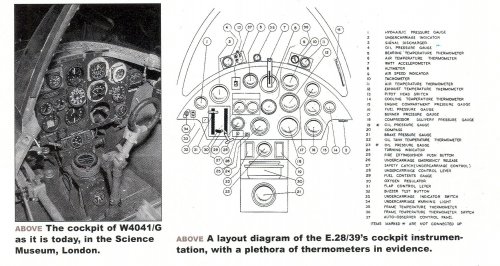

Specifically I am currently looking for some decent cockpit photos. I have come across two black and white low resolution photos. Ideally I would like something along the lines of this:
http://www.flightglobal.com/pdfarchive/view/1948/1948%20-%200521.html?search=gloster%20whittle
which teasingly is quite a nice diagram of the panel layout of the E.1/44...

Also some photos of the rest of the cockpit, sides and back would be good.

Any help is much appreciated.

Regards

Hole in the ground


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
Gloster Whittle, Gloster E.28/39, Gloster G40, Gloster Pioneer

Just a small question... I've always refered to this aircraft as the Gloster "Skirt"... Is this a mistake, or was that nickname also used at some point?


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
53
I know the first example of the Bell XP-59A Airacomet was nicknamed Squirt.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,685
Reaction score
3,105
Website
www.amazon.com

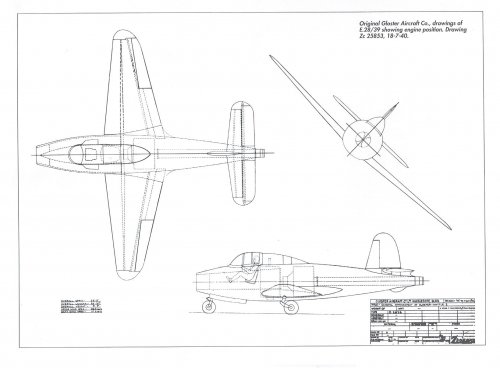

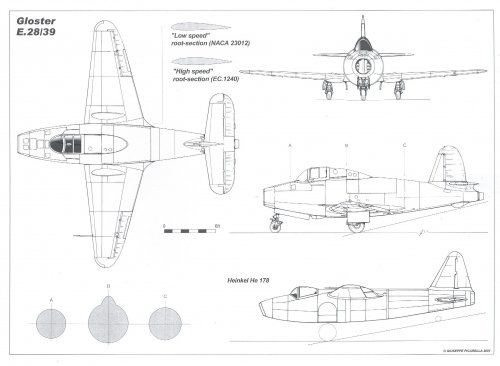

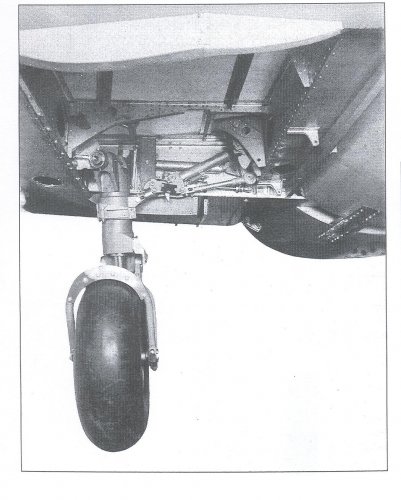

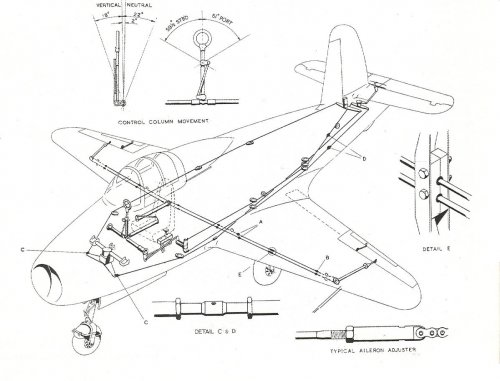

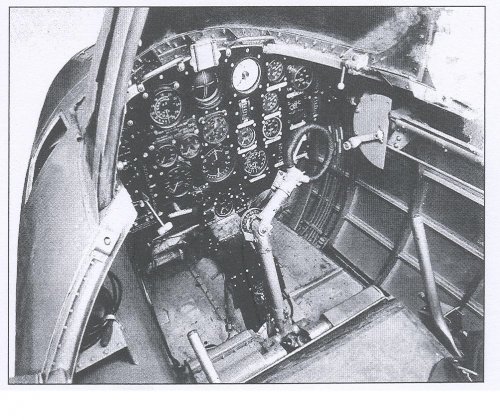

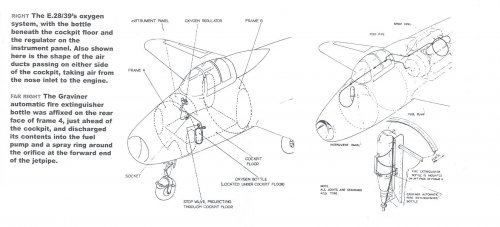

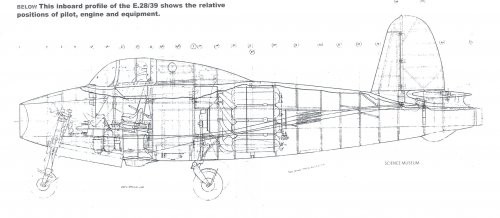

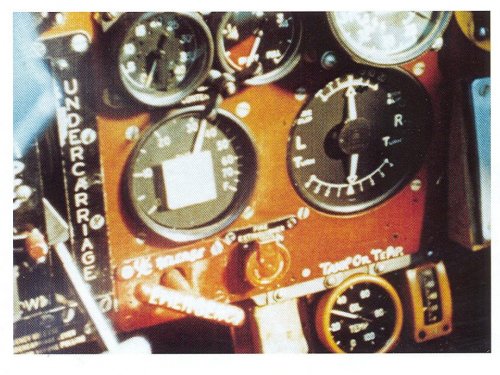

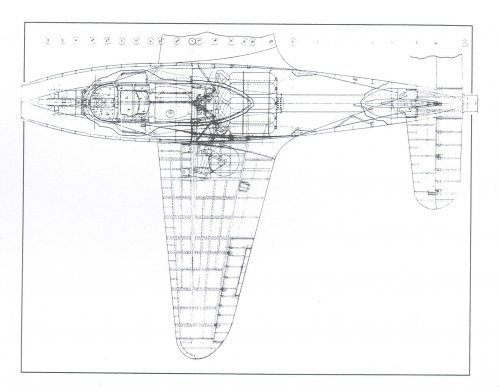

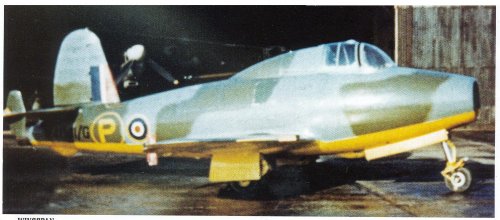

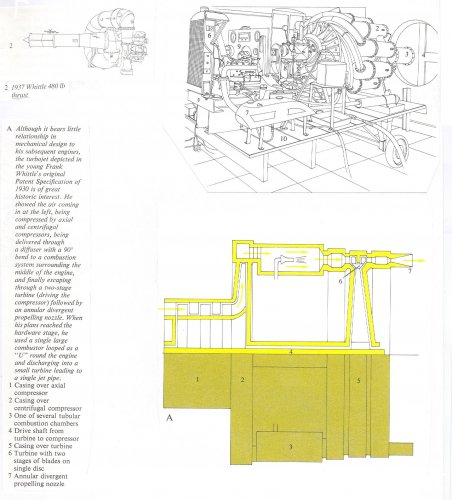

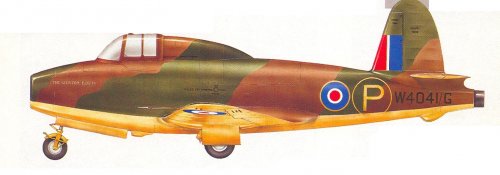

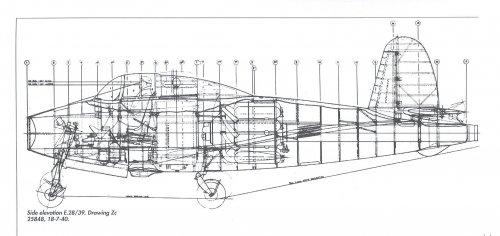

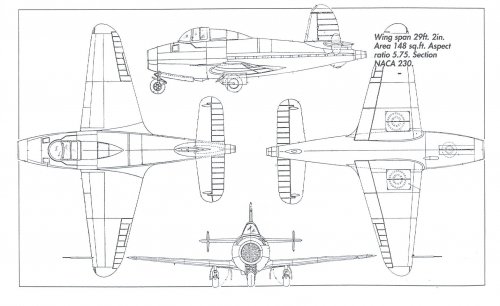

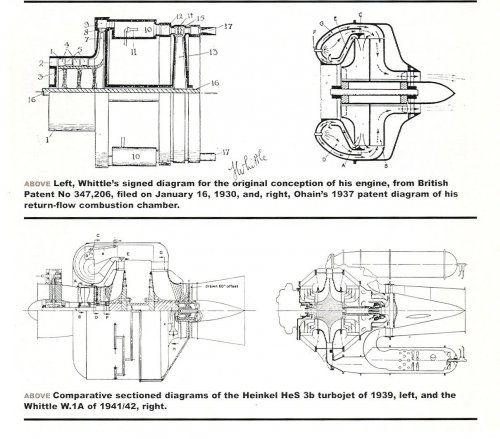

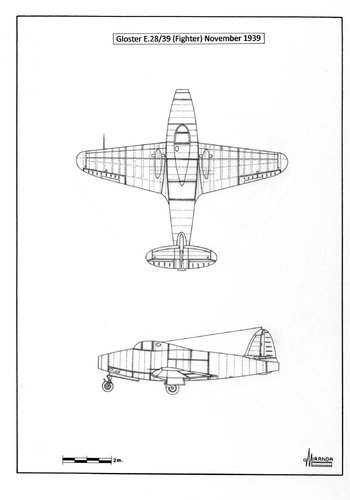

Gloster Whittle stuff here -post-1
from
-Aeroplane Montly, september 1988,may 2001
-Profile volume 1, nº8
-Wingspan unknown issue
-Unknown source


Attachments

  • Escanear0001.jpg
    253.2 KB · Views: 288
  • Escanear0002.jpg
    265.2 KB · Views: 257
  • Escanear0003.jpg
    138.8 KB · Views: 233
  • Escanear0004.jpg
    63.9 KB · Views: 238
  • Escanear0005.jpg
    144.1 KB · Views: 230
  • Escanear0006.jpg
    269 KB · Views: 96

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,685
Reaction score
3,105
Website
www.amazon.com
Gloster Whittle stuff here -post-2
from
-Aeroplane Montly, september 1988,may 2001
-Profile volume 1, nº8
-Wingspan unknown issue
-Unknown source


Attachments

  • Escanear0011.jpg
    172 KB · Views: 78
  • Escanear0010.jpg
    190.8 KB · Views: 106
  • Escanear0009.jpg
    159.9 KB · Views: 115
  • Escanear0008.jpg
    141 KB · Views: 111
  • Escanear0007.jpg
    286.8 KB · Views: 84

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,685
Reaction score
3,105
Website
www.amazon.com
Gloster Whittle stuff here -post-3
from
-Aeroplane Montly, september 1988,may 2001
-Profile volume 1, nº8
-Wingspan unknown issue
-Unknown source


Attachments

  • Escanear0015.jpg
    369.3 KB · Views: 99
  • Escanear0014.jpg
    166.3 KB · Views: 102
  • Escanear0013.jpg
    147 KB · Views: 88
  • Escanear0012.jpg
    248.2 KB · Views: 86

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,685
Reaction score
3,105
Website
www.amazon.com
Gloster Whittle stuff here -post-4
from
-Aeroplane Montly, september 1988,may 2001
-Profile volume 1, nº8
-Wingspan unknown issue
-Unknown source


Attachments

  • Escanear0017.jpg
    112.2 KB · Views: 88
  • Escanear0018.jpg
    98.3 KB · Views: 86
  • Escanear0019.jpg
    390.8 KB · Views: 90
  • Escanear0020.jpg
    267.4 KB · Views: 93

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
Oooooh... I just LOVE that prototype. Could never tire of it! Thank you so much for sharing all this wonderful material, Justo!


beaty191

ACCESS: Restricted
Joined
Feb 20, 2010
Messages
4
Reaction score
0
Website
www.milgeek.co.uk
Hello there...

Forgive me as I am not an aircraft expert (or historian) but it strikes me how the Gloster design *seems* closer to the later Soviet MIG 15 and US Sabre designs.

Was the Gloster design never considered for further development as a fighter? Or was it a case that it was a little too ahead of it's time and the engine power just wasn't up to the job (hence the adoption of the twin engined Meteor design)?

Cheers, Steve


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
593
I think the E.28/39 specification called for a technology demonstrator, pretty much like the similarly configured Heinkel He 178. This being said, the configuration was pretty similar, NOT to the aircraft you mention (which had swept wings), but rather to the Republic P-84 Thunderjet, so yes, it probably would have been a rather capable little fighter. The question is: why did they not do that? I have no answer.


beaty191

ACCESS: Restricted
Joined
Feb 20, 2010
Messages
4
Reaction score
0
Website
www.milgeek.co.uk
Many thanks for that reply,

strange isn't it - but maybe it's a case of hindsight is a wonderful thing?

I checked out the Thunderjet, and yes I can see how one can imagine how a Gloster fighter based on the E.28/39 might have looked and performed in service.

It's interesting to wonder - sorry to speculate - what kind of performance a swept wing Gloster E.28/39 might have had and how it might have compared to the later MIG 15 (what's in the back of my mind is how much the MIG 15 was dependent on the work done by Whittle and indeed, the dependence on the British jet engine - so, in effect, is the MIG 15 the Gloster that might have been? - Yes, I know - I'm stretching it here!).

;)


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,614
Reaction score
167
Website
www.hitechweb.genezis.eu
The speed of the technology progress during that era perhaps? In time when the hypothetical production version could enter service it could be already obsolete. Also the dependability of the very early jets wasnt just ideal for the operational service.


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
613
Reaction score
214
beaty1961: why twin Meteor, not militarised "Squirt"? Matej is, I submit, right. Grunt. Airframes evolved more rapidly than reliable reaction oomph. E.28/39 Spec included provision for (not fitment of) 4xBrowning .303 MG, though it was funded and awarded to Gloster simply as a technology demonstrator. "Gyres' " thrust, s.f.c and installed life would in 1939 be insufficient for any military purpose. So, why, in 1943 when (to be) RR Welland and (to be Halford H.1/DH Goblin) offered such attributes, did MAP fund single-engine DH.100 Spider Crab (to be Vampire) and twin (to be) Gloster Meteor? Simply the "insurance" principle that had caused multiple "Heavy" Bombers, Fury+Spiteful, &tc, &tc. MAP did not deliberately want Meteor to be deployed before Vampire: Gloster/HSAL+RR just got there quicker than DH/EE+DH. Bell Airacobra was twin, too. The first UK turbine with grunt, Nene, permitted MiG-15, F9F-2, Attacker and Sea Hawk to be cheaper, easier singles; GE, turning W2/500 into J35 (for F-84s) got good grunt quicker than did RR evolving W2B as Welland, then Derwent, but it was not until F-84G that their single engine type overtook the Gloster twin. LaGG-15 with 1xDerwent never did.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
53

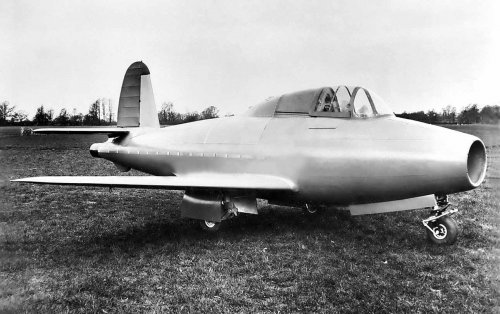

Here's a new view I found online from FAST Museum. -SP


Attachments

  • Gloster E2839.jpg
    Gloster E2839.jpg
    141.7 KB · Views: 321

Machdiamond

ACCESS: Secret
Joined
Jan 15, 2007
Messages
326
Reaction score
12
And the following document that Stargazer found in another thread:

On the aerodynamics of the Gloster E28/39 - a historical perspective.
http://www.raes.org.uk/pdfs/3272.pdf

Many answers to the questions in this thread, and a list of references with close to 100 items.

--Luc


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,619
Reaction score
4,582
Hi,

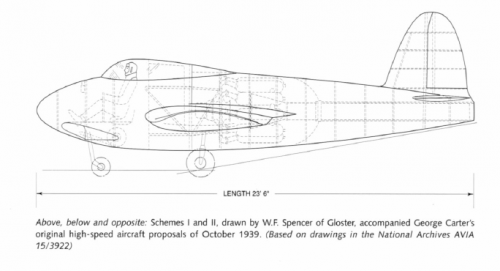

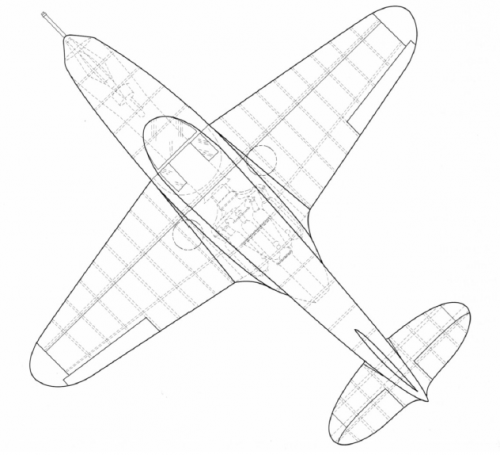

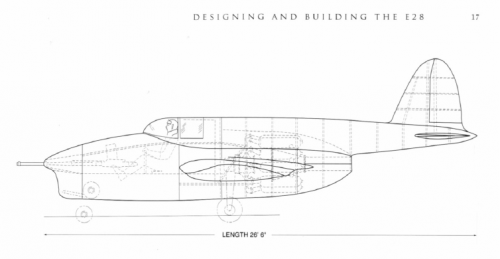

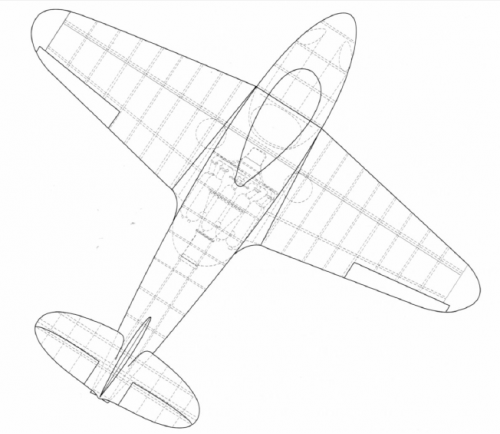

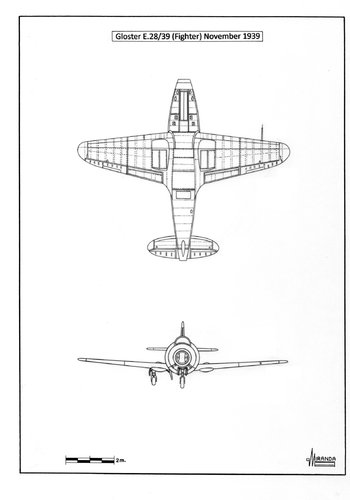

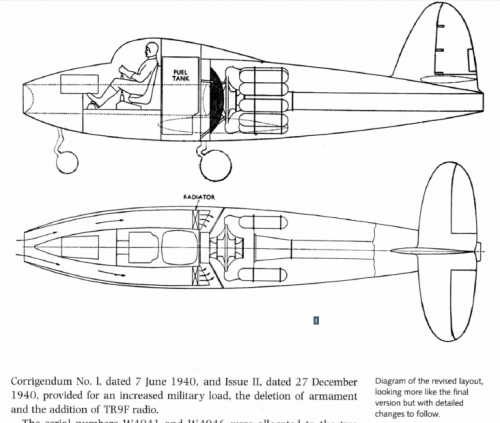

here is the Early two schemes of Gloster high-speed aircraft,designed by Mr, George Carter,
and led to develop the E28/39,also the a revised version which was very close to the final
shape of the aircraft.


Jet Pioneers. Gloster and the Birth of the Jet Age


Attachments

  • 3.png
    164.1 KB · Views: 79
  • 2-2.png
    126.1 KB · Views: 192
  • 2-1.png
    70.1 KB · Views: 199
  • 1-2.png
    125.3 KB · Views: 207
  • 1-1.png
    82.1 KB · Views: 225

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,619
Reaction score
4,582
hesham said:
here is the Early two schemes of Gloster high-speed aircraft,designed by Mr, George Carter,
and led to develop the E28/39,also the a revised version which was very close to the final
shape of the aircraft.

Jet Pioneers. Gloster and the Birth of the Jet Age


The first two configurations looks like a Germany designs in the period of WW2 !.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
13,899
Reaction score
3,750
On a related note: http://www.telegraph.co.uk/news/2016/05/08/sir-frank-whittles-son-accuses-whitehall-of-marginalising-jet-en/
