My new project....Horten HO XVIII fernbomber....



[gery]

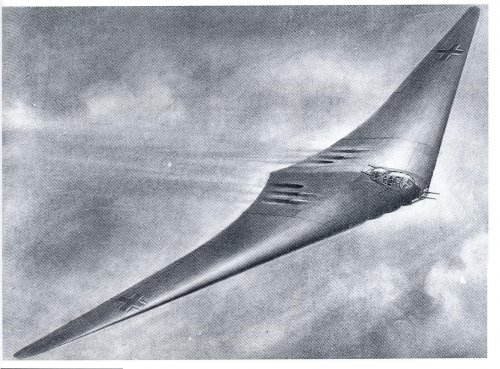

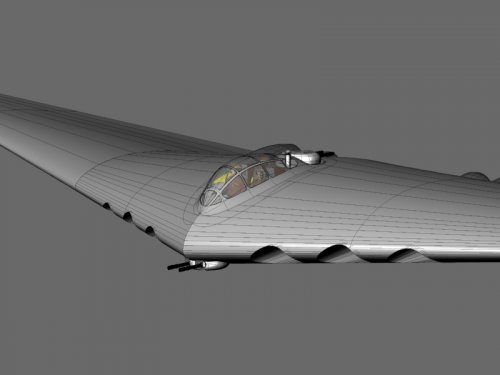

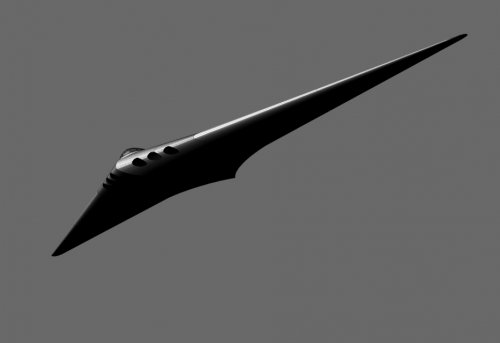

The suite... ;D

With a remote controled turret and periscope.....(He 177, Ju 388)



[Flitzer]

Looking good Gery.
This should be very interesting.

Can't wait.
Peter



[son altesse]

Nice project Gery, as usual !

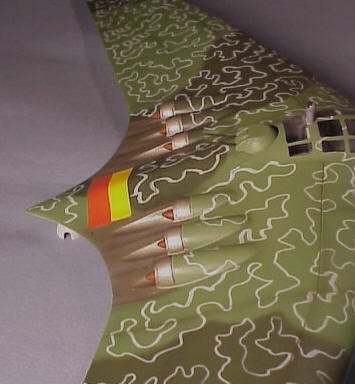

A quick look of my finished Anigrand model
http://www.master194.com/forum/viewtopic.php?f=4&t=51077&p=521940&hilit=luft46+horten#p521940



[Orionblamblam]

Nice, but the cockpit's not quite right.



[renax]

sssshhhhhhhhhhhh !


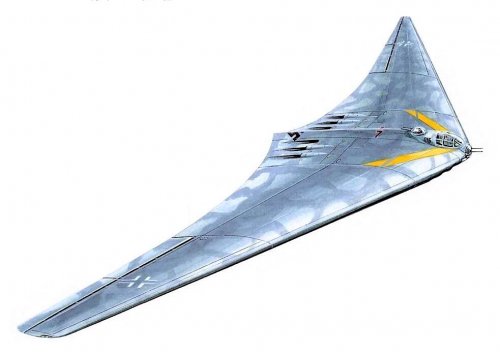

that was a sketch for the kit box
http://www.sharkit.com/sharkit/Ho-XVIII/HoXVIII.htm

http://renax-sharkit.blogspot.com/2010/09/horten.html



[gery]

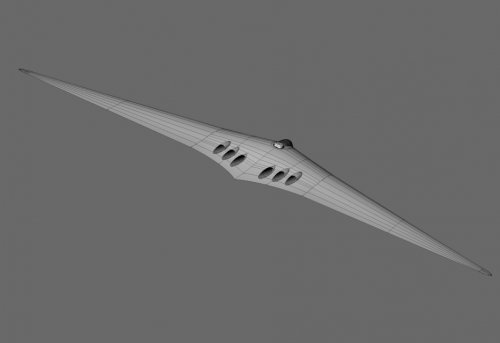

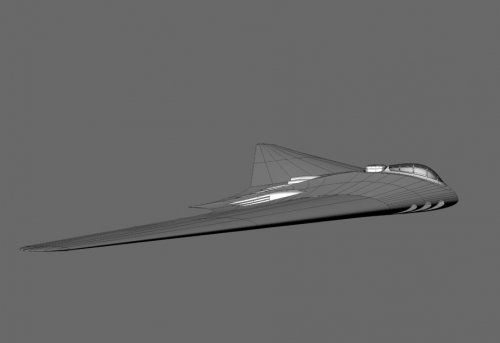

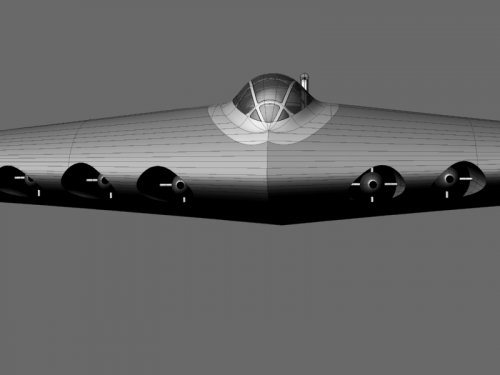

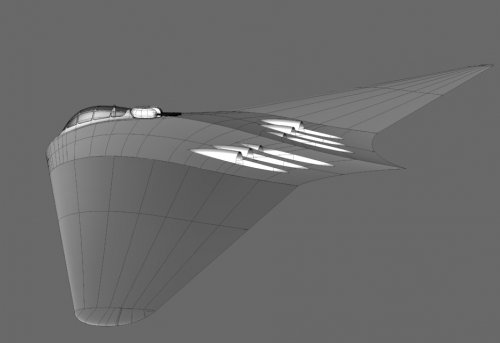

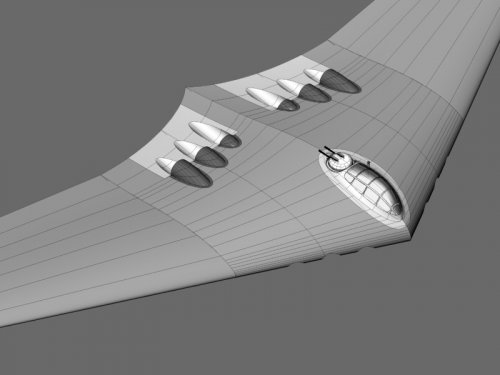

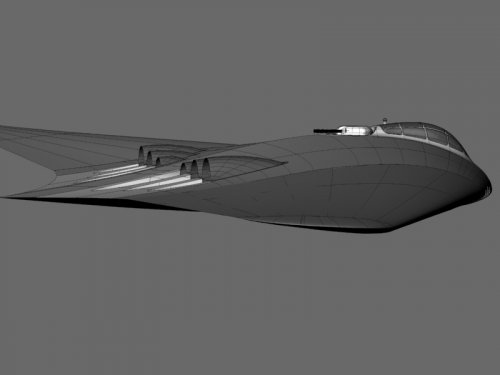

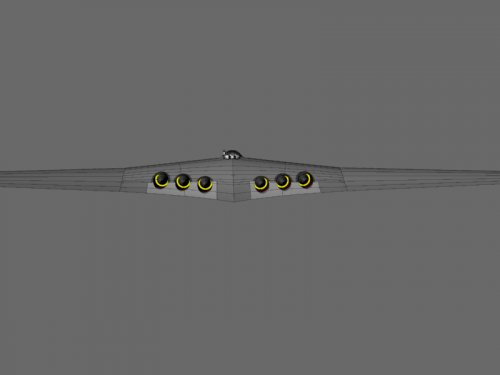

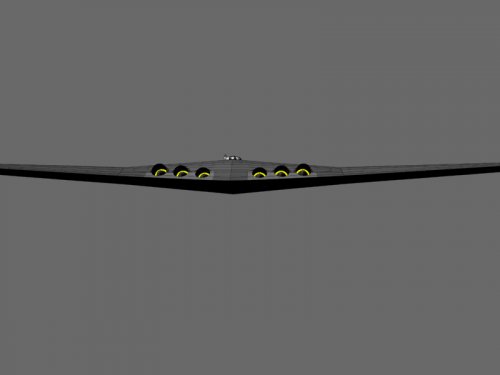

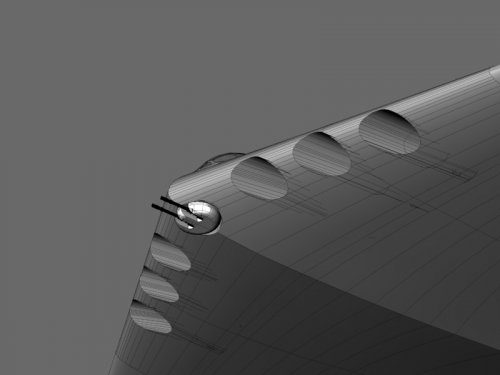

The exaust design....

Yes orion....but it's an "artists view", and artists are not friends with the technology Constraints....i'll use all "german technic possibility" of this period for design this model..

Thank peter...



[gery]

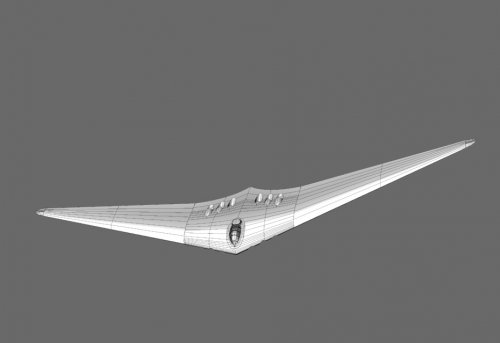

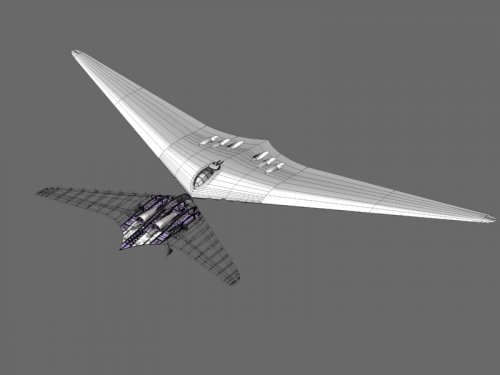

Comparative view of dimentions...between an Ho 229 V2 and the bomber...



[gery]

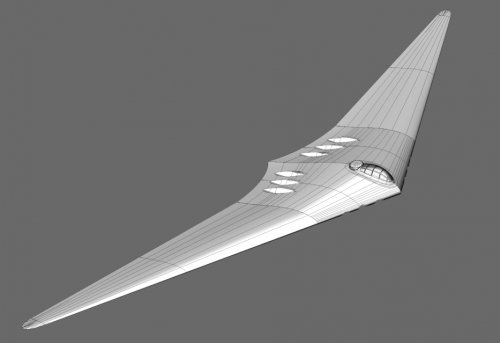

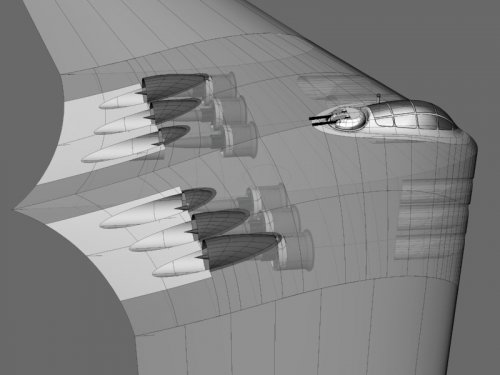

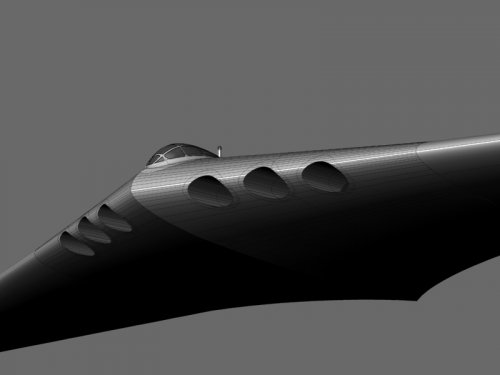

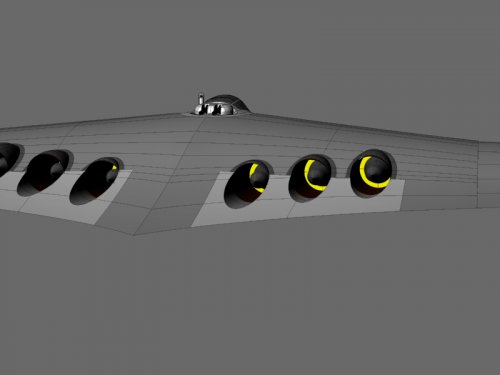

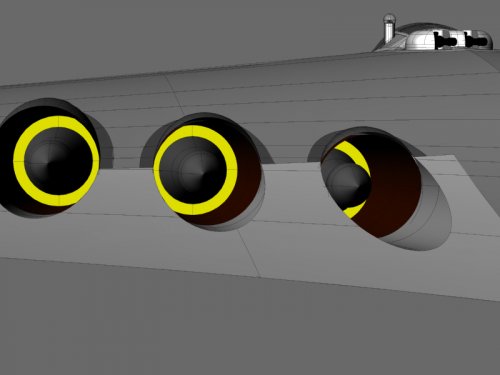

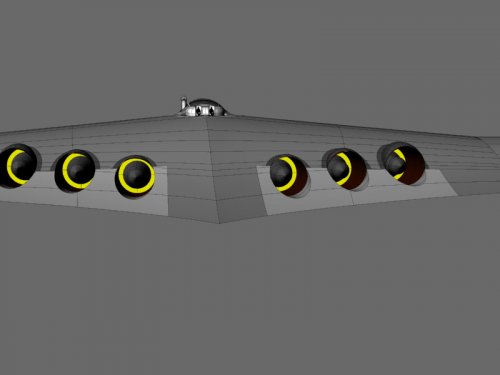

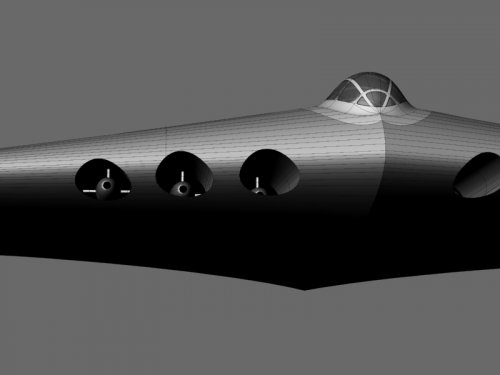

intake design and 1/16 MODEL EDF turbines positioning...



[gery]

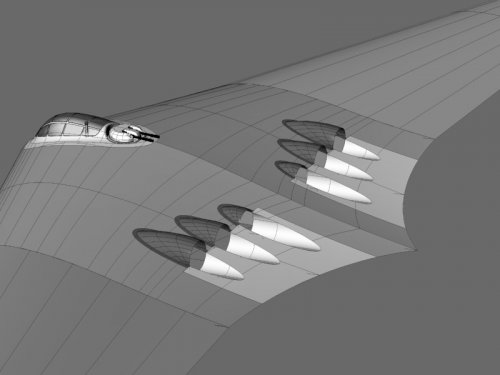

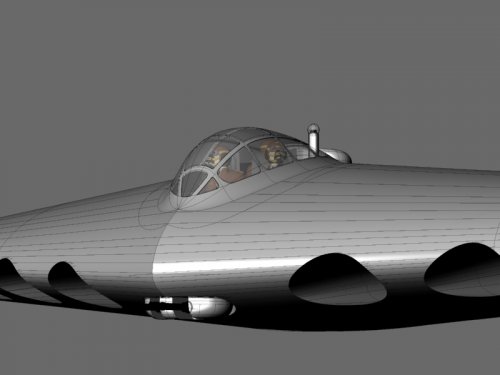

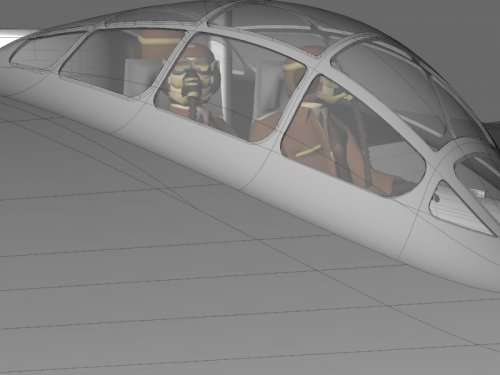

Jumo 004 positioning and pilots seats..



[gery]

.....



[sagallacci]

Doesn't look bad, but the engine are way too big, or at least out of proportion for Jumo 004s.



[gery]

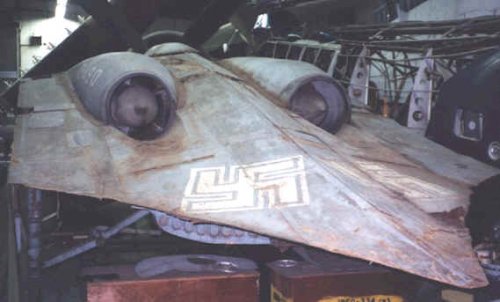

yes..but i work for 1/16 model too..... and if i look the Horten V3 exaust it's ok



[gery]

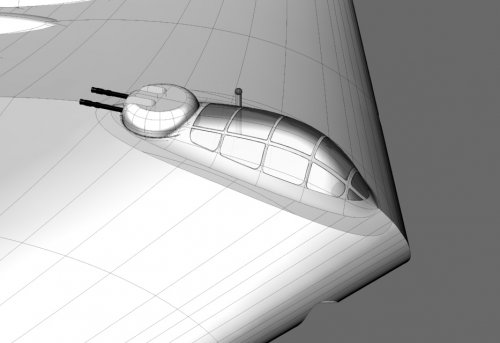

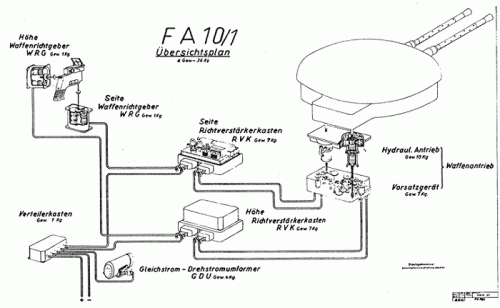

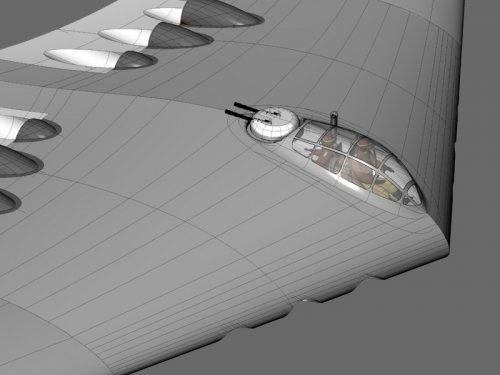

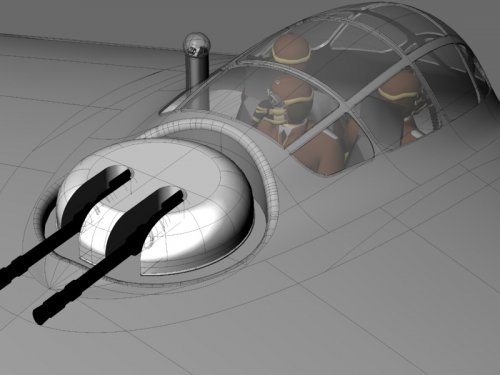

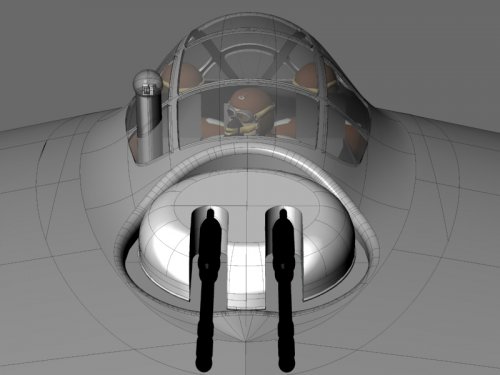

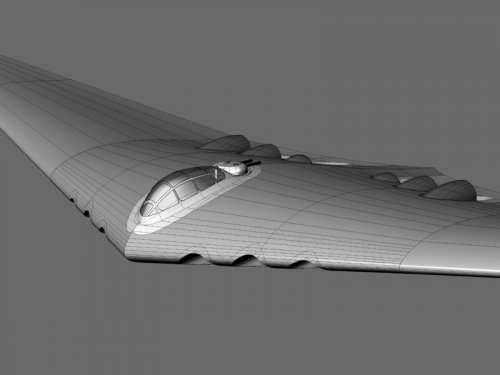

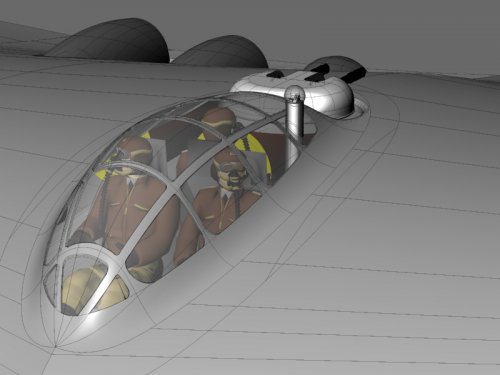

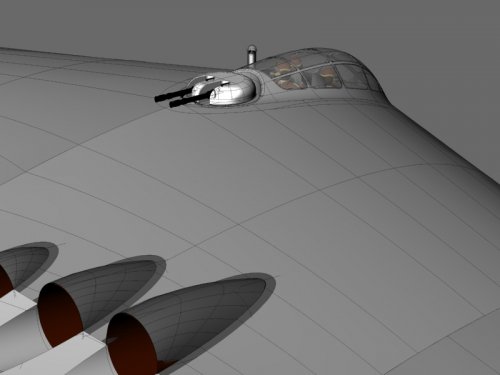

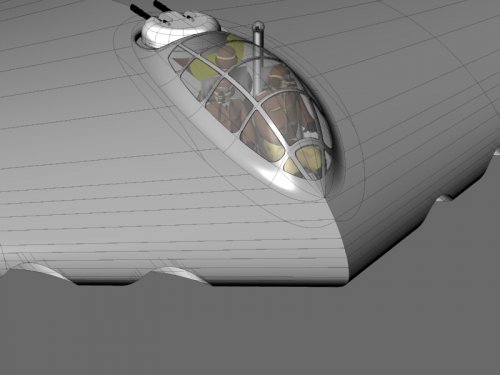

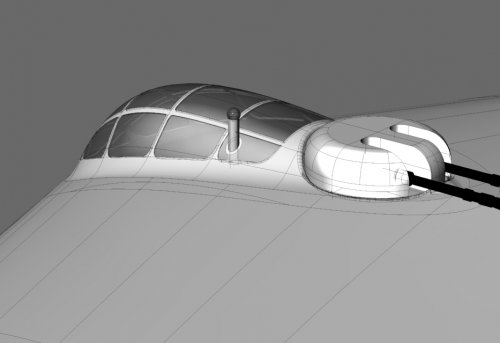

remote controled gun turret shema..and periscope...



[mz]

Looks very good! What are you using as the 3d modeling program, is that Rhino? What kind of technique? How do you export / import from XFLR5? What are the wing profiles and where did you get them?



[Antonio]

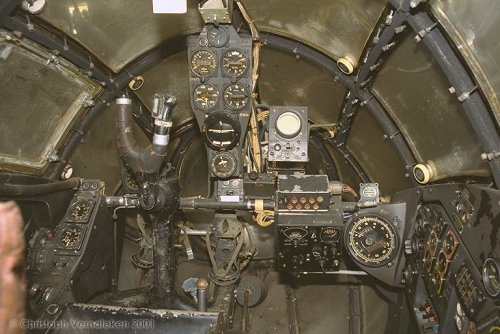

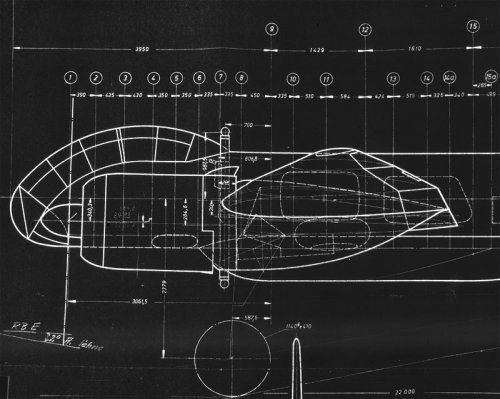

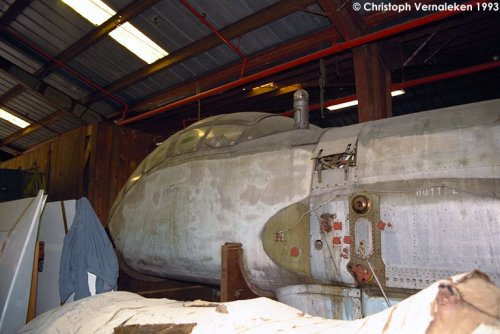

What is the aircraft shown in Kanzel Pl.jpg: Ju-188?



[Michel Van]

What is the aircraft shown in Kanzel Pl.jpg: Ju-188?

yes that is a Ju-188 cockpit, it has similarities to Horten bomber



[gery]

sorry boys it's a JU 388....yes i use rhino for modeling...i dont' export the model for XLFR5..i enter the dimention and the airfoil....



[gery]

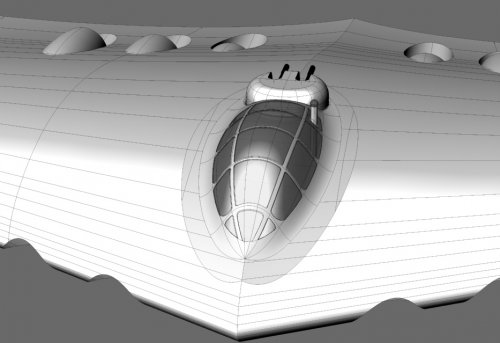

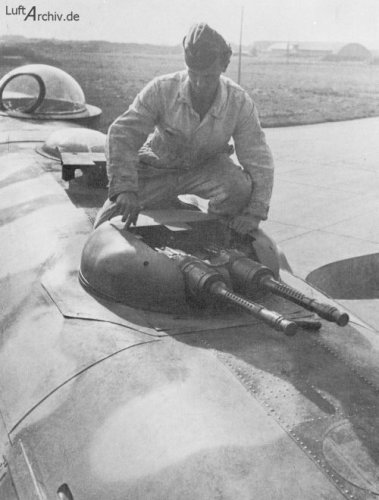

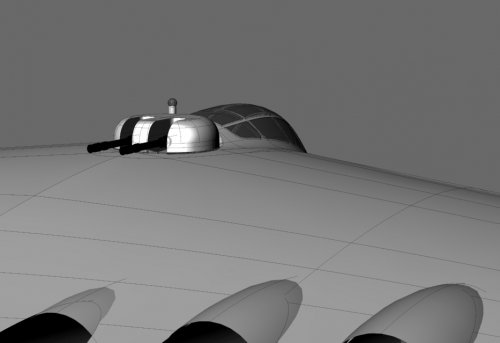

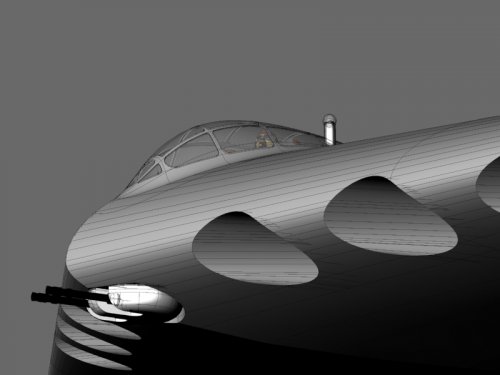

Second gun turret positioning...



[renax]

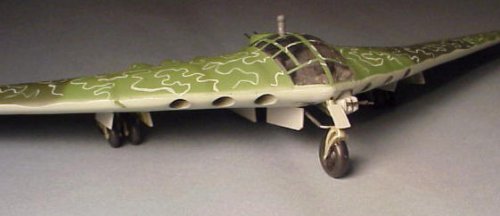

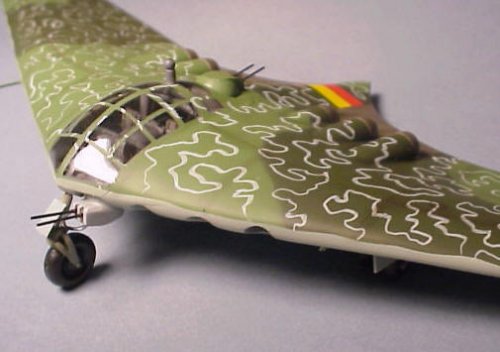

the 1/72 scale kit page:
http://www.sharkit.com/sharkit/Ho-XVIII/HoXVIII.htm



[gery]

Yes Renaud, we know your model....thank for updating this post
please, can you send a bigger (med res) pict of your kit..???thank



[renax]

salut Gery,
j'ai essayé d'aller aux nouvelles sur ton site mais...
je ne devais pas avoir le bon lien...

All the picts I have at the moment are on the kit page
http://www.sharkit.com/sharkit/Ho-XVIII/HoXVIII.htm
clic on them there are large picts linked

When some review will be done, (I dont know when)
links will be on the Sharkit blog
http://renax-sharkit.blogspot.fr/

also picts of parts here:
http://renax-sharkit.blogspot.fr/2013/03/new-sharkit-horten-xviii.html



[KHambsch]

Hi gery, can to tell me what the wing sweep angle you used for your beautiful Horten XVIII work? Am seeing what appears to be different angles in various art (other than yours) Thank you Kevin



[Gwalker18]

My new project....Horten HO XVIII fernbomber....

Excellent Work.



[Gwalker18]

Nice, but the cockpit's not quite right.

Nice, but the cockpit's not quite right.

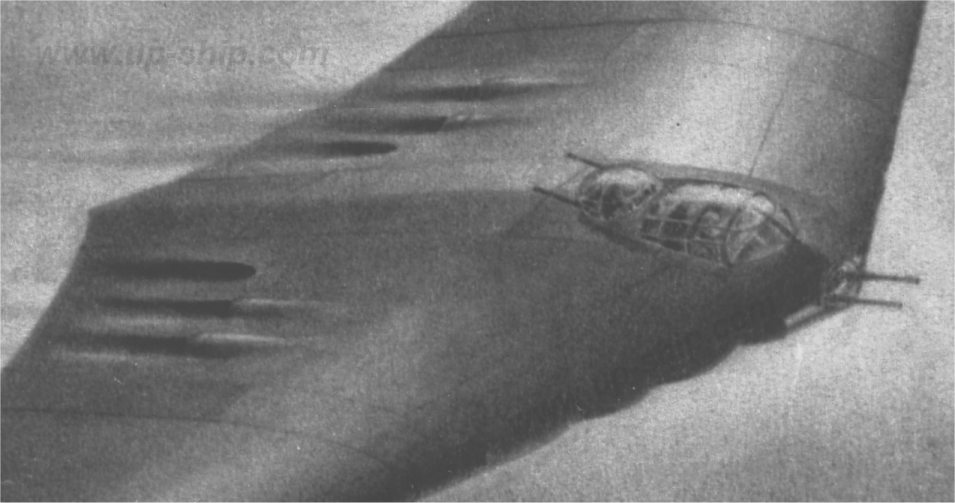

Artist's Impression.



[Gwalker18]

Comparative view of dimentions...between an Ho 229 V2 and the bomber...

If only there was a die cast model of this.



[Gwalker18]

Jumo 004 positioning and pilots seats..

Zoom!



[Justo Miranda]

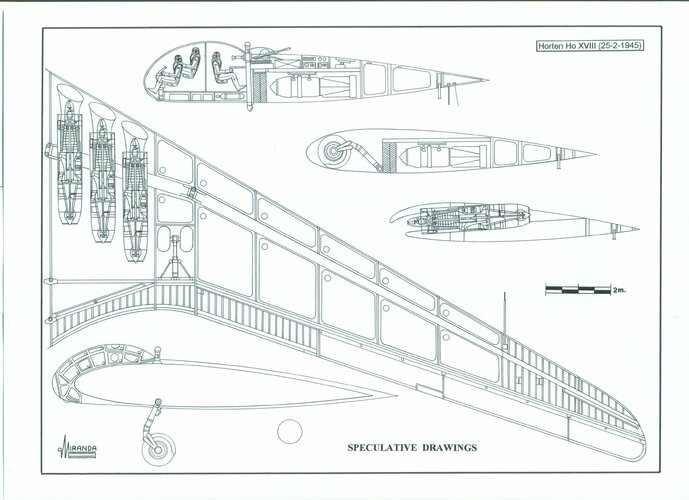

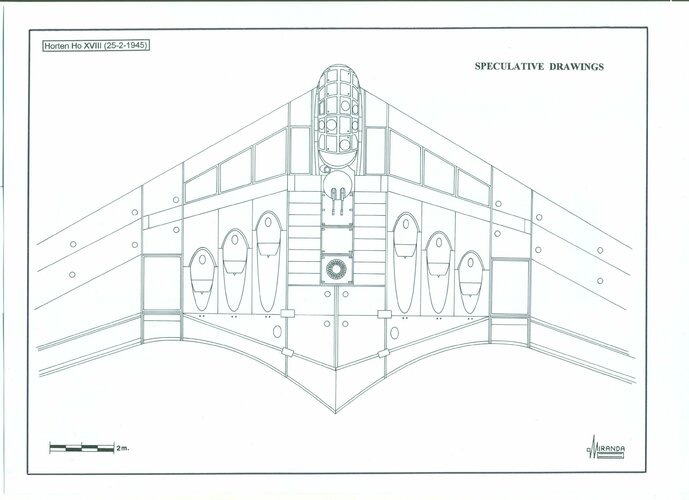

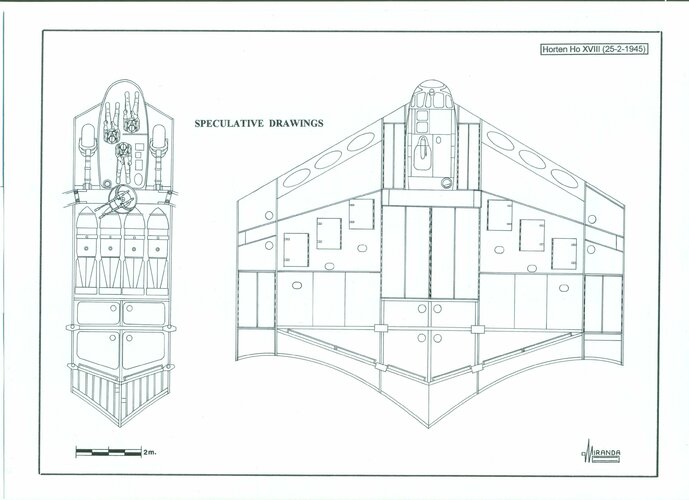

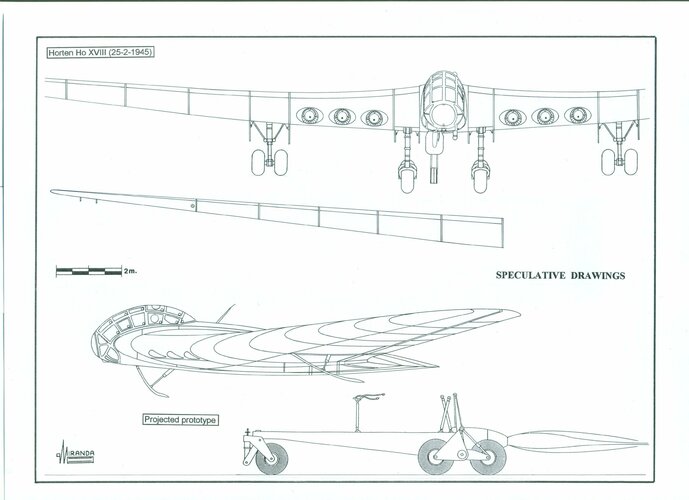

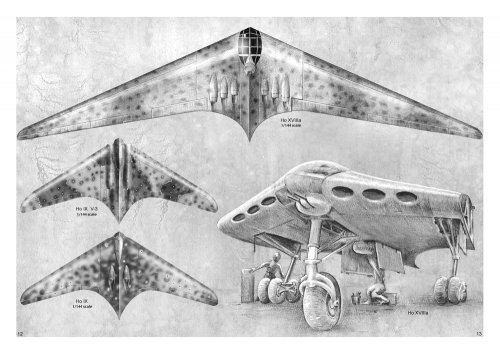

My opinion



[Gwalker18]

Worthy of a book of its own.
