German Midget Fighters ?

[hesham]

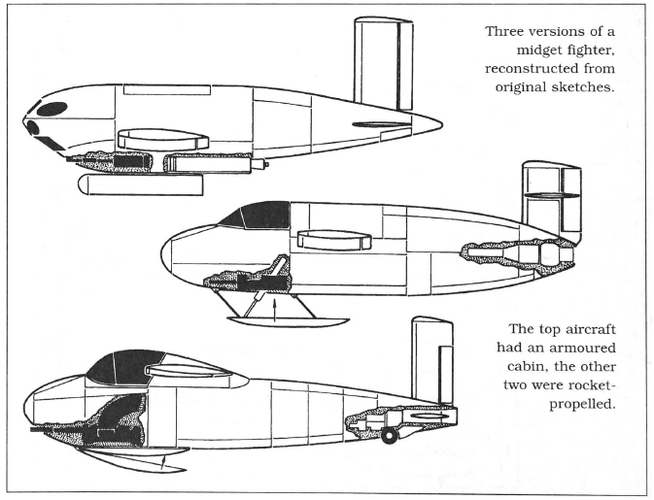

From, Luftwaffe over America,

what was those designs ?,the middle one maybe Bachem concept ?,
and if they were a fake ideas only or not ?.



[richard B]

Messerschmitt projects :

Luft46 Messerschmitt P-1112, My 3DBase, au 1:48, premieres impressions - Page 30 - Master194.com



[Aubi]

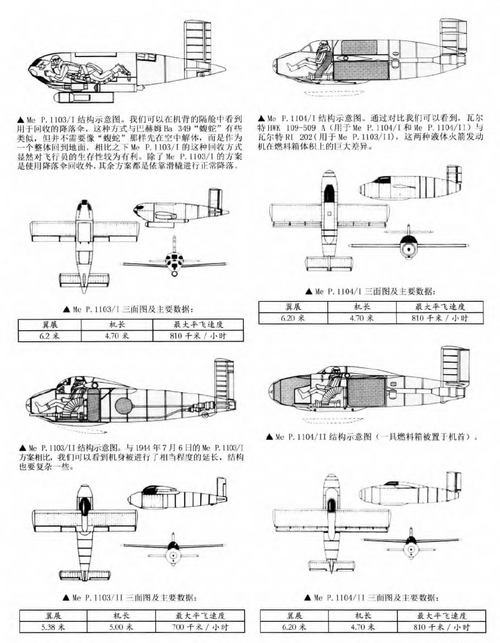

Those are all Messerschmitt projects, competitors to Bachem Natter. First is Messerschmitt Me P.1103/I, then Me P.1104/I and Me P.1104/II. They were all to be towed into air behind Bf 106 G or Me 262main difference was the engine (Schmidding 109-513 solid rocket for 03/I, Walter RI 202 liquid-fuel rocket for 03/II, and Walter HWK 109-509A-1 for both 04) and the position of the pilot (prone in armored cockpit in 03/I, sitting in others).



[hesham]

From Third Reich Secret Air Force Materiel.
