Hi,

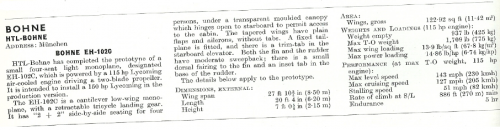

here is a little known German light aircraft,called Bohne EH.102C,it was a four-seat low-wing
monoplane of 1969,has anyone a drawing or picture to it ?.


Attachments

fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,182
Reaction score
221
Quick search at Google and at EBay.
Link: http://r.ebay.com/Eke6vL


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,891
Reaction score
1,684
Thank you my dear Rolf.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,891
Reaction score
1,684
From JAWA 1973,

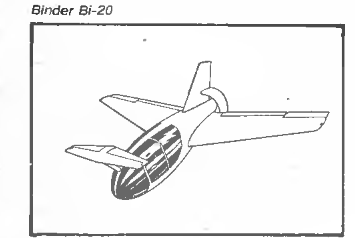

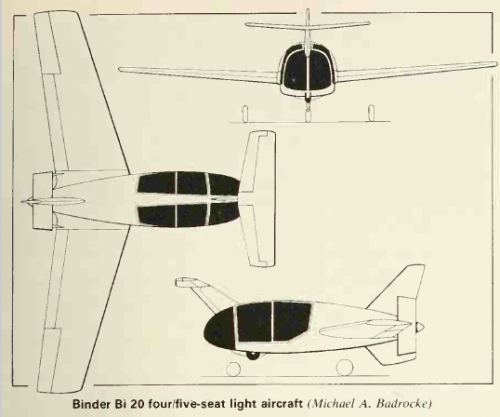

here is Binder Bi 20,it was unusual 4/5 seat low-mid-wing light airplane Project,with
canard shape and powered by a pusher engine.


Attachments

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,837
Reaction score
133
Anybody knows something about the Binder B.24?

Bruno Lange: Typenhandbuch der Deutschen Luftfahrttechnik:
B-24A, double ring wing STOL aircraft, with 2 66kW (90PS) Continental C90. The prototype was under construction at Schempp-Hirth, the development was canceled.

Last edited:

walter

CLEARANCE: Secret
Joined
Jan 31, 2008
Messages
360
Reaction score
59

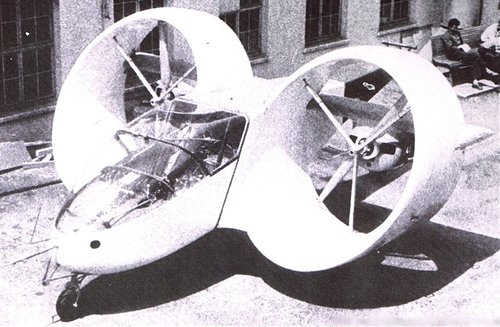

This is the only pohoto of the Binder B-24 I ever saw.
The details I have:
4-seat sport
two 90hp Continental C90 piston engines
DETAILS: In 1958 Binder Aviatik KG started development of the 4-seat B-24 sport aircraft and a prototype was completed in September 1959. The forward fuselage and the wings were constructed by Schempp-Hirth Flugzeugbau KG and the aircraft underwent ground trials, but the project was terminated in 1960. The B-24 had a very unusual configuration with two large propellers turning in prominent shrouds and the aircraft was powered by two 90hp Continental C90 engines. Instead Binder Aviatik acquired a licence for the much more conventional Piel CP-30 Émeraude and then built an own variant as the CP-301S Smaragd (qv).
Production: 1 (unflown)
