Hi,

That was aircraft for George Messier as low wing monoplane
powered by one HS 6Mb engine,I don't know if it was a fighter
or not.


Attachments

Deltafan

CLEARANCE: Top Secret
Joined
May 8, 2006
Messages
869
Reaction score
136

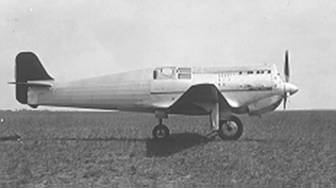

The Messier plane was not a fighter but a testbed prototype for a retractable landing gear.

The Hispano Suiza 6 Mb engine had 250 hp

First fly : 21/04/1934
Last fly : 12/11/1935 (bad landing...)


Source : AFM n°6, 10-11/2005, p. 5 to 12.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
Thank you dear Deltafan,

and there is anther project to George Messier,a twin engined
research aircraft,powered by Bearn 6E engines and had estimated
speed of 385 km/h.


Attachments

Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
153

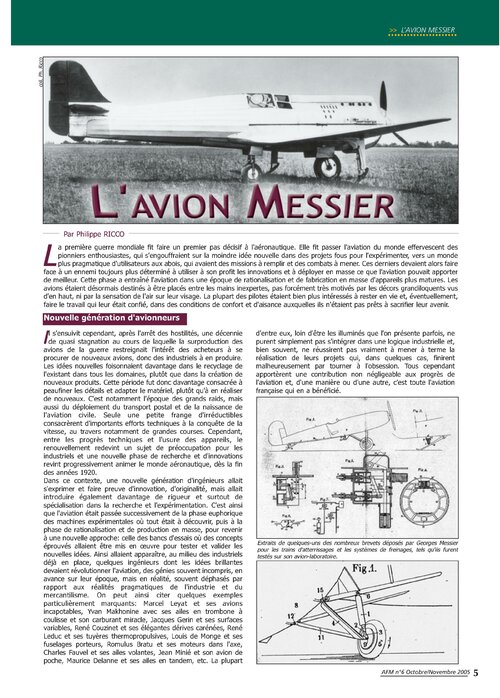

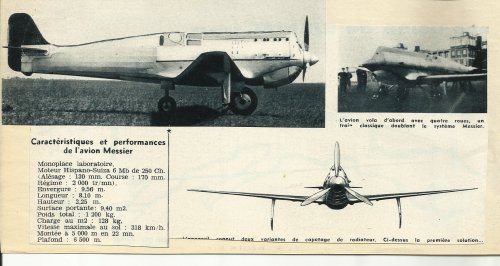

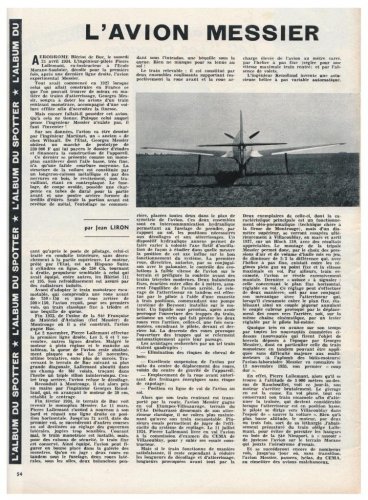

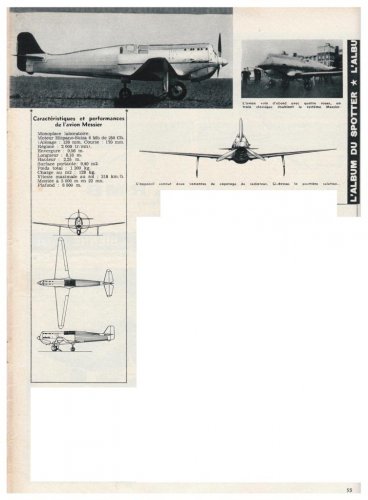

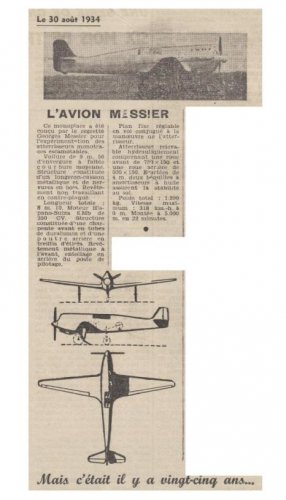

Dear Boys and Girls, here is an article in French on L'Avion Messier which was a pre-war test-bed for a new kind of bicycle undercarriage. It isn't "secret" and it isn't a "project"......

The article comes from the 1st November 1963 issue of Aviation Magazine......

Terry (Caravellarella)


Attachments

JimK

CLEARANCE: Confidential
Joined
Apr 15, 2010
Messages
55
Reaction score
6
A most interesting looking airplane. As my French-reading skills are non-existant, could you tell me if it was intended to be more than an experiment with a bicycle-type landing gear? With a flush cockpit and a high-aspect-ratio wing, was it intended as a air racer? The Hispano Suiza engine appears to be an upright, inline six cylinder, but with a unusually tall installation when compared with contemporary Ranger-powered aircraft. Perhaps this is due to the mounting of the coolant radiator directly beneath it.


Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
153
JimK said:
A most interesting looking airplane. As my French-reading skills are non-existant, could you tell me if it was intended to be more than an experiment with a bicycle-type landing gear? With a flush cockpit and a high-aspect-ratio wing, was it intended as a air racer? The Hispano Suiza engine appears to be an upright, inline six cylinder, but with a unusually tall installation when compared with contemporary Ranger-powered aircraft. Perhaps this is due to the mounting of the coolant radiator directly beneath it.
Dear JimK, at a glance I can see that L'Avion Messier was a purpose built test-bed aircraft to evaluate "un train rentrant monotrace" (a retractable bicycle undercarriage) and to evaluate "un voilure effilé" (a highly tapered wing) to reduce drag and improve streamlining......

One of our French friends will be able to give a better translation I'm sure (I'm not French)......

Terry (Caravellarella)


theponja

CLEARANCE: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
2
Wow!!! Very cool looking airplane. Could be a great model.

Terry could you put a higher resolution image of the 3d view?

Thanks in advance
Luis


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
564
Reaction score
62
Hi!

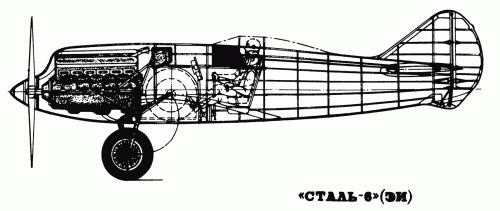

Another aircraft of similar layout - Soviet Stal-6 of Robert Bartini.

Also remains a prototype.

Cheers!


Attachments

Caravellarella

CLEARANCE: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,032
Reaction score
153
theponja said:
Wow!!! Very cool looking airplane. Could be a great model.

Terry could you put a higher resolution image of the 3d view?

Thanks in advance
Luis


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
414

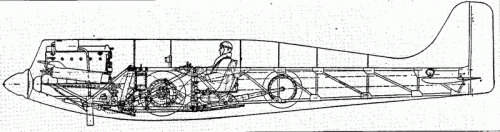

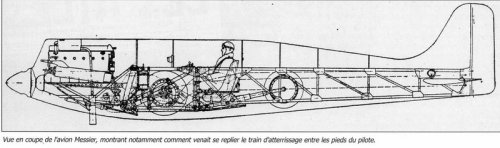

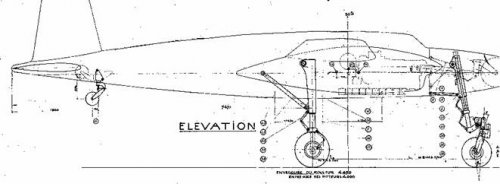

An internal arrangement drawing from Aviation Francaise
Magazine N° 06, 10/11 2005:


Attachments

JimK

CLEARANCE: Confidential
Joined
Apr 15, 2010
Messages
55
Reaction score
6

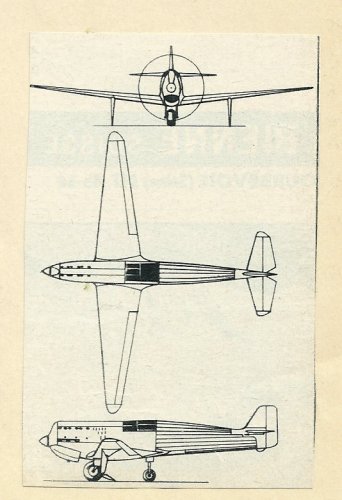

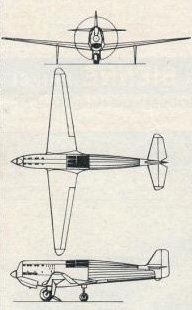

Thank you, Terry, for the translation and 3-view and Jemiba for the inboard profile. Being a lifelong student of aircraft design, both bring up more questions than answers. I am always curious, in cases like this, as to why the designer laid the airplane out as he or she did, even if it is based on 80-year-past reasoning. Did this airplane ever fly? For an undercarriage test aircraft, why did the designer place the pilot in a position which would make landing the airplane accurately, more difficult. Was Lindberg's location in the Ryan N-Y-P an influence? Why would drag reduction be a consideration in such a test aircraft? I don't expect answers here, but one never knows.

I question some of the details in the 3-view. It shows apparent exhaust ports on the left side of the engine cowling, but the forward left-quarter picture in the accompanying article does not. I would expect the exhaust on an inline six to be on only one side. Are the ailerons really that large? Do they droop on landing to increase the lift coefficient of an, apparently, highly loaded wing? The balancing skids at mid-span appear to fold upon retraction. Do they really lie on the narrow chord ahead of the aileron hinge line or do they trail aft dividing the trailing edge into an inboard flap section and an outboard aileron?


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
414
Don't know if it actually will answer your questions, but I can send you the scanned
article, if you are interested in it and willing to read french.


theponja

CLEARANCE: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
2
Terry and Jemiba thanks a lot for the drawings.
Luis


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
The source;


http://www.acam.asso.fr/histo/premiers_equipements1.php


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
Excellent my dear Toura.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
414

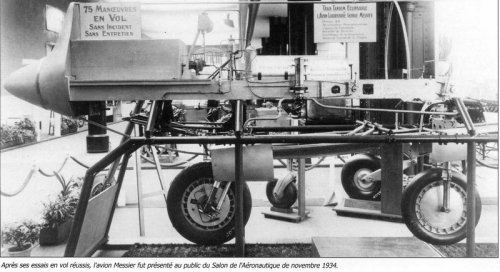

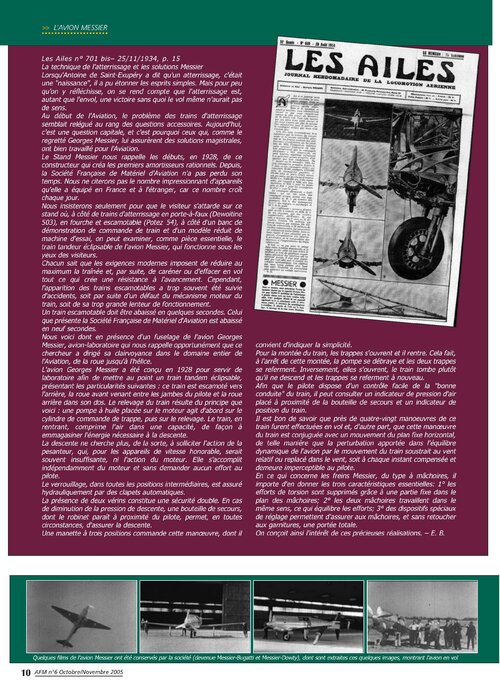

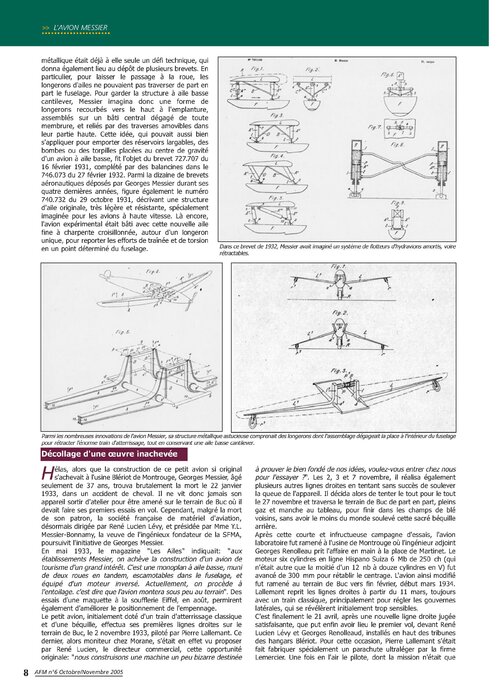

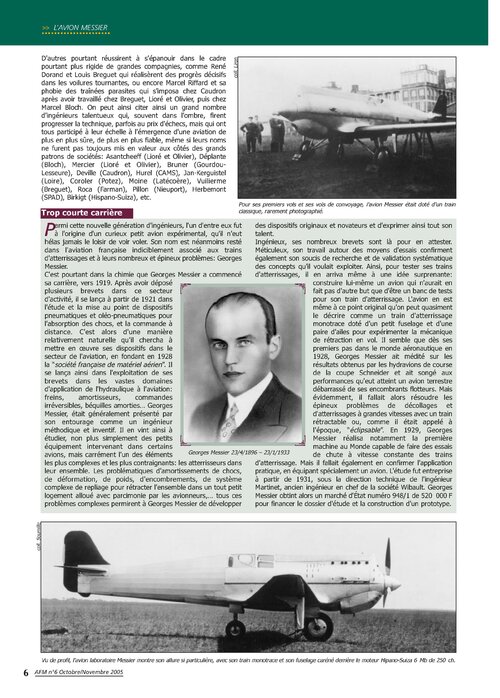

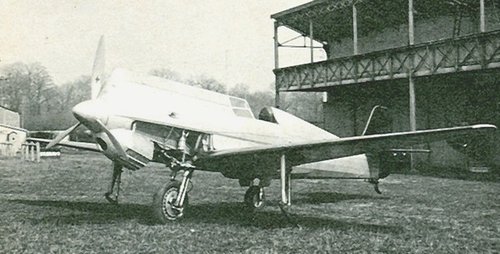

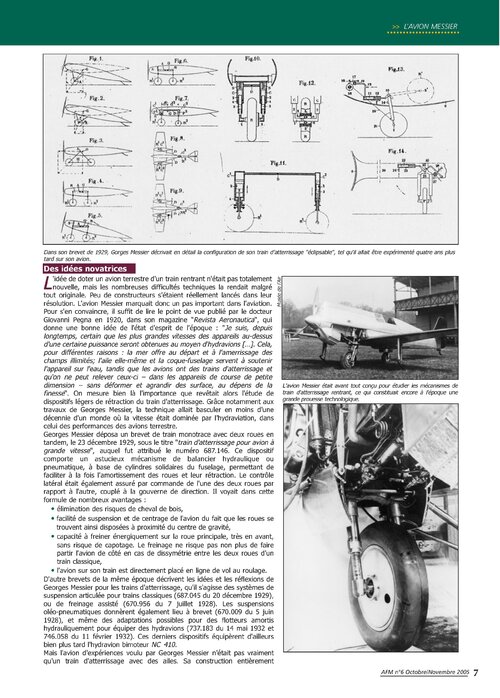

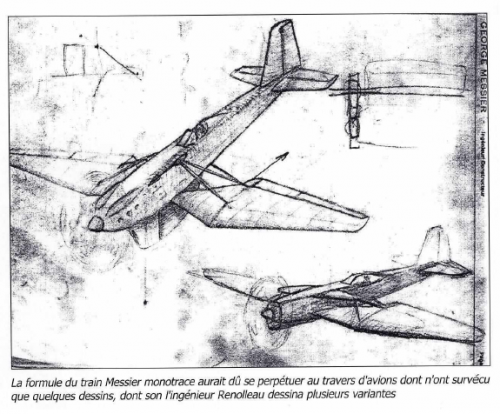

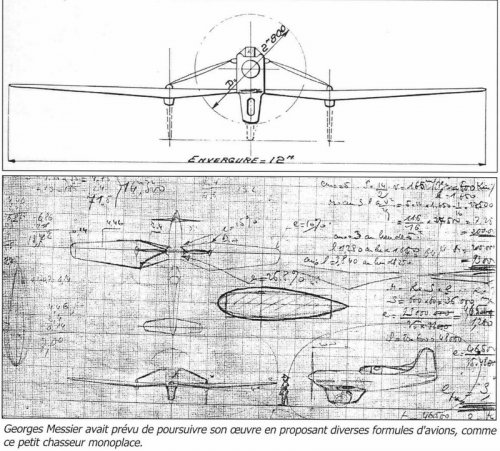

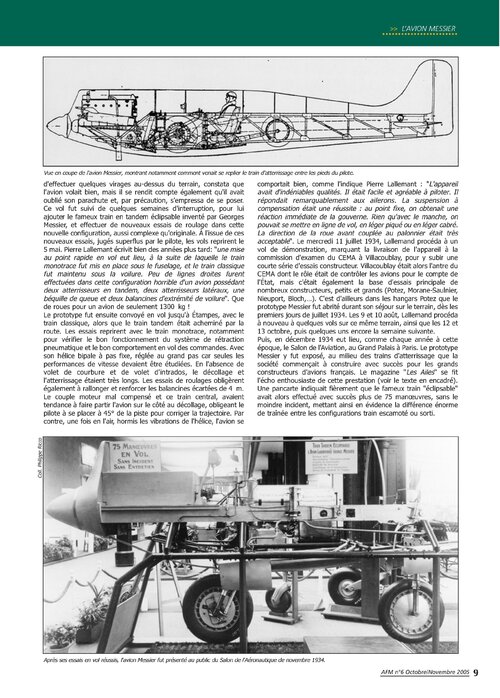

From Aviation Francaise Magazine N°6, Oct./Nov.2005, two further pictures of the landing gear test bed
and a sketch for a light fighter aircraft.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
Wow,great find my dear Jemiba,


and may be this fighter submitted to 1936 lightweight fighter competition.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
414

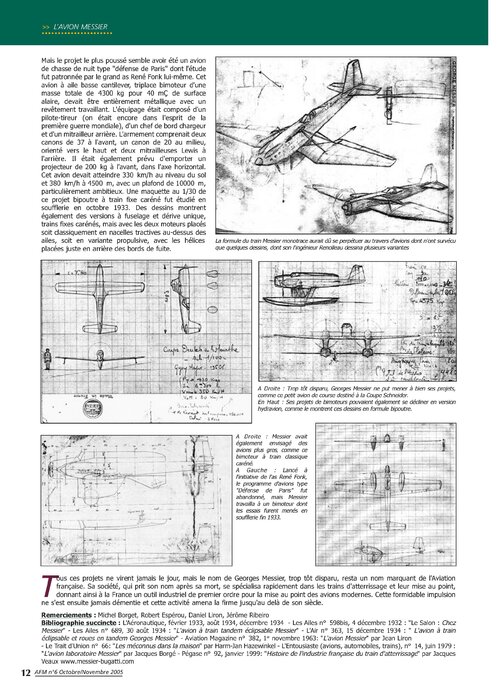

Some more from the mentioned AFM issue:

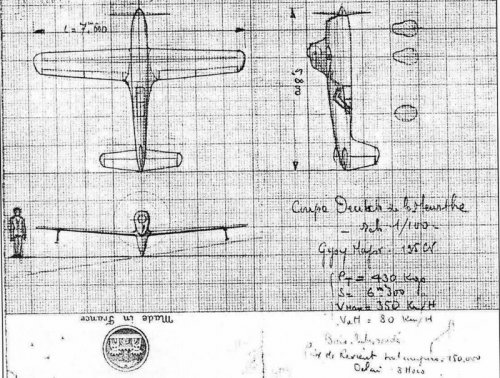

- A design for a racer, intended as a contender for the Coupe Deutsch de la Meurthe (_04)

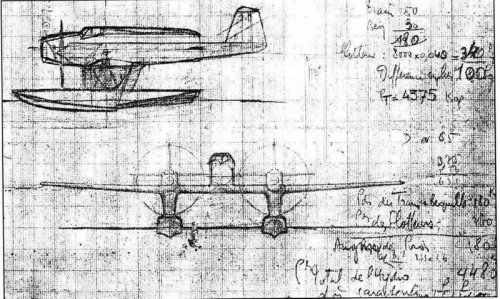

- A twin engined twin boom design, either with single track landing gear, or a more conventional
twin float layout (_06/_07)
- A twin engined heavy fighter, proposed by René Fonk 1933 and called "défense de Paris", armed
with two 37mm guns, tow 20mm guns and two 7.7mm machine guns (_05)


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
That is fantastic my dear Jemiba.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
Jemiba said:
- A twin engined twin boom design, either with single track landing gear, or a more conventional
twin float layout (_06/_07)

My dear Jemiba,


is those project submitted to any competition ?.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,077
Reaction score
414
Sorry, no mention of aany competition, to me it seems, that
those projects didn't go very far.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
hesham said:
Wow,great find my dear Jemiba,


and may be this fighter submitted to 1936 lightweight fighter competition.

Thank you my dear Jemiba,


and may be I am wrong about the year 1936,I think this fighter submitted to 1930
lightweight fighter competition.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
From AFM magazine,


the Messier sketch drawing.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
Hi,

Messier also had a Project for a high-wing airplane with fixed landing gear.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,945
Reaction score
1,739
Hi,

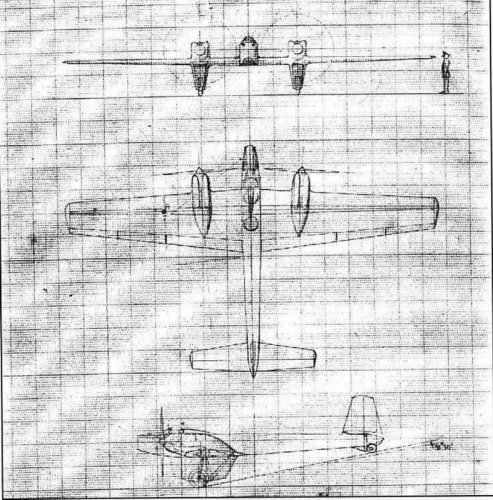

there was anther twin engined monoplane Project,intended as a night fighter.


VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
96
Reaction score
21
Hi, I wonder if anyone can identify the type in the attached picture. To my mind it looks like a fighter design, but I may be wrong.


Attachments

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,712
Reaction score
77
Website
beyondthesprues.com
It looks a little like the Bartini Stal-6 or Stal-8 which makes me wonder if it is related to these. Where did you find the image?


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
564
Reaction score
62
Last edited:

VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
96
Reaction score
21
Thank you gentlemen, need to have something on this site to search images! I did try Google image search but to no avail, hence my request on here.
