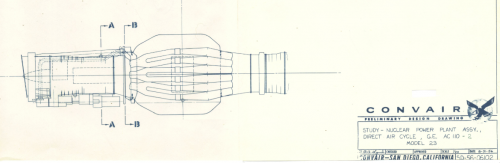

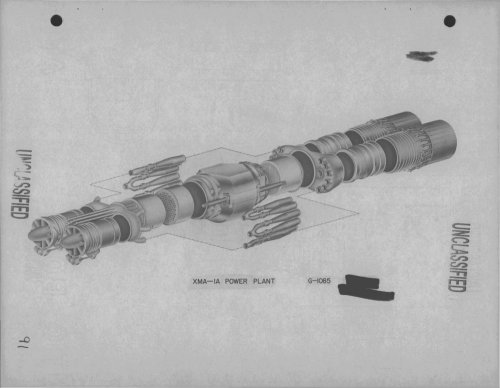

The General Electric AC110-2 Nuclear Turbojet was selected by Convair in 1956 to power their Models 23A and 23B nuclear seaplane bombers / mine layers. Layout of the AC110-2 is very similar to the GE XMA-1A, with a single reactor for each pair of turbojets (one pair in the 23A, two pairs in the 23B).

My questions are:

• Does anybody have some documentation on the GE AC110-2 (reactor MW, engine thrust, etc.)?
• Is this engine design before or after the GE XNJ140E?

Don't worry about the NSA -- you can probably speak freely.


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,013
Reaction score
2

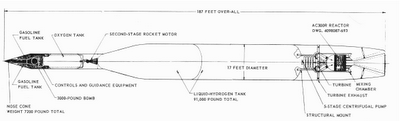

Not exactly what you were after, but interesting especially APEX-910 with various nuclear powered aircraft and missile studies and even nuclear powered ballistic missiles:

APEX-901: Comprehensive Technical Report, General Electric Direct-Air-Cycle Aircraft Nuclear Propulsion Program, Program Summary and References
http://www.osti.gov/scitech/servlets/purl/1048124

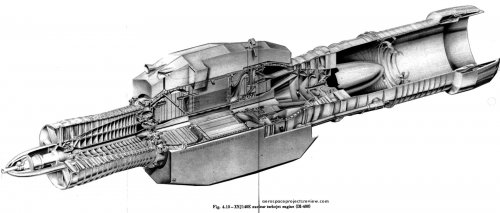

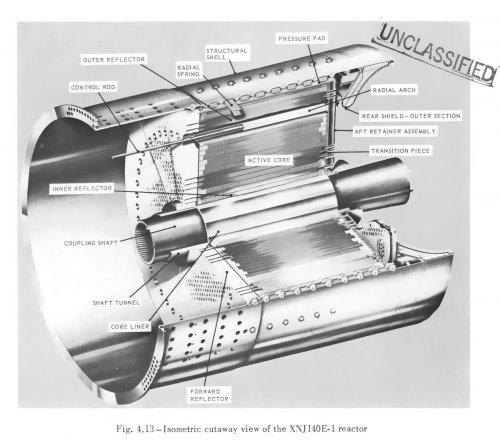

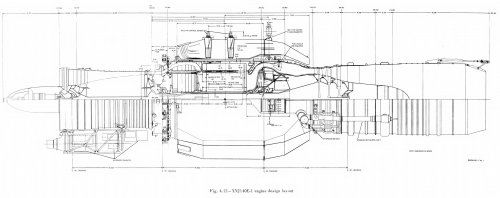

APEX-908 Part B: XNJ140E Nuclear Turbojet Section 4 - Reactor
http://www.osti.gov/scitech/servlets/purl/12555356

APEX-908 Part C: XNJ140E Nuclear Turbojet, Section 5, Shield; Section 6, Turbomachinery; Section 7. Control System
http://www.osti.gov/scitech/servlets/purl/12475089

APEX-910: Aircraft Nuclear Propulsion Application Studies
http://www.osti.gov/scitech/servlets/purl/1048126

APEX-913: Metallic Fuel element Materials
http://www.osti.gov/scitech/servlets/purl/12475098

APEX-918: Reactor & Shield Physics
http://www.osti.gov/scitech/servlets/purl/4491615

APEX-919 : Aerothermodynamics,
http://www.osti.gov/scitech/servlets/purl/1048135


GeorgeA

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2006
Messages
794
Reaction score
1
There are a couple of AC-110 references in the application studies doc (thanks Overscan for posting), including a drawing of a seaplane testbed, but not much in the way of technical detail. There are a handful of wacky designs for things like hydrofoils and TSTOs as well.


The overview doc also has some of that data, and an extremely comprehensive bibliography of the GE ANP program.


Also, just a "duh" moment for me, I never realized the XNJ140 had the reactor mounted in-line with the turbojet. I thought it was a separate unit with ducted airflow to the reactor as in the XMA-1. The XNJ140 configuration, of course, is obvious if you look at the NX-2. As I said, "duh".


circle-5

CLEARANCE: Top Secret
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
0

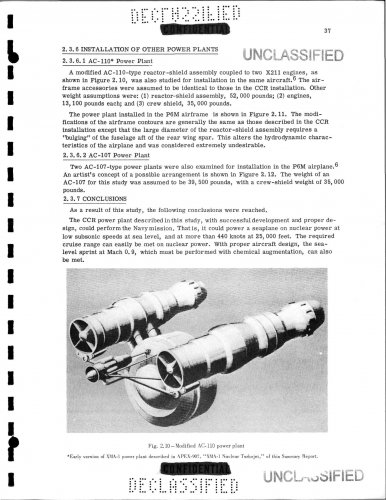

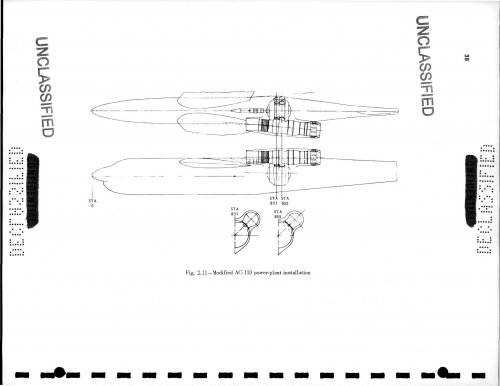

Thank you Paul for all this wealth of information. There's some amazing stuff in these pages! Page 37 of APEX-910 answers my main question: The AC-110 was indeed an early version of the XMA-1. The XNJ-140E came later, by integrating a direct-cycle reactor into each turbojet (XNJ = Experimental Nuclear [turbo-] Jet).

The Convair 23B is interesting in that a single reactor appears to power (Qty.4) X-211 engines. Maybe that arrangement was particular to the AC-110-2 variant.

The Convair 23A was designed around the original AC-110, much like the Nuclear Seamaster.

All the other answers are appreciated as well.


AeroNG

Someone has to make the mistakes
Joined
Apr 13, 2014
Messages
1
Reaction score
0
Sorry to reply to a semi-old post, but I think these two were just declassified / found:

APEX-907 - XMA-1
http://home.fuse.net/engineering/anp/APEX-900/APEX-907%20-%20XMA-1.pdf

APEX-906 - HTRE No. 3
http://home.fuse.net/engineering/anp/APEX-900/APEX-906%20-%20HTRE-3.pdf

(Data was found here: http://home.fuse.net/engineering/anp/documents.htm)


dannydale

CLEARANCE: Secret
Joined
May 13, 2007
Messages
212
Reaction score
0
Looks like it moved.


http://leehite.org/anp/documents.htm


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,038
Reaction score
0
Hi;

http://atomic-skies.blogspot.com.eg/2012/08/apex-901.html


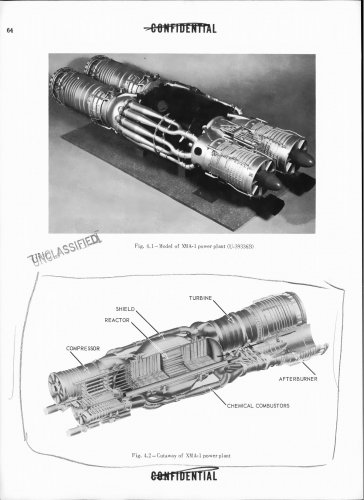

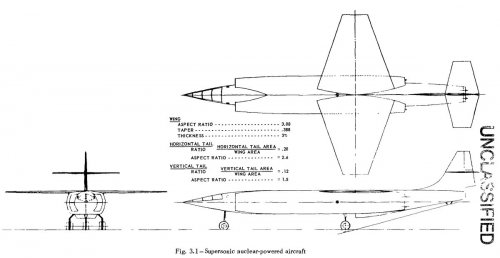

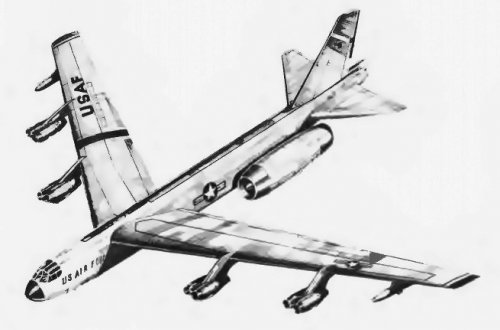

Attachments

moin1900

CLEARANCE: Secret
Joined
Jan 28, 2008
Messages
458
Reaction score
0
Presentation to the Division of Reactor Development of the AEC

Aircraft nuclear propulsion department
General Electric
April 17, 1961

https://www.osti.gov/biblio/983235-presentation-division-reactor-development-aec

Portable nuclear power plant
-Direct Air cycle

NAVY applications
- nuclear hydrofoil
- 601a and 601b power pack
- 4-man nuclear submarine
- ASW nuclear submarine

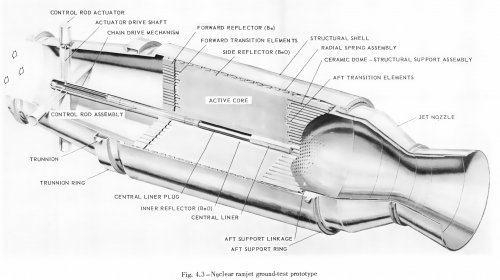

Nuclear ramjet
-SLAM
-LARPIS?

Nuclear rockets

Top
