General Dynamics NASSCO AFSB

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

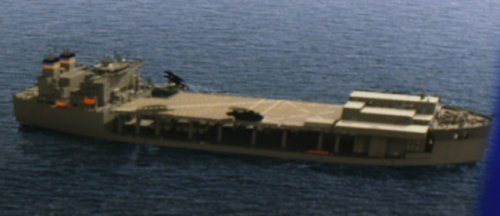

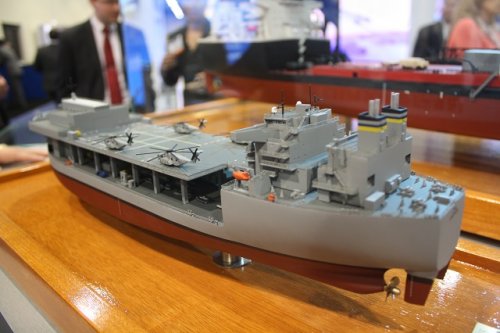

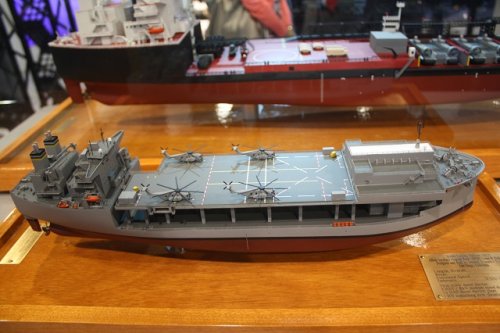

Model and artist's impressions of General Dynamics NASSCO is showing a model of its Afloat Forward Staging Base (AFSB) ship on display at the Navy League’s 2014 Sea-Air-Space Exposition.

The ship is designed to facilitate a wide variety of future mission sets in support of special operations. An accommodation block is located forward for up to 250 personnel for the flight crew or other mission personnel such as Navy Seals or Marines. This space also features a hangar capable of fitting two Sikorsky MH-53 helicopters plus aviation maintenance and mission specific spaces. AFSB will have an endurance of over 9,500 nautical miles at a speed of 15 knots. NASSCO believes that the Navy will order a study on the ability of the AFSB to accommodate the Bell Boeing MV-22.

Source:
http://www.navyrecognition.com/index.php?option=com_content&task=view&id=1731


Attachments

  • General_Dynamics_NASSCO_AFSB_Sea-Air-Space_2014_news_1.JPG
    115.1 KB · Views: 715
  • General_Dynamics_NASSCO_AFSB_Sea-Air-Space_2014_news_2.JPG
    107.3 KB · Views: 690
  • General_Dynamics_NASSCO_AFSB_Sea-Air-Space_2014_news_3.jpg
    54.3 KB · Views: 647

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
Looks like a kind of containerised conversion of a standard freighter/supply ship, doesn't it ?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,995
Reaction score
1,047
It's an adapted tanker design with most of the hull between bow and superstructure cut away. Then ballast tanks were added to enable it to be partially submerged in a controlled fashion. The version without the added flight deck comes at approx half a billion dollars, which is considerably more than a clean sheet design for a commercial semisubmersible of similar size, or indeed a much bigger one.


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
914
Reaction score
491
Arjen said:
It's an adapted tanker design with most of the hull between bow and superstructure cut away. Then ballast tanks were added to enable it to be partially submerged in a controlled fashion. The version without the added flight deck comes at approx half a billion dollars, which is considerably more than a clean sheet design for a commercial semisubmersible of similar size, or indeed a much bigger one.

Yep, Dockwise Vanguard cost approximately 240 million US dollars.

http://www.dockwise.com/page/fleet/vanguard.html

Though it did skimp a bit on superstructure and hull. :)


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,564
Reaction score
693
Dockwise doesn't build in a US yard with Navy oversight. And the $500m figure includes the cost of the "Baseline" module consisting of transfer systems and LCAC "sockets."


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,995
Reaction score
1,047
The transfer system amounts to a ramp that can be used up to sea state 3.
Topic on Montford Point class here:
http://www.secretprojects.co.uk/forum/index.php/topic,14426.msg143570.html#msg143570


ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
9
If the upper superstructure overhang wasn't so serious, the entire thing could have been built a a module that could be rolled off or potentially barged off by the original semisub hull. Which makes the original hullform something of a open seaframe design.


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
914
Reaction score
491
ouroboros said:
If the upper superstructure overhang wasn't so serious, the entire thing could have been built a a module that could be rolled off or potentially barged off by the original semisub hull. Which makes the original hullform something of a open seaframe design.

One of the proposals for the RN OMAR was a barge module that was carried by a standard Flo-Flo, although the pictures of it showed the type of Flo-Flo being used here rather than one wity an open stern.
