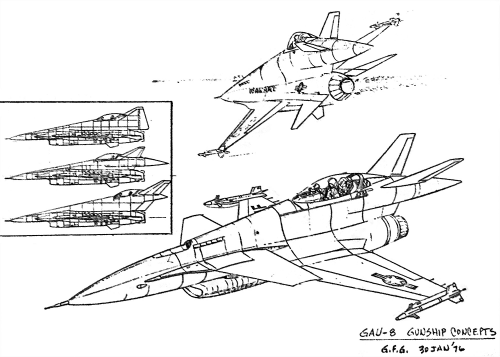

General Dynamics Fort Worth F-16 derived GAU-8 gunship concept (G.F.G) from 1976

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
10,217
Reaction score
819
Thanks to Air21 over at What If Modelers:

Thought this design was already mentioned in an existing SPF thread, but I couldn't locate it. I'm wondering if this design originally grew out of one of the 'Model 402' studies. Also, I wonder if there was a late 1970s semi-official USAF requirement that both this and the Fairchild-Republic NGCAS were aimed at. Whatever the case, it's clearly a first step on the road that led to the A-16 program.


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,643
Reaction score
724
Don't know if every pilot in the USAF would be signing up to fly it or if none would. :eek:


fightingirish

CLEARANCE: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,201
Reaction score
276
It looks as if it was inspired by Lippisch and by the Colonial Viper (Battlestar Galactica). B)


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
12,643
Reaction score
724
fightingirish said:
It looks as if it was inspired by Lippisch and by the Colonial Viper (Battlestar Galactica). B)
Heh. I'd always thought if I had billions I'd have somebody build me a Viper wrapped around 3 EJ230s.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
612
Reaction score
58
Good for speculative cutaway drawing


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,882
Reaction score
437
I'm not buying it as a real project for a second.


sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
616
Reaction score
190
Cleaned up

fightingirish said:
It looks as if it was inspired by Lippisch and by the Colonial Viper (Battlestar Galactica). B)
It reminds me more of some of the late war rear cockpit messerschmitt jet designs.


Attachments

Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,124
Reaction score
213
Totally unrealistic, check.
Totally impractical, check.
Unlikely to be flyable, check.
likely to cost the billions if you had them, check.
Probably as popular as the F-104G with the Luftwaffe, check.
On that basis, great project and likely to feature at an air show not too long into the future.
Very good images/drawings too.


DrRansom

I really should change my personal text
Joined
Dec 15, 2012
Messages
527
Reaction score
6
It looks adorable and straight out of a Japanese anime.

The USAF should fund it immediately as an A-10 replacement.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
1,297
Reaction score
206
If the vent on top of the nose is that of the canon... The pilot seated behind see nothing soon after pressing the trigger.... Not sure if that thing could be popular among the grunts...


cafe

Paper modeller
Joined
Aug 28, 2011
Messages
6
Reaction score
0
Looks like something out of a Leiji Matsumoto anime/manga, preferably piloted by Captain Harlock/Albator or one of his ancestors.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,906
Reaction score
491
You guys are great. Let me try my two cents: it has some Star Wars prequel vibe. A bit like the bastard child of Naboo queen ship and fighter



I second the opinion it might be a whatif / speculative project - I have been a memberof the Whatif modelers forum since 2006.


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,520
Reaction score
543
I'm not going to say this is entirely fake and dismiss it outright. It looks more genuine than any CAD drawing and I don't think this is a cut and paste job.
So I think its provenience is from Fort Worth, but that doesn't mean that it was a serious study. It could well have been an internal joke or April Fool's, or at best a very early speculative study.


cluttonfred

CLEARANCE: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,336
Reaction score
52
Website
cluttonfred.info
I am going to call BS on this one, it looks to me like someone made a what if scale model from an F-16 kit and then created a drawing to go with the model.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,124
Reaction score
213
FCOL guys, it comes from a post on "WHATIF" modelers.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,882
Reaction score
437
Hood said:
I'm going to say this is entirely fake. It looks more genuine than any CAD drawing and I don't think this is a cut and paste job.
So I think its provenience is from Fort Worth, but that doesn't mean that it was a serious study. It could well have been an internal joke or April Fool's, or at best a very early speculative study.
Very true.
Visibility would be 'perfect' too


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,536
Reaction score
478
Website
www.aerospaceprojectsreview.com
Hood said:
So I think its provenience is from Fort Worth, but that doesn't mean that it was a serious study. It could well have been an internal joke or April Fool's, or at best a very early speculative study.
Anther possibility: it's reverse-advertising. Someone - a military guy, a Senator, upper management - came along and said "say, how about we put one of them neato GAU-8A guns into an F-16?" And the engineers/designers who were tasked with pondering this decided that it was a dumb idea and cranked out this design to show just what a nightmare it would be. It might have been sold as "look what a nightmare this would be," or it might have been sold as "look how awesome this would be. Certainly the pilots would love to fly a plane likes this... hey! Where are you going? The presentation has only just begun!!!"


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,838
Reaction score
1,699
Foo Fighter said:
FCOL guys, it comes from a post on "WHATIF" modelers.
Original post:

So I have a friend who works in the Lockheed Martin composite shop, formerly a production model builder. He found this picture of an imagined f-16 ground attack variant while cleaning out an actual display at the Fort Worth, Texas plant.
It looks like it was a genuine drawing to me. My guess is its a joke drawing done at the time (1976) maybe after someone suggested sticking a GAU-8 in an F-16, rather than a serious project, but it's hard to say.


tab28682

CLEARANCE: Restricted
Joined
Aug 29, 2007
Messages
14
Reaction score
7

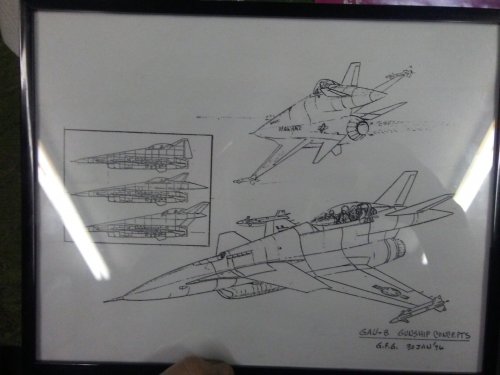

There is a old 1/48th scale model of this concept on temporary display in a small historical display area in a hallway in Fort Worth, so it is more than just a joke. I have a copy of that drawing as well. Certainly no crazier than many other concepts that got more than a casual look.

This, originally, did NOT come from the "What If" model discussion forum.

G.F.G is a pretty good hint......


Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,536
Reaction score
478
Website
www.aerospaceprojectsreview.com
tab28682 said:
There is a old 1/48th scale model of this concept on temporary display in a small historical display area in a hallway in Fort Worth, so it is more than just a joke. I have a copy of that drawing as well.
I for one would be more than a little interested in anything you might have on this, including as many photos as possible of the model.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,838
Reaction score
1,699
tab28682 said:
There is a old 1/48th scale model of this concept on temporary display in a small historical display area in a hallway in Fort Worth, so it is more than just a joke. I have a copy of that drawing as well. Certainly no crazier than many other concepts that got more than a casual look.

This, originally, did NOT come from the "What If" model discussion forum.

G.F.G is a pretty good hint......
Thanks for the information!


TsrJoe

CLEARANCE: Secret
Senior Member
Joined
Jan 2, 2006
Messages
360
Reaction score
68
I have soo got to make a model of that one :)


r16

CLEARANCE: Secret
Joined
Apr 27, 2007
Messages
375
Reaction score
7
f-16 to become the mainstay of USAF
lack of capability in attack (considering early "low powered" A-B types)
against A-7 which was kept in production through the US Senate and Congress to the end of the Cold War ?
A-10 hated by USAF , A-7 can't fit the entire gun , so as a promise that it would happen
and quietly forgotten as soon as contract secured

edit: Have checked the Whatif page . Modellers , you better imagine those early Spitfire exhaust stubs , right after the gun muzzle.

edit2: And , yes , forget the canards .


Jeb

CLEARANCE: Secret
Joined
Jul 2, 2007
Messages
270
Reaction score
19
Seeing as how the date on the drawing is from January 1996, I bet this is a jokey answer to "the GPU-5 didn't work on the A-16...what do we do now?"


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,422
Reaction score
286
Jeb said:
Seeing as how the date on the drawing is from January 1996, I bet this is a jokey answer to "the GPU-5 didn't work on the A-16...what do we do now?"
Zoom it all the way -- it's '76 not '96.


Jeb

CLEARANCE: Secret
Joined
Jul 2, 2007
Messages
270
Reaction score
19
Is it really? I couldn't tell, but that seemed awfully early.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,422
Reaction score
286
tab28682 said:
This, originally, did NOT come from the "What If" model discussion forum.

G.F.G is a pretty good hint......
Care to spell it out for those of us who aren't recognizing the hint?


r16

CLEARANCE: Secret
Joined
Apr 27, 2007
Messages
375
Reaction score
7
a jokey answer to "the GPU-5 didn't work on the A-16...what do we do now?"
actually true in the sense the short Avenger would have been offered in the same timeframe and refused as radiation seeding required the cover of anti-tank work . As long as the penetration tables of the short and long prove there are no difference ...

and while no engineer , ı would assume a twin engine set up and finding something else for ranging would make a more palatable plane (far less of wetted area?) , with equally no chance of purchase with USAF set on the PW's F-100 .


pedrospe

CLEARANCE: Secret
Joined
Feb 9, 2010
Messages
272
Reaction score
16

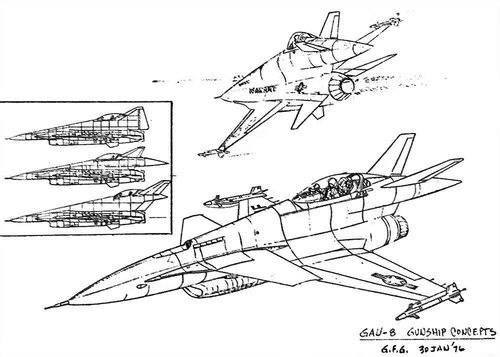

Hi, i found this on the internet, does anyone know anything about this concept.

00 Gunship.jpg
