GAF Jindivik - Drawing Request

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,196
Reaction score
900
Website
beyondthesprues.com
Hi folks,

Does anyone have any good quality 3-view drawings of the GAF Jindivik variants. I've tried searching online but can't find any decent ones.

Regards,

Greg


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,404
Website
www.amazon.com

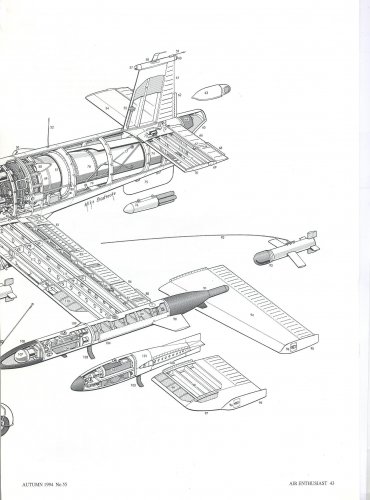

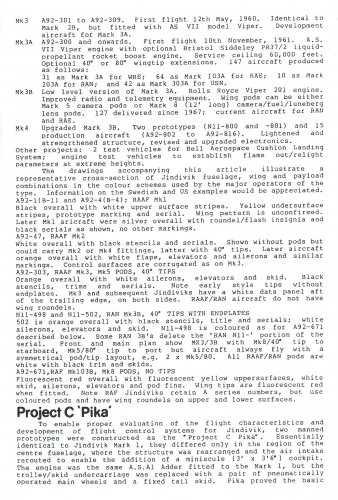

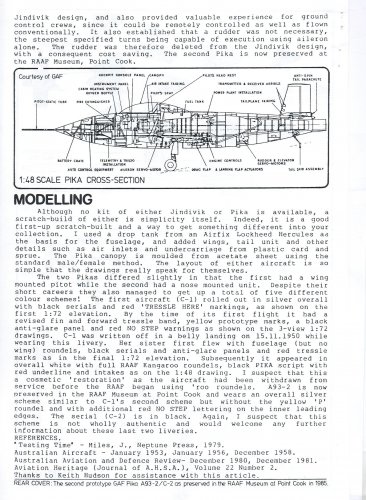

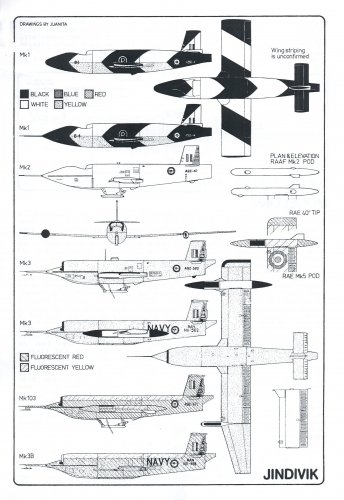

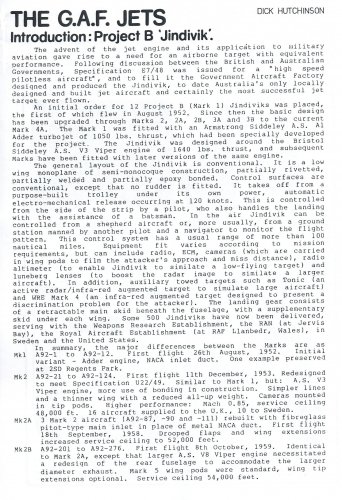

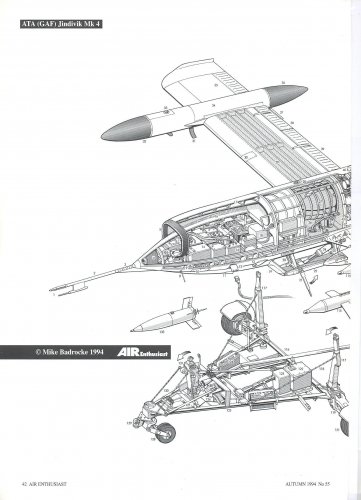

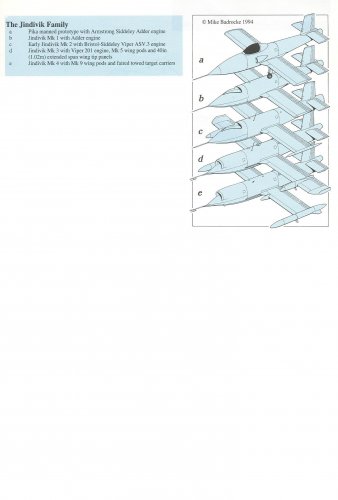

From Air Enthusiast Nº55 and APMA 3/85 -Post-1


Attachments

  • Escanear0034.jpg
    225.3 KB · Views: 109
  • Escanear0035.jpg
    417.9 KB · Views: 94
  • Escanear0036.jpg
    408.2 KB · Views: 77
  • Escanear0041.jpg
    672.5 KB · Views: 57
  • Escanear0043.jpg
    637.9 KB · Views: 50
  • Escanear0044.jpg
    413.1 KB · Views: 88

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,762
Reaction score
3,404
Website
www.amazon.com

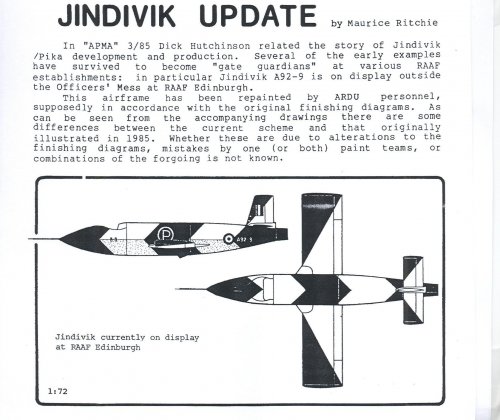

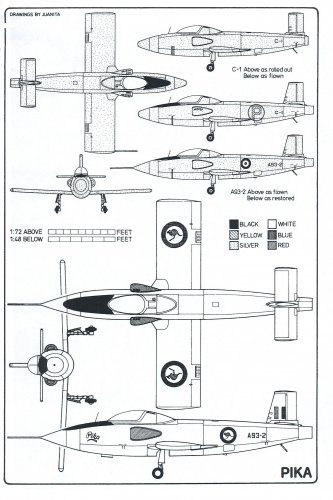

From Air Enthusiast Nº55 and APMA 3/85 -Post-2


Attachments

  • Escanear0045.jpg
    653.4 KB · Views: 56
  • Escanear0046.jpg
    401.6 KB · Views: 73
  • Escanear0047.jpg
    232.5 KB · Views: 57
