Future European Strategic Transport

apparition13

I really should change my personal text
Joined
Jan 27, 2017
Messages
235
Reaction score
381
"Strategic" and "outsize" brings to mind something that can carry an MBT intercontinental. C-17 is the small end of that scale. An-124 and C-5 are the large. Well, An-225 is the large, but that's a one off so far. I suppose something like the ATOCA KC-33 proposal from Boeing in the competition the KC-10 won could also work. That involved raising the cockpit to create a single diameter space, adding a kneeling capability to the front wheels, and a fold up nose and ramp to allow for roll-on and roll-off, resulting in 105 tonnes of capacity including an Abrams. Can any of the large Airbus aircraft be redesigned to carry Challenger/Abrams/Leapard 2, assuming a similar kind of design as ATOCA?


Rhinocrates

ACCESS: Top Secret
Joined
Sep 26, 2006
Messages
791
Reaction score
1,541
Can any of the large Airbus aircraft be redesigned to carry Challenger/Abrams/Leapard 2, assuming a similar kind of design as ATOCA?
In principle I would think so, considering the scope of the changes made to create the Beluga and its XL version.


Capacity is 47 tonnes for the regular and 50 for the XL and they obviously need specialised loading facilities. They're designed for outsize, not heavyweight cargo.

A cargo version of the A380 was proposed but not built. 150 tonnes in this case.


Production of the A380 ends with the delivery of the final aircraft to Emirates in December. I presume the tooling will be scrapped.

I suppose that in principle some second-hand A380s could be Belugized. That seems unnecessarily complicated though. Moreover the airframes and landing gear of civil aircraft would be hard to adapt to military requirements.

Antonov has floated the idea of resuming An-124 production:

In August 2014, it was reported that plans to resume joint production of the Antonov An-124 had been shelved due to the ongoing political tensions between Russia and Ukraine.

https://en.wikipedia.org/wiki/Antonov_An-124_Ruslan


Maybe that might be a route, if a need were identified, with a joint venture not with Russia but with NATO/EU or individual states. It could be called the An-124MF ('MF" for 'Middle Finger' - to Putin).

Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,325
Reaction score
6,321
Back in 1999 Airbus made a (desperate) Beluga bid to Great Britain against C-17s. Did not worked too well... Belugas are not build for "rough" fields and military missions (Kandahar airfield !)


Fluff

ACCESS: Top Secret
Joined
Sep 9, 2019
Messages
756
Reaction score
641
So much horror at some of these suggestions! The beluga's are purpose designed to carry wings, with that 47 tons spread out throughout the length of the fuselage, not built to take a Stripped down Challenger tank, no matter how carefully driven. Also the Beluga's use purpose built loading and unloading buildings, they dont have cranes, ramps etc.

Hacking an A380 with a large jigsaw, again, built for 500 wee people, not for tanks.

Either update or copy the C17 or refresh the AN124 with western engines and new avionics.

And given the torture and cost to Airbus of the A400 I cant see them volunteering to lead this, for the glory of total sales of 24 airframes, over 20 years......


apparition13

I really should change my personal text
Joined
Jan 27, 2017
Messages
235
Reaction score
381
So much horror at some of these suggestions! The beluga's are purpose designed to carry wings, with that 47 tons spread out throughout the length of the fuselage, not built to take a Stripped down Challenger tank, no matter how carefully driven. Also the Beluga's use purpose built loading and unloading buildings, they dont have cranes, ramps etc.

Hacking an A380 with a large jigsaw, again, built for 500 wee people, not for tanks.

Either update or copy the C17 or refresh the AN124 with western engines and new avionics.

And given the torture and cost to Airbus of the A400 I cant see them volunteering to lead this, for the glory of total sales of 24 airframes, over 20 years......
"Using a gradual approach" implies to me something other than a clean sheet design, hence my question about modifying an Airbus.

I agree with you on both the An-124 and C-17. I have my doubts about Antonov since Ukraine doesn't seem to have the capacity to build much of anything in any quantity right now. I suspect getting those lines running again would be almost as big an investment as restarting C-5 production, but buying Antonovs (An70 is also a promising design) would also be a way to support Ukraine against Putin.

Shutting the C-17 production line falls into the "worst decisions in aviation history" category for me. It was the only strategic transport being produced; shutting production of the only anything being produced is idiotic. If you're concerned with airfields, the C-17B proposal with rough field capability could have addressed that. Personally I like the C-17FE design as well, and think with its rough field capability it would have made a good replacement for the C-135 airframe in the KC, AWACS, ELINT, etc. roles. A fine way to untether all those large support aircraft from long runways.

If you're really in the mood to replace the C-130 the Embraer 390 and Kawasaki C-2 (a bit bigger, but longer ranged and airliner fast) are both in production. I don't know if they would need to be modified for rough field operations or not, but it should be quicker than a new design. Or help Antonov get the An-70 up and running. Any of those options would be better than waiting 20 years for a new design to mature.


stealthflanker

ACCESS: Top Secret
Senior Member
Joined
Feb 12, 2010
Messages
1,012
Reaction score
927

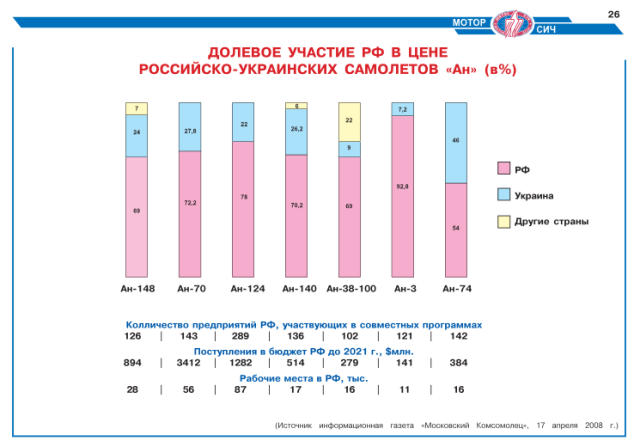

I would say antonov large transports are out of questions. due to how dependent they are to Russia. That includes AN-70 whose 70% of its components are Made in Russia. and AN-124 also accounts for considerable amount of Russian parts.



isayyo2

Lurker alert
Joined
Nov 24, 2011
Messages
550
Reaction score
747
Sensible but unlikely option: license the An-124 design, update design with Airbus avionics and Western engines, build in Airbus factories.
Certainly wouldn’t be the first time it’s been mused; four Trents on a An-124 derivative would be handsome.


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,081
Reaction score
604
Thread has gotten a bit muddled by splitting it off.

On 16 nov 2021, the European Council has adopted a new wave of joint projects within the Permanent Structured Cooperation (PESCO) framework.

One of these is for a new strategic transport:
  • Strategic Air Transport for Outsized Cargo
    The 5-nation project Strategic Air Transport for Outsized Cargo (SATOC) aims to fill the critical shortfall for strategic transport for outsized and heavy cargo, a crucial enabler for military missions and operations. SATOC involves a gradual 3-step approach, firstly by identifying a sufficient number of project members – with possible third state participation, harmonising requirements and finally identifying and agreeing on a common European solution for the transport of outsized cargo.

    The five participating nations are: Germany, Czechia, France, Netherlands, Slovenia. An initial project timeline for the collection and harmonisation of requirements will run until 2023 with a possible agreement on a European solution and a follow-on project foreseen in 2026.

More details:

In 2018, it was estimated that two-thirds of the needs of the French forces in terms of strategic airlift to foreign theaters of operations depended on the charter of “oversized” civilian planes, i.e. under the SALIS contract. [Solution intérimaire pour le transport aérien stratégique] awarded by NATO to a private company [Antonov Logistics Salis, en l’occurrence], or via a so-called “order form” procedure, which gave rise to the opening of an investigation by the National Financial Prosecutor’s Office because of hiring deemed “excessively expensive” of wide-body aircraft by the Ministry of the Armed Forces.

But in either case, this strategic airlift capability relies essentially on the AN-124-100 aircraft, capable of carrying a load of 120 tonnes in a single flap, and incidentally. [sous réserve des disponibilités] on type AN-22 and IL-76 devices.
So France initiated this.
If it had not been canceled in 2007, the Airbus A380-800F cargo project, with its capacity to carry up to 150 tonnes of cargo, could have been the ideal candidate for the SATOC program… Also, will it probably be necessary to develop a new aircraft, as suggested in November 2018 by General Philippe Lavigne, then Chief of Staff of the Air & Space Army? [CEMAAE]. Defending the idea of a “European runway in the field of very heavy and very large volume air transport”, he had indeed declared: “There is certainly a place for a large European heavy transport aircraft. […] We have a great aeronautics industry to face this challenge ”.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
4,797
Reaction score
4,312
The most amazing thing there might be that nobody unleash on them an onslaught of insults for writing down the result of their analysis when those that similarly did the same a decade ago were systematically subject to such.

Amazing.

Last edited:

Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,081
Reaction score
604
From the Pesco Project Proposals Assessment Report:

The RC sets the necessary number and
the PC identifies a lack of large “C17 – type” aircrafts contributing to achieve the EU
CSDP military LoA. The lifecycle for the remaining AN-124 fleet (the mainstay for the
strategic transport of over- and outsized cargo) is coming to an end and no
replacement is envisioned. From this perspective, the proposal mainly focuses on
consulting the main companies and see if they are able to transform existing planes
and provide Strategic transport as a service. The project mainly aims at providing a
feasibility study in the short term, but capabilities are unlikely to be provided in order
to support the EU military LoA in the short term (2026). In its current form, the project
does not seem to address any Operational Collaborative Opportunity.
RC=Requirements Catalogue
Currently, the project is a consultation of
existing industries to conduct a feasibility study, it will not bring new capabilities.
At this stage, it is understood that the project
may not provide capabilities committed to the Force Catalogue but Strategic Air
Transport as a service by contracting an industrial. Nonetheless, given the existing and
planned fleets of A 400M, this would greatly mitigate the related shortfall for loads
which are above A400M capabilities. Nonetheless, it appears that this program may
not be available to CSDP missions and operations in the medium term.


apparition13

I really should change my personal text
Joined
Jan 27, 2017
Messages
235
Reaction score
381

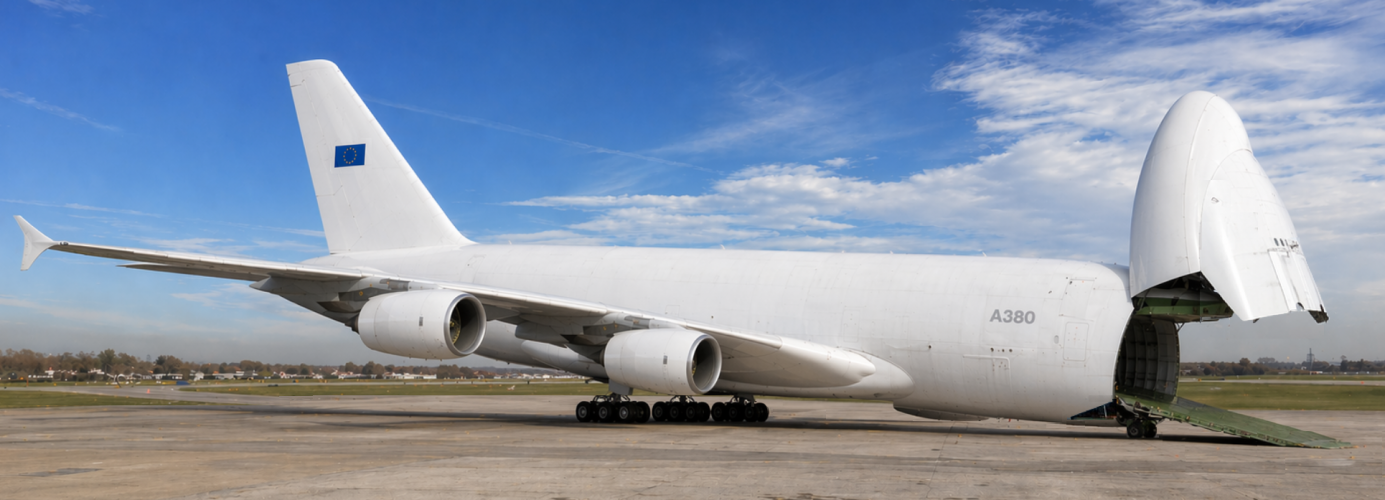

If they looked at an A380 freighter, then the obvious solution is to buy and convert a number of A380s that are being retired due to economic reasons. It would be faster and cheaper than building from scratch. Heck, buy the lot, convert a few, and keep the rest for spares. If the airlines are planning on scrapping them anyway it may be possible to get a lot of them cheap.

If the An-124 (and An-22) have been providing the service in the meantime, there may also be an opportunity to work with Ukraine to build new ones, but probably not in the Ukraine since I'm getting the impression the workforce doesn't exist for new build aircraft. A co-production agreement with Airbus might make sense.

Either way, the C-17 shutdown decision keeps looking worse and worse to me.


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,081
Reaction score
604

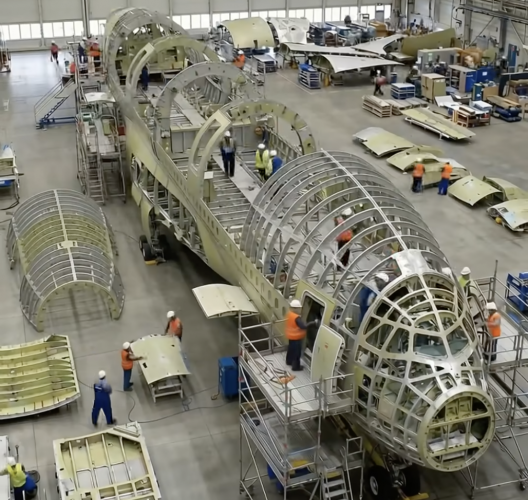

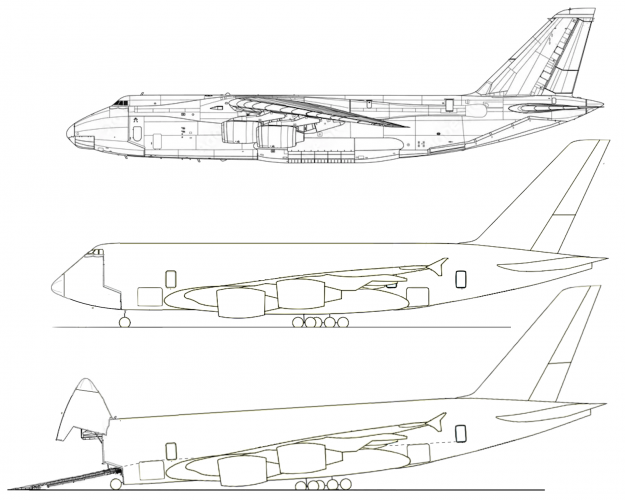

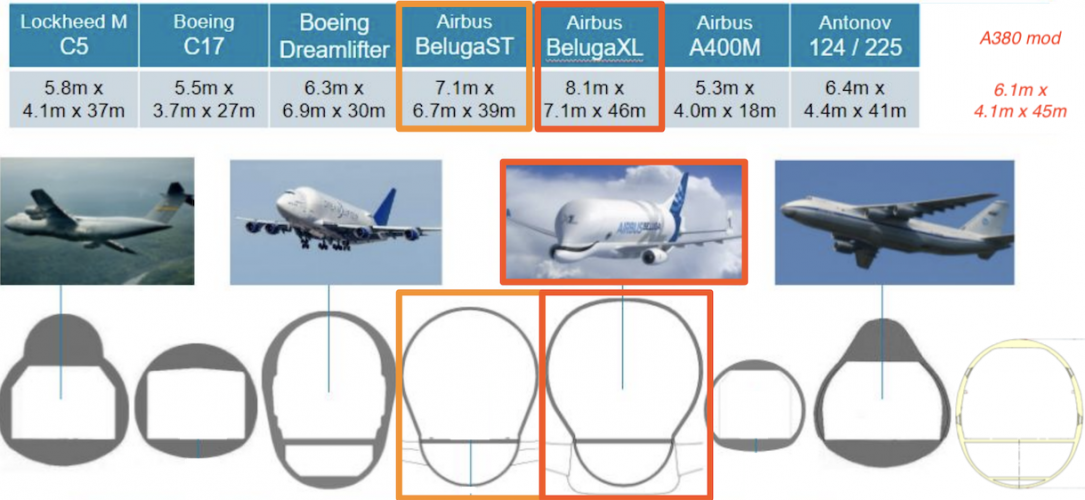

An-380 isn't a good starting point for an outsize-loads transport: the upper deck floor gets in the way. You can't easily remove it either as it holds the fuselage in shape. This severely limits the height of the loads you can carry (no more than 2.5m height over the main deck, compared to 4.5m for the An-124). Its payload is enormous (150t), but it's more suited for LD3 containers than outsize loads.


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
4,797
Reaction score
4,312
A380's wing might be a good start to do it quickly. But then CFRP would do even better.
Forget about the fuselage. But most systems might do as well.
