This seems to be the famous Cobra ramjet which was tested in 1945. IIRC it was test vehicle of the project Bumblebee to develop an anti-kamikaze missile for the US Navy.

http://www-personal.umich.edu/~buzznau/bmblbee.html

http://www.astronautix.com/lvs/cobrabtv.htm


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
31
Here is another anti-Kamikaze rocket!
http://www.designation-systems.net/dusrm/app1/sam-n-2.html


KJ_Lesnick

ACCESS: Top Secret
Joined
Feb 13, 2008
Messages
1,045
Reaction score
46
How did they test such a ramjet? Back then were there even any supersonic wind-tunnels in the US or England?

Kendra Lesnick


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,173
Reaction score
122
Semiannual report on Project Bumblebee.

http://www.dtic.mil/dtic/tr/fulltext/u2/c955072.pdf


pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
1,061
Reaction score
443
KJ_Lesnick said:
How did they test such a ramjet? Back then were there even any supersonic wind-tunnels in the US or England?

Kendra Lesnick


Free flight test. Strap boosters on it to get it up to speed, and away you go. They would track the thing via kinetheodolites, and then a bunch of people with slide rules and calculating machines had to resolve the azimuth and elevation data from two or more of these (recorded on film as the missile was optically tracked) into three-dimensional position/time data that could then in turn be refined to yield performance details.


As electronics improved, on-board telemetry with increasing numbers of data channels became possible. Early test vehicles had to be recovered and the data (etched onto film in flight) hopefully recovered intact.


Peter Morton's Fire Across the Desert, a history of the Woomera Rocket Range, doesn't relate directly to this project (it's purely Anglo-Australian) but provides an excellent description of the whole range-testing process, including the way it was gradually automated over the years.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820

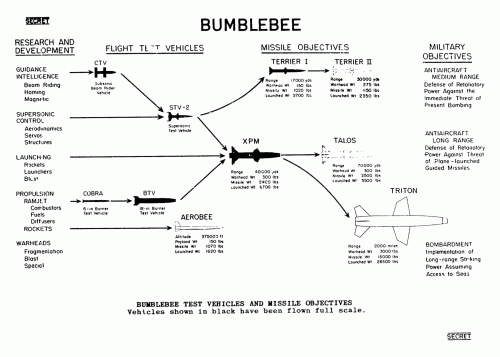

A very interesting diagram showing the evolution of the BUMBLEBEE program:


Attachments

  • Bumblebee.gif
    143.3 KB · Views: 230

pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
1,061
Reaction score
443
Triton would have been quite the impressive beast had they ever built it. Talos on steroids, and then some!!


Makes you wonder what sort of performance you would get out of a Talos-sized missile today.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820

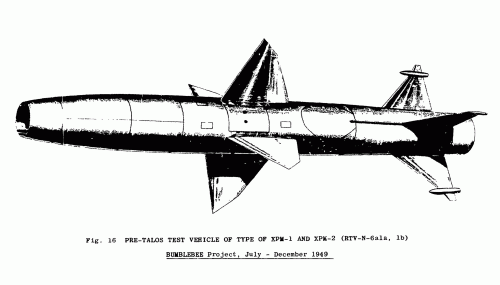

And here's a picture showing the general configuration of the XPM test vehicles:


Attachments

  • XPM artwork.gif
    XPM artwork.gif
    211.8 KB · Views: 196

sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,614
Reaction score
3,535
pathology_doc said:
Triton would have been quite the impressive beast had they ever built it. Talos on steroids, and then some!!


Makes you wonder what sort of performance you would get out of a Talos-sized missile today.

It's called Brahmos. ;) (Of course it could have been Fasthawk. . . )
