Fiat G.222 V/STOL airlifter

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498

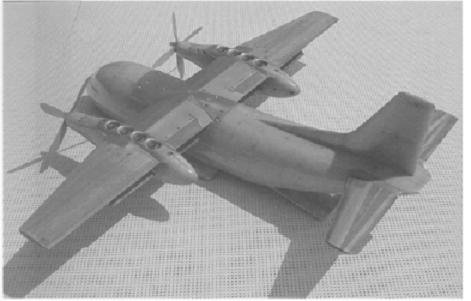

The Fiat G-222 with eight lift engines.


Attachments

  • Fiat G-222.JPG
    Fiat G-222.JPG
    18 KB · Views: 891

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,252
Reaction score
1,912
archipeppe said:
This project seems to have some point of contacts with the original draft for the Aeritalia (now Alenia Aeronautica) G 222 "Cervino", eventually evoluted into G222 first and C27 then.

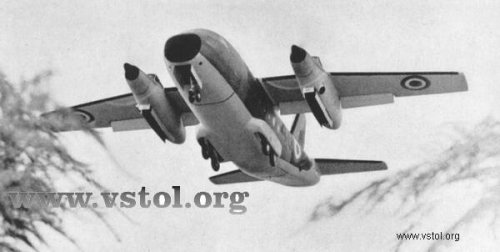

The original G222 project foresee a VTOL cargo aircraft with two turboprops, squared fuselage section and vertical jet pods designed to provide logistic support to FIAT G95 V/STOL supersonic fighters.

When the G95 family vanished, the G222 lose its VTOL capability remaining a pure STOL cargo.

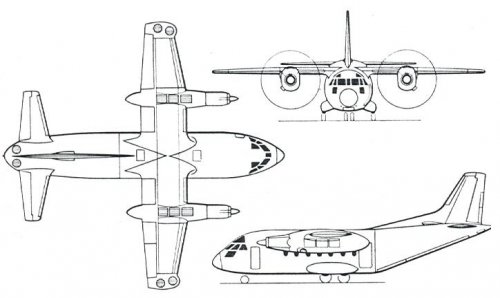

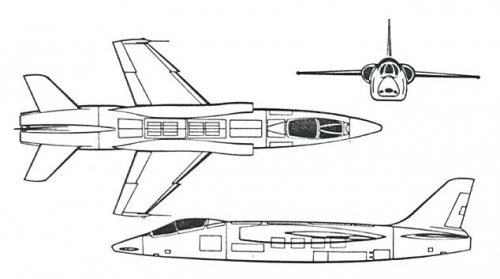

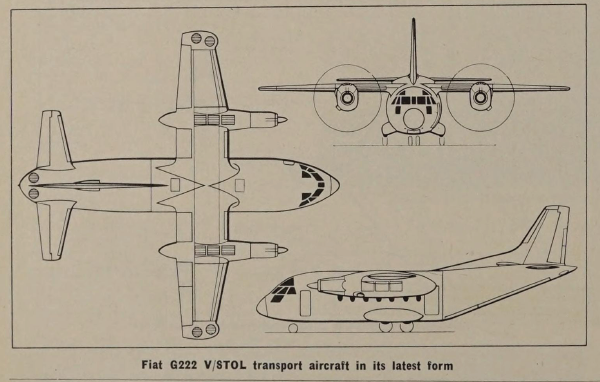

Plese see attached some drawings of Fiat G 55/4 VTOL and Fiat G 222 VTOL variants


Attachments

  • Escanear0003.jpg
    25.9 KB · Views: 778
  • Escanear0004.jpg
    35.1 KB · Views: 807

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,680
Reaction score
311
Many, many thanks Justo for this preciuos contribution.
I've really missed these detailed 3 views.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,475
G95 already has its own topic:

http://www.secretprojects.co.uk/forum/index.php/topic,851.0.html


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,680
Reaction score
311
Emh....sorry Justo, but this thread has to be renamed.
There is no Fiat G55/4 but G95/4 instead.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128
There were two versions of the G-222. One is that depicted, the other was a twin-boom.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
128

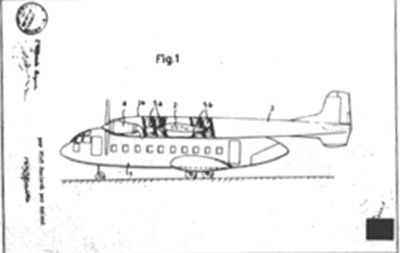

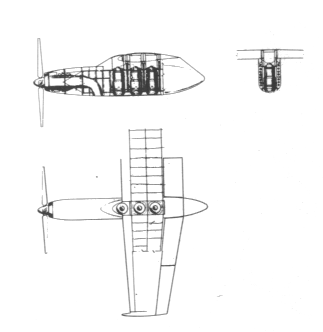

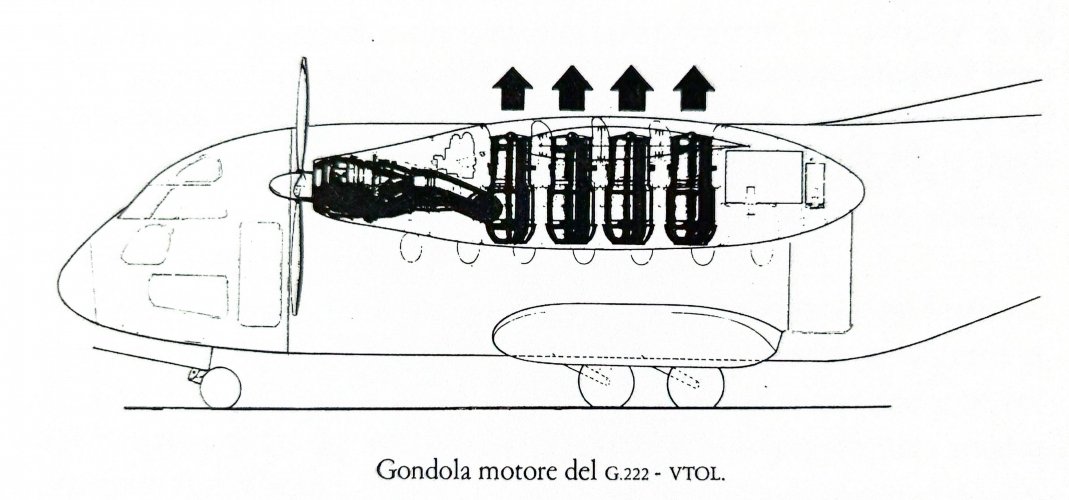

Here. From Gabrielli's patents. First is the twin-boom version, second is the internal arrangement of the tractor prop and the lift engines.


Attachments

  • G-222_bitrave.gif
    30.9 KB · Views: 694
  • G-222_dettaglio_gondola.gif
    16.2 KB · Views: 667

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
234

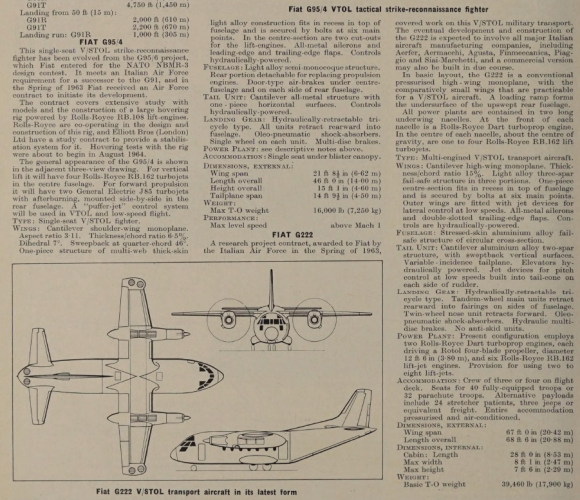

fiat G.222 VSTOL and G.95/4:-

http://www.flightglobal.com/PDFArchive/View/1963/1963%20-%200932.html

cheers,
Robin.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
80

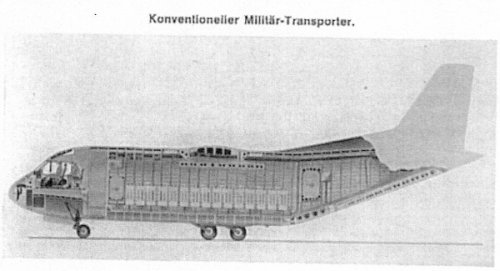

Variants...

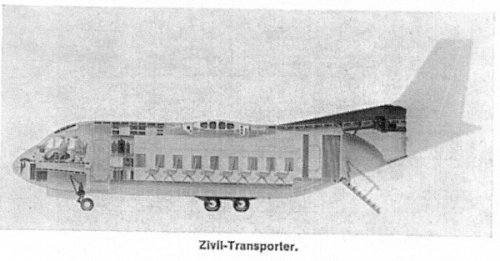

Attachments

  • scan0010c.jpg
    90.2 KB · Views: 143
  • scan0010b.jpg
    99.2 KB · Views: 113
  • scan0010a.jpg
    99 KB · Views: 110

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,680
Reaction score
311

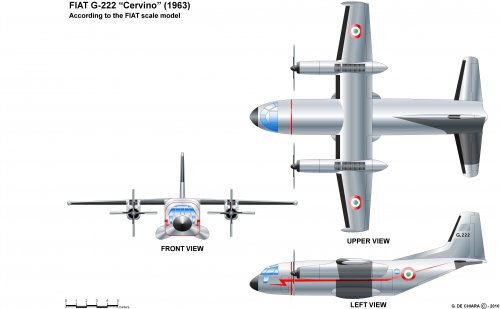

Here it is the early G-222 "Cervino" configuration of 1963.


Attachments

  • FIAT G 222 Cervino.jpg
    FIAT G 222 Cervino.jpg
    413.1 KB · Views: 161

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,680
Reaction score
311

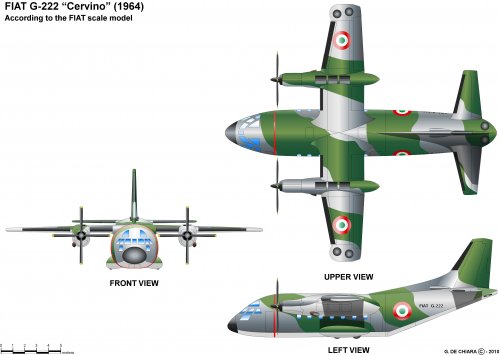

Here it is the 1964 version, substantially a prelude to the actual G-222/C-27 family.


Attachments

  • FIAT G 222 Cervino 1964.jpg
    FIAT G 222 Cervino 1964.jpg
    446.8 KB · Views: 148

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

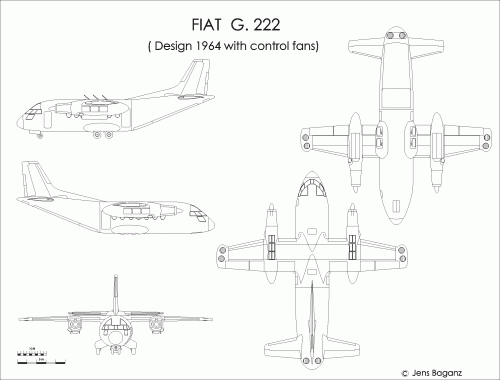

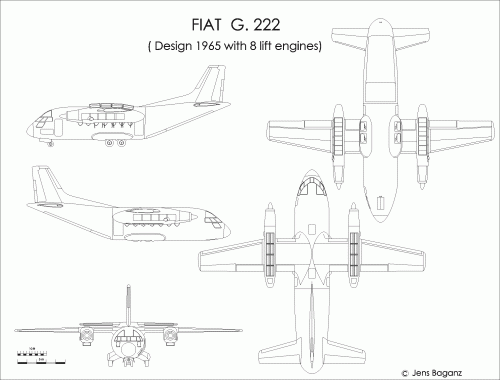

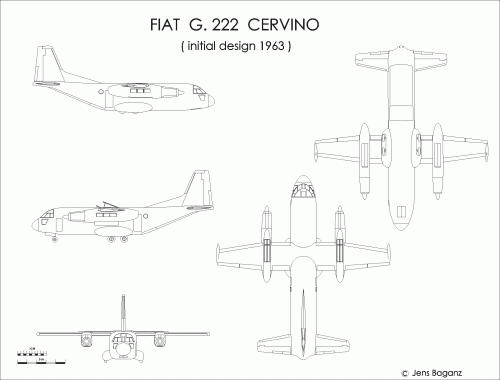

Three stages in the design of the G.222, from te initial design in 1963 (called "Cervino" (Deer)),
to the design from 1965 with eight R.B.162 lift engines.


Attachments

  • Fiat_G-222_01.gif
    38.9 KB · Views: 914
  • Fiat_G-222_02.gif
    45.2 KB · Views: 910
  • Fiat_G-222_03.gif
    46.8 KB · Views: 891

Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
615
Reaction score
57

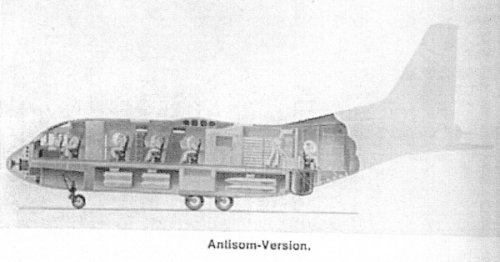

Does anybody have anything more on the G-222 ASW variant which was a CTOL version ?
Cheers
Geoff


painstaking

ACCESS: Restricted
Joined
Aug 21, 2008
Messages
6
Reaction score
0
Jemiba said:
Three stages in the design of the G.222, from te initial design in 1963 (called "Cervino" (Deer)),
to the design from 1965 with eight R.B.162 lift engines.

the name comes from Monte Cervino (Matterhorn) and not from a little deer (cervo in italian) ;)
the Fiat G212 CP of 1949 was named Monterosa (another top mountain in italian alps)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Skybolt said:
Here. From Gabrielli's patents. First is the twin-boom version, second is the internal arrangement of the tractor prop and the lift engines.


Hi,

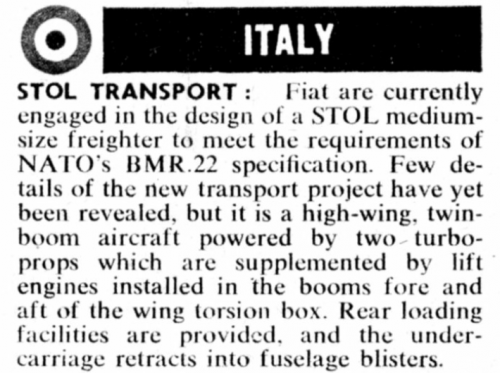

and maybe this aircraft was submitted to NBMR.22 by Fiat for V/STOL medium size
freighter and transport aircraft.


FR 12/1958


Attachments

  • G-222_bitrave.gif
    30.9 KB · Views: 516
  • 1.png
    286.1 KB · Views: 501

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

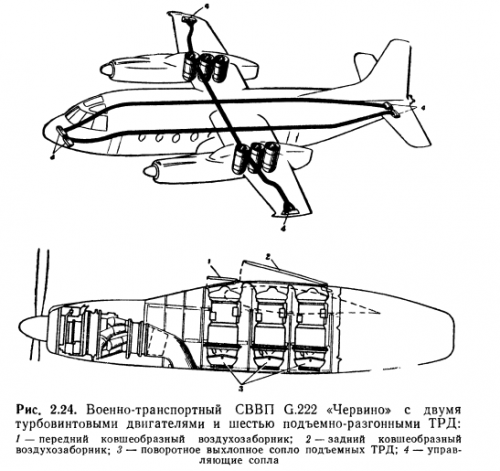

here is the Fiat G.222 V/STOL aircraft project in detail for lift fan working.


Самолеты вертикального взлета и посадки (1966)


Attachments

  • G.222.png
    79.5 KB · Views: 57

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,735
Reaction score
3,498
Hi,

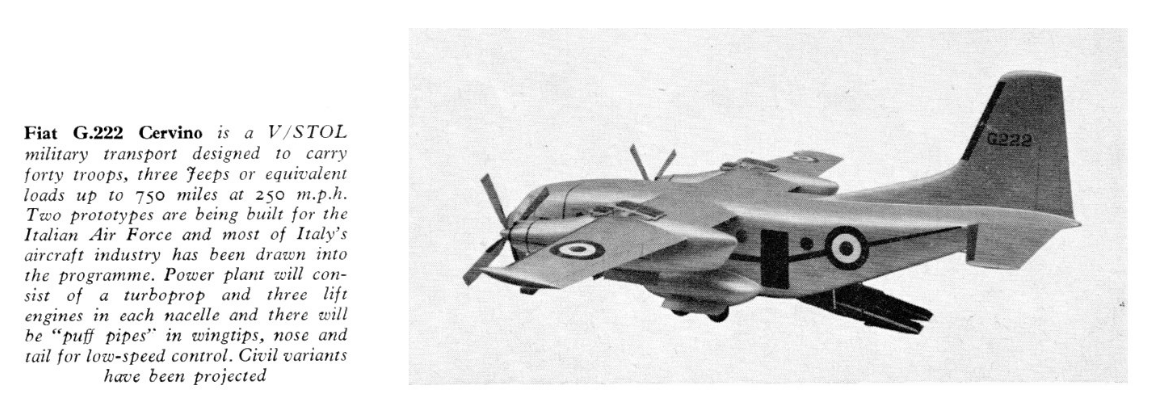

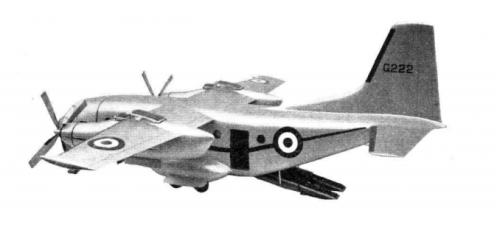

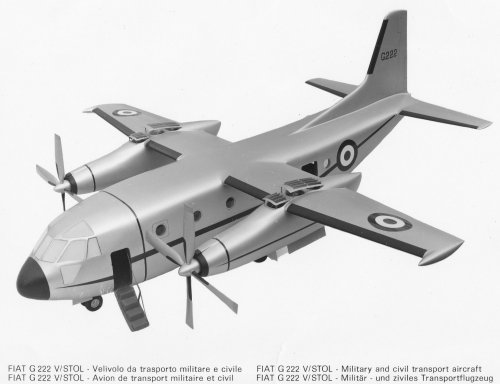

the Model for G.222 V/STOL aircraft.


http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200932.html


Attachments

  • 1.png
    92.2 KB · Views: 65

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
197
Geoff_B said:
Does anybody have anything more on the G-222 ASW variant which was a CTOL version ?
Cheers
Geoff

I second this question! :p

Regards
Pioneer


ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
93
Reaction score
35

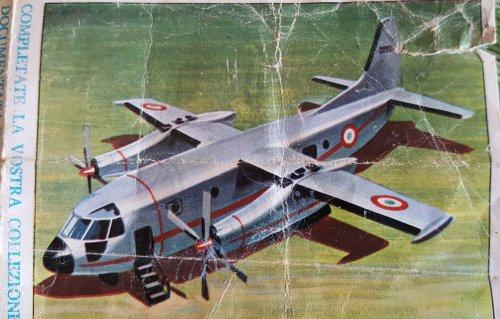

i had a vivid picture of a strange G222 stuck in my mind since 1970
Yesterdqy a piece of an old magazine for children emerged from an old box
It was like finding a message from the past in a bottle on a shore
Sorry in the paperclip is not well preserved


Attachments

  • A45114E0-D317-4CBB-A877-FB878F302687.jpeg
    1,021.8 KB · Views: 70
