More then a year ago, I was asked by a friend for infos about CR.42 variants. As this
is not my special theme, I could just look through the my sources , found just a 2-seat
trainer and the DB 601 powered variant and then more or less forgot about it.
Now I read in RAF Flying Review 11/56, that there were prototypes with retractable landing
gear and a twin float version . Is there anyone, who has photos/drawings of them ?


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,053
Reaction score
576
Website
beyondthesprues.com
Can't help with real photos of the floatplane, but there is a model of it available by Classic Airframes:



I believe it was designated ICR.42 (though I may be wrong here).

Regards,

Greg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,768
My dear Jemiba,

for Fiat CR.42 variants:

CR.42 (Fighter-Bomber):was the early conversion to carry 441 Ib
bombload for ground attack.

CR.42AS :developed a fighter bomber with tropical carburettor,
dust filter and racks for two 220 Ib bombs.

CR.42CN :night fighter version.

CR.42DB :single seat with 1160 hp Daimler-Benz DB-601E engine.

ICR.42 :was CR.42 mounted on twin floats,developed by CMASA.

CR.42LW :designation of the night harassment and anti-paratisan
version,produced by Fiat to Luftwaffe.

CR.42 Two Seat:two seat version produced for Sweden only.


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
629
Reaction score
83
The float-equipped CR.42 was the ICR.42 with I standing for Idrovolante.

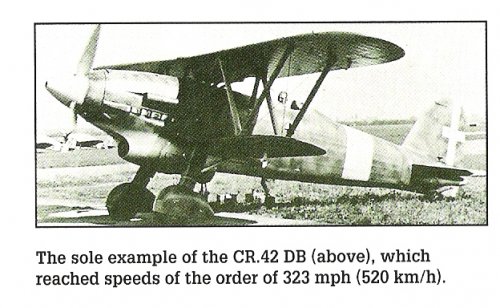

CR.42DB - fastest biplane fighter.


Attachments

  • cr 42 db.jpg
    cr 42 db.jpg
    153.5 KB · Views: 173

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,768
CR.42 Two Seat,modeler


Attachments

  • CR.42 two seat.jpg
    CR.42 two seat.jpg
    51.6 KB · Views: 135

Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
7

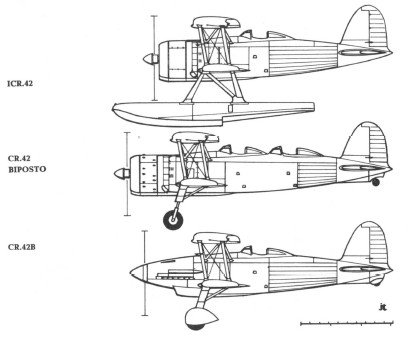

Some CR.42 sideviews, including the Floatplane, Two-Seater and Daimler-Benz variants. (sorry, original source now unknown).

Regards Bailey.


Attachments

  • CR.jpg
    28.2 KB · Views: 120

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,092
Reaction score
3,768

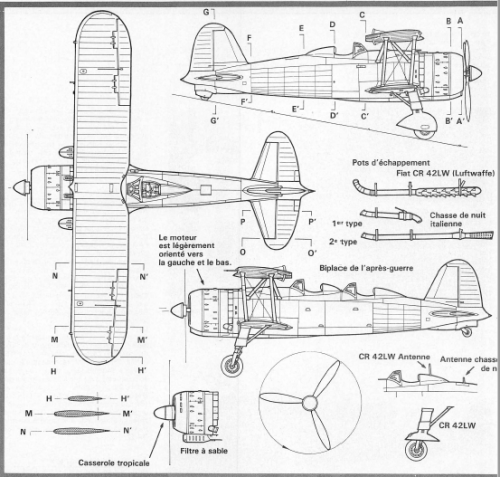

From Le Fana 168.


Attachments

  • 1.png
    252.4 KB · Views: 72

iverson

ACCESS: Secret
Joined
Sep 24, 2009
Messages
367
Reaction score
178

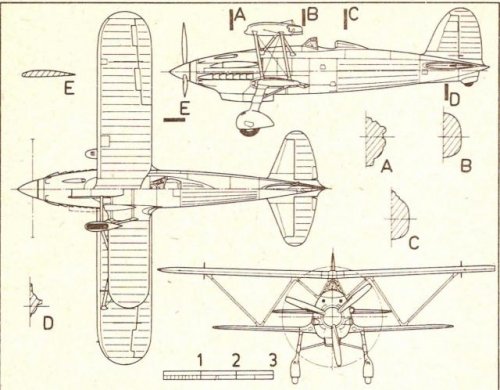

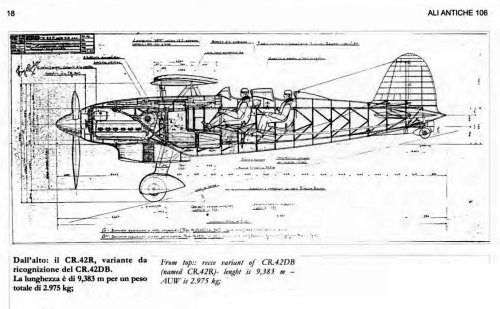

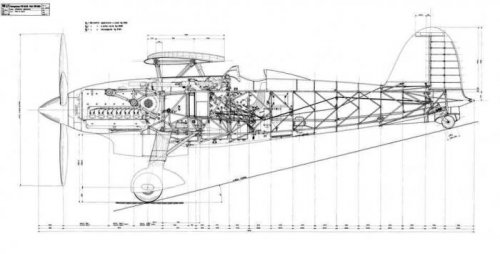

Here are some drawings of the DB-powered variants, including the CR.42R reconnaissance airplane.


Attachments

  • 62028,5683.jpg
    31.8 KB · Views: 49
  • FIAT_CR-42_DB_FALCO.jpg
    49.3 KB · Views: 52
  • Fiat CR-42R project.jpg
    Fiat CR-42R project.jpg
    420.1 KB · Views: 58
