Farman F.451 Moustique

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
118
Website
cluttonfred.info
For any others with an interest in obscure French light aircraft, here are two articles, a type sheet and the original factory brochure on the Farman F.451 Moustique (Mosquito) from my recent visit to the research library of the Musée de l'Air et de l'Espace in Le Bourget. This 1930s single-seat ultralight was the last (but for the two-seat F.455 prototype) in a series of conceptually similar Farman designs stretching back to 1919--all wire-braced, mid-wing single-seat monoplanes of generous span and modest power. The F.451 was the most successful of them all, built in respectable numbers for the day, a total of 46, as they were ordered for the government-sponsored Aviation Populaire flying movement.

Specifications (F.451)
Data from Les Avions Farman
General characteristics
Capacity: 1
Length: 6.40 m (21 ft 0 in)
Wingspan: 8.07 m (26 ft 6 in)
Height: 1.90 m (6 ft 3 in)
Wing area: 10.50 m2 (113.0 sq ft)
Empty weight: 151 kg (333 lb)
Gross weight: 285 kg (628 lb)
Powerplant: 1 × AVA 4 2-cylinder horizontally-opposed two-stroke, 19 kW (25 hp)
Propellers: 2-bladed wooden Merville Srs.639
Performance
Maximum speed: 130 km/h (81 mph; 70 kn)
Range: 350 km (217 mi; 189 nmi)


Attachments

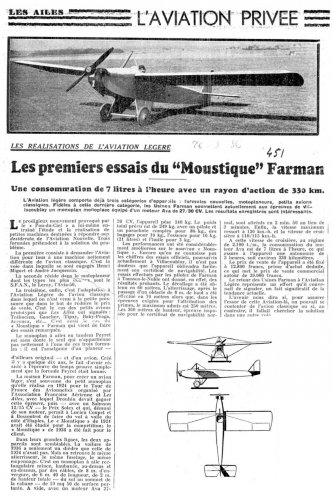

  • Farman F451 Moustique - Les Ailes - 1936-06-26.jpg
    Farman F451 Moustique - Les Ailes - 1936-06-26.jpg
    248.6 KB · Views: 213

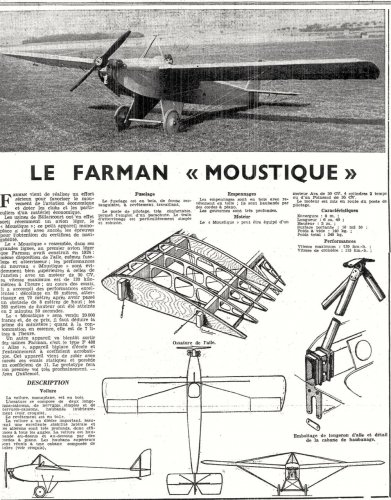

  • Farman F451 Moustique - unknown source - circa 1936.jpg
    Farman F451 Moustique - unknown source - circa 1936.jpg
    357.6 KB · Views: 186

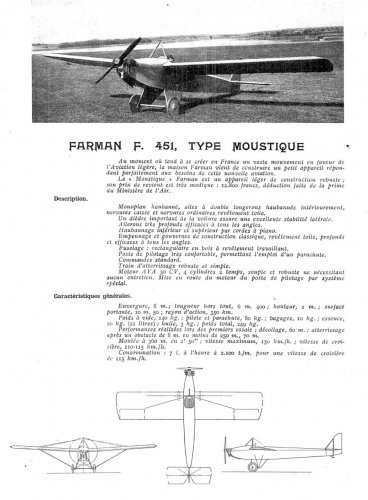

  • Farman F451 type sheet - unknown source - circa 1936.jpg
    Farman F451 type sheet - unknown source - circa 1936.jpg
    196 KB · Views: 159

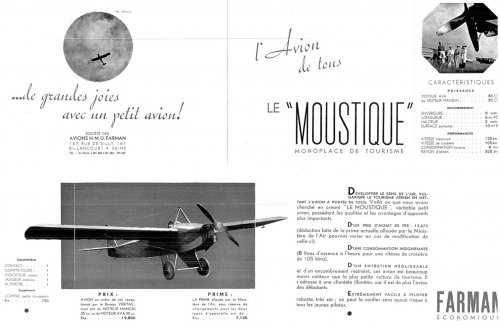

  • Farman F.451 factory brochure.jpg
    Farman F.451 factory brochure.jpg
    301.5 KB · Views: 143

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,390
Reaction score
118
Website
cluttonfred.info
Hmmm, a challenge for our members...does anyone have any photos of the cockpit (seat, control stick, instrument panel, etc.) of a Farman F.450 or F.451 Moustique?
