Fairchild M-185F

boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
846
Reaction score
155
Fairchild M-185F

I remember the book where I read about a Fairchild M-185F (it was in JAWA 1956/1957), but I have no information, no pictures (or artist’s impressions), no drawings.

Can anybody help?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,308
Reaction score
4,072
Hi boxkite,

the M-185 was ten seat business executive jet transport aircraft,a picture to it
here www.airwarfareforum.com/viewtopic.php?t=6324


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,111
Hello Boxkite,

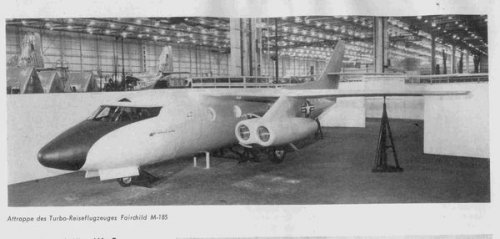

no drawing, no artist's impression, just a mock-up.
Sorry, didn't really know what's on my HD. ???,
It's from FlugWelt II/60, I think .


Attachments

  • Fairchild-M-185.JPG
    30 KB · Views: 1,997

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,384
Reaction score
164
Interesting, I wonder what engines were proposed. At a guess, I'd go with the same engines installed on production JetStars.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,664
Reaction score
646

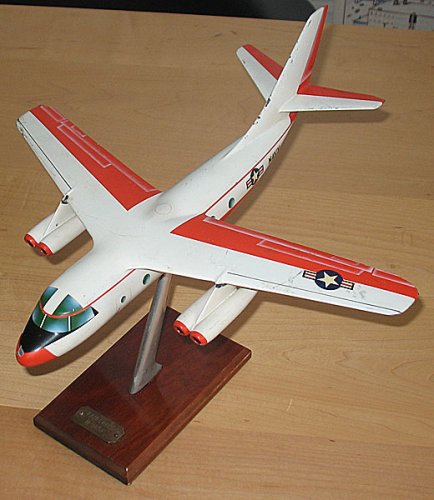

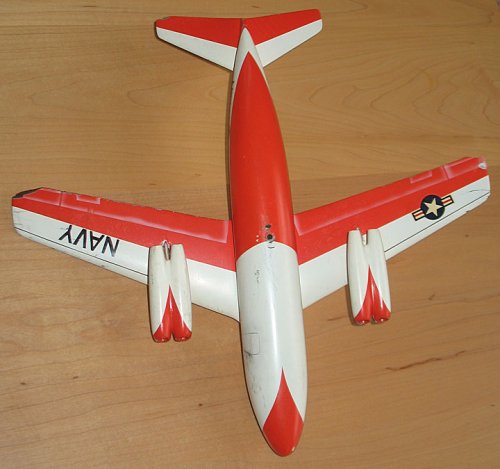

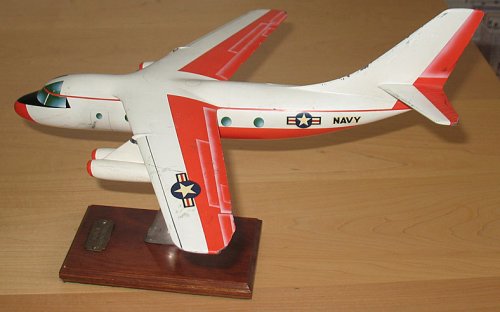

Fairchild M-185F Display Model

Greetings All -

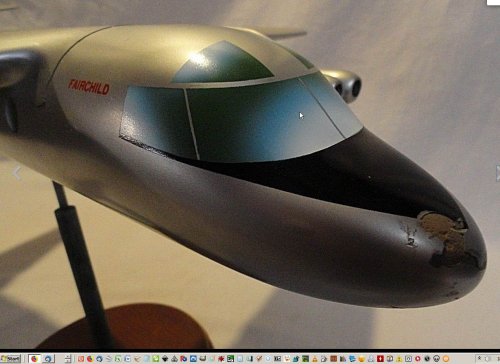

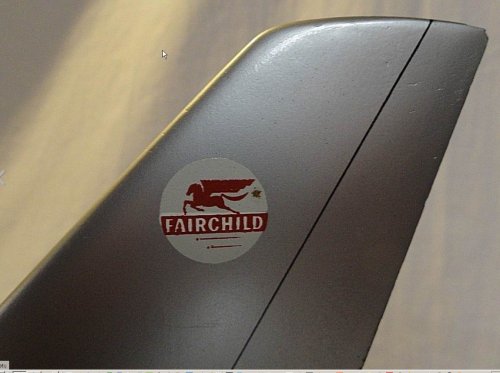

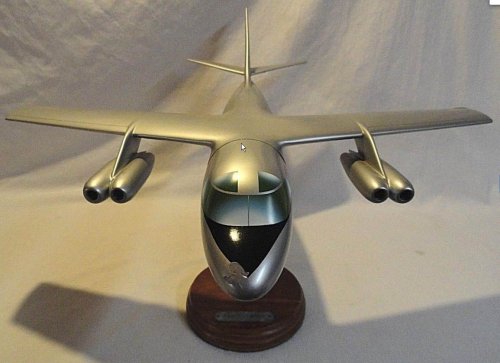

An interesting model on EPay....

http://www.ebay.com/itm/Vintage-1950s-Airplane-Wood-Model-US-Navy-Fairchild-M-185F-w-Stand-/290806037097?pt=LH_DefaultDomain_0&hash=item43b563fa69

Enjoy the Day! Mark


Attachments

  • Fairchild M185F Model - 6.jpg
    Fairchild M185F Model - 6.jpg
    61.5 KB · Views: 54
  • Fairchild M185F Model - 5.jpg
    Fairchild M185F Model - 5.jpg
    80.7 KB · Views: 59
  • Fairchild M185F Model - 4.jpg
    Fairchild M185F Model - 4.jpg
    85.4 KB · Views: 365
  • Fairchild M185F Model - 3.jpg
    Fairchild M185F Model - 3.jpg
    77.6 KB · Views: 390
  • Fairchild M185F Model - 2.jpg
    Fairchild M185F Model - 2.jpg
    65.7 KB · Views: 394
  • Fairchild M185F Model - 1.jpg
    Fairchild M185F Model - 1.jpg
    70.8 KB · Views: 418

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
538
Re: Fairchild M-185F Display Model

Beautiful and rare. A bit bruised but nice nonetheless.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
663
Website
deeptowild.blogspot.com
Re: Fairchild M-185F Display Model

Very nice find, Mark. I ignored it because it was made from wood believing it was made somewhere in Asia. Doesn't appear to be broken. In very good shape for its age.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
342
Reaction score
12
Thanks for posting the ePay link and pics. Neat design. Makes me think of the S-3.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
342
Reaction score
12
Found this while Yahooing. Says the engines were fairchild J83s. http://www.flightglobal.com/pdfarchive/view/1957/1957%20-%201500.html


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
538
Also from the Flight archives:

Another design in the four-jet category is the eight-passenger Fairchild M-185F, three of which have been ordered by the Continental Can Company. A full-scale mockup has been in existence for some time, and the first flight should be made late this year or early in 1958, with deliveries to follow about eight months later. If they can be made available in time, four Fairchild 2,000 lb-thrust J83s mounted in under-wing podded pairs will be used, but Westinghouse J34s may be installed as a short-term alternative. The M-185F will cruise at 540 m.p.h., carries 1,500-1,580 gal of fuel and meets the A.M.C. 2,300 n.m. range requirement against a 70 kt headwind with 30 min reserve. The ceiling is 45,000ft (35,000ft on three engines). Fairchild hope to sell 600 at a price of about £350,000. With a span of about 57ft and a length of some 56ft, the M-185F is probably the largest of the executive jets under review.

Source:
http://www.flightglobal.com/pdfarchive/view/1957/1957%20-%200936.html
http://www.flightglobal.com/pdfarchive/view/1957/1957%20-%200937.html


Attachments

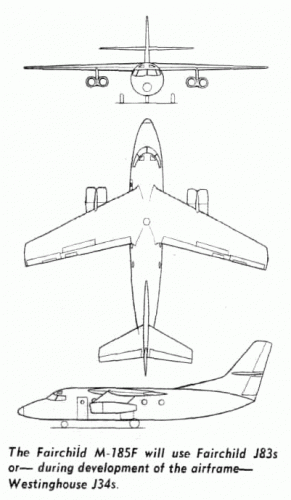

  • M-185F three-view.gif
    M-185F three-view.gif
    34.5 KB · Views: 151
  • M-185F artwork.jpg
    M-185F artwork.jpg
    156.6 KB · Views: 152
  • M-185.JPG
    30 KB · Views: 113

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
164

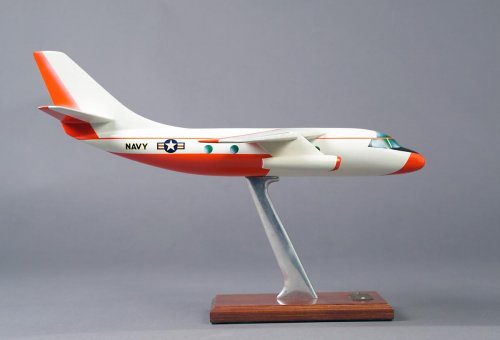

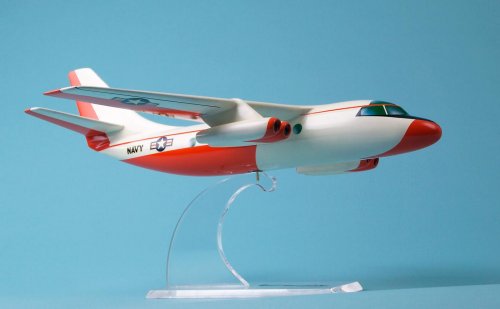

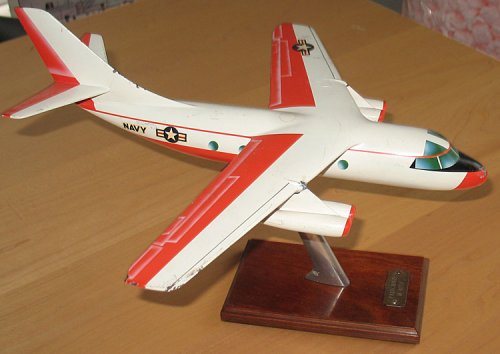

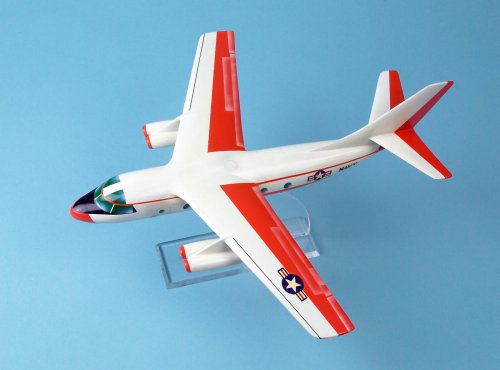

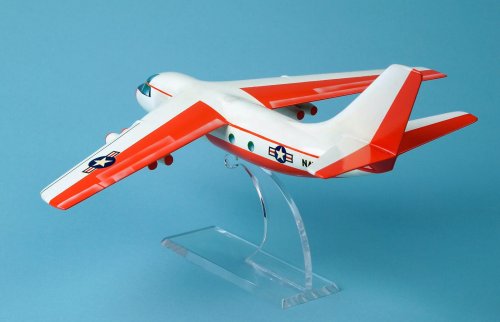

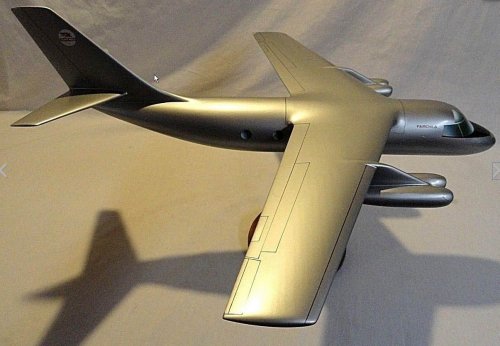

A couple photos of the restored model.


Attachments

  • Fairchild M-185F 01.jpg
    Fairchild M-185F 01.jpg
    43.3 KB · Views: 98
  • Fairchild M-185F 02.jpg
    Fairchild M-185F 02.jpg
    81 KB · Views: 110

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
164

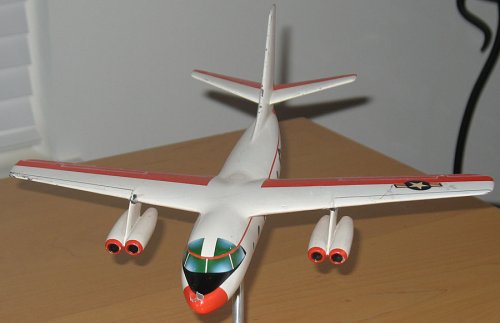

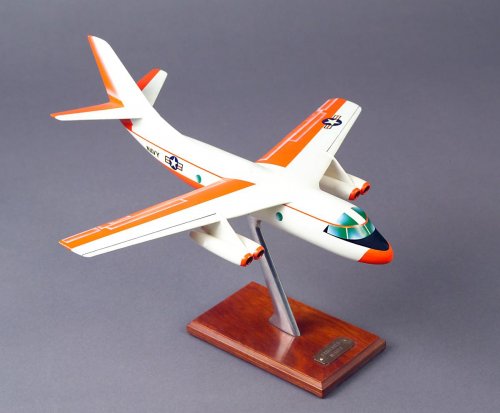

OK. More.


Attachments

  • Fairchild M-185F 004.jpg
    Fairchild M-185F 004.jpg
    82.9 KB · Views: 74
  • Fairchild M-185F 002.jpg
    Fairchild M-185F 002.jpg
    92.2 KB · Views: 84
  • Fairchild M-185F 001.jpg
    Fairchild M-185F 001.jpg
    64.1 KB · Views: 85

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,111
Thank you ! The model has slightly different lines with regards to the nose, cockpit glazing and tail,
compared to the mock-up and 3-view. An earlier or later step in the development of this design ?


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
164
Jemiba said:
Thank you ! The model has slightly different lines with regards to the nose, cockpit glazing and tail,
compared to the mock-up and 3-view. An earlier or later step in the development of this design ?
I don't know. The model looks more contemporary than the mockup, but it could be the other way around. I can't find any further information on this project, unfortunately.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
342
Reaction score
12

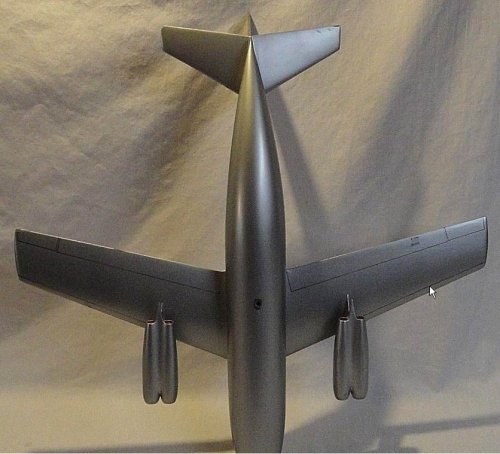

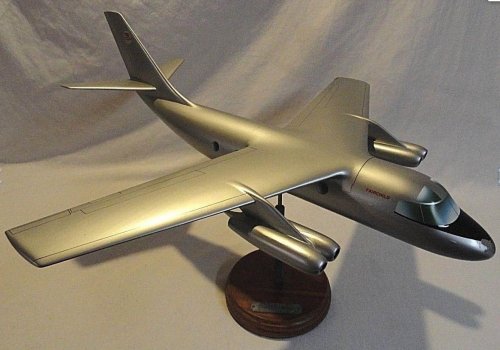

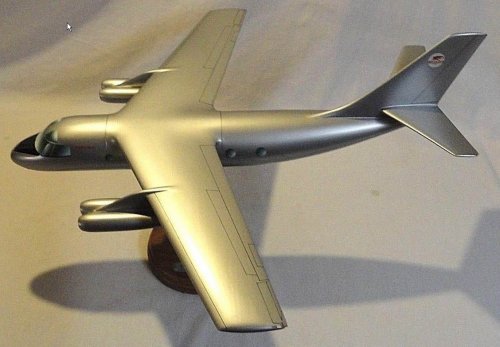

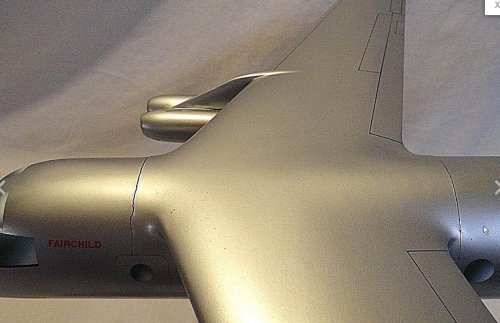

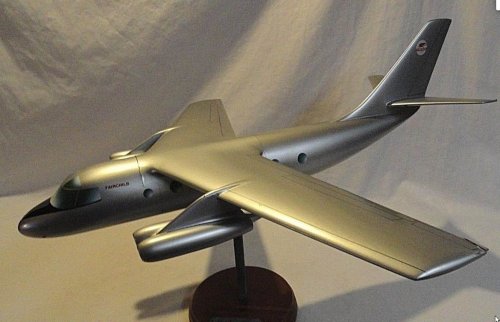

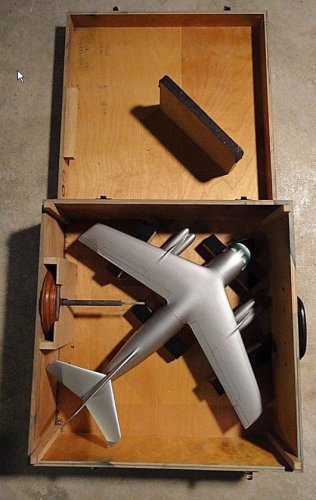

FYI, not mine, but this is on eBay.
https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com%2Fulk%2Fitm%2F362348289374


Attachments

  • Fairchild_M-185_12.jpg
    81.3 KB · Views: 33
  • Fairchild_M-185_10.jpg
    97 KB · Views: 27
  • Fairchild_M-185_09.jpg
    180 KB · Views: 27
  • Fairchild_M-185_08.jpg
    122.7 KB · Views: 32
  • Fairchild_M-185_06.jpg
    128.2 KB · Views: 39
  • Fairchild_M-185_05.jpg
    159.3 KB · Views: 407
  • Fairchild_M-185_04.jpg
    126.4 KB · Views: 432
  • Fairchild_M-185_03.jpg
    153.7 KB · Views: 458
  • Fairchild_M-185_02.jpg
    153.3 KB · Views: 499
  • Fairchild_M-185_01.jpg
    134.2 KB · Views: 522

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
688
Reaction score
423

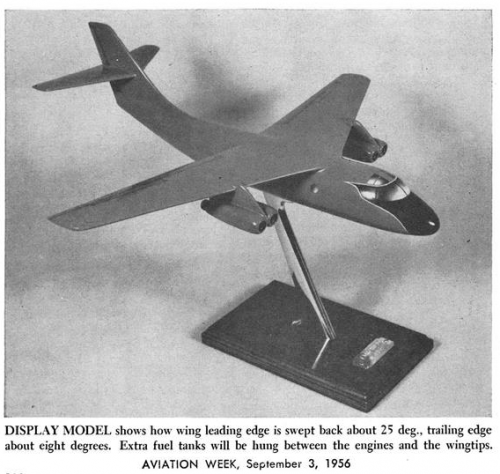

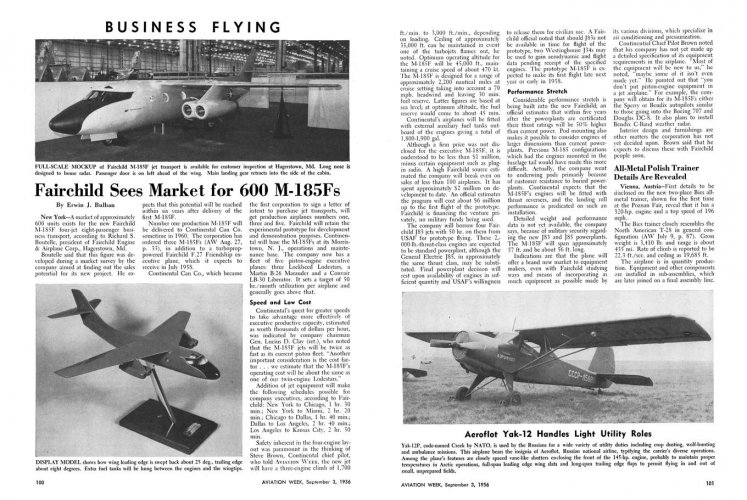

Photo from old Aviation Week of a model the M-185F.


Attachments

  • Fairchild M-185F.png
    Fairchild M-185F.png
    286.2 KB · Views: 67

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,287
Reaction score
680
Fairchild test-flew a similar engine configuration when they modified a C-123 to XC-123A configuration by installing a pair of GE J47 turbojets under each wing with each pair of engines twinned in a single nacelle.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
342
Reaction score
12
IIRC, they were B-47 engines, pylons and nacelles.
