AW&ST January 24,2000 by Michael A. Taverna

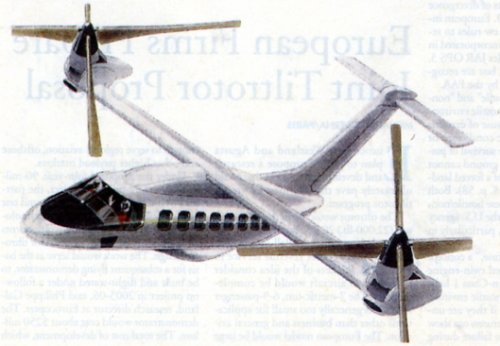

Eurocopter/Westland/Agusta Tiltrotor in the 10 ton 20-25 passenger class (significantly larger than the Bell Agusta 609). A flying demonstrator was planned to be flying by 2005-2006.

The European Joint Tiltrotor will benefit from earlier design efforts:

Eurocopter Eurotilt (derived from earlier Eurofar design)

Agusta Erica

Compound helicopter devised by GKN Westland ( I have no pics from it altough I have the following references if anybody can help; AW&ST July 12, 1999 p.23 and Feb 22.1999, p.47)


Attachments

  • Agusta Erica.jpg
    Agusta Erica.jpg
    39.8 KB · Views: 801
  • Eurocopter Eurotilt.jpg
    Eurocopter Eurotilt.jpg
    179.3 KB · Views: 799

rousseau

ACCESS: Secret
Joined
Aug 17, 2006
Messages
315
Reaction score
14

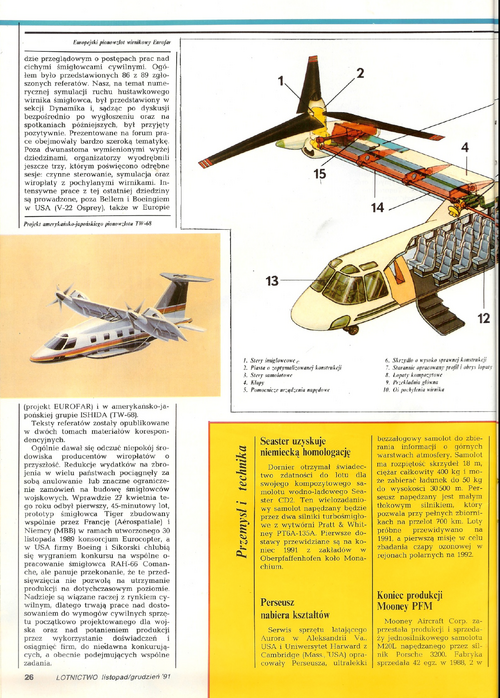

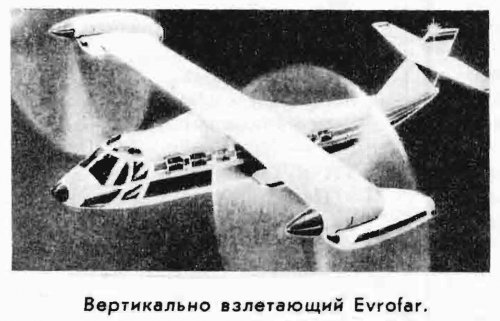

unlike that TW68, the Eurofar's wing seem to be not deflected for VTOL


Attachments

  • eurofar.gif
    160.9 KB · Views: 1,002

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,903
Reaction score
1,642
Does Europe still have a Tilt Rotor project, beyond the BA-609?


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599
AFAIK, no ! There was the 2GETHER proposal, as a joint development by Eurocopter
and Agusta, the name meaning "2nd Generation European Tilting Highly Efficient Rotorcraft",
but this project ws axed to a lack of sufficient funding.


JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
297
Reaction score
124

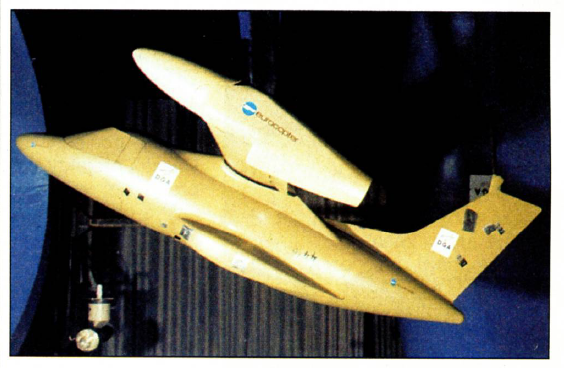

Before they cancalled Eurofar, the had done some work on a demonstrator - never seen line drawings for it, but have this photo


Attachments

  • EURO- Eurofar Demonstrator.jpg
    EURO- Eurofar Demonstrator.jpg
    25.6 KB · Views: 620

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599

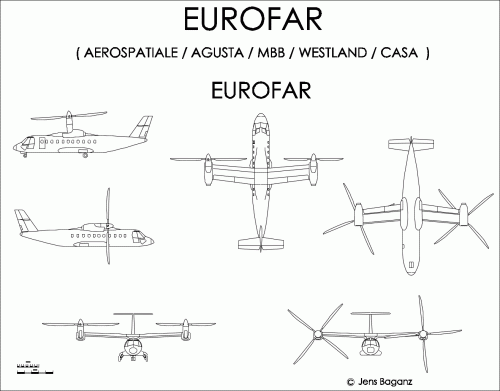

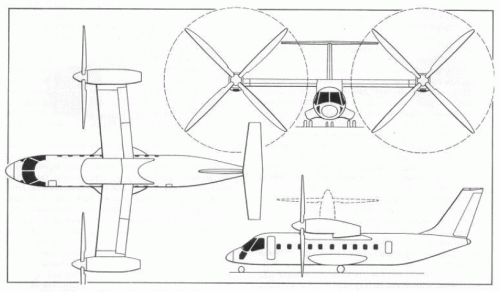

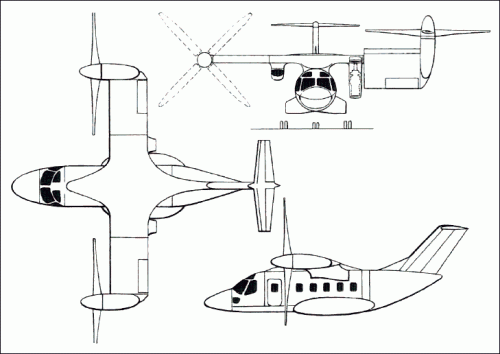

Interesting detail of EUROFAR was, that the nacelles were only partially
tiltable, contrary to most other tilt rotors.


Attachments

  • Eurofar.GIF
    59.6 KB · Views: 231

Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
18
I've said this over at What-If but I'll be darned if that Erica doesn't just look like an Mu-2 with tilt-rotors (but then again the Mu-2 was darn aerodynamic)


RavenOne

ACCESS: Secret
Joined
Jun 18, 2008
Messages
473
Reaction score
831
Talk to Professor Gareth Padfield at Liverpool University or visit the Flight Sciences dept web there

http://pcwww.liv.ac.uk/eweb/fst/act-tilt/FST_ACT-TILT.htm


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
By the way, does anynone happen to know what >>Erica<< stands for? Is it some sort of abbreviation? European....?? I haven´t got the faintest idea what it could mean.


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
That was quick, thanks.
Nevertheless, weird name I think. ;D


Just call me Ray

ACCESS: Top Secret
Joined
Aug 26, 2007
Messages
674
Reaction score
18
Nah, I think it's a perfect name! Everyone knows all aircraft are female by default and if you're gonna slap on some nose art right there half the job's already done for you ;)


weirc

ACCESS: Confidential
Senior Member
Joined
Jan 15, 2008
Messages
61
Reaction score
8
Intersting page about construction of a wind tunnel model of the erica tilt-rotor. The pdf mentioned at the bottom of the page is worth down loading.

http://www.crptechnology.com/sito/en/1-8-scale-wind-tunnel-model-of-the-european-tiltrotor.html

Colin


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

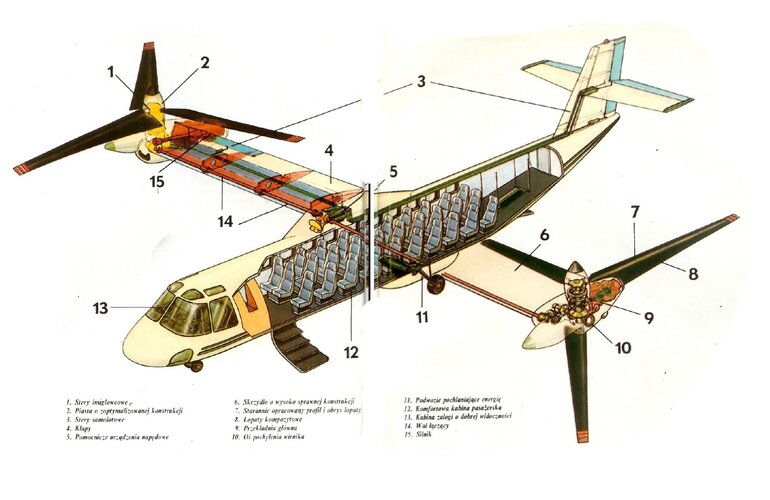

European Future Advanced Rotorcraft (EUROFAR)

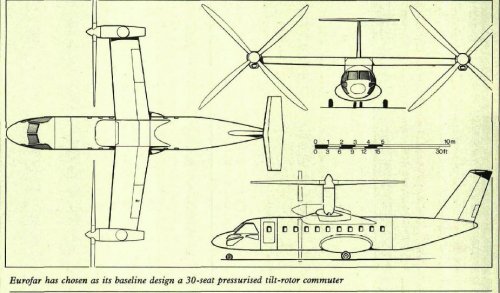

Specifications for the previously shown drawing of EUROFAR.

General Characteristics

Type: Twin-turboshaft tilt-rotor transport

Design features: High carbonfibre wing with partially tilting nacelles (stationary engines); T-tail; circular pressurized fuselage with APU; tricycle landing gear.

Flying controls: Quadraplex fly-by-wire electronic controls.

Power plant: Two 3,200 kW (4,290 shp) max continuous power class turboshafts (modified PW300 foreseen).

Accommodation: 30 passengers, three-abreast seating with overhead stowage, toilet, galley.

Dimensions (external)
Wing span between rotor centres: 14.66 m (48 ft 1.25 in)
Rotor diameter, each: 11.21 m (26 ft 9.25 in)
Length overall: 20.41 m (66 ft 11.5 in)
Fuselage lenghth: 19.40 m (63 ft 7.75 in)
Diameter: 2.48 m (8 ft 1.5 in)
Height overall: 6.645 m (21 ft 9.5 in)

Dimensions (internal)
Max height in aisle: 1.83 m (6 ft 0 in)
Max width a shoulder level seated 2.23m (7 ft 3.75 in)
Width of aisle: 0.46 m (1 ft 6 in)
Seat width between armrests: 0.43 m (1 ft 5 in)
Seat pitch: 0/83 m (2 ft 8.75 in)
Height at seat level: 1.40 to 1.50 m (4 ft 7 in to 4 ft 11 in)

Weights and loadings
Max vertical T-O weight (Category A): 13,650 kg (30,093 lb)
Power/weight ration (nominal): 2.13 kg/kW (6.57 lb/shp)

Performance
Max level speed: 334 knots (620 km/h; 385 mph)
Cruising speed: 302-313 knots (560-580 km/h; 348-360 mph)
Cruising altitude: 7,500 m (24,600 ft)
Hovering ceiling OGE, ISA at max VTO weight: 3,000 m (9,840 ft)
Range with 30 passengers, IFR reserves: 782 nm (1,450 km; 900 miles)

Source: Jane's All the World's Aircraft 1992-93 edited by Mark Lambert


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

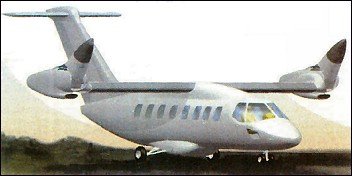

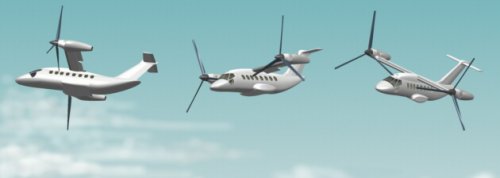

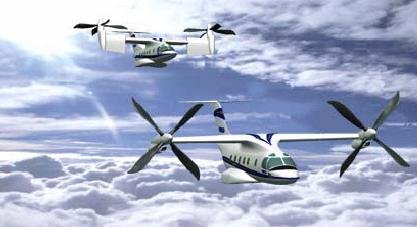

Eurocopter EUROTILT

10 metric ton (22,000 lb) class, seating 12 to 19 passengers, with a range of 750 nm (1400 km) at
more than 330 kt (610 km/hr)


Attachments

  • Eurotilt2.jpg
    28.4 KB · Views: 937
  • eurotilt.jpg
    16.2 KB · Views: 939

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com
AgustaWestland ERICA

General Characteristcs

Engines: 2 x P&WC PW127E turboshaft
Power: 2x 2,400 shp (2x 1800 kW)
Passengers (VTOL): 19 + 2 crew
Passengers (STOL): 22 + 2 crew
Wingspan: 46 ft (14 m)
Length: 50 ft (15.2 m)
Height: 19.7 ft (6 m)
Fuselage Diameter: 9 ft (2.7 m)
Proprotor Diameter: 24 ft (7.4 m)
Max VTOL Useful Load: 4,189 lb (1,900 kg)
Max STOL Useful Load: 4,840 lb (2,200 kg)
VTOL Gross Weight: 22,000 lb (10,000 kg)
STOL Gross Weight: 24,200 lb (11,000 kg)
Empty Weight: 14,300 lb (6,500 kg)
Fuel Weight (VTOL): 3080 lb (1,400 kg)
Fuel Weight (STOL): 4,400 lb (2,000 kg)
Range: 650 nm (1,200 km)
Cruise altitude: 24,600 ft (7,500 m)
Vmax (at cruise): 350 kt (650 km/h)

Rendering of AugustaWestland ERICA tilt-rotor in transition.

Line drawing of AugustaWestland ERICA


Attachments

  • acoerica.jpg
    17.6 KB · Views: 954
  • ERICA.gif
    20.1 KB · Views: 943

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
211
Website
www.hitechweb.genezis.eu

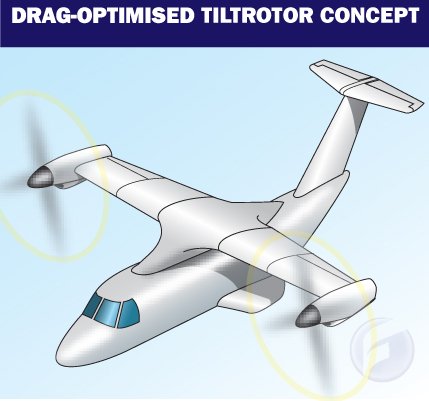

Note that the project moved from the tilting half-nacelles to the tilting half-wing.

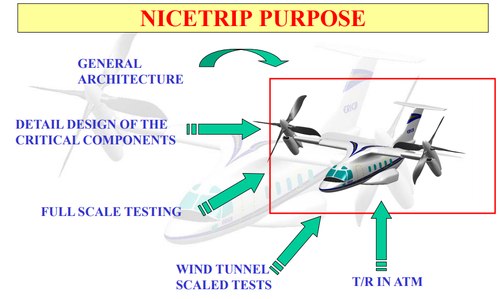

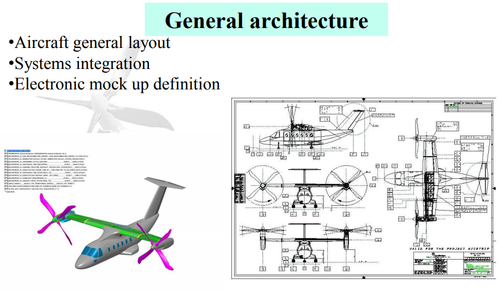

NICETRIP (Novel Innovative Competitive Effective Tilt Rotor Integrated Project) http://nicetrip.onera.fr/


Attachments

  • 17-helicoptere-futur-agusta.jpg
    3.5 KB · Views: 1,325

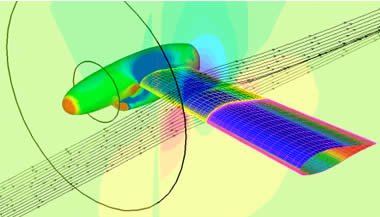

  • 17-helicoptere-futur-ecoulement.jpg
    17.6 KB · Views: 836

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154

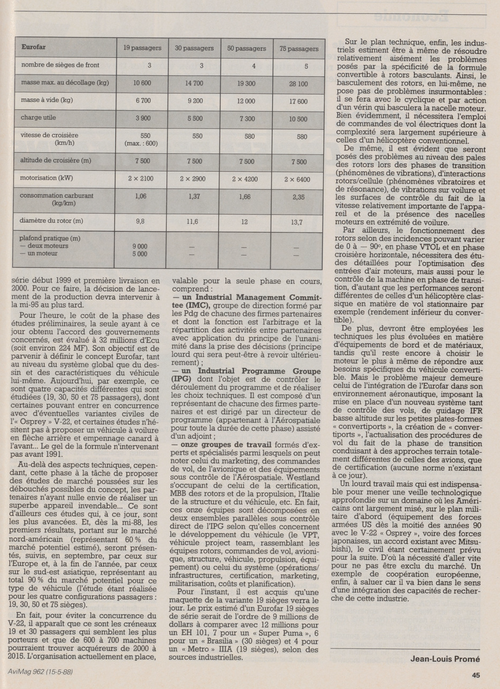

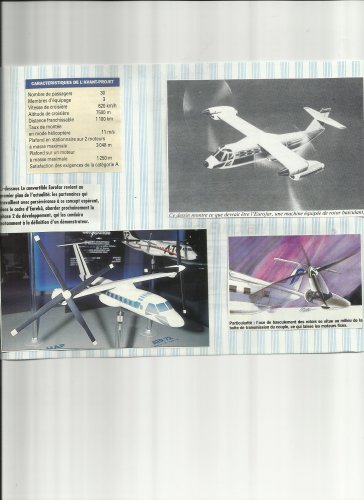

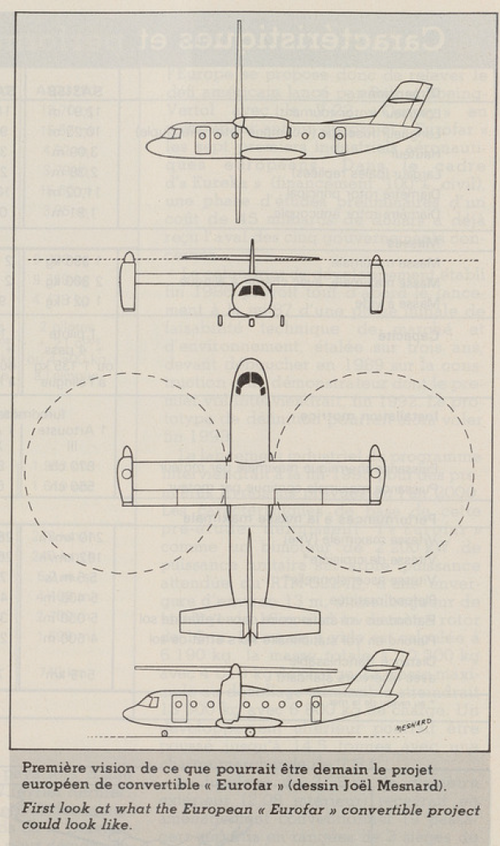

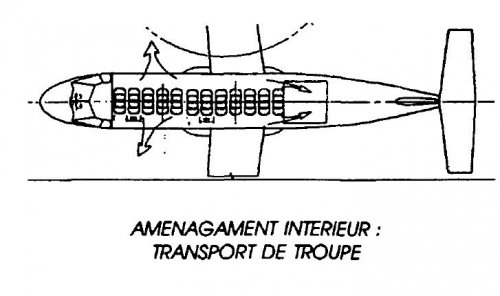

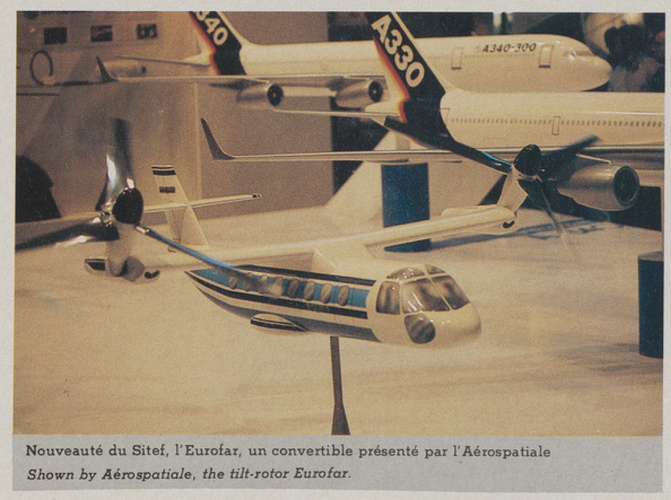

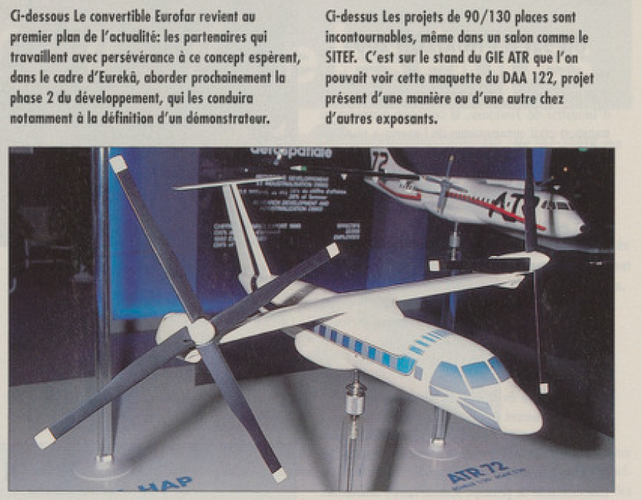

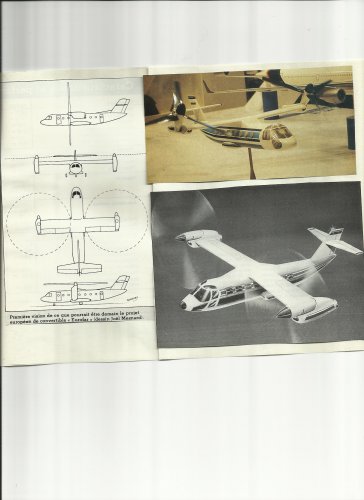

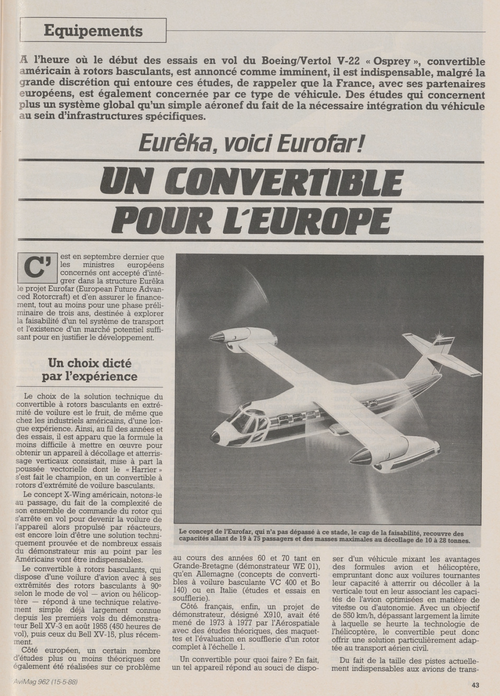

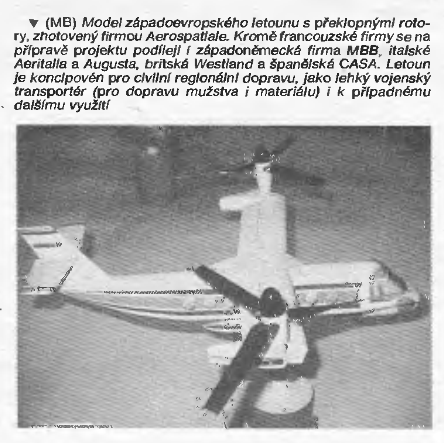

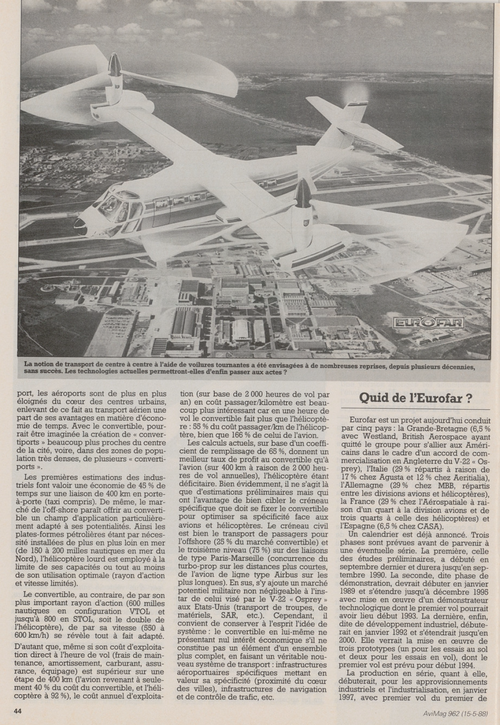

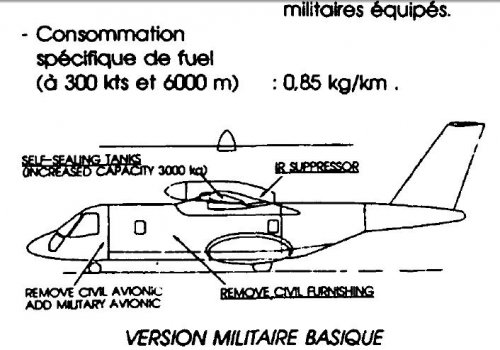

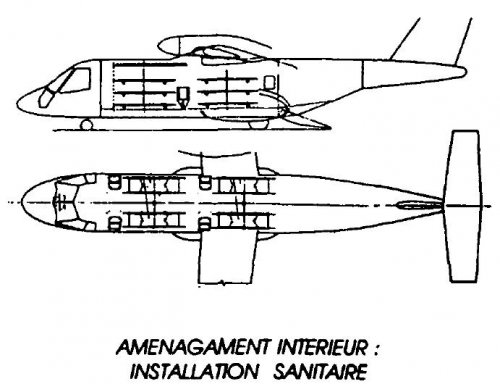

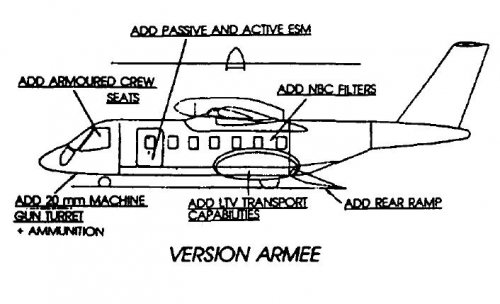

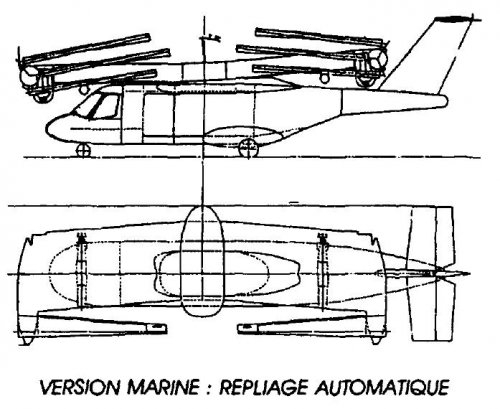

In the same way we have the Eurofar project
(1982-85)


Attachments

  • Sans titre.jpg
    Sans titre.jpg
    564.9 KB · Views: 134
  • Sans titre2.jpg
    Sans titre2.jpg
    459.6 KB · Views: 158

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,047
Website
deeptowild.blogspot.com

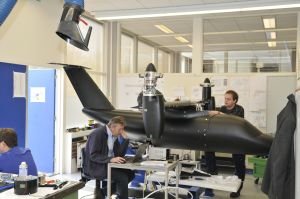

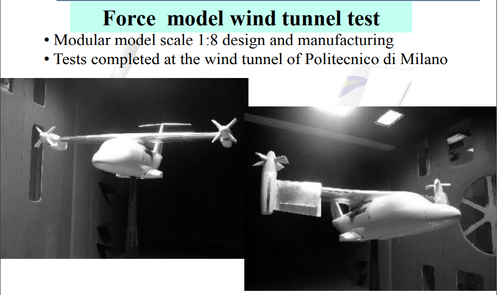

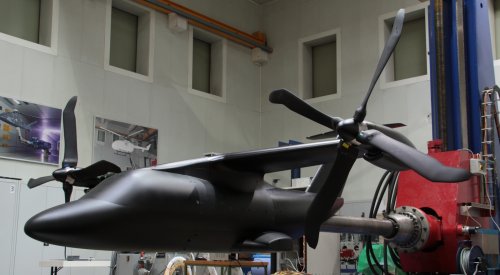

Wind tunnel model of AugustaWestland ERICA (Enhanced Rotor Craft Innovative Achievement) in 1/8th scale.

Artist's impression of transition from airplane mode to hover mode.


Source:
http://www.aviationweek.com/aw/blogs/aviation_week/on_space_and_technology/index.jsp?plckController=Blog&plckBlogPage=BlogViewPost&newspaperUserId=a68cb417-3364-4fbf-a9dd-4feda680ec9c&plckPostId=Blog%3Aa68cb417-3364-4fbf-a9dd-4feda680ec9cPost%3A1684ac12-21e1-4674-8520-8a4dc7e6bdc7&plckScript=blogScript&plckElementId=blogDest


Attachments

  • 1c5fba2d-0227-4eb7-be1a-4bd0b04c82b0.Full.jpg
    11.1 KB · Views: 152
  • 6b26d5bd-7b4b-4572-b887-d59c06a9db23.Full.jpg
    462.1 KB · Views: 130

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,653
Reaction score
531
very interesting contribution!

Thanks a lot Hesham.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,697
Reaction score
1,156

TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
4,797
Reaction score
4,312
It's probably to save head space into the fuselage.
Traversing wing spars (cantilever) reduces usually the available height inside the cabin at the wing/fuselage junction.
Notice that most modern business jets have the wing similarly mounted beneath the fuselage.
