Again, from F. Dousset's Porte Avions Francais.

The integral midspan tanks are an interesting feature - although I don't have a clue as to whether the wing folds were inboard or outboard of the tanks?


Attachments

  • EtenardV.gif
    52 KB · Views: 703

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
8,694
Reaction score
8,217
Merciiiiiiiii!!!! I just love this forum :D
Well this thing doesn't look like an Etendard IV anymore!!! Quite logical, considering longe range/ subsonic speed requirement, opposed to etendard IV short range / transonic speed...


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,700
Reaction score
628
Merci Beaucoup Tinwin!

What doest it means TALP?. Could you give more info about this type?

Thanks a lot


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
8,694
Reaction score
8,217
TALP is the name of the program. This mean "TActique Longue Portée" Ie "Long range tactical (fighter)". This mean absolutely nothing, even in french : its a kind of military- program language.
To my mind, long range and tactical are opposite concepts no?
TALP was for a fighter in F-6D Missileer style (Subsonic with a powerfull radar).
Of course, there was no Bendix Eagle or AIM-47 equivalent in France!

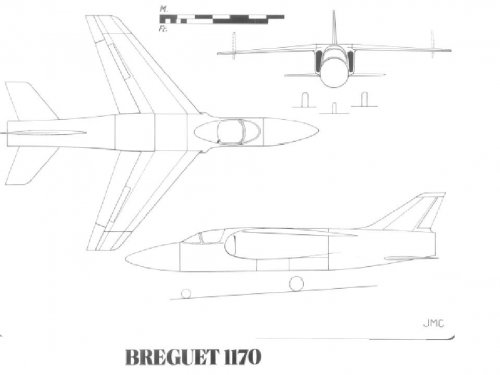

Other proposal was from Breguet (Br.1170)


Attachments

  • Breguet 1170.JPG
    Breguet 1170.JPG
    37.3 KB · Views: 673

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
8,694
Reaction score
8,217
In current (correct) french, the name of the program would have been something as long as "Avion de Chasse Tactique a Long Rayon d'Action" Well TALP is much shorter to pronounce!!!! ;D


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,493
Reaction score
413
Unless carrier deck elevator size forced it, I'd imagine that the wing fold was just outboard of the integral mid-span tanks. That location would drastically simplify the requirements for the mechanisms and systems necessary for the folding.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,700
Reaction score
628
"TActique Longue Portée"

Merci Beaucoup Archibald!

I think this interesting project is not illustrated dans Les Avions de Combat Français 1945-60


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
8,694
Reaction score
8,217
It is not, for two reasons
first, it date back from 1963 so it is out of the book timeline.
Second, its a project, not a flying aircraft (if there's projects in the book, I suppose they are derivatives from flying aircrafts). I hace to ask you something, but per PM.
cheers,
Archie


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,596
Reaction score
1,411

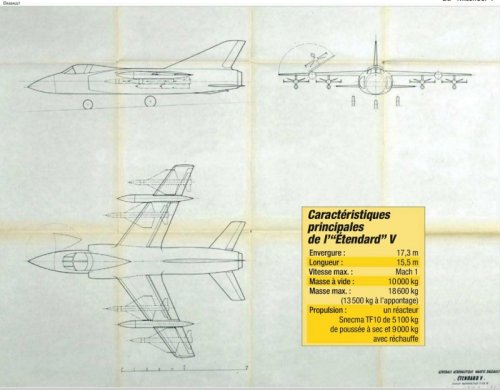

In September 2011 issue of the French magazine "Le Fana de l'Aviation", there is an article about the American F-6D Missileer program and about the French TALP (Tactique á longue portée)program. The article shows a 3-view drawing of Etendard V with 2 unknown missiles under each wing.
Tinwing, the wing folds are outboard of the tanks.


Attachments

  • Dassault_Etendard_V.jpg
    120.4 KB · Views: 411

zen

ACCESS: Top Secret
Senior Member
Joined
Jul 15, 2007
Messages
3,298
Reaction score
2,011
missiles looks curious, perhaps a ramjet is the part hanging beneath the main missile body?
