Hi,

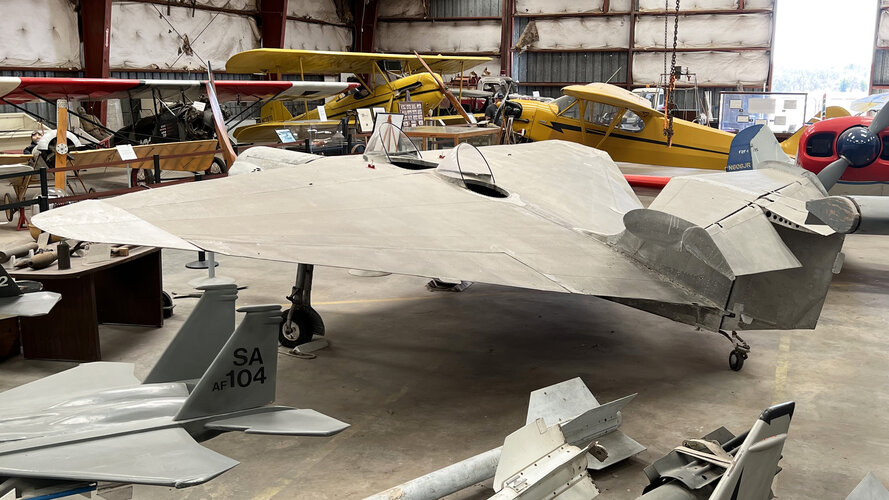

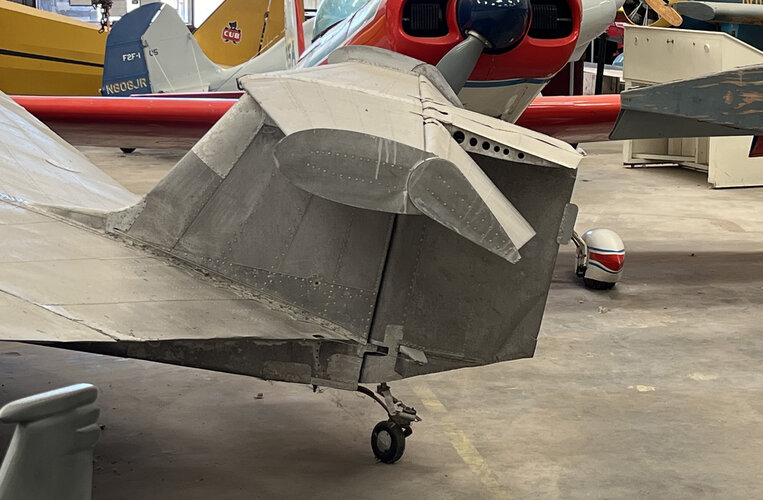

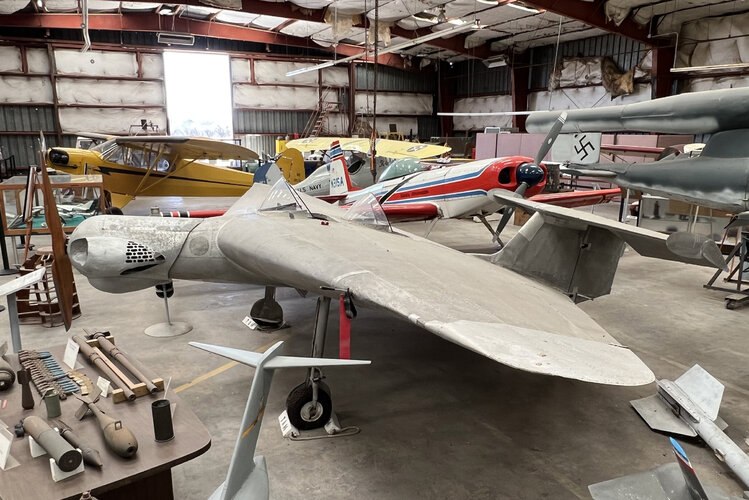

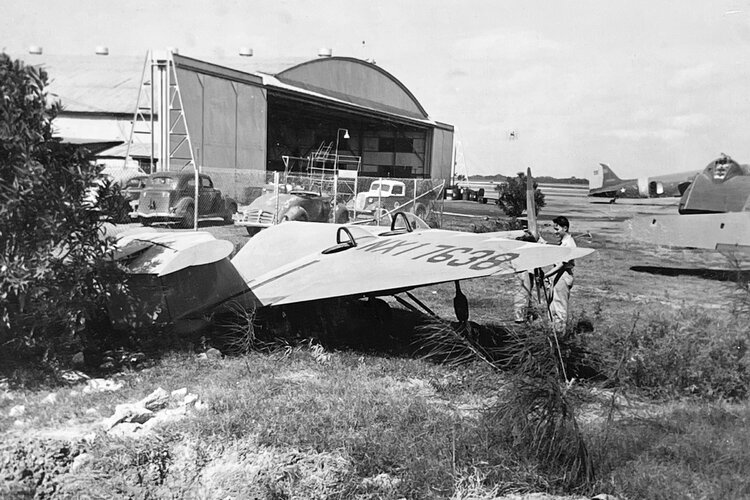

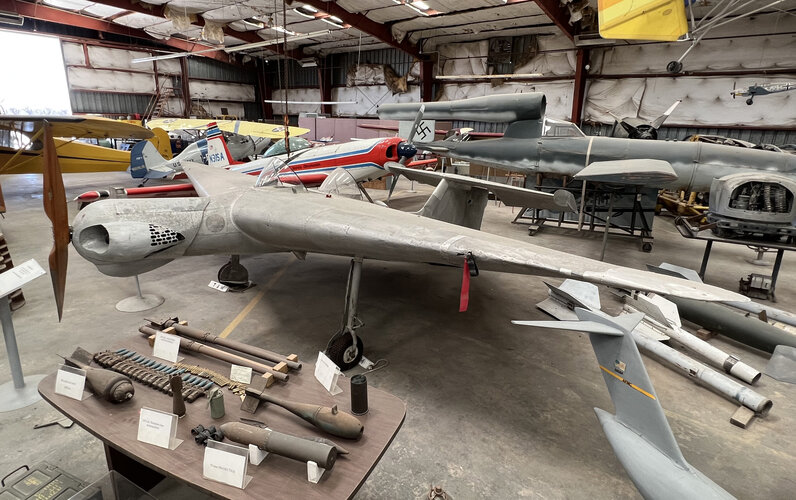

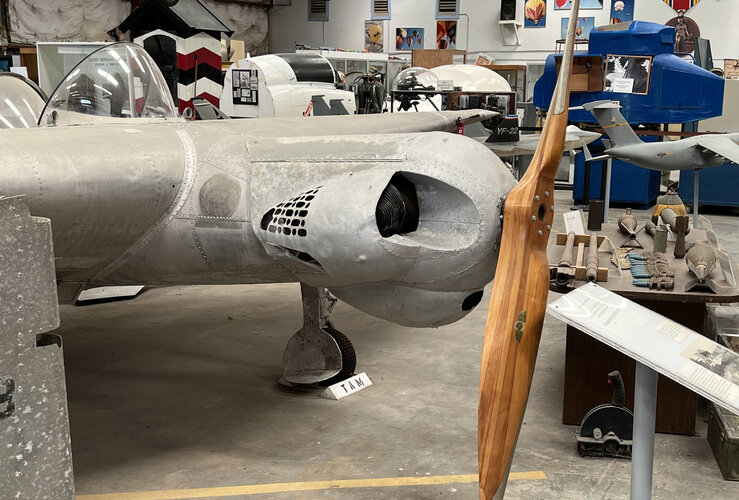

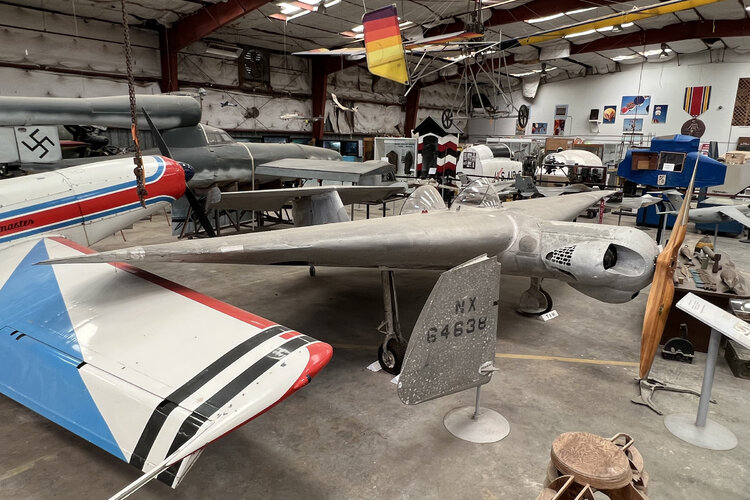

Mr. Ellis V. Eichmann started to design a flying wing concept in 1937,by created the
Aerobat I,a two-seat monoplane,followed by Type-A & Type-B of 1946,which differed
in have a tricycle landing gear.

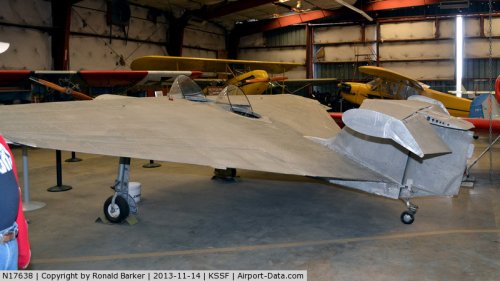

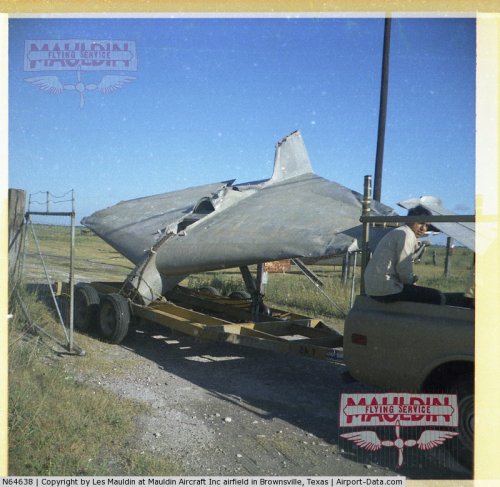

The Aerobat II was a two place side-by-side airplane with a wing and empennage almost
identical to Aerobat I; it flew a limited but unknown number of times,Witnesses reported
to the IIC that the pilot/builder/designer completed Aerobat III in July of 1986 and was
issued a Special Airworthiness Certificate in the Experimental Category.This airplane differed
from its predecessors in that the engine was moved to the rear of the airplane (pusher type)
and the wing was redesigned.

http://www.aerofiles.com/_e.html
http://www.pprune.org/archive/index.php/t-100936.html
http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala/L'Ala%201946%2007-8.pdf


Attachments

Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
536
Reaction score
2
Thanks Hesham!
Here a rush translation of L'ALA information about the Aerobat A:

The “Aerobat A” of the Eichmann differs from the classic being a flying wing designed in such a way as to eliminate the need of the ailerons. The construction is all metal. The cockpit is covered by extensive glazing that allow good visibility in all areas. The tricycle landing gear is retractable. We do not know other details related to “Aerobat”.
Origin: USA
Type: Aerobat A
Crew: 1
Engine: 1 Continental
Power HP: 50
Fuel tank: 191 liters
Autonomy: 2400 km
Span: 7,32m
Length: 5,18m
Height: 1,7m
Area: 17,2 m2
Flight weight: 226 kg
Total weight: 407 kg
Max. speed: 160 km/h
Cruise speed: 120 km/h
Landing speed: 61 km/h
Cost in $: 2000-2500


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,437
Reaction score
310
Thank you my dear Retrofit,

and I hope to get a picture to Type-A and Type-B.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,437
Reaction score
310

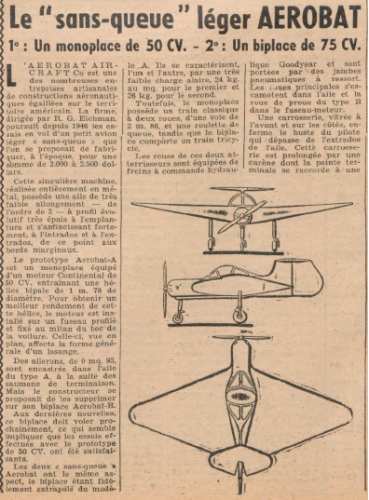

From Decollage 5/1946,

I can't ID this airplane,it was from Culver ?.


Attachments

toura

CLEARANCE: Top Secret
Joined
Apr 12, 2008
Messages
1,188
Reaction score
3
Hi Hesham
YOUR DOC IS WRONG !!
the tailess plane is the EIchmann one


Attachments

Mark Nankivil

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,503
Reaction score
58

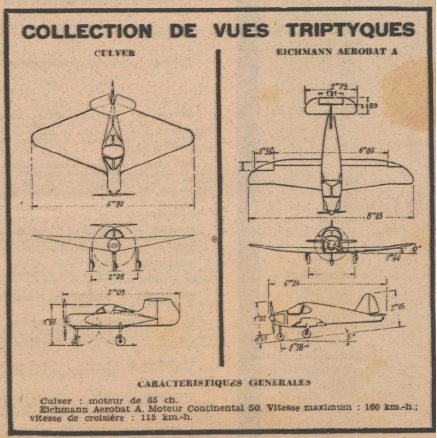

Hesham, the titles for the two drawings are reversed - the Culver is the airframe to the right and the Eichmann to the left. The publication screwed that one up.

Enjoy the Day! Mark


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,437
Reaction score
310
Thanks my dears,

and we can change the title.

Merged with older thread, thank you !


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
283
Reaction score
2
Dear Hesham,
The conventional airplane - on the right - is the Culver Model V. Model V was made of wood with an 85 hp engine. It cruised at 125 and had a 13,000’ service ceiling. Only 378 were built starting in 1946. Culver went bankrupt, like a dozen other American airplane factories during the late 1940s.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,437
Reaction score
310

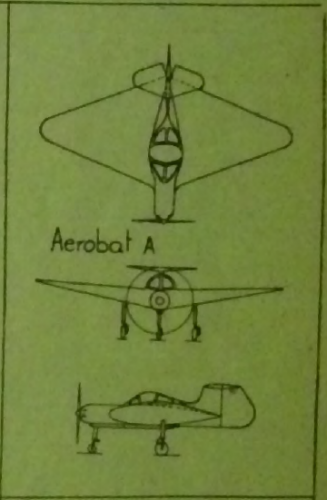

From Ailes 3/1948,

all Info about Aerobat Type-A.


Attachments

riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
283
Reaction score
2
With that parallelogram platform (leading edge parallel with trailing edge) it is almost a diamond wing!
With a little longer wing root, it would have a square planform! A longer wing root would improve handling in pitch, but not contribute anything to rate of climb.
