EE Canberra, Evolution, Variants and Projects

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,820
Reaction score
189
I was thinking the other day, 'did the British ever think of, or look at a carrier-based variant of the English Electric Canberra light bomber'?

Does anyone know an answer to this?

Regards
Pioneer


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,331
Reaction score
106
*snicker* Did anyone catch the typo in the last paragraph of that book review? That's truly hilarious!!


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
TsrJoe said:
... a proposal for a carrier based EE. Canberra bomber, with folding wings outboard of the engines, was mooted for deployment aboard the RN.'s 1952 carrier proposal.
A mention of the design appears in a paragraph in the excellent 'Rebuilding the Royal Navy' by D.K. Brown and G. Moore, Chatham publishing.

"Rebuilding the Royal Navy" is a spectacular book for unbuilt RN projects, but sadly there isn't much concrete information about aircraft.

The 1952 carrier was pretty much the last chance for a RN platform big enough for a "strategic" bomber - and I use the term "strategic" very loosely.


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Pioneer said:
I was thinking the other day, 'did the British ever think of, or look at a carrier-based variant of the English Electric Canberra light bomber'?

It is equally easy to wonder why there weren't night fighter variants of the Canberra, or why English Electric didn't at least produce a swept wing prototype?

The truth is that the Canberra had the most advanced axial turboject engine of the day - the AJ65 or Avon - and a very conventional airframe that was hardly an advance on WWII technology.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,056
Reaction score
1,596
Canberra mk.12 project!
Nice picture at the beginning of "British secret projects - bombers-"
The Red-dean/AI-23 combo was so bulky that it was more efficient in a Canberra than in a supersonic aircraft.The red deans were fitted on the wingtips.
I think there was no gun pack...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

The first proposal to B3/45 specification by English Electric Co was
a single engined straight low-mid wing and it had a wing root intakes
and the engine was buried in the fuselage,it was powered by one
Rolls-Royce Avon turbojet.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
A big surprise,

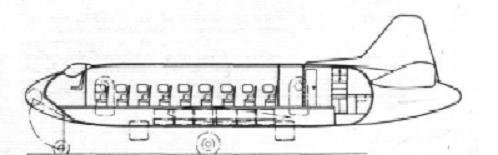

The Canberra project as 34-seat transport aircraft.



http://www.flightglobal.com/FlightPDFArchive/1958/1958%20-%200319.pdf


Attachments

  • Canberra transport.JPG
    Canberra transport.JPG
    11.3 KB · Views: 861

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888

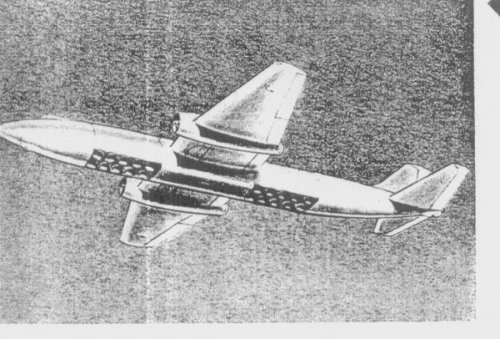

A proposal by Short Bros. for a VTOL conversion of the BAC Canberra, fitted
with 20 lift engines :
(From InterAvia 7/1958)


Attachments

  • Canberra_VTOL_01.JPG
    63.8 KB · Views: 542

Weaver

Clarence: stop secrets...
Joined
Apr 1, 2008
Messages
49
Reaction score
13

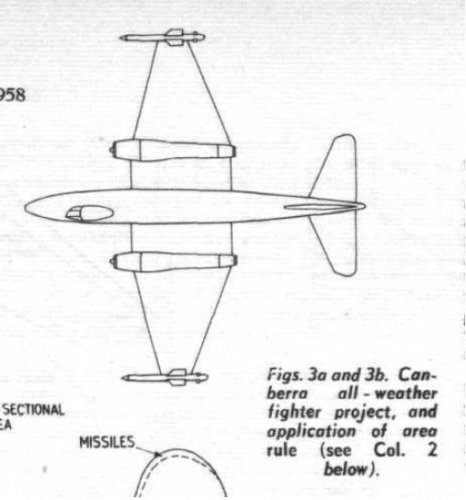

BSP - Bombers discusses a Canberra fighter project with Red Dean. The combination of Red Dean's (projected) performance plus the Canberra's ceiling gave it the best snap-up performance of ANY platform short of F.155T.

Kinda makes you wonder why they didn't do it, eh?


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,820
Reaction score
189
I have always liked the prospect and potential of a long-range all-weather interceptor variant of the English Electric Canberra.
I have always thought that a long-range all-weather interceptor Canberra (designed and built jointly by Government Aircraft Factory (GAF) and English Electric) would have been ideal for the likes of the RAAF (as well as the RAF and RCAF) – what with its fighter-like maneuverability, its good speed, range and littoral endurance.
Its crew of 2-3 and room for a large and powerful air-search radar.
Fitted with either a Martin type rotary bomb bay arrangement containing 4-6 Aim-4 Falcon AAM’s or a trapeze launcher arrangement armed with 3-4 Red Top AAM’s.
The use of internal weapons carriage would have minimized drag = greater range.
Added to this armament could have been 2 x Aden 30mm cannons
It would have been a very economically and operationally good counter to the likes of the Indonesian (and Soviet) Tu-16 ‘Badger’ threat of the 1960’s.
A fine opportunity lost!

Regards
Pioneer


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888
"A fine opportunity lost!"
From Aeroplane Monthly 6/99:

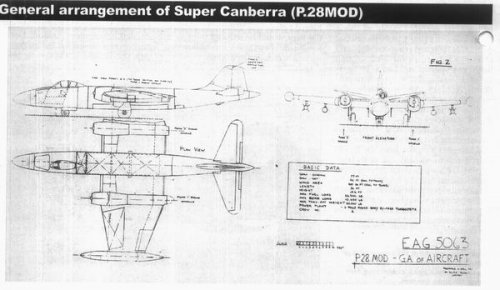

When TSR.2 was cancelled a study was authorised, about a new variant of
the Canberra, with much enhanced capabilities, designated P.28 MOD.
Fitted with RR Spey engines, smaller span wings and the Ferranti radar developed
for the TSR.2, it would have offered capabilities for a variety of roles, with emphasis
on attack/counter-insurgency, but with the ability to carry anti-shiping or air-to-air
missiles, too.
Reminding the number of Canbera users, this type may well have been a best-seller !


Attachments

  • P-28mod.JPG
    36.4 KB · Views: 1,424

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,882
Reaction score
222
"A fine opportunity lost!"

i've got some more info from another source, P.28, based on the B.8 airframe with a PR.9 nose housing a 'blue parrot' radar, pilot has opening canopy from PR.9, nav has ejection seat, span reduced by six feet each side by clipping wingtips, 500 gal tip tanks fitted.
Engines were to be 11,250 lb st RA24s, or lower powered RA29s, giving more range. max weight was to be 55,996 lb,with 23,294 lb fuel and 8,000 lb weapon load. Fuel could be traded for increased weapons load. Target penetration speed was to be 500 kt IAS.

there are also some images, but as the original source is an Ian Allen publication, i'm wary of posting them.

cheers,
Robin.


yellowaster

CLEARANCE: Confidential
Joined
Jan 1, 2009
Messages
86
Reaction score
47

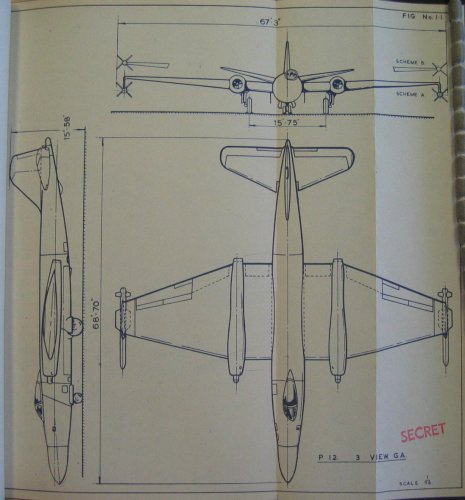

The original Canberra all-weather interceptor was the P.12. Based on a B(I)8 but using a PR.9 wing, complete with Avon RA.24s and powered ailerons. Had a nose monocoque and radome to accomodate AI.18. Primary armament was two Red Deans on wing-tips; secondary was a B(I)8 gun-pack in rear bomb-bay. For those troublesome high-altitude targets the gun-pack could be swapped for a Double Scorpion rocket pack. What a beast.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,209
Reaction score
888
.. an RAF pilots, who just had flown their Tornados to the scrap yard, would
return in a Super Canberra ! ;D

Was it already included in the "should have been built" list ?


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,033
Reaction score
774
As I am sure everybody knows the Canberra B.1 was the un-built variant that was to be fitted with H2S MkIX /NBC. I am wondering if anybody has details of how the system was to be installed? I have always assumed that it would have been fitted in the nose much like it was on the Valiant and Vulcan, is this the case? If anybody has a graphic of this variant it would be great to see it.

Thank you in advance sealordlawrence.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,556
Reaction score
148

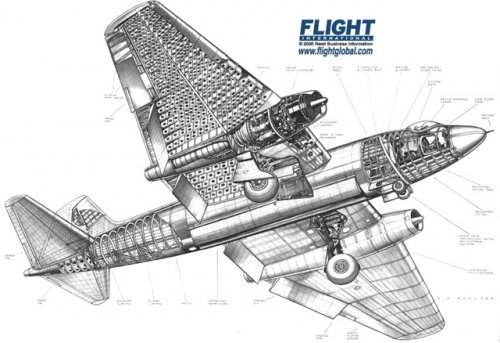

Cutaway of the B.1 from Flight. Of course it doesn't show what's under the nose... But the B.1 was to have the H2S in the nose with the two nav/bomb/radar crew sitting on ejection seats behind the cockpit.


Attachments

  • english-electric-canberra-b1-cutaway.jpg
    170.5 KB · Views: 940

smurf

CLEARANCE: Top Secret
Joined
Sep 6, 2006
Messages
546
Reaction score
26
Sealordlawrence said
As I am sure everybody knows the Canberra B.1 was the un-built variant that was to be fitted with H2S MkIX /NBC.
Abraham Gubler said
the B.1 was to have the H2S in the nose with the two nav/bomb/radar crew sitting on ejection seats behind the cockpit.

Green & Cross Jet aircraft of the World 1955 says (p94)
The Canberra was designed initially as a two-seater with radar bombing aids, and the first four prototypes, designated Canberra B.1, were completed as two-seaters. ....... The fifth prototype embodied a revised fuselage nose for visual bomb-aiming and carried a third crew member.
Other later refs say the same.
G&C's book has a small picture of the first prototype VN799 with solid nose, in flight.


smurf

CLEARANCE: Top Secret
Joined
Sep 6, 2006
Messages
546
Reaction score
26
Flightglobal says it's a B.1, but I can't read the labels.
http://www.flightglobal.com/airspace/photos/militaryaviation1946-2006cutaways/default.aspx
I suspect it's an "interpretation"
The engines appear to be Nene's, which were only fitted to the second prototype, with production of a Nene powered version considered as an insurance against unavailability of Avons.
But it wasn't the Nene, but the radar bomb aiming, that made a Canberra a B.1


Stargazer2006

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 25, 2009
Messages
13,236
Reaction score
431
smurf said:
Flightglobal says it's a B.1, but I can't read the labels.
http://www.flightglobal.com/airspace/photos/militaryaviation1946-2006cutaways/default.aspx
I suspect it's an "interpretation"
The engines appear to be Nene's, which were only fitted to the second prototype, with production of a Nene powered version considered as an insurance against unavailability of Avons.
But it wasn't the Nene, but the radar bomb aiming, that made a Canberra a B.1
The engines are not RR Nene, but 100 Series Avon, which had can combustors. The axial compressor is clearly visible.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,556
Reaction score
148
sealordlawrence said:
Good catch Smurf! So is the Flight Global drawing the planned production B.1?

No Smurf is most likely right about the two crew for the B.1. I was just going from memory about three crew for the B.1 from a good book (Stewart Wilson: Lincoln, Canberra and F-111 in Australian Service) about Canberra development which I think probably mentioned three crew in the context of the change from the radar to visual bombing configuration. In retrospect I think the book mentioned that the B.1 was two crew but the third was added in place of the HS2 in the re-configuration for production. Either way just working from susceptible memory not a reference in front of me.


smurf

CLEARANCE: Top Secret
Joined
Sep 6, 2006
Messages
546
Reaction score
26
The engines are not RR Nene, but 100 Series Avon, which had can combustors.
Yes, thanks for that. I'd forgotten that Canberra prototypes had the early Avons.


alertken

CLEARANCE: Top Secret
Joined
Jan 20, 2007
Messages
595
Reaction score
159
S.Ranson/R.Fairclough,English Electric A/C,Putnam,1987,P.157 has A.1 ripe for the chop, due industry inability to do its radar and the Medium Bombers' more or less concurrently. Just-in-time the Berlin Blockade began. US came up with MDAP and funded visual Canberra B.2. The gate guard at Salmesbury should be a statue of Stalin.


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,016
Reaction score
102
I thought, I'd resurrect this thread because I've come across this drawing of what is claimed to be the proposed P.12 Interceptor version of the Canberra:



Does anybody have any better diagrams?


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,015
Reaction score
817
yes, because cross-linking is prohibited
http://www.vectorsite.net/avcanbra_1_08.png


Kadija_Man

CLEARANCE: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,016
Reaction score
102
The picture displays for me. ???

Anyway, thanks Yellowaster. I see it has alternative methods of hanging the Red Dean missiles off the wingtips - one inline the other below, rather similar to how the RAAF hung bombs off their Canberra's wingtips.


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,033
Reaction score
774
Does anybody have any knowledge of the canberra and nuclear weapons. I have been looking to see which variants were made nuclear capable. Was the B.2 ever modified to carry Red beard or was it only ever the B.6/B(I).8 and later that had the nuclear capability?

Thank you in advance sealordlawrence.


Spark

CLEARANCE: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
19
sealordlawrence said:
Does anybody have any knowledge of the canberra and nuclear weapons. I have been looking to see which variants were made nuclear capable. Was the B.2 ever modified to carry Red beard or was it only ever the B.6/B(I).8 and later that had the nuclear capability?

Thank you in advance sealordlawrence.

Just a thought,

Rather like the later F 1-11 some one said it was considered at one time in the design stage that the cockpit section of the V-Bombers was from high altitude to have formed a emergency crew escape capsule?.

If that was true the B1 drawing appears to have a similar possible break line; so could this have been thought a common design possibility in the case of the Canberra?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Jemiba said:
"A fine opportunity lost!"
From Aeroplane Monthly 6/99:
When TSR.2 was cancelled a study was authorised, about a new variant of
the Canberra, with much enhanced capabilities, designated P.28 MOD.
Fitted with RR Spey engines, smaller span wings and the Ferranti radar developed
for the TSR.2, it would have offered capabilities for a variety of roles, with emphasis
on attack/counter-insurgency, but with the ability to carry anti-shiping or air-to-air
missiles, too.
Reminding the number of Canbera users, this type may well have been a best-seller !

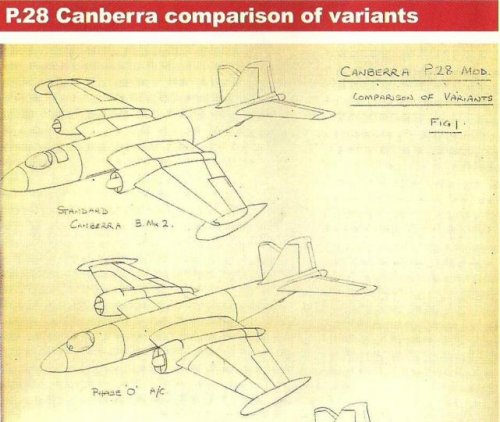

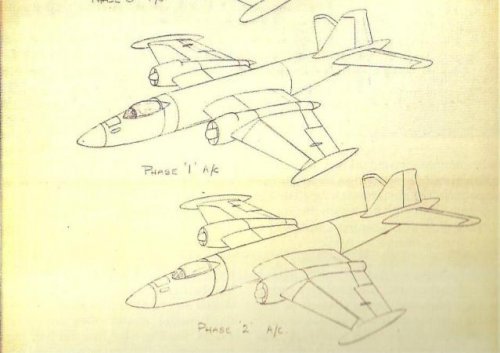

Also from the same source ,which displayed by my dear Jemiba.


Attachments

  • Canberra 1.JPG
    Canberra 1.JPG
    52.4 KB · Views: 751
  • Canberra 2.JPG
    Canberra 2.JPG
    30.1 KB · Views: 379

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,508
Reaction score
3,365
Hi,

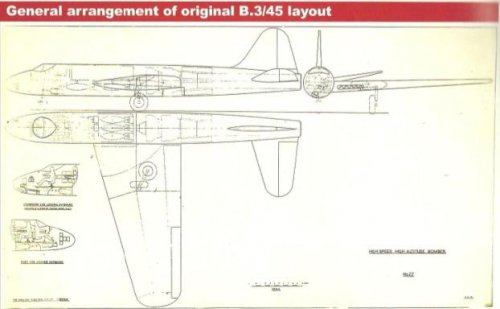

from Aeroplane Monthly June 1999.


Attachments

  • Canberra.JPG
    26.4 KB · Views: 1,235

flying-finn

CLEARANCE: Confidential
Joined
Mar 13, 2010
Messages
66
Reaction score
12

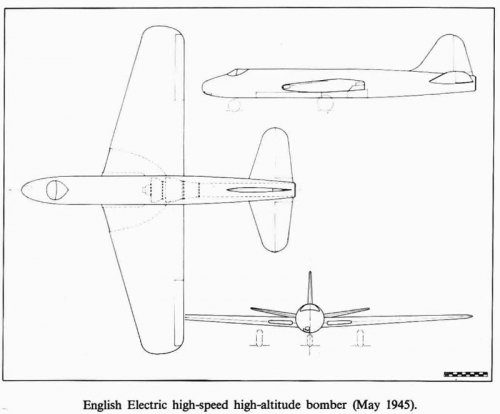

In 1945 English Electric made a proposal to use one large centrifugal engine, which would be specially designed and provide twice the power of any existing engine at that time.
3-view for this proposal is on attachment #1

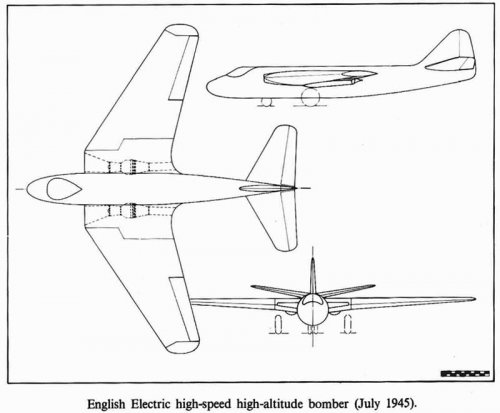

After only a few months the design was changed to incorporate two new AJ.65 (later known as Avon) axial-flow turbojets, designed by Rolls-Royce.
3-view for this proposal is on attachment #2


Attachments

  • English_Electric_proposal_01.jpg
    43.7 KB · Views: 1,116
  • English_Electric_proposal_02.jpg
    53.3 KB · Views: 1,457

JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,033
Reaction score
774
According to the following link:

http://www.vectorsite.net/avcanbra_1.html

Some of the early proposals for the Canberra PR.9 included a substantially increased wingspan in addition to the RA.24 Avons but that 'this did not work out'. I was wondering if anybody has any details on these proposals or any idea where I might find more information?

Thank you in advance.


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,556
Reaction score
148
Martin RB-57D with 108' span and 10,000 lbs J57s and and RB-57F with 122'6" span and 16,000 lbs TF33s plus two more 2,900 lbs J60s are the big wing Canberras. I would imagine any RAF/BAC work for a big wing Canberra would be based on these efforts.


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,033
Reaction score
774
Abraham Gubler said:
Martin RB-57D with 108' span and 10,000 lbs J57s and and RB-57F with 122'6" span and 16,000 lbs TF33s plus two more 2,900 lbs J60s are the big wing Canberras. I would imagine any RAF/BAC work for a big wing Canberra would be based on these efforts.

I dont see why. The UK was more than capable of designing its own, it actually designed the Canberra in the first place you know. ;)


Abraham Gubler

CLEARANCE: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,556
Reaction score
148
sealordlawrence said:
I dont see why. The UK was more than capable of designing its own, it actually designed the Canberra in the first place you know. ;)

The PR.9 was built from 1958-62 by Shorts. The RB-56D was in service in 1956 and the RB-56F had its first flight in June 63. So presumably the American big wing Canberras were well advanced of any British effort. Even if they had decided to re-invent the wheel they would have been influenced by the RB-57s in conception.


JFC Fuller

CLEARANCE: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
3,033
Reaction score
774
Again,

The UK had multiple manufacturers who had worked with the Canberra design in various ways. There is absolutely no reason whatsoever to assume that they would simply have gone to the US for assistance unless you can provide a source.

Top
