Early USAF missiles and their MX- designations

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
440
Reaction score
141

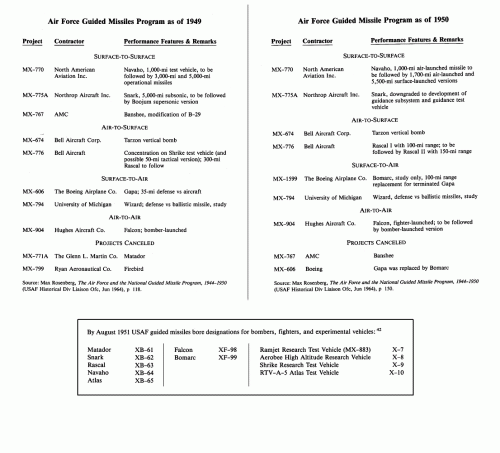

Note that in the third attachment, RTV-A-5 is mistakenly labeled Atlas rather than Navaho test vehicle, since the X-10 was to test the Navaho's flight characteristics.


Searay

CLEARANCE: Restricted
Senior Member
Joined
Jul 9, 2007
Messages
44
Reaction score
29

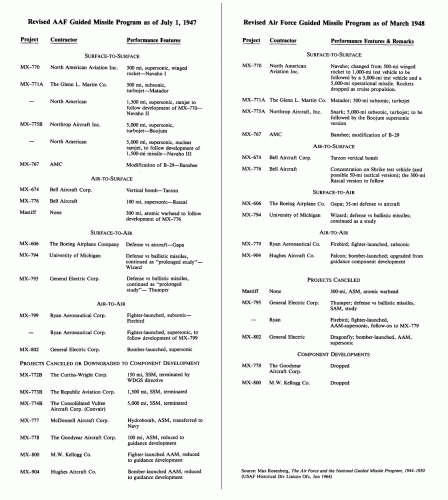

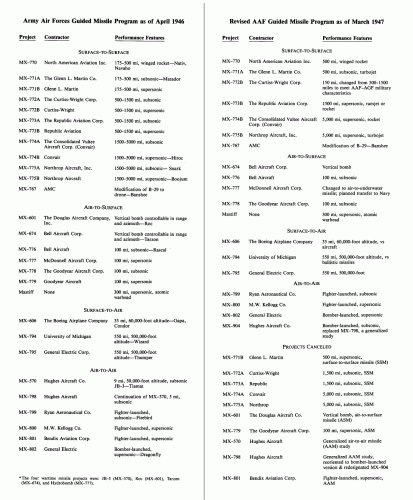

Here's some of the early MX designations from 1941-1945. I've been going through the AAF files at NARA II for an Osprey New Vanguard on US Guided Missiles of WW II. The list isn't complete and I need to add and correct some designations. BTW, many if not most of the early MX designations referred to sub-components such as auto-pilots, servos, flight control systems, etc.
