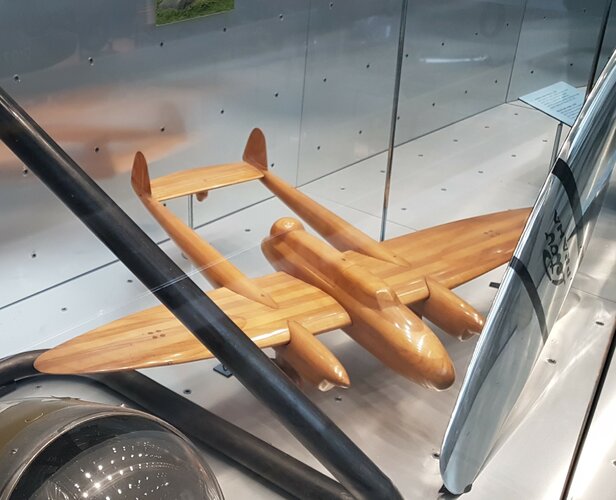

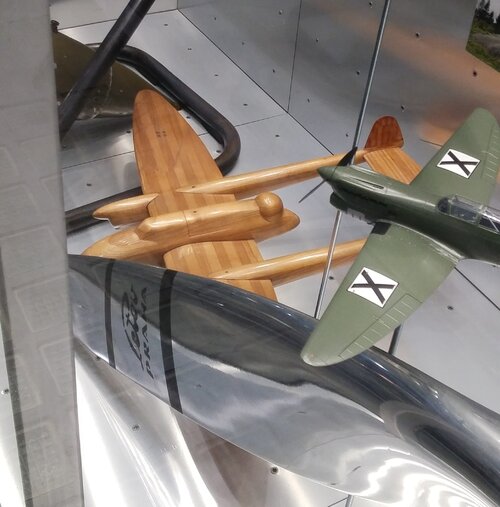

Early Praga E-51 design ?

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,011
Reaction score
969
Hi,


I know that the Praga E-51 had a different early design,from which later
was built,who can confirm this,and any drawings please.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,011
Reaction score
180

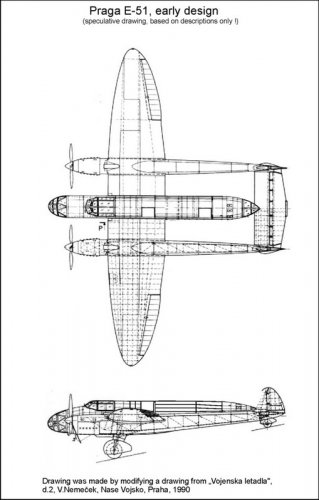

There's a site (http://www.fliegerweb.com/geschichte/flugzeuge/lexikon.php?show=lexikon-462) mentioning,
that in the first design, the fuselage was much longer to allow the crew of four sitting in a row. The aft of the
fuselage would have been connected to the tailplane in this design.
The drawing is just an assumption, what it could have looked like, based on a drawing from V.Nemecek
"Vojenska letadla" of the later E-51. So it shouldn't be taken too seriously !


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,011
Reaction score
969
Thank you my dear Jemiba very much.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,011
Reaction score
180
You're welcome ! After some thoughts afterwards, I think, the fuselage would have been not
only longer, but somewhat slimmer. Think, I'll try to further modify the drawing a little bit ...


LAW

CLEARANCE: Restricted
Joined
Jan 9, 2011
Messages
39
Reaction score
4

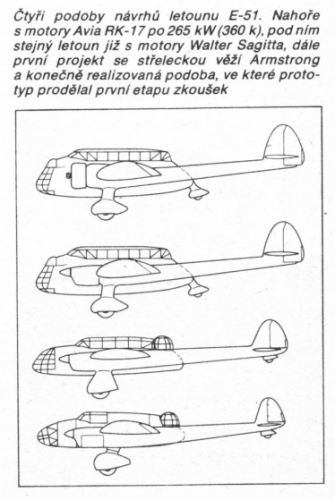

From "Czechoslovak Prototypes 1938" vol. 2 (Jakab, Czech Republic 2007).


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,011
Reaction score
180
Wow, thank you very much !
Aesthetically it was a development to a much more elegant design without doubt !
What isn't shown is a stage of the development, where the fuselage is connected
to the tail plane, which could have resulted in an aircraft somewhat similar to the
SNCAC NC.1070 (the only such type, that comes to my mind in the moment)
http://www.aviastar.org/air/france/sncac_nc-1070.php


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,011
Reaction score
969
Excellent LAW,thanks.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,011
Reaction score
969

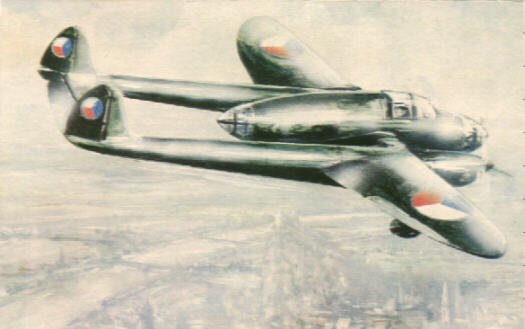

From L + K 25/1982.


Attachments
