Early phases of MX development - 1976

Skybolt

ACCESS: Top Secret
Senior Member
Joined
14 June 2006
Messages
2,297
Reaction score
412

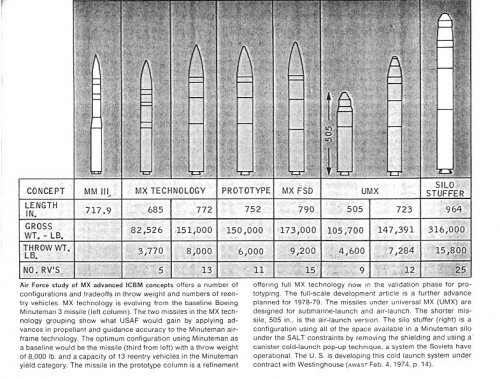

I've already mentioned the attached diagram in anumber of posts. Now I've finally unearthened it. It is a freeze-frame of the status of advanced ICBM concepts (not to be confused with AICBM WS-120A) considered by USAF between 1975 and 1976. You'll find relevant information on the individual concepts in the diagram caption. UMX was in direct competition with what became D-5. BTW, Titan-2 had a throw weight of 8,200 lbs.
Source: AW&ST Jan. 19, 1976 p.13


Attachments

  • MX alternatives.jpg
    MX alternatives.jpg
    129.1 KB · Views: 227
Skybolt - fantastic find love it again welcome back to SP :D
