Early Myasishchev bombers: the DVB- series

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
171
Website
www.avicopress.ru
Hi to all.

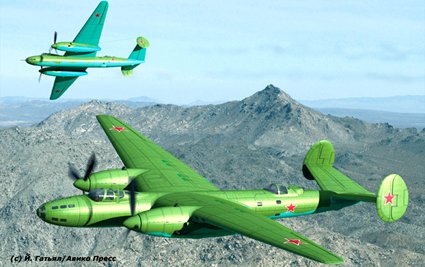

Today is unknown variant of well-known DVB-102.
More info in www.avicopress.ru
Next some days will follow all DVB-102 variants from VM-1 to VM-5. Wellcome!
Regards


Attachments

  • DVB-102-4-1.jpg
    100.1 KB · Views: 1,100
  • DVB-102-5-1.jpg
    68.4 KB · Views: 973

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
171
Website
www.avicopress.ru
Hi to all
Next variant of DVB-102: VM-1 and VM-1A.
More info in www.avicopress.ru


Attachments

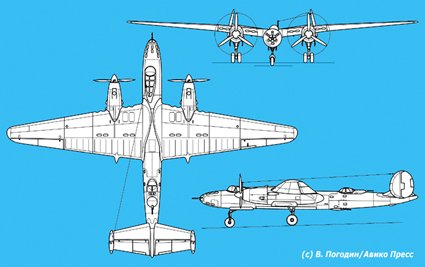

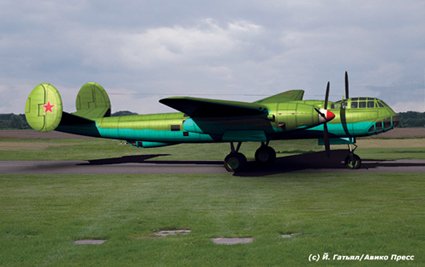

  • DVB-102-VM-1.jpg
    138.7 KB · Views: 888

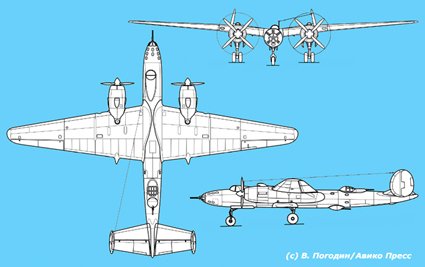

  • DVB-102-VM-1A.jpg
    111.2 KB · Views: 831

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
171
Website
www.avicopress.ru
Hi to all
Next variant of DVB-102: VM-2
More info in www.avicopress.ru


Attachments

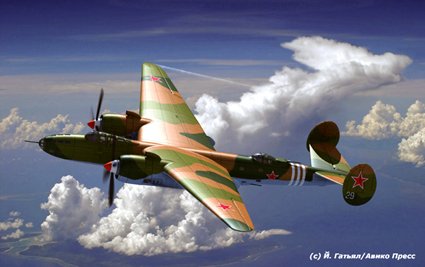

  • DVB-VM-2.jpg
    95.2 KB · Views: 239
  • DVB-102-VM-2.jpg
    103.9 KB · Views: 783

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
171
Website
www.avicopress.ru
Hi to all!
Two more variants of DVB-102 you may find in www.avicopress.ru:
VM-3 and VM-3A
Regards


Attachments

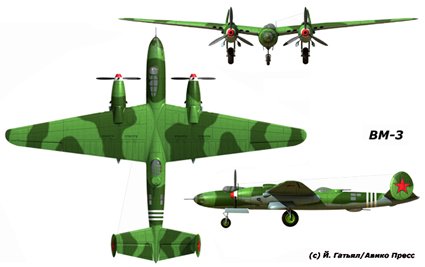

  • DVB-102-VM-3.jpg
    67.2 KB · Views: 303
  • DVB-102-VM-3A.jpg
    159.3 KB · Views: 345

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
171
Website
www.avicopress.ru
Hi to all!
One more variant of DVB-102 you may find in www.avicopress.ru:

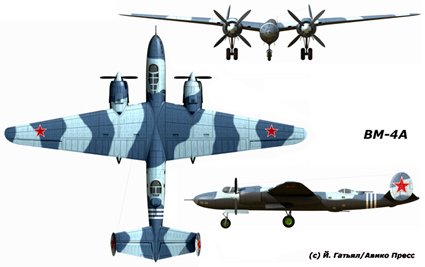

VM-4
Regards


Attachments

  • DVB-102-18-1.jpg
    67.9 KB · Views: 306
  • DVB-102-18-2.jpg
    79.6 KB · Views: 289

ucon

ACCESS: Top Secret
Joined
Jul 27, 2008
Messages
555
Reaction score
171
Website
www.avicopress.ru
Hi all!
New DVB-102 pix were added in www.avicopress.ru:
VM-4G
VM-4D
VM-5. For now all variants of DVB-102 (from VM-1 to VM-5) fully described with cutaway drawings, line-drawing and action pix.
Regards


Attachments

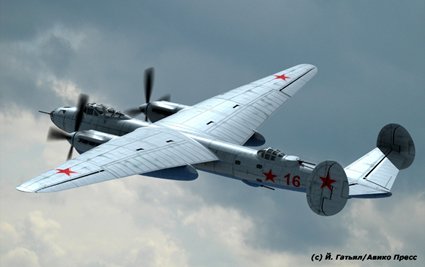

  • DVB-102-VM-5.jpg
    92.4 KB · Views: 240

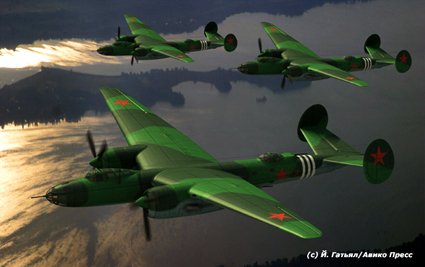

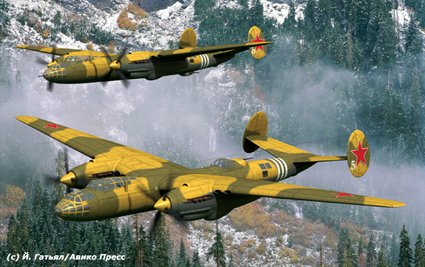

  • DVB-102-VM-4D.jpg
    141.8 KB · Views: 157

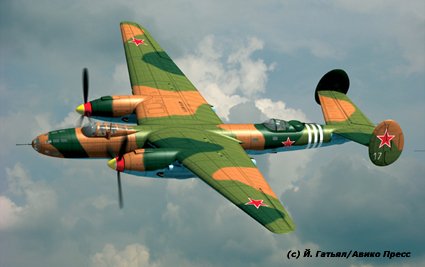

  • DVB-102-VM-4G.jpg
    121.5 KB · Views: 204

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Stargazer2006 said:
It seems to be the DVB-202.


I guess not,because the DVB-202 was appeared in 1944 and ended in 1946.


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
345
Reaction score
19
Based on the shape of the nose, I'd say the 302, or maybe even 402(?). IIRC, the 202 had a B-29 type of nose and the 302 onwards had more pointed nose and raised canopy.


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
759

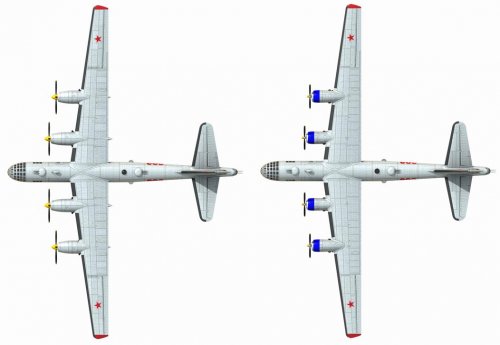

here are top views of DVB-202 and DVB-302


Attachments

  • DVB-202 & -302.jpg
    DVB-202 & -302.jpg
    47.1 KB · Views: 273

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
I believe the date "1948" is not right for this project. To me the design is closer to the DVB-202 (not "DVD", Jozef!) because of the engines (the -302 and -402 had more streamlined engines), even though the cockpit is different.


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
759
thanks, I corrected it. Size of DVB-202 and DVB-302 was comparable to size of Tu-4 (B-29)


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
345
Reaction score
19
Ok, so the top view on the right is the 302 and the one on the left is the 202? Many years ago when I got some drawings of them, the 202 was like a high wing B-29 with radial engines, and that's how I built my model. The 302 was similar but had large Vee engines and a longer, pointed nose, I think I stretch formed one from a model rocket nose cone and modified a Lancaster canopy and IIRC, it had a larger, squared vertical tail & I'm sure I used a C-130 vertical. These two views look the same except for the engines. Is that a correct interpretation??


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283

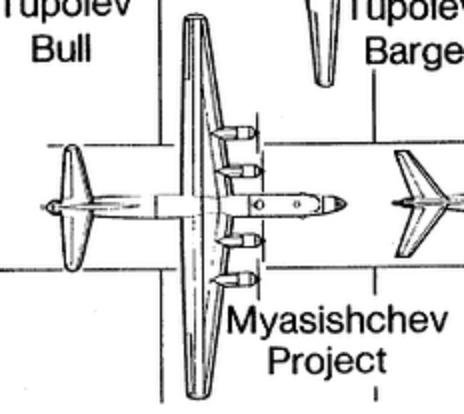

Also the wing was in the middle of the fuselage in my picture,and different
in DVB-202 and DVB-302,make a comparison;


Attachments

  • Myasishchev Project.jpg
    Myasishchev Project.jpg
    23 KB · Views: 315
  • DVB-202 & -302.jpg
    DVB-202 & -302.jpg
    47.1 KB · Views: 328

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
My understanding is that the one on the left is the -302 while the one on the right is the -202. Look at the shape of the engines. The 302's are more streamline and extend behind the wing. That's what led me to conclude initially that the picture represented an iteration of the -202 because of the straight trailing edge, although the wing's shape is a little different.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
After taking a look at Tony Buttler's Secret Projects volume on Soviet sombers, I have confirmation that the images depicting the nose of the DVB-302 as being B-29-like may not be accurate. Indeed, here is a model of the DVB-302 as well as a comparison of profile views with the DVB-302, which both clearly indicate that the nose and cockpit arrangement were closer to hesham's picture than what we know of the DVB-202. My bet is on an intermediary design, either an iteration of the DVB-202 or an early DVB-302. But again, certainly not a 1948 design, considering that these two designs (also designated VM-22 and VM-23) were developed in 1944 and 1945 respectively.

Engines could be of help, but I'm no specialist:
  • The VM-22 was to use four M71FTK turbocharged engines
  • The VM-22A variant was to use four ASh-72TKM engines (other sources call them AL-72TKM).
  • The VM-23 was to use four AM-46TK2 engines (though the same M71FTKengines as the VM-22 are also quoted).


Attachments

  • DVB-302_model.jpg
    180.8 KB · Views: 787
  • DVB-202 and 302 comparison.gif
    DVB-202 and 302 comparison.gif
    248.2 KB · Views: 777

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
759
Top views of DVB-202 and -302 are based on AvicoPress drawings ( I saw original MDB's drawings, too) and they are correct. Four engined DVB-402 was based on some DVB-101 or -102 (I hope I wasn't able to find its rendered picture) but on scheme is huge four engined bomber. I believe they are in the same scale. Then its size is comparable with size of three versions of six engined strategic MDB bomber - they were presented on this forum. Only Ucon will be able tell us what is it


famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
345
Reaction score
19
Yep, those two side views are what my 202 and 302 models look like and those are either the same or similar drawings that I got a few years ago.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Again

look to the wing position,it was different project.


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
759

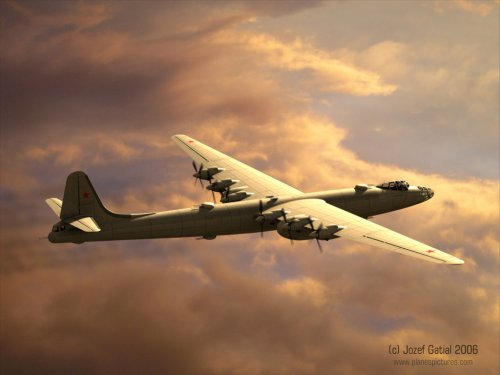

OK, I found it. Top view is view of next variant of DVB-302. Source Our wings from AvicoPress. In this source is noted older version of DVB-302 as I sent to you, too because on copy of original material from MDB is picture of this version and project number 23 from 1945. Model of new DVB-302 bomber is on one photo (is it only one source?) and it could be from 1948. I have done top/side/front views plus three action scenes.
I remember I asked in that time what is DVB-302 on last sent picture, too but I forgot answer.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
hesham said:
look to the wing position,it was different project.

Granted. The wing position is different. After doing quite a bit of comparing, superimposing and resizing, I noticed a few other differences, such as the length of the wings, proximity of outer engines to inner engines, width of rear fuselage and so forth.

The fact that this project is not the DVB-202, -302 or -402 as we know them does not exclude, however, that it results from the same general design philosophy and was likely studied in the same period. In the late 1940s, Myassishchev was already developing more advanced projects. Also, since the original source of your GlobalSecurity.org image is unknown, and is likely American, the drawing may still depict a DVB design. The author could have misinterpreted some details if he drew his plan from photos for instance, and he may have been approximate in his assessment of the chronology.

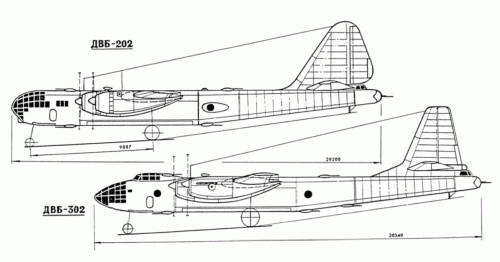

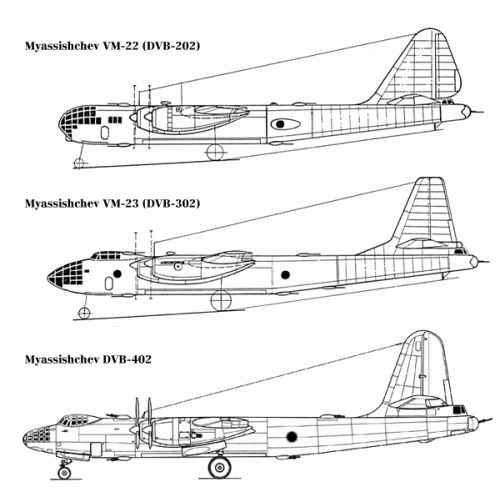

I'm attaching an updated comparison of DVB-202 and DVB-302 profiles, this time with the DVB-402. If we are to believe these, quite a few of the images previously identified as the DVB-302 actually depict the -202 and the -402. I don't know... I hope we can get someone to clean up the mess between these different versions!


Attachments

  • comparison.gif
    88.8 KB · Views: 652

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
345
Reaction score
19
Thanks for doing the side views. Now, is there any info on that 402? thanks.


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
759

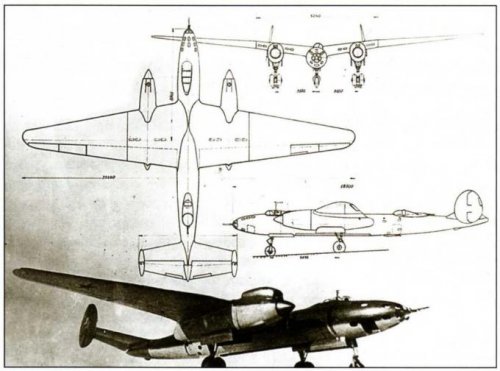

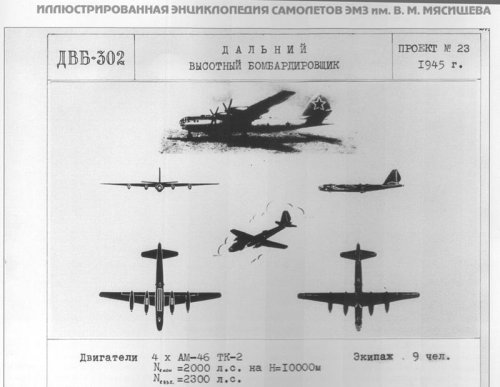

Two scans for next discuss


Attachments

  • New DVB-302 or DVB-402.jpg
    New DVB-302 or DVB-402.jpg
    62.3 KB · Views: 522
  • DVB-302 from OurWings.jpg
    DVB-302 from OurWings.jpg
    51.6 KB · Views: 507

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
713
Considering the increased fuselage length ahead of the wing and slightly shorter rear cockpit area, I'd say the latter is definitely the DVB-402.

However, the model I posted further above seems to display a DVB-302 which already had the Boeing-style tail of the DVB-402...


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
759

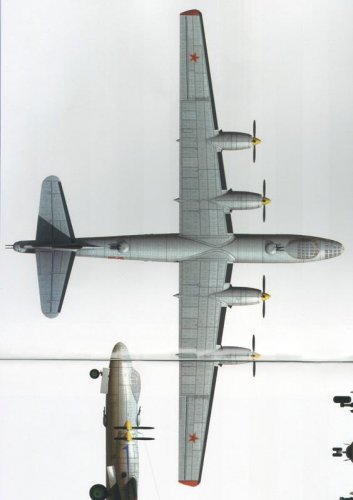

oh, I forgot top view... Source Our Wings from AvicoPress


Attachments

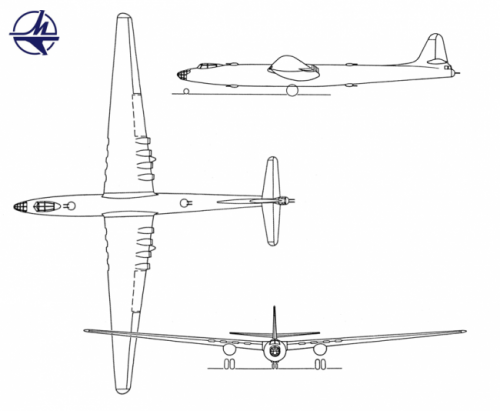

  • DVB-402 top view.jpg
    DVB-402 top view.jpg
    34.1 KB · Views: 291

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,007
Reaction score
5,688
Why are we even discussing Hesham's image? Looks like a dodgy pre-end-of-cold-war graphic - Tupolev "Barge", "Bear" etc.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,009
Reaction score
474
hesham said:
look to the wing position,it was different project.
!

Sorry, but did any of these DB-series of bombers make it to mock-up stage??

Regards
Pioneer


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Hi,

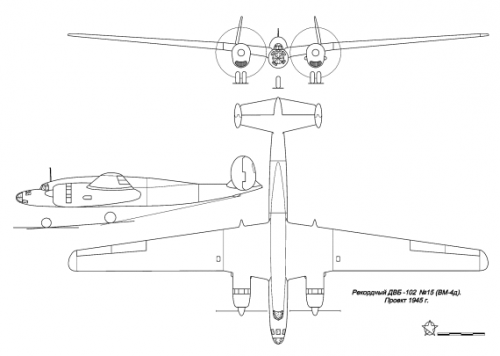

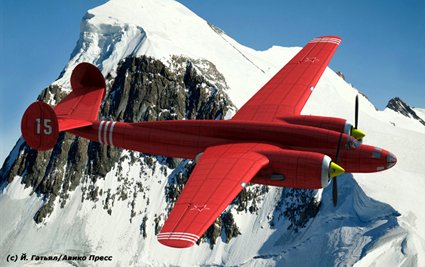

here is the Myasishchev VM-4D or DVB-102 No.15,a project of 1945.


http://ljavia.livejournal.com/22589.html


Attachments

  • i_038.png
    21.4 KB · Views: 203

JFC Fuller

ACCESS: Top Secret
Senior Member
Joined
Apr 22, 2012
Messages
2,537
Reaction score
1,046

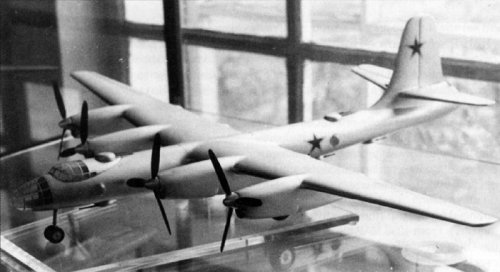

The DVB-302 model appears to show two defensive turrets under the rear fuselage rather than one, one forward and one aft of the upper-rear turret, it looks like the one furthest forward would be able to fire direct-aft under the aft-most turret.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Nice find Wingknut,

and here is a side view to Myasishchev VM-18,it was a project for day bomber DB-108 with
2 VK-108 engines,1945.

http://kplanes.tumblr.com/post/140471031555/k-planes-episode-95-russian-bombers


Attachments

  • tumblr_inline_o3jf5z2Sgs1t90ue7_1280.jpg
    39.5 KB · Views: 716

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Hi,

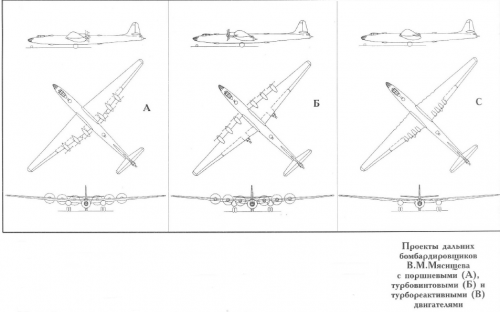

here is a little known Myasishchev Bomber Projects,I can't ID them well.


Attachments

  • 1.png
    159.7 KB · Views: 860

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
145
http://www.secretprojects.co.uk/forum/index.php/topic,2080.0/
http://www.secretprojects.co.uk/forum/index.php/topic,1660.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,996
Reaction score
5,283
Sorry for this double post my dear Borovik.

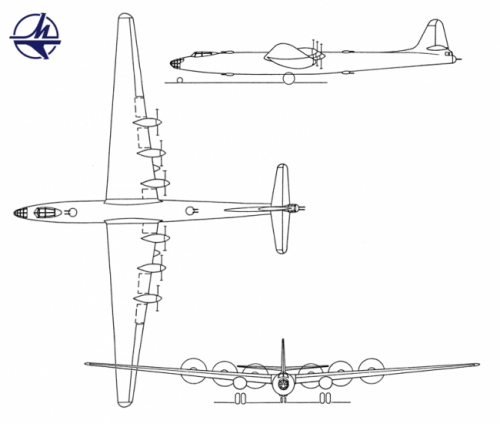

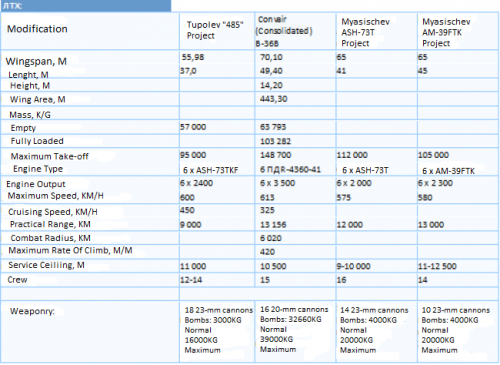

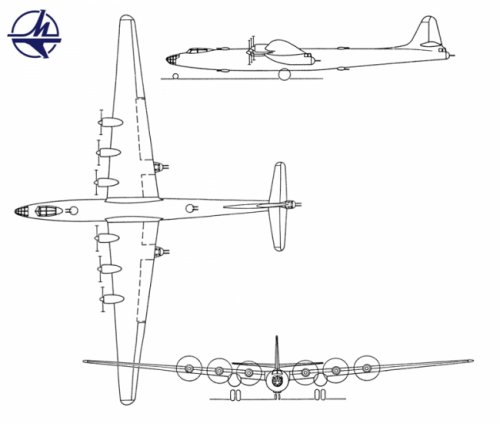

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,895
Reaction score
3,738
Hi!
http://thelib.ru/books/nikolay_yakubovich/myasischev_neudobnyy_geniy_zabytye_pobedy_sovetskoy_aviacii-read-2.html

And
http://forums.airbase.ru/2006/10/t51365,3--nenauchnaya-fantastika-super-bomber-vtoroj-mirovoj.html

http://www.aviastar.org/air/russia/mjas-102.php

http://www.airwar.ru/enc/bww2/dvb102.html

http://alternathistory.com/opytnyi-dalnii-vysotnyi-bombardirovshchik-dvb-102-sssr

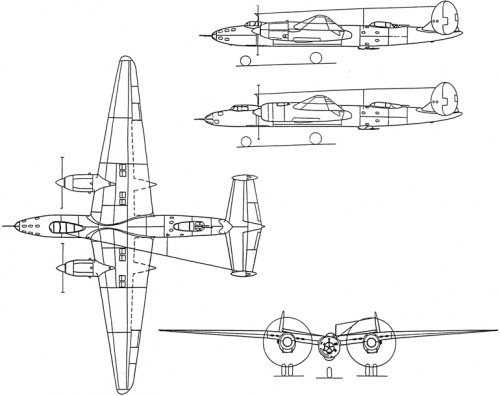

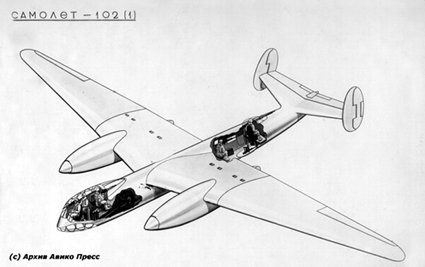

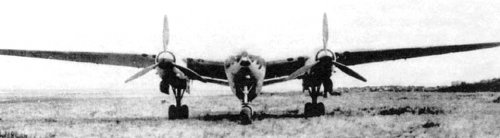

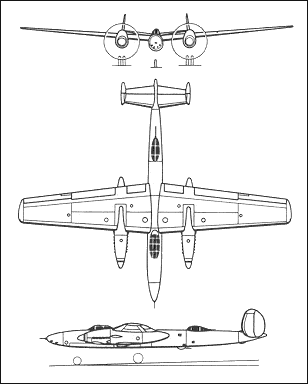

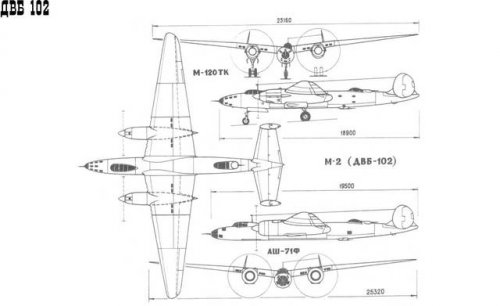

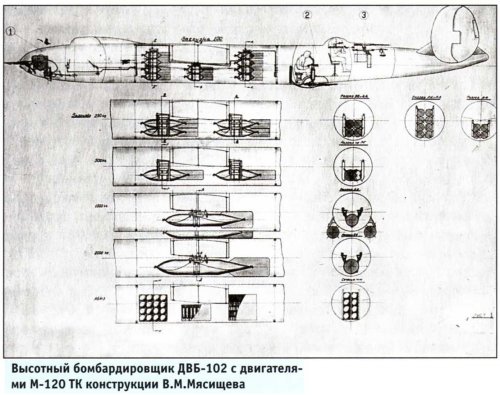

Which one is correct?


Attachments

  • 10_Komponovochnaya-shema-DVB-102.jpg
    80.4 KB · Views: 82
  • dvb-102-09.jpg
    140.1 KB · Views: 74
  • DVB-102-03.jpg
    101.1 KB · Views: 81
  • dvb-102-13-680x504.jpg
    44.3 KB · Views: 117
  • mjas-102.gif
    9 KB · Views: 598
  • dvb102cher.jpg
    21.5 KB · Views: 620
  • DVB-102.png
    45.1 KB · Views: 631

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,895
Reaction score
3,738
Hi!

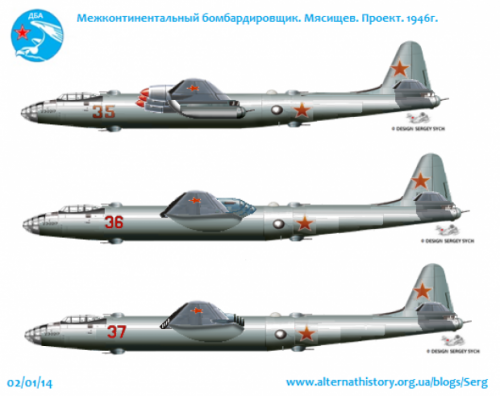

https://forum.warthunder.com/index.php?/topic/313180-myasishchev-intercontinental-bomber-project/

http://alternathistory.com/mezhkontinentalnyi-bombardirovshchik-myasishcheva-proekt-1946-g

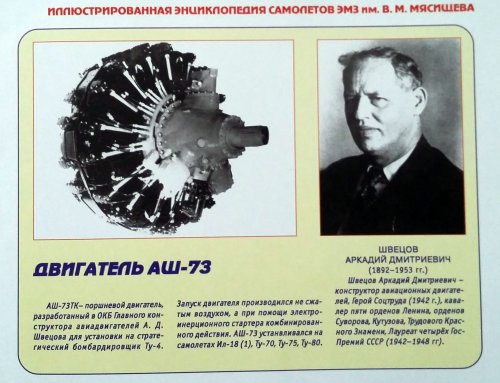

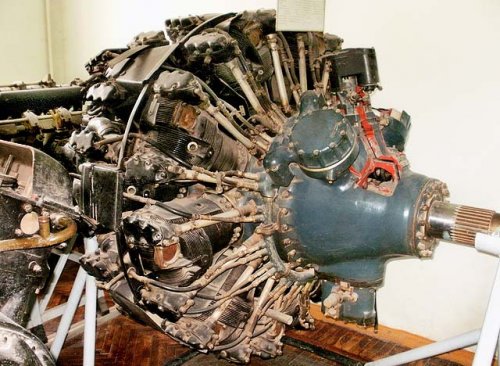

ASH-73 engine.
https://en.wikipedia.org/wiki/Shvetsov_ASh-73

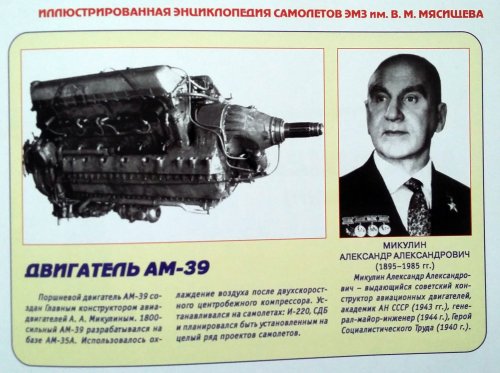

AM-39 engine.
http://xn--80aafy5bs.xn--p1ai/aviamuseum/dvigateli-i-vooruzhenie/aviamotorostroenie/aviamotory-sssr/porshnevye-i-dizelnye/porshnevoj-aviatsionnyj-dvigatel-am-39/
"Aircraft piston engine MIKULIN am-39.
Developer: OKB A.a. Mikulin
Creation year: 1942
Am 39 piston engine created by a designer A.a. Mikulin. Was a further development of the am-37 engine based on am-38F with two-speed MONITORING, intercooler and bespoplavkovymi carburettors to-39BP. Development was started in 1942, KB plant No. 300 (OKB-300), individual nodes of the prototype were manufactured in factories No. 24 and no. 45. In January 1943 the year conducted the first test of lapping engine variant am 39 with 4 four carburettors.
During the period 1943-1946 Gg. several modifications of the engine. In March 1944 the year am-39 passed the State tests, but in a great series did not enter production. In April 1944 the year 10 copies. Am-39 was produced at factory No. 45, May-June 22. Redid at plant No. 300 of the am-38F using nodes, manufactured by the No. 45.
Installed on airplanes: ITP (1942), I-220 (1943), RRT (1944).
Modifications:
Am-39-am 38, 1500/1800 HP, carburettor.
Am-39A-am-38F, 1500/1800 HP (on assignment — 1700-1800 HP) supercharged petrol from the am-38F, but with 2-hskorostnoj and water-air intercooler. Passed state tests in March 1944 onwards, and in July the flight tests.
Am-39A-TK-TK-turbocharged b. Tested on the plane and-224 in February, 1944.
Am-39B (s-39B-TC) is 1580/1890 HP, a variation of the preceding type with 2-мя turbochargers TC-300B and air-air intercooler. Tested in June 1944 year by plane and-224.
Am-39B — with a single turbocharger AMTK-1 installed on only one engine block (amorphous), on the other hand, the exhaust silencer.
Am-39f with — with new unilateral RCM, you forced on the turnover and charged, power 1800/1800 HP in November 1944 year passed the manufacturer's tests, then flying on a plane "63".
Am-39f with — the previous water injection on Afterburner mode.
Am-39FK-forkamernym-c/1600 1850 HP at the beginning of 1946 year produced two experienced instance and spent factory testing. In 1947 was the year released another seven engines. On State tests am 39FK not pred'javljalsja.
Am-39FN (FNV) is big with direct injection, based on am-38F. OKB-300 was developed from mid-1944 years. Improved CMS hydraulics, was notable for the increased diameter of the impeller, it increased the diameter of the valves, suction partrubkami on engine type "Allison V-1710. Power initial-1600/1850 HP, weight-970 kg. Tests were conducted from August 1944 years, official factory testing took place in January 1945 year. In the summer of 1947 year engines were tested on the Tu-2 bomber. Work ceased in September 1945 by Decree of the Mikulin, in connection with the successful modification of the am-39FN2.
Am-39FN2-analogue am-39FN am-based 42, 1600/1850 HP, weighs 1080 kg. In 1 quarter of 1946 onwards were made of 5th instances which state tests.
Am-39 family engines were installed on the aircraft experienced: "68" (TU-4) and 231 (2D, MIG-3DD), ITP (m-2), VP (k), TIS-Ma,-224, in small series TU-10. Predusmatrovalos' their use in the draft ATP aircraft.
TACTICAL-am-39:
Type: V-shaped (60°) aircraft engine
Power, HP: 1800
Rotation frequency, revs/min: 2350
Nominal conditions
the power of the Earth, HP: 1580
power at an altitude of 1100 m, HP: 1650
Nominal specific parameters
specific gravity:-
liter power, HP/l.: 33.85"


Attachments

  • JET POWERED PROJECT.png
    JET POWERED PROJECT.png
    176.9 KB · Views: 103
  • With liquid cooling AM-39 engine project.png
    With liquid cooling AM-39 engine project.png
    188.3 KB · Views: 104
  • With ASK-73 air cooling radial engine project.png
    With ASK-73 air cooling radial engine project.png
    102 KB · Views: 96
  • ash73tk-1.jpg
    114.4 KB · Views: 145
  • %20Мясищев_0-620x491.png
    187 KB · Views: 208
  • zQEdoOg.png
    260.8 KB · Views: 118

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,895
Reaction score
3,738
I think that this design was powered by liquid cooling engine.

http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=18500.0;attach=569712;image


Attachments

  • LRSB B_sc1.jpg
    LRSB B_sc1.jpg
    130.2 KB · Views: 136

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
759
The engines for first and second FF versions


Attachments

  • 20161221_115634.jpg
    804.4 KB · Views: 66
  • 20161221_115706.jpg
    1,000.9 KB · Views: 67

Similar threads

Top
