Early Business Jet Aircraft Projects

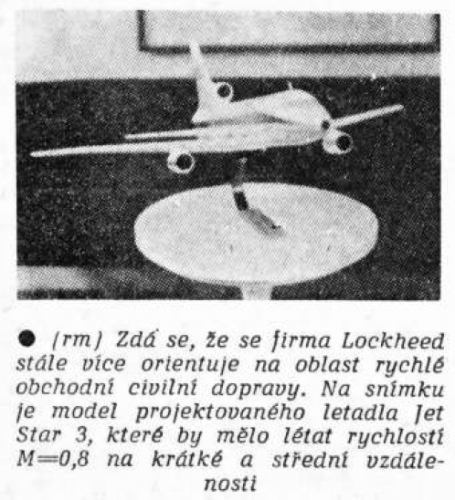

Oh yes, the Jetstar 3 was shown in Aviation Week 1969 14-18, too:


Attachments

  • Jetstar-3_1.JPG
    30.1 KB · Views: 932
  • Jetstar-3_2.JPG
    41.3 KB · Views: 886
Instead I found out this interesting story:

Donald Douglas, founder of the company with the same name, talked with Piaggio to explore his avilability to design and plan a jet executive aircraft. Ed Heinemann, famous designer at Douglas for the US Navy, designed a preliminary project, called D-808, of an imbarked plane for executive commuting, for the US Navy, but he didn't want to bear the whole investment, necessary for the project: he was interested to buy circa 200 planes, if Douglas had developed a civil version. Donald Douglas believed not to be prepared to maintain on the market an aircraft with an usage so different from traditional liners, but declared himself ready to nominally participate to the project, and charged Heinemann to contact other manufacturers. He tried to involve Northrop, that said that the best company for that purpose was the Piaggio of Genua. Ing. Casiraghi talked of the project with Ing. Piaggio, that, after having contacted Italian Air Forces, gave his OK. The agreement between Armando Piggio and Donald W. Doulas was reached in april 1961: the Italian company had to plan and manufacture in his plants all the aircrafts for the US Navy. Douglas did not invest any money, but gave Piaggio all the necessary know-how for free. A little team of Douglas' engineers was deployed in its El Segundo plant, where Heinemann's office was, at Piaggio disposal.

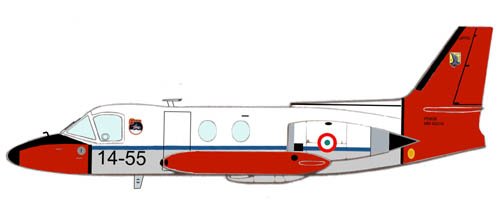

Obviously we are talking about the Piaggio PD 808 (that still mantains the "D" for Douglas), proposed as "Italian Bizjet" in mid 60's, it suffered the concurrency of Learjets (and also others) and it was utilized for a long time by AMI (Italian Air Force) as general purpose aircraft and also as electronic warfare platform as well.


Attachments

  • pd808_cop.jpg
    19.1 KB · Views: 867

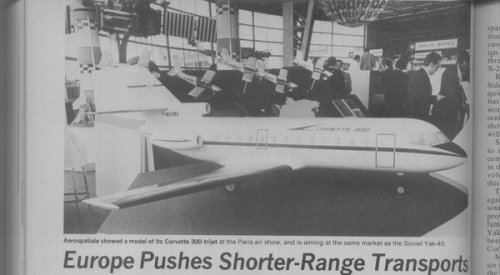

You could see the Aerospatiale "Corvette 300" (Corvette with 3 motors like the Falcon 50) in Le Bourget, 1953-2003, TTU :eek:
I will scan it .... ;)

I've only this photo of the model, a 3-view would be good ... ;)
(from Aviation Week 1973_98)


Attachments

  • AS-Corvette300.JPG
    30.3 KB · Views: 314

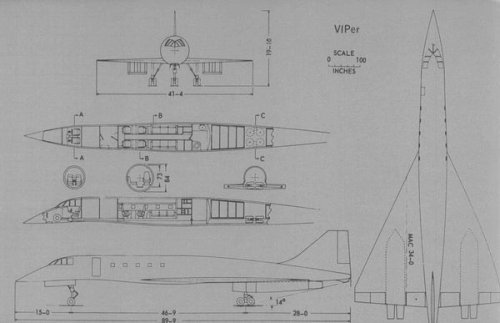

Two studies for supersonic bizzjets from the Georgia Institute of Technology.
Not really what I would call a project, but maybe a good illustration of the
thinking in the '60s.
(from Aviation Week 1967 10-17)


Attachments

  • GIT-Supersonic_2.jpg
    28.6 KB · Views: 426
  • GIT-Supersonic_1.jpg
    28.3 KB · Views: 422
This wasn't a biz-jet per se, but in the 1950s, McDonnell put together their Model 119/220, which was a candidate for the same RFP that produced the Lockheed Jetstar. The Jetstar won that comp, so McDonnell tried to market the airplane as an executive type, and flew their own execs around in it till 1965.

http://www.boeing.com/companyoffices/gallery/hist073b.htm

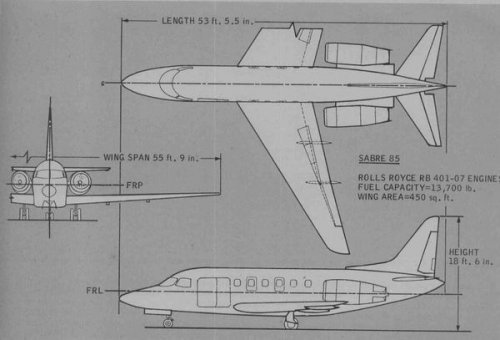

From Aviation Week 10/1978, the Rockwell Model 85 Sabreliner, a refined,
longer development of the model 75 :


Attachments

  • Rockwell_Sabreliner85.jpg
    33 KB · Views: 276
archipeppe said:
Instead I found out this interesting story:

Donald Douglas, founder of the company with the same name, talked with Piaggio to explore his avilability to design and plan a jet executive aircraft. Ed Heinemann, famous designer at Douglas for the US Navy, designed a preliminary project, called D-808, of an imbarked plane for executive commuting, for the US Navy, but he didn't want to bear the whole investment, necessary for the project: he was interested to buy circa 200 planes, if Douglas had developed a civil version. Donald Douglas believed not to be prepared to maintain on the market an aircraft with an usage so different from traditional liners, but declared himself ready to nominally participate to the project, and charged Heinemann to contact other manufacturers. He tried to involve Northrop, that said that the best company for that purpose was the Piaggio of Genua. Ing. Casiraghi talked of the project with Ing. Piaggio, that, after having contacted Italian Air Forces, gave his OK. The agreement between Armando Piggio and Donald W. Doulas was reached in april 1961: the Italian company had to plan and manufacture in his plants all the aircrafts for the US Navy. Douglas did not invest any money, but gave Piaggio all the necessary know-how for free. A little team of Douglas' engineers was deployed in its El Segundo plant, where Heinemann's office was, at Piaggio disposal.

Obviously we are talking about the Piaggio PD 808 (that still mantains the "D" for Douglas), proposed as "Italian Bizjet" in mid 60's, it suffered the concurrency of Learjets (and also others) and it was utilized for a long time by AMI (Italian Air Force) as general purpose aircraft and also as electronic warfare platform as well.
Click to expand...

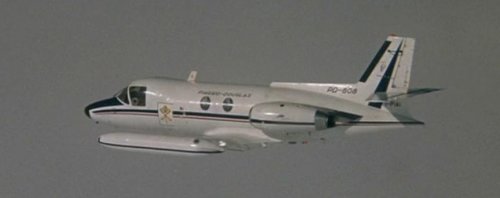

Just to illustrate this info from archipeppe, here is a frame grab of what looks to be a demonstrator dressed in Vatican markings for the movie The Shoes of the Fisherman.


Attachments

  • Piaggio Douglas 808 2.jpg
    Piaggio Douglas 808 2.jpg
    52.9 KB · Views: 288
Hi,


from L + K magazine,here is early model to Hamburger Flugzeugbau HFB-320
Hansa jet aircraft.


Attachments

  • HFB-320.JPG
    83.5 KB · Views: 206

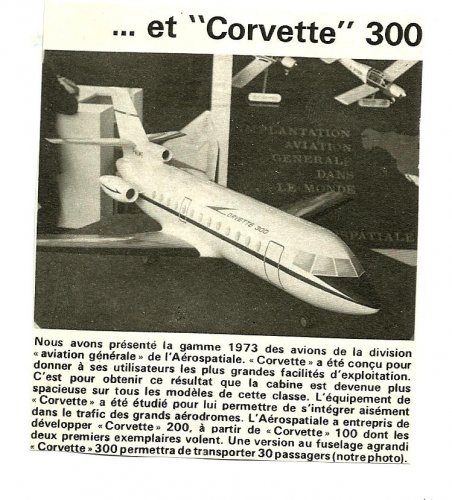

Hi Jens
A long time ago you show us a photo of
the "corvette 300" here a second one......but no 3 view !
(from "aviation magazine")


Attachments

  • test.jpg
    136.5 KB · Views: 241

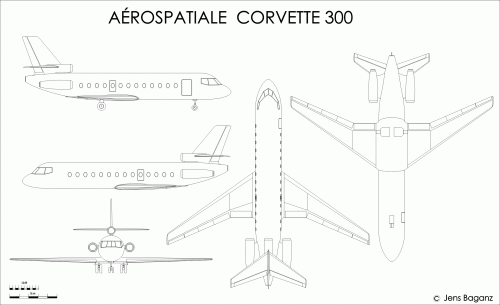

... and at last finished, although very speculative and to be taken with more , than just a pinch of salt.
Source grade 1.5 only !


Attachments

  • Aerospatiale Corvette 300.gif
    Aerospatiale Corvette 300.gif
    135.4 KB · Views: 355
Jemiba said:
... and at last finished, although very speculative and to be taken with more , than just a pinch of salt.
Source grade 1.5 only !
Click to expand...


A great effort all the same! ;)

Hi,

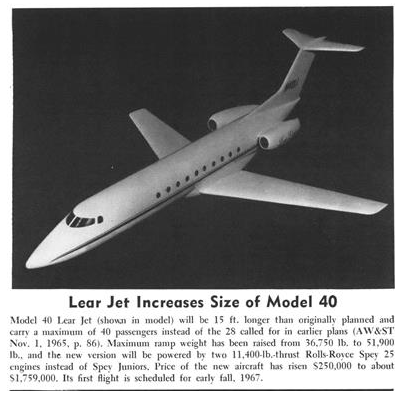

here is a Learjet Model-40 Project.

http://archive.aviationweek.com/image/spread/19660523/20/2


Attachments

  • 1.png
    110.8 KB · Views: 374
Hansa Jet was unique (among civilian jets) for its forward-swept wing. Forward-swept wings had been tested by the Luftwaffe during the dying days of World War 2 as part of their research into reducing compressibility and supersonic flight.
The primary reason that Hansa Jet got forward-swept wigs was to allow the wing spar to pass aft of the cabin pressure vessel, similar to the (current production) Piaggio Avanti turboprop. Most modern business jets solve this structural problem by passing the wing under the cabin pressure vessel and enclosing it in a massive fairing that also encloses main landing gear, etc.
Forward-swept wings can suffer from divergence if not built considerably stronger (and heavier) than aft-swept wings. Later composite materials solved most of those problems (see various prototypes built by Burt Rutan) but composite, FWS wings never made it into production.
Only 47 Hansa Jets were ever built with the Luftwaffe being the largest customer. Military Hansa Jets flew VIPs and ECM missions.

The German Air Force ordered 21 aircraft - first a 13-aircraft batch, an 8-aircraft batch some years later. The Dutch Rijksluchtvaartschool had a 3-aircraft fleet flying from Eelde.
<edit> ... and not 23, as I wrote earlier. Noisy birds, they were.

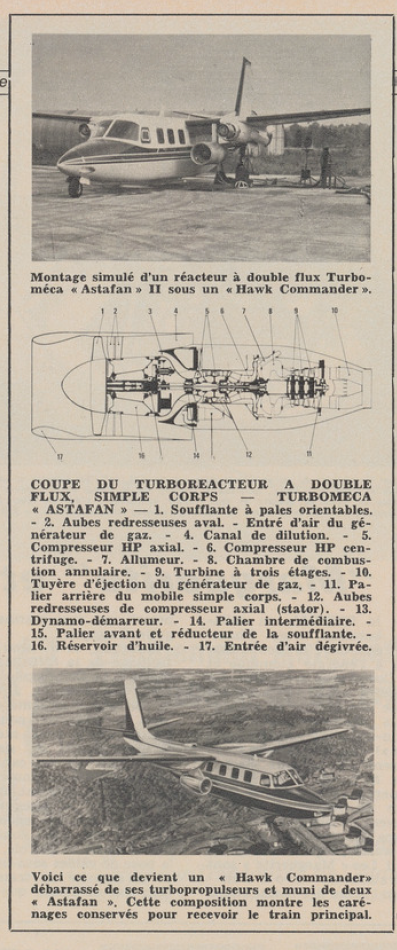

From Aviation magazine 1971,

very strange.


Attachments

  • 1.png
    765.1 KB · Views: 186
hesham said:
Hi,


from L + K magazine,here is early model to Hamburger Flugzeugbau HFB-320
Hansa jet aircraft.
Click to expand...

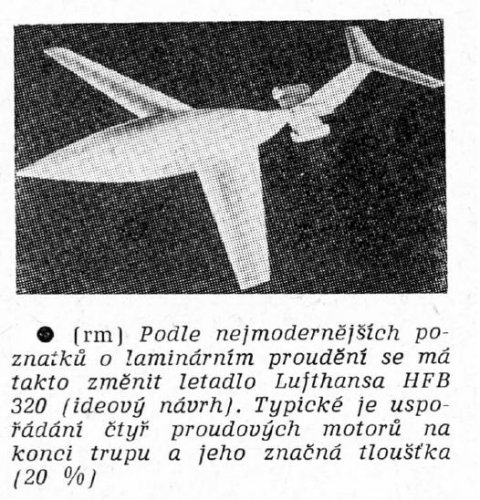

(rm) According to the latest knowledge of laminar flow, this is how the Lufthansa HFB 320 aircraft is to be modified (conceptual design).Typical is the arrangement of four jet engines at the end of the fuselage and its considerable thickness (20%).-(Translation of the picture caption)."Unless I'm mistaken, I'd say it's Hertel design."

The VLJs went from Rayburn’s air taxi dreams to junior league CEOs who can’t afford a Gulfstream.

hesham said:
what was this ?.
Click to expand...

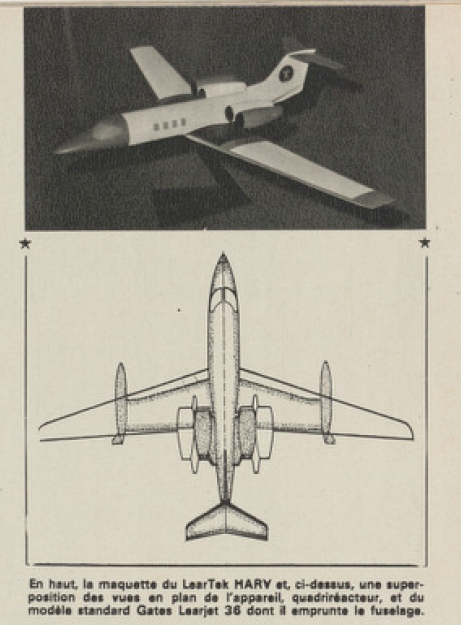

Caption: «En haut, la maquette du LearTek HARV et, ci-dessus, une superposition des vuews en plan de l'appareil, quadriréacteur, et du modèle standard Gates Learjet 36 dont il emprunte le fuselage.»

Rough translation: "At the top, a model of the LearTek HARV. And, above, a superimposition of plan views showing the standard Gates Learjet 36 (from which the HARV borrows its fuselage) and the proposed four-engine set-up."

The LearTek HARV (High-Altitude Research Vehicle) was a 1975 proposal for a dedicated mapping derivative of the Learjet 35/36 airframe. This project was featured in AW&ST 12 May 1975 (pp 52-53).

To attain its planned operating height of 65,000-feet, a new wing 170% the size of the Learjet 35/36's would be needed. And note that this new wing was to be deeper in chord as well as longer in span (compared with the Learjet 35/36 wing). Power was to be provided by 4 x 3,700 lbf Garrett TFE731-3 turbofans (as per Lockheed JetStar II).


Attachments

  • leartek-harv-awst.jpg
    44.6 KB · Views: 174

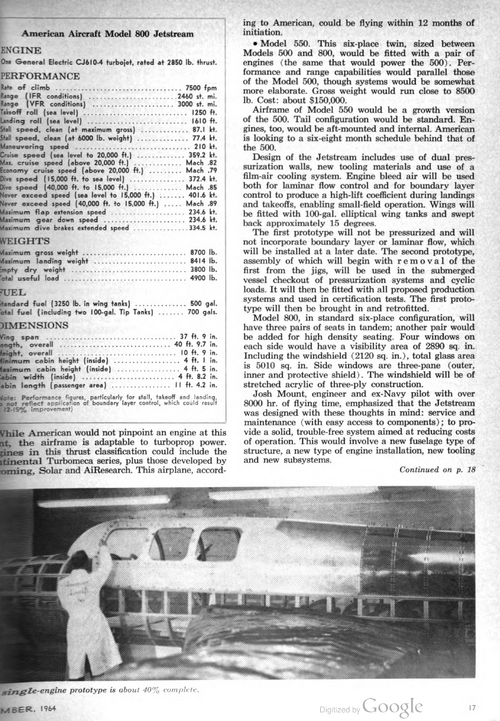

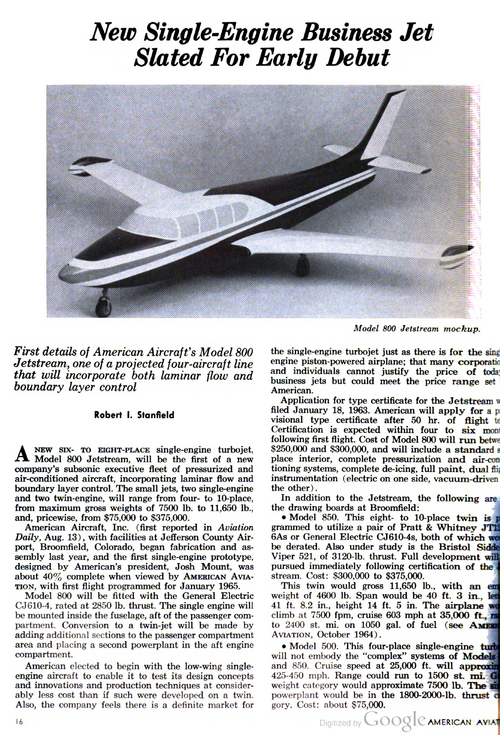

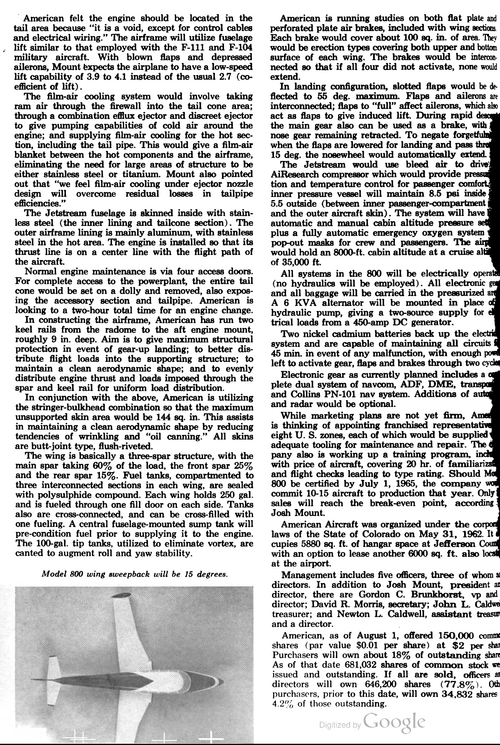

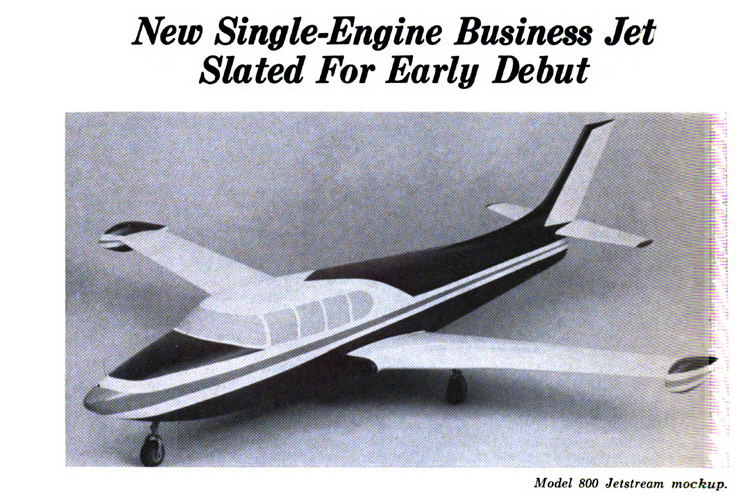

From American Aviation 1964,

I never heard about this before,American Aircraft Models 800,850,500 & 550 Jetstream,they were all a projects as I think ?.


Attachments

  • 12.png
    1.8 MB · Views: 103
  • 13.png
    3.7 MB · Views: 89
  • 14.png
    2.4 MB · Views: 75
  • 15.png
    841.9 KB · Views: 90

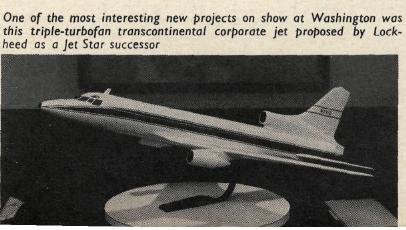

Further to the above pics of the Tri JetStar is this pic of the model superimposed on a view of the Lockheed Factory. In fact if this had been a real shot, the aircraft would have impacted the final assembly building of the C-130!! Taken from Code One website

archipeppe said:
Instead I found out this interesting story:

Donald Douglas, founder of the company with the same name, talked with Piaggio to explore his avilability to design and plan a jet executive aircraft. Ed Heinemann, famous designer at Douglas for the US Navy, designed a preliminary project, called D-808, of an imbarked plane for executive commuting, for the US Navy, but he didn't want to bear the whole investment, necessary for the project: he was interested to buy circa 200 planes, if Douglas had developed a civil version. Donald Douglas believed not to be prepared to maintain on the market an aircraft with an usage so different from traditional liners, but declared himself ready to nominally participate to the project, and charged Heinemann to contact other manufacturers. [...]
Click to expand...
A picture showing a Douglas D-808 model was posted on SDASM Flickr Archives today.
https://flic.kr/p/2pL55GT
View: https://flic.kr/p/2pL55GT
