E.A. Afarameyev's WIG/shuttle combo

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
Anybody has some info about this? Seems to me like part of two of long-term Oryol concepts.


Attachments

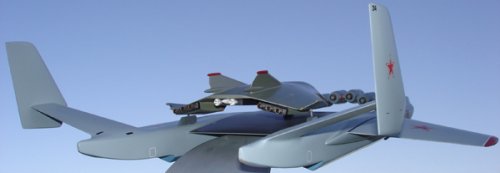

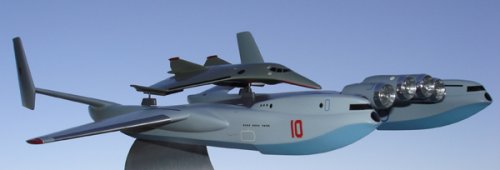

  • wsl_1.jpg
    35.3 KB · Views: 448
  • wsl_vks1.jpg
    39.4 KB · Views: 406

QUANTUM1

ACCESS: Restricted
Joined
Mar 15, 2006
Messages
5
Reaction score
0

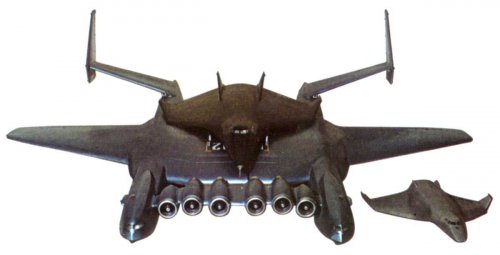

It is a WIG vehicle designed by E.A. Afarameyev, for the launch of a space shuttle. Some basic data: wingspan 80m , take-off weight 750t, powered by six turbojets rated at 30000-35000 kgp, and two diesels for movement on water. Separation at 30000 m. The shuttle is also supposed to land on the airborne WIG (!). In general, the system is trying to achieve landing and launching flexibility, without the need for airstrips all over the world. More discussion (but sadly, no more photos) on Sergey Komissarov' s "Russia's ekranoplans", p. 78-9.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,460
Reaction score
189
Thanks a lot Quantum1!!!


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,460
Reaction score
189
Sergey Komissarov' s "Russia's ekranoplans", p. 78-9.

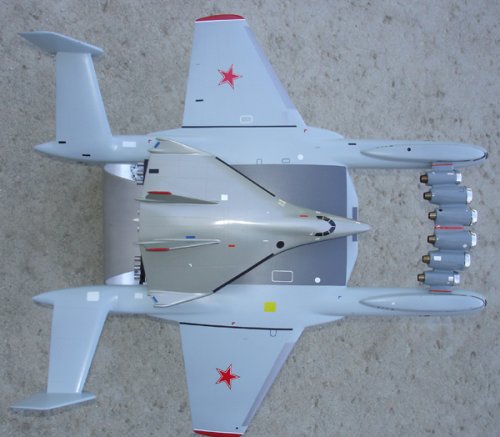

There is a pic of the WIG/Suttle on page 79. A nice side view from the same model in Matej's post.

Frm page 78 text:

Aframeyev is the author of an article in the April 2001 issue of Russian mag Aviation and Space Herald. No reference to the actual originator of the design. No information about timeframe on the book. :(


QUANTUM1

ACCESS: Restricted
Joined
Mar 15, 2006
Messages
5
Reaction score
0
No mention of time-frame in Komissarov's book (which is full of projects, and hence highly recommended). It would be surprising if it were before the early-late nineties. Interestingly, support of space operations is one of the missions also suggested for the gigantic Be-2500. At Beriev, they call it "Maritime Space Complex".
