Dual-Rotation Propellers

pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
998
Reaction score
252
Interesting! Thanks for that.


I wonder if all contraprops embody the same basic principles. It would be an interesting thing to see details of the design fitted to late-model Griffon Spitfires and Seafires by way of comparison.


Trying to synchronize machine-guns to fire past those must have been a nightmare.


memaerobilia

ACCESS: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
8
Website
www.memaerobilia.com
pathology_doc said:
Trying to synchronize machine-guns to fire past those must have been a nightmare.

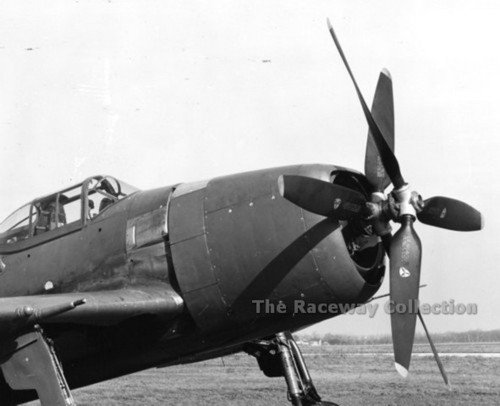

Not certain if they had nose guns in it. They may have just used the wing-mounted guns? Here is an original photo from Curtiss files of the "XBTC-2 Model B"


Attachments

  • cc1s.jpg
    34.3 KB · Views: 283

Spark

ACCESS: Secret
Joined
Aug 29, 2008
Messages
361
Reaction score
43
Hi.

Very interesting Design

Martin Baker solved an “oil problem” with the UK contra-rotating airscrews but can not remember if it was solved for the Spitfire or the Shackleton first.

Circa 1940 the two Fairey completely variable–pitch three bladed propellers
Weight per pair = 570 lb. (11’ 6’’ diameter)



pathology_doc said:
Interesting! Thanks for that.


I wonder if all contraprops embody the same basic principles. It would be an interesting thing to see details of the design fitted to late-model Griffon Spitfires and Seafires by way of comparison.


Trying to synchronize machine-guns to fire past those must have been a nightmare.
