Douglas XC-132

Golfus

Lo que diga Don Manué
Joined
Aug 19, 2006
Messages
44
Reaction score
3
Good morning, ladies (I hope) and gentelmen.

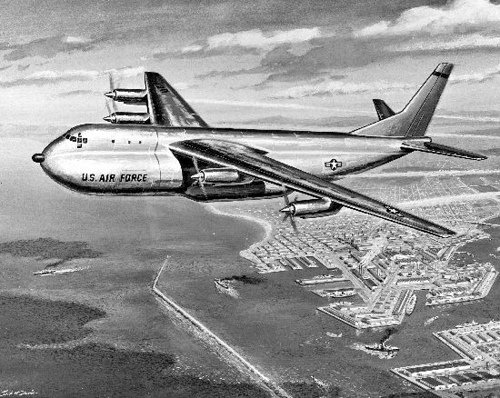

Here you have a really astounding transport and tanker aircraft projected in 1957.
You can find more info at www.angelfire.com/wa2/c133bcargomaster/c133bdevelopment.html

A salute to all.


Attachments

  • xc-132-1.jpg
    74.3 KB · Views: 1,207
  • C132InFlt.jpg
    79.8 KB · Views: 1,003

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
I have been trying to find info on this project for years, without to much success.
I think the USAF (and the US Army more so for that matter) missed a good opportunity to have an effective long-ranged and heavy lift capability, that would have served the US well in the early years of the Vietnam War (until the advent of the Lockheed C-5 Galaxy).
It is very disappointing also that the US was to give up on truly powerful turboprop engine designs, while the Soviets were able to perfect them, and utilize them in many successful aircraft designs, like that of the An-22 and the Tu-95

Were there any other design submissions to this requirement?

Regards
Pioneer


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,213
Reaction score
1,739
I think there's a mention of this aircraft in Le Fana de l'aviation from late 2002 (article on the Boeing 707 and... KC-135).
Wasn't this project a turboprop derivative of the C-124 Globemaster, and a harsh competitor to the KC-135 ? All beeing tendered to replace the KC-97 (which had to dive to refuelled fast jets :eek:).
I think there's was also a Lockheed contender (can't remember the number) which was declared winner, but in the end, dozens of... Boeing were bought instead.
And yes, it's a pity the Turbodyne was abandoned circa 1950 (I red that a prototype reached 10 000 hp on a testbench :eek: , not too far from the NK-12...)


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Golfus said:
Good morning, ladies (I hope) and gentelmen.
Here you have a really astounding transport and tanker aircraft projected in 1957.
You can find more info at www.angelfire.com/wa2/c133bcargomaster/c133bdevelopment.html

A salute to all.

The website belongs to Cal Taylor (Secret Projects member "firstfleet") and if anyone wishes to know more about the XC-132 and related, but smaller, C-133, he has written and published a book on the topic.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Pioneer said:
I have been trying to find info on this project for years, without to much success.
I think the USAF (and the US Army more so for that matter) missed a good opportunity to have an effective long-ranged and heavy lift capability, that would have served the US well in the early years of the Vietnam War (until the advent of the Lockheed C-5 Galaxy).
It is very disappointing also that the US was to give up on truly powerful turboprop engine design, while the Soviets were able to perfect them, and utilize them in many successful aircraft designs, like that of the An-22 and the Tu-95

Were there any other design submissions to this requirement?

Regards
Pioneer

The XC-132 would have been a great deal more advanced than the far later straight wing, lower performance An-22, but is easy to see why it was cancelled?

The order for the military C-135 literally kickstarted the age of the civilian jet transport. Boeing took a huge risk in launching the civilian 707, and while they might it really took military orders to make the initial investment worthwhile.

In any event, the troubled history of the smaller C-133 makes it clear that the XC-132 cancellation was probably for the best.

Given a choice between the C-135 and XC-132, it is hard to even secondguess the decision that was actually made.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Ummm, C-135 and XC-132, they were two very different beasts.... As far as I know the C-135 was a short term solution for a fast transport aircraft, a requirement that was really fulfilled only by the C-141... The tanker version was a subsequent development. The XC-132 was bult for the relatively fast trasport of oversize cargo (follow-on of the C-124 ).


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,387
Reaction score
1,429
Pioneer said:
I have been trying to find info on this project for years, without to much success.
I think the USAF (and the US Army more so for that matter) missed a good opportunity to have an effective long-ranged and heavy lift capability, that would have served the US well in the early years of the Vietnam War (until the advent of the Lockheed C-5 Galaxy).
It is very disappointing also that the US was to give up on truly powerful turboprop engine design, while the Soviets were able to perfect them, and utilize them in many successful aircraft designs, like that of the An-22 and the Tu-95

Were there any other design submissions to this requirement?

Regards
Pioneer

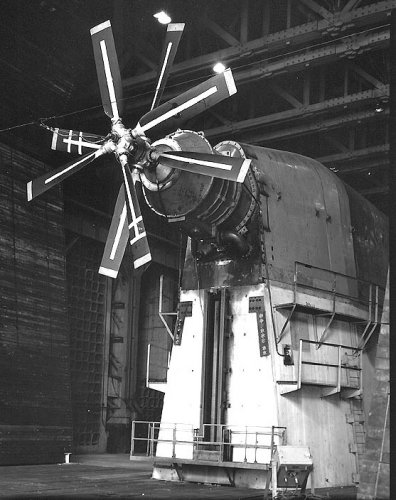

I'm pretty sure this is the engine. . .


Attachments

  • 15000shp motor.jpg
    15000shp motor.jpg
    112.2 KB · Views: 815

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,345
Reaction score
117
If I remember correctly, the engine chosen for the XC-132 was the T57, a turboprop that , I believe, used the gas generator of the J57, hence the horsepower ratings shown.

The wings look like you might be able to use DC-8 wings to model this aircraft.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,202
Reaction score
130
I think that the "engine" photo may just be the propeller test stand at WPAFB. The hardware was used later to test compressors. In any event that's a contraprop and I think the T57 was single-rotation.
Pratt's "black museum" collection has a T57.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476

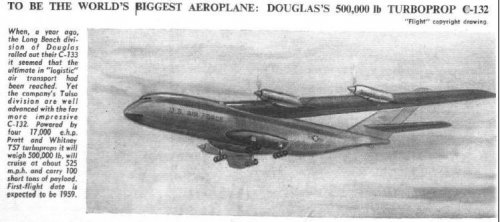

Early artist drawing from Flightglobal;
http://www.flightglobal.com/pdfarchive/view/1957/1957%20-%200186.html


Attachments

  • C-132.JPG
    46.6 KB · Views: 844

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
37
Website
cmeunier.chez-alice.fr
Archibald said:
I think there's a mention of this aircraft in Le Fana de l'aviation from late 2002 (article on the Boeing 707 and... KC-135).
In Le Fana de l'Aviation #470 (of late 2008) there is a photograph of the not-completed YC-132 being built (page 30). Amazing. :)


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,463
Reaction score
194

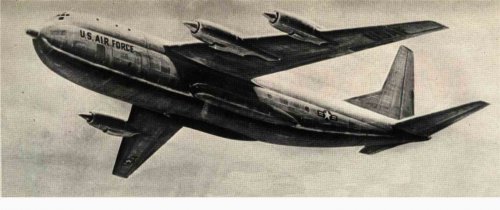

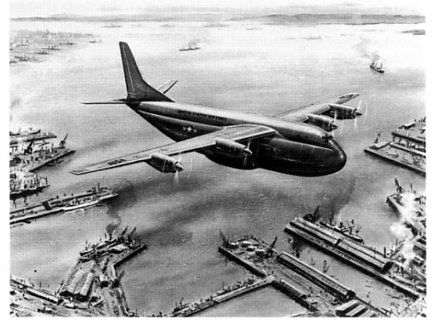

A couple of pics from Bill Gunston's "Giants of the Sky"


Attachments

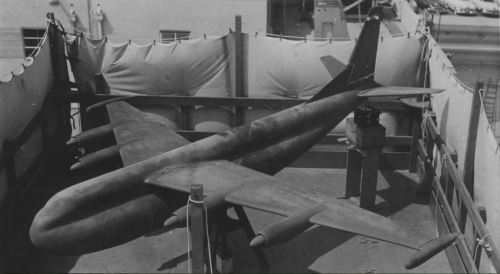

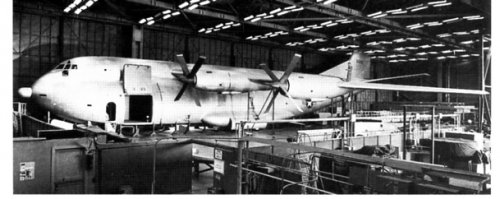

  • XC-132 full scale mock-up.jpg
    XC-132 full scale mock-up.jpg
    107 KB · Views: 849
  • XC-132.jpg
    95.6 KB · Views: 290

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476

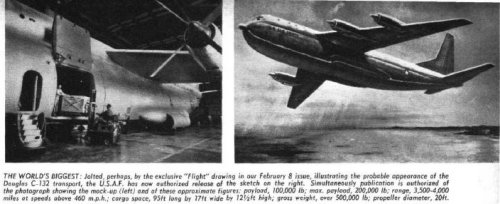

A more info about XC-132;

http://www.flightglobal.com/pdfarchive/view/1957/1957%20-%200229.html?search=douglas%20c-132


Attachments

  • XC-132.JPG
    43.9 KB · Views: 149

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303

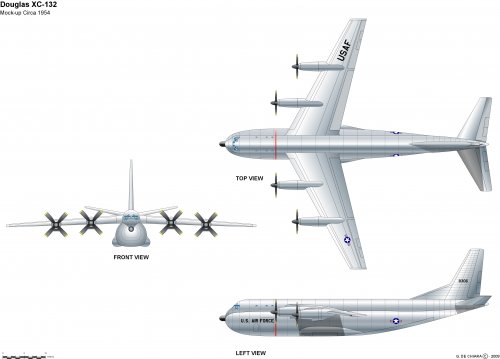

Personal contribution about the matter.


Attachments

  • Douglas XC-132.jpg
    Douglas XC-132.jpg
    361.3 KB · Views: 342

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688
Only one picture at the SDASM Archives.
Link: http://www.flickr.com/photos/sdasmarchives/4559110751/


Attachments

  • Douglas_XC-132_SDASM_archives.jpg
    112.9 KB · Views: 158

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,044
Reaction score
870

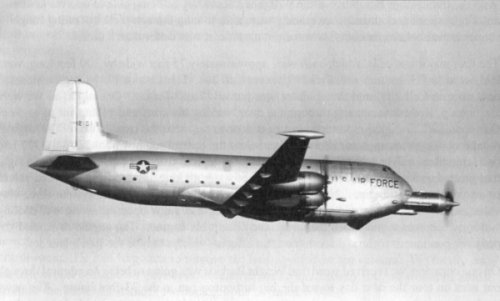

T57 being tested onboard of C-124
photo courtesy P&W from Advanced Engine Development At Pratt and Whitney by D.Mulready


Attachments

  • T57-tests-sm.jpg
    104.4 KB · Views: 824

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
130

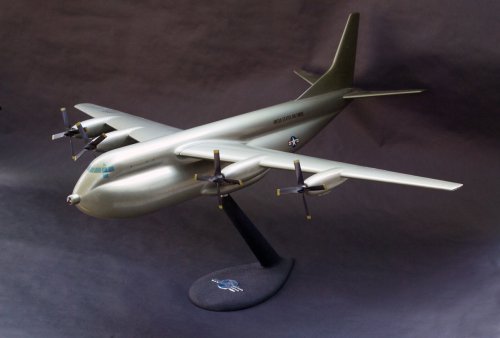

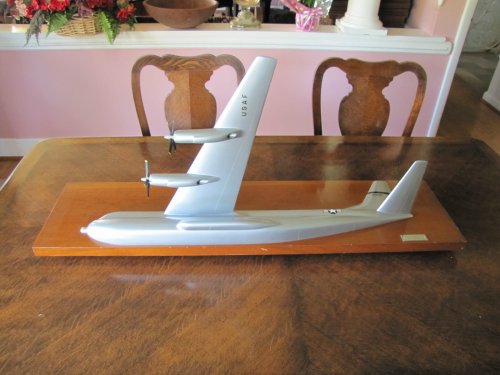

Factory proposal model (wood) of Douglas C-132A (Jim Keeshen Collection)


Attachments

  • Douglas C-132A Model.jpg
    Douglas C-132A Model.jpg
    215.3 KB · Views: 800

foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
280
Reaction score
9
Archipeppe, your personal contribution is a magnificent drawing. Well done, and thanks.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
foiling said:
Archipeppe, your personal contribution is a magnificent drawing. Well done, and thanks.

I'm glad that you're appreicate this. ;D


Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
6

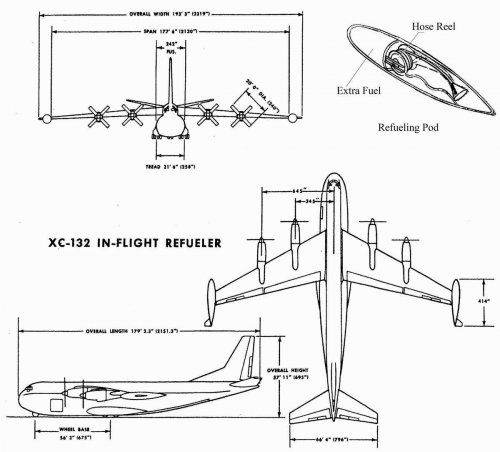

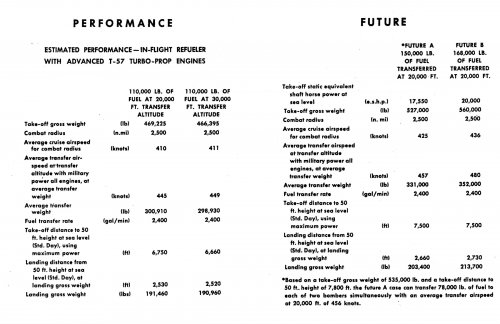

For those who have access to the AF Historical Research Agency's collections at Maxwell AFB, AL, there is a Douglas brochure, "XC-132 Logistic Transport," under call number K146.01-15Q, 53/00/00C. It's not dated, but ca. 1953 and includes imagery and stats for both the cargo and tanker versions. The tanker, BTW, used hose reels in wing-tip pods for probe-and-drogue.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303

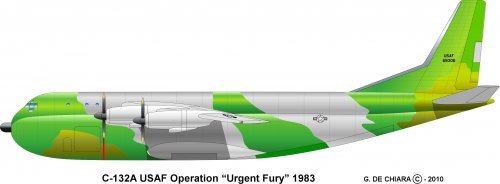

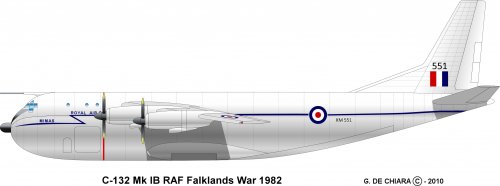

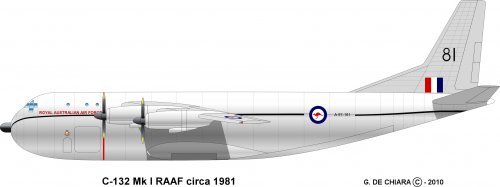

And now a little "what if".... ;)


Attachments

  • C-132 USAF.jpg
    C-132 USAF.jpg
    182.1 KB · Views: 608
  • C-132 RAF.jpg
    C-132 RAF.jpg
    167.8 KB · Views: 633
  • C-132 RAAF.jpg
    C-132 RAAF.jpg
    159.2 KB · Views: 681

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
126
Peppe, are you positevely, conclusively, sure of THAT green ?


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,673
Reaction score
303
Skybolt said:
Peppe, are you positevely, conclusively, sure of THAT green ?

Mmmmm.... frankly speaking no..... I was unable to find a decent color key for the "European One".
If someone has more info I will glad to correct the drawing.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,629
Reaction score
512
Greetings All -

Would like nice on my office wall!

http://www.ebay.com/itm/Large-Douglas-Factory-C-132-Prototype-Model-/270954130956?_trksid=p4340.m1374&_trkparms=algo%3DUPI.GIROS%26its%3DI%252BC%252BS%26itu%3DUCI%252BUCC%26otn%3D15%26pmod%3D230774696742%26ps%3D63%26clkid%3D7761209301146988879

Enjoy the Day! Mark


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

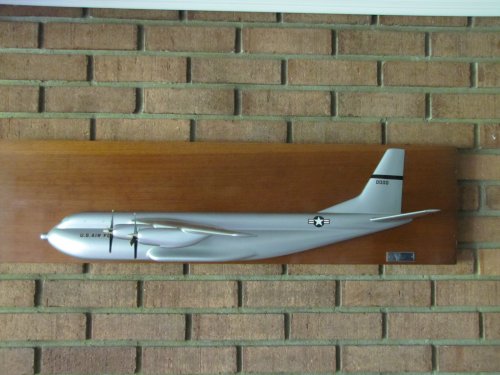

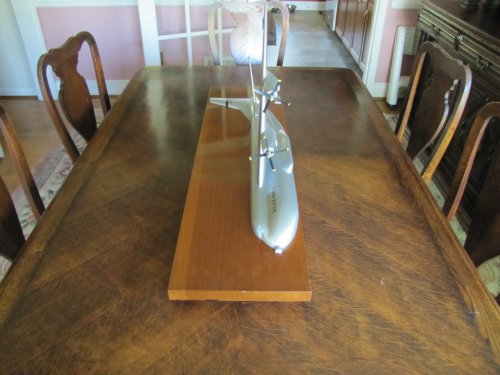

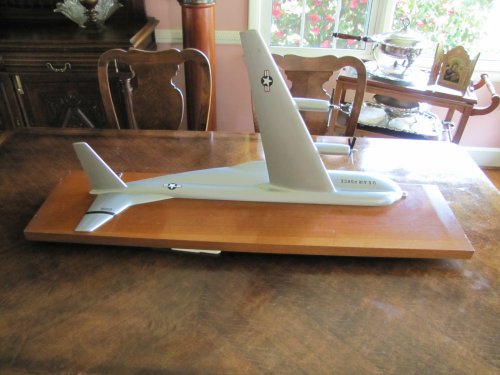

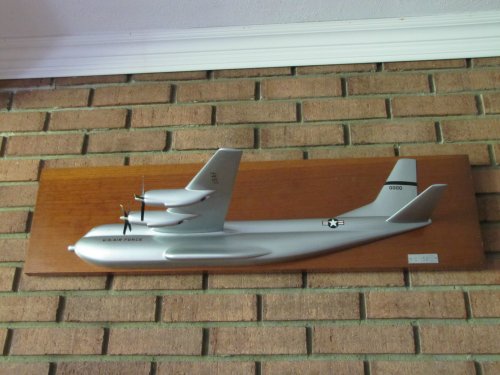

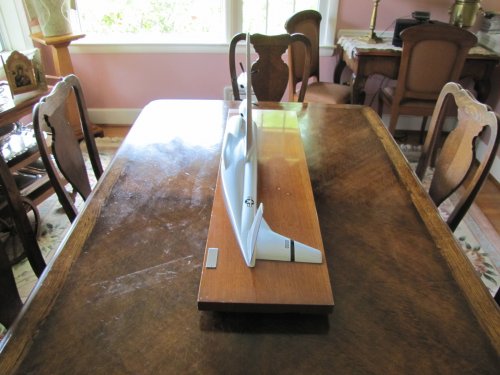

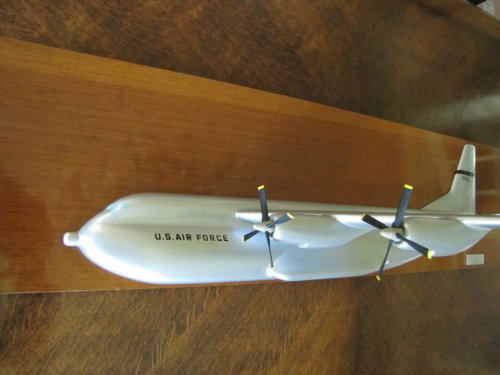

Adding the pics lest they should disappear...


Attachments

  • C-132 wall display 07.JPG
    C-132 wall display 07.JPG
    490.9 KB · Views: 52
  • C-132 wall display 06.JPG
    C-132 wall display 06.JPG
    418.1 KB · Views: 35
  • C-132 wall display 05.JPG
    C-132 wall display 05.JPG
    410.9 KB · Views: 56
  • C-132 wall display 04.JPG
    C-132 wall display 04.JPG
    421.3 KB · Views: 56
  • C-132 wall display 03.JPG
    C-132 wall display 03.JPG
    419.8 KB · Views: 61
  • C-132 wall display 02.JPG
    C-132 wall display 02.JPG
    394.8 KB · Views: 82
  • C-132 wall display 01.JPG
    C-132 wall display 01.JPG
    496.9 KB · Views: 102

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,906
Reaction score
1,140
Website
www.aerospaceprojectsreview.com

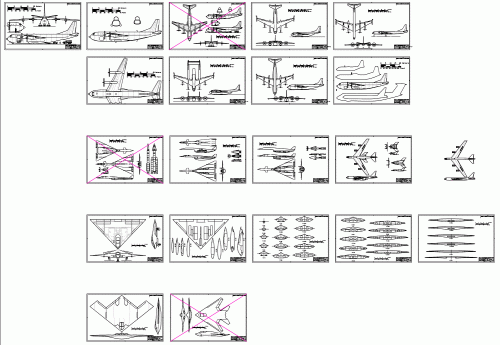

For reasons unclear, I've been working away on APR V3N3 recently. The old C-132 article will be substantially improved.


Attachments

  • V3N3 drawings-Model.jpg
    V3N3 drawings-Model.jpg
    185.8 KB · Views: 290

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
12
Orionblamblam said:
For reasons unclear, I've been working away on APR V3N3 recently. The old C-132 article will be substantially improved.

Just for the 3d view of twin boom version I'm going to buy the issue :)


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,906
Reaction score
1,140
Website
www.aerospaceprojectsreview.com

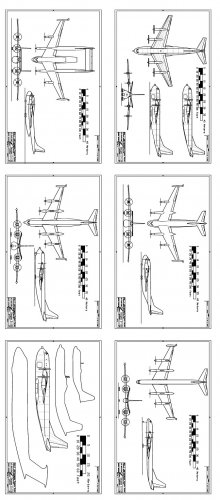

Here are the CAD drawings I've worked up for V3N3. These will be formatted for standard 8.5X11 PDFs and MagCloud, and probably also for an 11X17 "addendum" PDF.


Attachments

  • V3N3 2013-03-2.gif
    V3N3 2013-03-2.gif
    126 KB · Views: 241

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
13
From what I gather, there was a Douglas proposal identified as XKC-132. But, whilst most likely there would have been a tanker version if the C-132 design had been built, the KC-132 picture shown in AAHS is definitely an artist impression and I doubt KC-132 was ever a formal or even informal designation.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688
Additional information by Ron Downey on the Douglas C-132 proposal.
Additional information on the Douglas C-132 proposal. More photos to follow.


The newspaper article comes from Jack Abercrombie who has this to say: "My first job after graduation was as an aerodynamicist on the C-132 at Douglas Tulsa. The very day before reporting for work, the newspaper in Tulsa reported the contract cancellation. What an interesting way to start a career."


Credit: Jack Abercrombie


Click here for newspaper article and more photos


Click here for original blog post
Source: http://aviationarchives.blogspot.de/2015/09/douglas-c-132-update-1.html


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,836
Reaction score
196
Been some time since I've looked at the XC-132 thread.
You've been busy and productive gents.
Thank you!!

Does anyone know what 'Weapons System' designation the XC-132 was developed in answer too?

Regards
Pioneer


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Pioneer said:
Does anyone know what 'Weapons System' designation the XC-132 was developed in answer too?

It was done in answer to MX-1707. I am not aware of any WS- designation for it, and I doubt it would have carried the WS- prefix anyway, since this was used by definition for armed systems (missiles, fighters, bombers, etc.). SS- would be more like it, and of course it is tempting to believe that it could have been either 401 or 403 (both unaccounted for), since the (SS-)400 series was the C-130 and SS-402L was the C-133...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,688
Reaction score
3,476

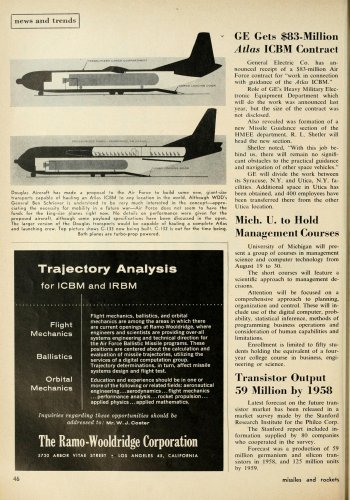

Hi,


from the magazine,Missiles and Rockets,here is a shadow for Dougals C-132 & C-133,
carrying Atals ICBM.


Attachments

  • 613.jpg
    1 MB · Views: 386

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,380
Reaction score
688
Douglas C-132 Display Model Photos
Nice photos of the Douglas C-132 display model. Credit: Tulsa Air & Space Museum Collection via The Greater St. Louis Air and Space Museum.
Click here to view display model photos.

Douglas C-132 Mock Up Photos
All the Douglas C-132 Mock Up Photos that I have. A “Magnificent Beast” for sure! Credit: Jack Abercrombie via The Greater St. Louis Air and Space Museum.
Click here to view photos.

Edit 1:
Douglas C-132 Wind Tunnel Flutter Model
Douglas C-132 Wind Tunnel 1/30th scale Flutter Model photos. Credit: The Greater St. Louis Air and Space Museum.
Click here to view photos

Douglas C-132 Antenna Test Model
A few 1954 photos of the Douglas C-132 1/10th antenna test model. Douglas was VERY serious about this aircraft! Credit: The Greater St. Louis Air and Space Museum
Click here to view photos.

Douglas C-132 Write Up and Termination Letter
The Douglas C-132 project termination letter, a final company write up letter extoling the virtues of the aircraft and a copy of the preliminary confidential, marked up letter (With more info).
Click here to view pages.
Edit 2:
Douglas C-132 Atlas Missile Carrier Proposal
An interesting side note to the Douglas C-132 saga was this small clipping in Missiles and Rockets magazine about Douglas Aircraft’s proposal to build the C-132 as an Atlas ICBM missile carrier.
Click here to view clipping

Source: http://aviationarchives.blogspot.com/

Top
