Dornier Do P252/2 help please

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
40
Hi
another in progress...
could anyone enlighten me about the seating arrangements for the crew of 3 please?

Many thanks
P


Attachments

  • Do252-2PROF.jpg
    240.5 KB · Views: 797

Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
40
Justo
I can always rely on you and your amazing store of references.

Many thanks again.
Peter
:eek: ;D


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
40

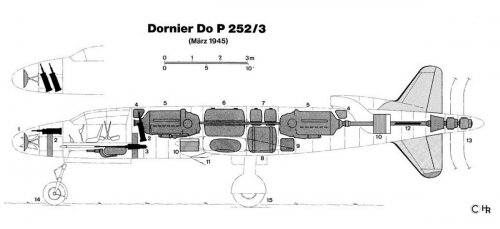

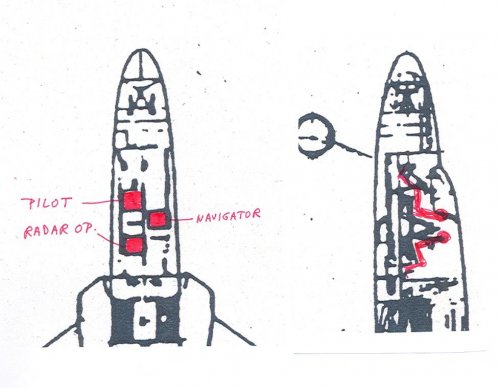

Seat arrangement carried out plus a bit more.

Many thanks
Peter


Attachments

  • Do252PROF2.jpg
    240.1 KB · Views: 580

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,780
Reaction score
3,427
Dornier changed the design.

http://www.luft46.com/dornier/dop252.html

http://www.klassiker-der-luftfahrt.de/geschichte/flugzeuge/dornier-projekte-p-247-und-p-252-zweistrahlige-do-p-256-als-schneller-nachtjaeger/648640?seite=2

Dornier Do P.252/3 Data w/two Jumo 213J engines
Span 15.8 m (51' 9.5") Length 17.2 m (56' 4.8") Height 5.05 m (16' 6")
Wing Area 50 m²(538 ft²) Empty Equipped Weight 8600 kg (18959 lbs) Loaded Weight* Max. 12300 kg (27116 lbs)
Wing Loading Max. 246 kg/m² (50.4 lbs/ft²)
Speed 930 km/h (577 mph)
Rate of Climb 21 m/sec (69 ft/sec)
Ceiling 12500 m (41000')
* with 3400 liters (748 gallons) fuel]
Use only one engine at taxing?


Attachments

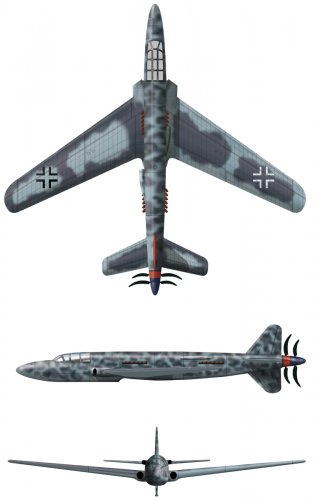

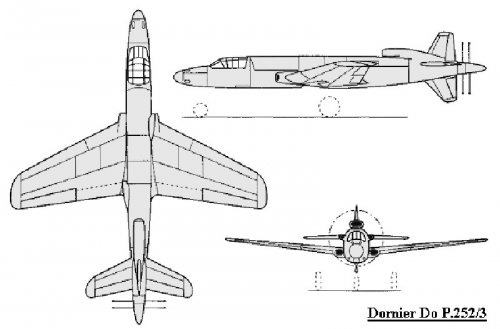

  • P.252.03.jpg
    83.4 KB · Views: 120
  • P.252.03 THREE SIDE VIEW.jpg
    P.252.03 THREE SIDE VIEW.jpg
    55.9 KB · Views: 106
  • P.208.03.jpg
    46.3 KB · Views: 102
  • Do P.252.2.jpg
    Do P.252.2.jpg
    37.5 KB · Views: 381

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,780
Reaction score
3,427

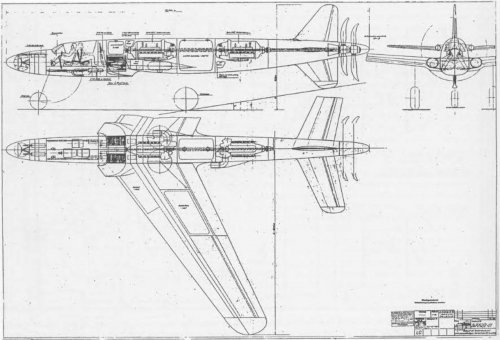

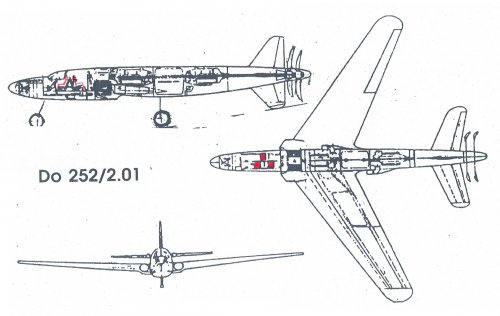

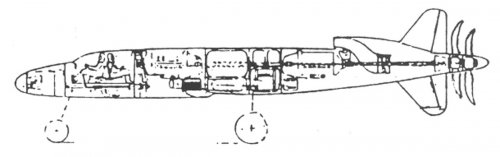

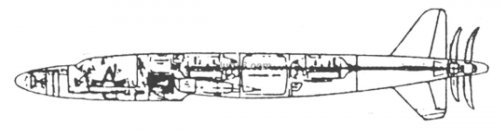

P.252.02 was a large aircraft.

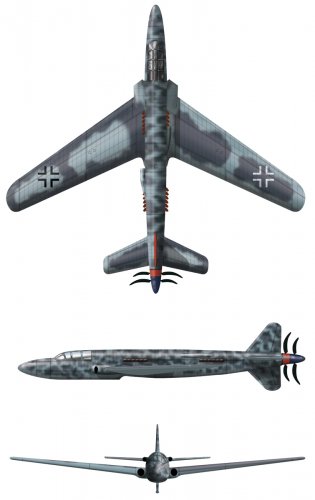

You can see large static radiator three side view in bottom original drawing.

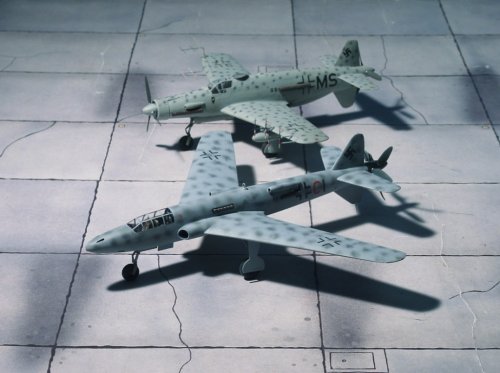

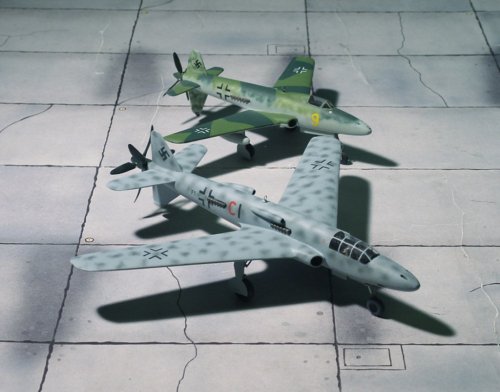

http://modelplanes.de/luftwaffe/jaeger-luftwaffe/dornier-do-p-2522-unicraft-resin/

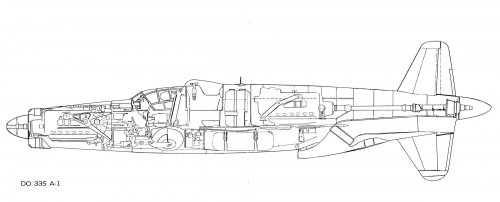

http://www.airpages.ru/eng/mt/do335_04.shtml


Attachments

  • 19-1024x802.jpg
    140.2 KB · Views: 101
  • 21-1024x762.jpg
    137.8 KB · Views: 117
  • do335_51.jpg
    138.1 KB · Views: 111
  • P.252.02 SIDE VIEW.JPG
    P.252.02 SIDE VIEW.JPG
    302.7 KB · Views: 123

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,780
Reaction score
3,427

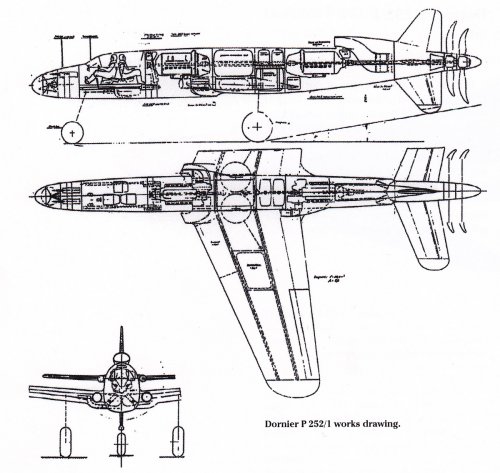

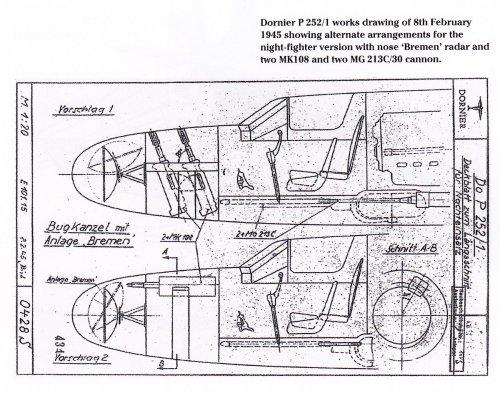

This drawing shows P.252.01? Very similar to P.252.03.
Source : LUFTWAFFE SECRET PROJECTS GROUND ATTACK & SPECIAL PURPOSE AIRCRAFT, ISBN 1-85780-150-4

You can see radiator arrangement of this design from this drawing very clearly.
The relation between P.252.01, 02 and 03 are very complicated!? ???
Bottom picture shows P.252.01 night fighter version. This was a two seat fighter. Front engine was located just behind the cockpit.
Some document says that P.252.03 front engine was located just behind the cockpit,too.
Various document says as follows.
P.252.01 ; Span : 16.4m, Length : 15.2m, Height : 4.95m, Wing area : 43 square meter, Wing leading edge sweep back angle : 25°
(Some document says that P.252.01 had a straight wing)
P.252.02 ; Span : 18.4m, Length : 15.0m               Wing leading edge sweep back angle : 35°
P.252.03 ; Span : 15.8m, Length : 17.2m, Height : 5.05m Wing area : 50 square meter, Wing leading edge sweep back angle : 25° or 22.5°

Following version existed?
P.252.01 ; Two seat fighter bomber, Zerstörer, Two seat night fighter
P.252.02 ; Two seat Zerstörer(Destroyer), Three seat high altitude night fighter
P.252.03 ; Three seat night fighter

You can see common air intake for front engine ram air intake and radiator air intake in the top drawing.
This arrangement secure some air flow into the radiator at zero/low speed?


Attachments

  • P.251.01.jpg
    508.6 KB · Views: 93
  • P.252.01.jpg
    776.4 KB · Views: 76

Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
14
blackkite said:
This drawing shows P.252.01? Very similar to P.252.03.
. . .

Some document says that P.252.03 front engine was located just behind the cockpit,too.
Various document says as follows.
P.252.01 ; Span : 16.4m, Length : 15.2m, Height : 4.95m, Wing area : 43 square meter, Wing leading edge sweep back angle : 25°
(Some document says that P.252.01 had a straight wing)
P.252.02 ; Span : 18.4m, Length : 15.0m               Wing leading edge sweep back angle : 35°
P.252.03 ; Span : 15.8m, Length : 17.2m, Height : 5.05m Wing area : 50 square meter, Wing leading edge sweep back angle : 25° or 22.5°

Following version existed?
P.252.01 ; Two seat fighter bomber, Zerstörer, Two seat night fighter
P.252.02 ; Two seat Zerstörer(Destroyer), Three seat high altitude night fighter
P.252.03 ; Three seat night fighter

I checked the plan view of the "works drawing" you supplied. Its length vs. width aren't even close to the numbers you've quoted for the P.252.01, but they are exactly right for the P.252.03. Also, it's clearly a three-seater with a radar dish. So either the drawing shows the -3, or the designations have been mixed up, or... aliens ;)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,780
Reaction score
3,427
Oh sharp!! Thanks a lot. I will wait for the post from Dan-san and Kiradog-san. ;)
