Hello


some pocs of floated Do 217 project.
This project started in 1938, idea was use it as floated long range sea dive bomber. Project number was dornier P.85. Proposed versions was with 2 (earlier) or one (later) vertical stab. Engines 2xDB 601G or 2X Jumo 211 or 2x BMW 801.

Bomb load: 1500Kg
Guns:

Fixed - 2X20mm + 2x 7,92mm
in turrets - 2X7,92mm

Pics:

http://i83.photobucket.com/albums/j296/honzaaf/do217w.jpg

http://i83.photobucket.com/albums/j296/honzaaf/Do217WBMW.jpg

http://i83.photobucket.com/albums/j296/honzaaf/do217wJumo.jpg

http://i83.photobucket.com/albums/j296/honzaaf/do217wsketchBMW2.jpg

source:

http://i83.photobucket.com/albums/j296/honzaaf/Sourcedo217w.jpg


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,057
Reaction score
594
there's a brief description and history of the Do 217W, along with the image of the single finned, BMW powered version, in 'Do 217-317-417', pages 17-19.

cheers,
Robin.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,428
Reaction score
6,091
Hi,

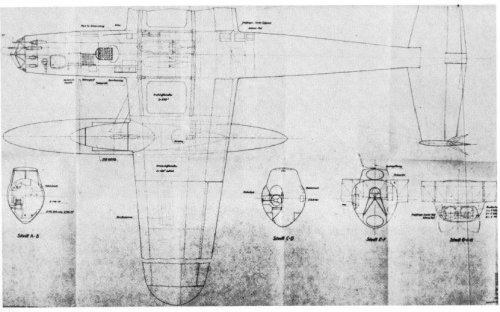

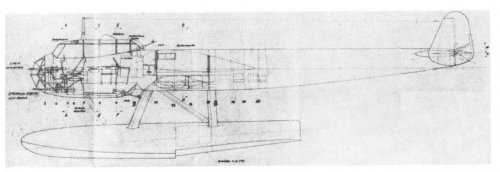

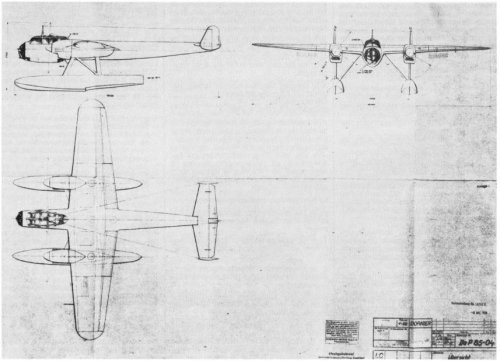

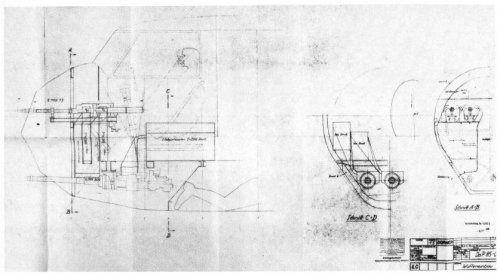

in Luftfahrt International 6/1982,here is the Dornier P.85-04 project.


Attachments

  • P.85-04.JPG
    72.4 KB · Views: 286
  • P.85-04-1.JPG
    35.5 KB · Views: 284
  • P.85-04-2.JPG
    76.9 KB · Views: 273
  • P.85-04-3.JPG
    58.5 KB · Views: 267

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,298
Reaction score
147
Website
zeef.com
Obliviously when i have watched W i have associated W with floatplane variant !
Interesting project !
