DH Comet development

Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
508
http://www.flightglobal.com/PDFArchive/View/1953/1953%20-%201325.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,102
My dear pometablava,

I know also anther early Comet design as a small jet aircraft with
rear mounted engines.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
508

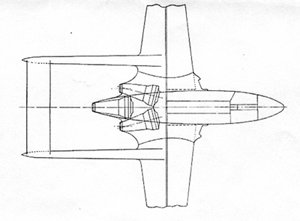

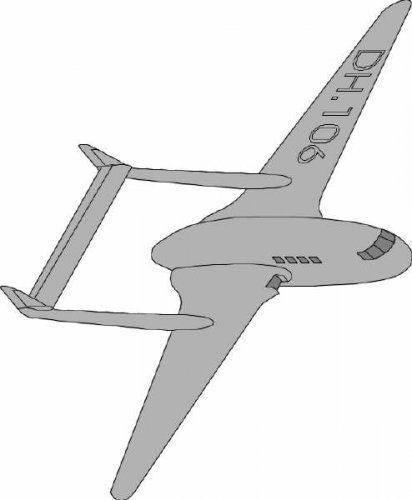

You're right hesham, the original DH106 project was a small postal-passenger jet based on the Vampire layout. Lark sent me the original drawing, I produced a sketch from it and Tophe made the beautiful art attached with this post. (It was an example of international cooperative research in the times before secretprojects forum ;))

A canard layout project also existed an was described and illustrated in Air International. Later, the project evolved into a new concept for a bigger airliner jet and that is the DH.106 Comet that entered History.


Attachments

  • original DH 106 project.jpg
    original DH 106 project.jpg
    54.5 KB · Views: 409
  • early DH 106 design - Tophe interpretation.jpg
    early DH 106 design - Tophe interpretation.jpg
    20.9 KB · Views: 392

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,542

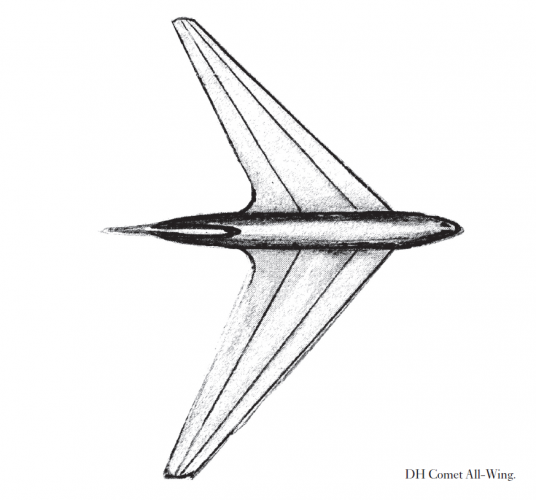

One of the first designs,I think, was for a tailless aircraft, the quite large
wing of the later designs was still reminiscent of this.
Have a drawing of it, somewhere .. ???


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
159
One of the first designs,I think, was for a tailless aircraft, the quite large
wing of the later designs was still reminiscent of this.

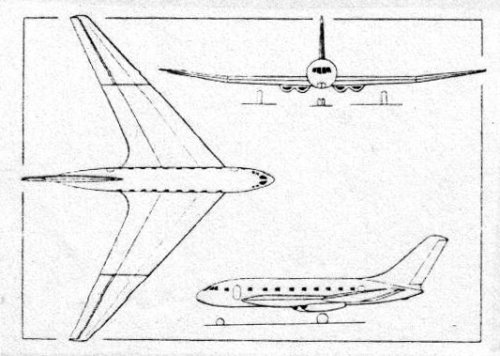

I find this one in an old issue of the "Trait d'Union" (a French magazine) from a 3V drawing first published by "Air International".


Attachments

  • DeHavilland DH106.jpg
    DeHavilland DH106.jpg
    135.4 KB · Views: 444

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,102
OK my dears,

but the aircraft I meant it ,was similar to tailless Comet but with rear
mounted engines.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
612
Reaction score
159
but the aircraft I meant it ,was similar to tailless Comet but with rear
mounted engines.

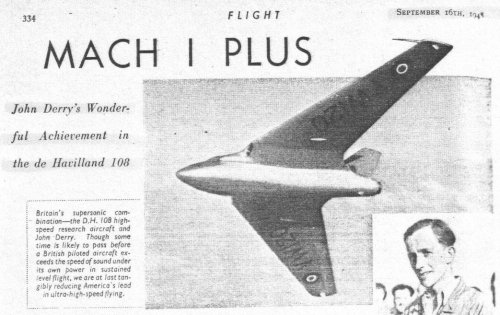

Hummm.... like the DH-108?


Attachments

  • DeHavilland-108.jpg
    183.8 KB · Views: 384

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,542

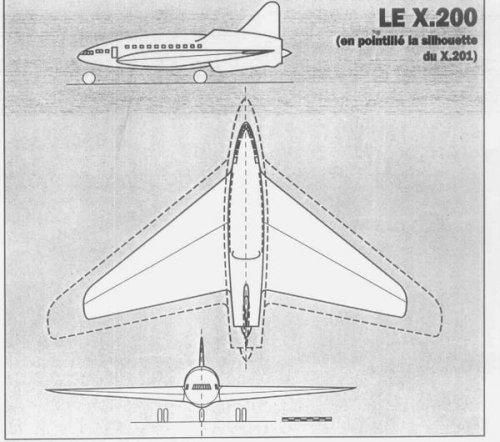

... or more the style of the SNCASE X.200/X.201 ( tailless
with rearmonted engines) ?
(from Le Fana 4/1997)


Attachments

  • X-200_X-201.JPG
    51.9 KB · Views: 402

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
Hesham ,

What is the source of your Comet info?

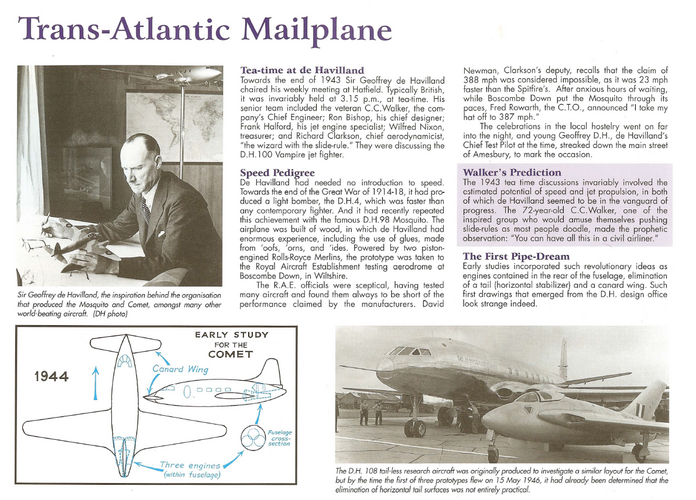

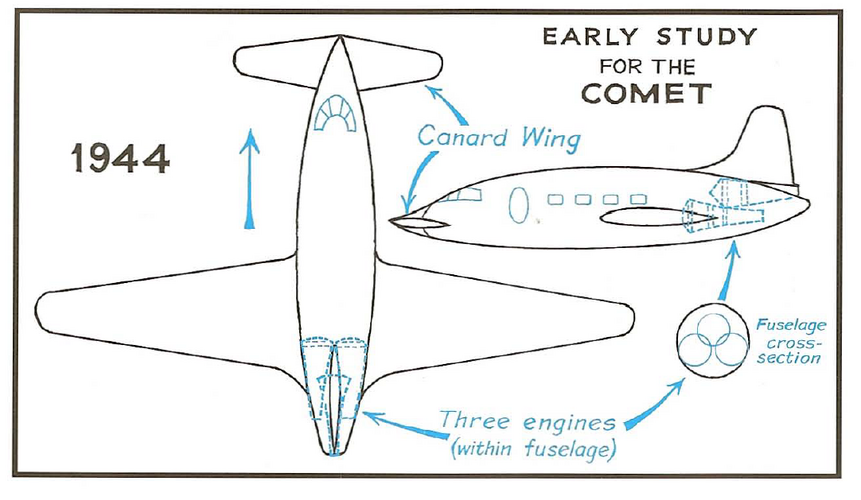

One of the first Concepts after the one shown us by Pometablava
was a Canard lay-out with the engines grouped in the tail.

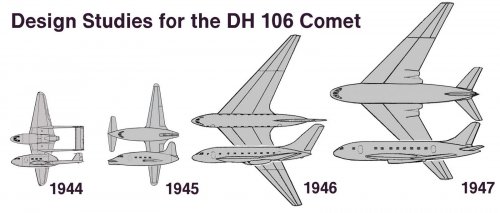

After this came a tailless design and an other highly swept winged concept.
Strange they all beared the same D.H Comet designator...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,442
Reaction score
6,102
My dear lark,

please recieve my special message,and I think in Airlife book
I found that artist picture.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,649
Reaction score
508
I've been reading Orionblamblam's post about "sourcegrading" and I think I should classify that Tophe's reconstruction I posted here with sourcegrade 2
