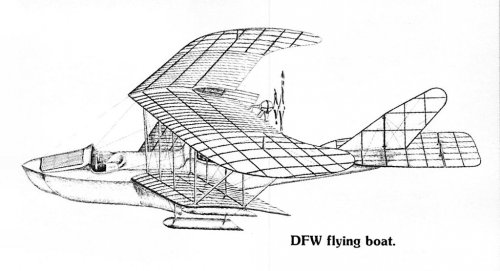

Here is a nice sketch of it from page 31 of the Historical Aviation Publication "Taube, Dove of War" by Col. John A. de Vries. Notation from the book: "DFW Flying Boat: Another "definition-stretcher", DFW produced a flying boat, for the 1912 Naval competition, with an "almost-Taube" wing."


Attachments

  • DFW Flying Boat e.jpg
    DFW Flying Boat e.jpg
    79.3 KB · Views: 458

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Excellent my dear Richard N,

thank you very much.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
459
Richard N said:
Here is a nice sketch of it from page 31 of the Historical Aviation Publication "Taube, Dove of War" by Col. John A. de Vries. Notation from the book: "DFW Flying Boat: Another "definition-stretcher", DFW produced a flying boat, for the 1912 Naval competition, with an "almost-Taube" wing."

Most sources give this aircraft as a 1914 aircraft, though.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

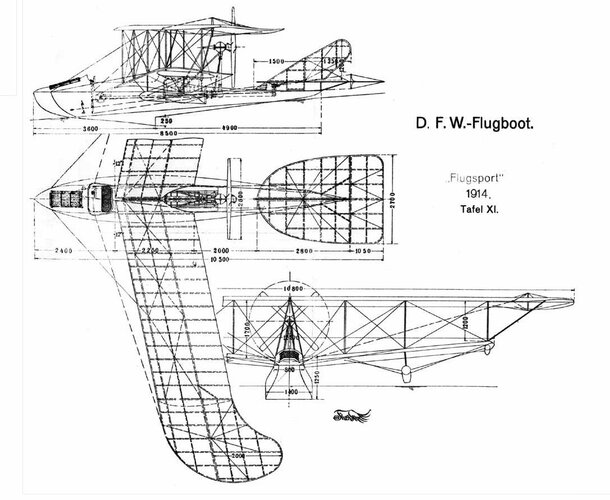

A drawing can be found here http://freercplans.com/img-dfw-flugboot-3901.htm ,
obviously from the Flugsport magazine, which was published since 1908. If 1914 here
is the year of the issue, the design may well have been drawn a little bit earlier.


vigair

ACCESS: Restricted
Joined
Jul 29, 2009
Messages
28
Reaction score
3

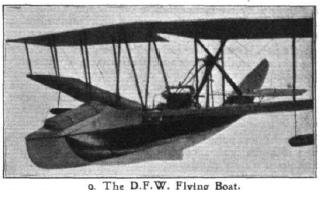

some other datas: only flying boat built by DFW


experimental type with folded wings
hull plywood with aluminium plates
four blade propeller
mercedès 100 cv but underpowered .Substitution to a Mercedes 120cv for 1913.
empty weight 820 kg loaded 1140 kg
maximum speed 100km h with 120 cv.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
From Czech Museum,

there was a mystery,the DFW P.I was a light transport airplane,modified of F37,but I found it
in as F39 ?.


Attachments

  • 1.png
    16.6 KB · Views: 49
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
From Czech Museum,

there was a mystery,the DFW P.I was a light transport airplane,modified of F37,but I found it
in as F39 ?.

Also there was P.II,but no more details are known ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
there was a mystery,the DFW P.I was a light transport airplane,modified of F37,but I found it
in as F39 ?.

Also there was P.II,but no more details are known ?.

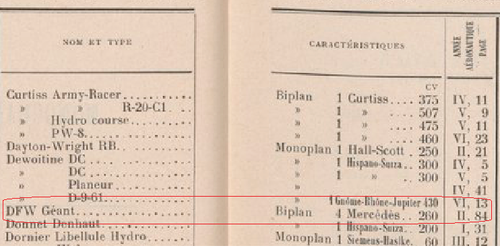

From Annee Aeronautique 1925/26,

here is a variant from DFW R.II,maybe a civil version ?,am I right ?.


Attachments

  • b.png
    177.2 KB · Views: 28

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Thank you my dear Richard,

and what about P.II ?.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Hi,

there is a different between C Type and C.I,also they had the same engine,Benz III ?.


Aubi

ACCESS: Confidential
Joined
Aug 31, 2009
Messages
196
Reaction score
268
Website
www.armedconflicts.com
Depends on what is supposed the C-Type to be. I found nothing about DFW C without number, but I presume that it's an armed DFW B.I. Seems that the last batches of B.I were delivered armed with a machine gun mounted on a ring just above the upper wing. The observer must stand to reach it. While the B.I and C.I proper had the same wings and fuselage, they had different engines (Mercedes D.I and Benz Bz.III respectively) and C.I had the gun ring mounted directly to the front cockpit.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,589
Reaction score
891
I suspect that 'DFW C Type' is a generic descriptor - or a group term referring to the entire Idflieg designation range of DFW C types.

Back in 2014, Tuizentfloot mentioned an undesignated DFW C type constructed by Hermann Dorner in 1916. Not accepted, it featured single-bay wings braced with I-struts. Tuizentfloot speculated that this prototype might account for a 'missing' DFW C III designation.

-- https://www.secretprojects.co.uk/th...totypes-and-projects.22511/page-3#post-237977

I don't think there is any indication that 'C Type' itself was an actual Idflieg designation or a DFW Werksbezeichnung. So, 'a C type' rather than 'the C Type'?


Aubi

ACCESS: Confidential
Joined
Aug 31, 2009
Messages
196
Reaction score
268
Website
www.armedconflicts.com

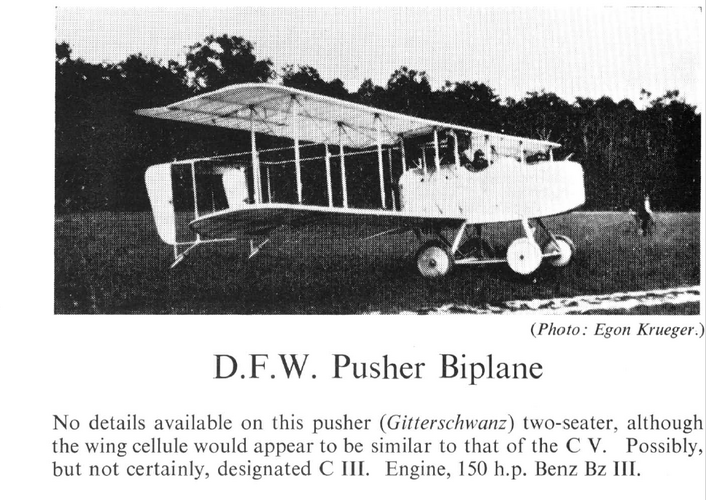

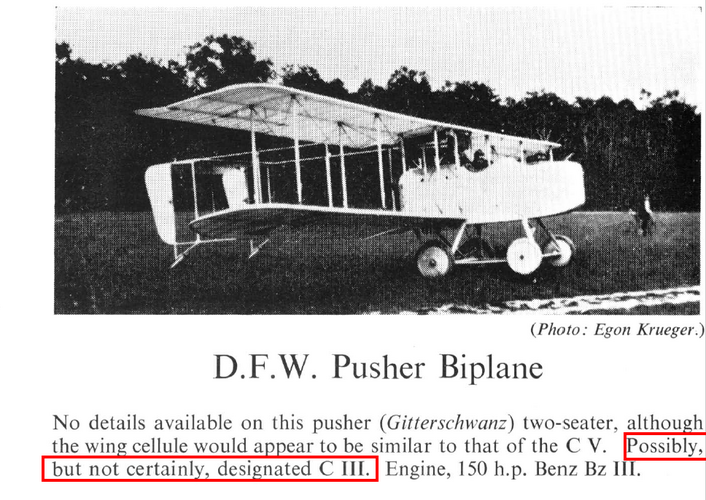

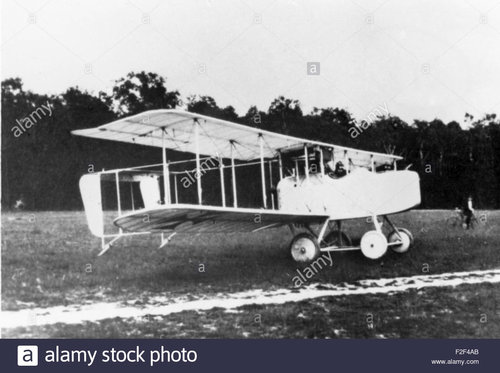

For the designation DFW C.III is usually considered otherwise unnamed pusher biplane from 1915, or above mentioned Donner's lightweight single bay prototype evolved from C.II


Attachments

  • dfw-c-type-experimental-1915-peter-grosz-F2F4AB.jpg
    144 KB · Views: 14

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,742
Reaction score
3,503
Dears Aubi and Apophenia,

this term or idiom was used by many German companies during the WWI or before (C Type).


richard B

ACCESS: Secret
Joined
Aug 17, 2006
Messages
207
Reaction score
197
I would be very pleased to see a picture of a D.F.W. B III : so far I know , it was not an evolution of the B I & B II or C I ...
