Hi,

Maurice Henri Delanne was born in the town of Diors in France early in 1901.
He grew up in the golden age of French aviation, the age of Warman and Bleriot;
of Fonck, Guynemer and Nunguesser. He received his degree at the famed Superior
School of Aeronautical Engineering in Paris, in 1924. Having some funds of his own,
he founded his own company, the "Société Anonyme de Recherches Aeronautique."
In this era the biplane was still supreme. Surplus equipment from World War I was still
available, so Delanne decided that what was needed was a high-performance, low-
powered personal aircraft. He realized that most of the planes available at the time
were overweight for their function; as a result, they had to use huge engines, with
proportionately large fuel appetites.

Early Designs,

D I was unknown aircraft of 1929
D II was a side-by-side two-seat low-wing touring monoplane, powered by
one 70 hp Anzani engine,1929
D 20 was a three seat version of D II, equipped with 95 hp Salmson or 85-115
Cirrus engine
D ? was a patent for single seat low-wing aircraft, had a folded wing,1932
D ? was a patent for single seat tandem wing monoplane, powered
by one tractor engine,1935

*** New series was begun from 1935/36,

DL-10 C2 was a two-seat tandem wing experimental monoplane fighter,in C2
category,powered by one 860 hp Hispano-Suiza 12 Ycrs engine
DL-20 T2 was a developed version of DL-10,designed as an aerodynamic
model for a larger fighter aircraft,powered by one 180 hp Regner 6B-01 engine
DL-30 P2 was a two-seat glider,with gull wing and an aspect ratio of 15,1938
DL-40 was twin engined tandem wing transport aircraft project,intended to
carry 25-passengers and a crew of three,it had an estimated speed of 560 km/h and maximum range 1600 km
DL-50 P1 was a single seat high-performance glider project,intended in
1939,but may be for the circumstances of the war,the design ignored
DL-60 E1 was a training sailplane, designed to enable pilots to graduate from their C certificate to the more demanding D,1938
DL-70 was a transatlantic seaplane project designed to compete with the
SNCASE 200 and the Latécoère 631 under development in the late 1930s
DL-80 ? was unknown, but may it was a redesignation of DL-20 T1,as a single
seat experimental aircraft,1938
DL-90 ? was unknown, but may it was a redesignation of DL-10 C1, as a single
seat project version of DL-10 C2,1939
DL-100 ? was unknown,but may it was a single seat tandem wing monoplane fighter project, based on 1935 patent,also powered by a tractor engine
DL-110 ------?
DL-120 was a tandem wing twin engined fighter-bomber monoplane project,
powered by two 670 hp Gnome-Rhone 14M4 engines
DL-130 ------?
DL-140 ------?
DL-150 was a tandem wing medium bomber monoplane project,in B5 category,
powered by two 2000 hp Gnome-Rhone 18 P engines
DL-151 was a developed version,with major changes,powered by two 1580 hp
Gnome-Rhone 14 R28 / 29 engines
DL-160 was a tandem wing heavy fighter monoplane project,powered by two
1800 hp Hispano-Suiza 12Y-89 engines buried in the fuselage
DL-170 ------?
DL-180 ------?
DL-190 P2 was a two-seat tandem-wing military assault glider,two prototypes were put into construction, but never completed
DL-200 ? was unknown,but may it was a single seat tandem wing monoplane fighter project,powered by pusher engine
DL-210 ? was unknown,but may it was also a single seat tandem wing monoplane fighter,powered by a tractor engine
DL-220 ? was unknown,but may it was a side-by-side two seat jet trainer or touring monoplane project
DL-230 was a tandem wing six-seat transport monoplane project,powered by two 185 hp engines
DL-240 was a tandem wing ten-seat transport monoplane project,powered by two 500 hp engines
DL-250 was a tandem wing four-seat transport monoplane project,powered by one 220 hp engine
DL-260 ? was unknown,but may it was a tandem wing single seat jet fighter monoplane project,powered by one jet engine,and had a side intakes
DL-270 ? was unknown,but may it was a tandem wing single seat jet fighter monoplane project,powered by one jet engine,and hada ventral intakes
DL-280 ? was unknown,but may it was a tandem wing single seat jet fighter
monoplane project,powered by one jet,and had inverted delta wing only
in front high wing
DL-290 ------?
DL-300 or D-300 please see D-1300
D-310 ------?
D-320 ------?
D-330 ------?
D-340 ------?
D-350 ------?
D-360
was a tandem delta wing interceptor project of 1950s,with
a new design ,twin tail fins ,and a bubble canopy.it had a single
jet engine, 2.5 Mach speed and 15000 m altitude
D-370 ------?
D-380 ------?
D-390 ------?
D-400
was a tandem wing four-seat touring and light monoplane project,powered
by one pusher engine
D-500 to D-1100 ? were unknown designs,probably not used
D-1200 was a twin jet tandem wing monoplane project,may it was a transport
aircraft
D-1300 was a tandem wing transport monoplane project,intended as a business jet project,powered by two Turbomeca Marboré II engines,sometimes
got a wrong identity as D-300

# For Delanne with Westland or Pardel Development Corporation,there
are not a regular series,or I don't know,how their forms were ?.


- To be continued

Last edited:
DL-300 or D-300 was a tandem wing transport monoplane project,intended as a business jet project,powered by two Turbomeca Marboré II engines,sometimes
got a wrong identity as D-1300
I am not convinced by this interpretation. I don't have documents about Delanne 300, but various ones confirming the Delanne 1300 designation, starting of course by the dedicated article in "Les Ailes" issued July 21st, 1961: https://gallica.bnf.fr/ark:/12148/bpt6k3201023c
This is the only source cited by Minijets site, despite the fact that it mentions only Delanne 1300 reference, and never "300".

Last edited:
I am not convinced by this interpretation. I don't have documents about Delanne 300, but various ones confirming the Delanne 1300 designation, starting of course by the dedicated article in "Les Ailes" issued July 21st, 1961: https://gallica.bnf.fr/ark:/12148/bpt6k3201023c
This is the only source cited by Minijets site, despite the fact that it mentions only Delanne 1300 reference, and never "300".
Agreed. I could accept the idea of a typo if it was just a passing mention within a text, but the Les Ailes article has the designation in extra-large bold type on the front page as well as in the article itself, so it must have been correct.

I tried to rework your list by removing plenty of designation you have invented and that never existed, by providing additional details and adding few other projects I found in my files:

Type 1 was a side-by-side two-seat low-wing touring monoplane, powered by one 65 hp Salmson engine (1 built 1929).
Type 11 « Ibis Bleu » was the Type 1 with new engine, powered by one 70 hp Anzani engine (modified in 1929). Became Moreau JM.10.
Air-Delanne 10 C2 was a two-seat tandem wing experimental monoplane fighter, in C2 category, powered by one 860 hp Hispano-Suiza 12 Ycrs engine (1 built 1940).

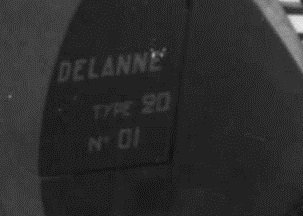

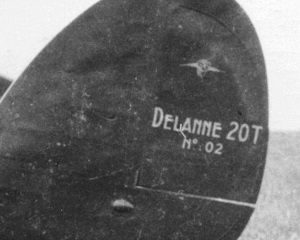

Type 20 T was a two-seat tandem wing light passenger aircraft, powered by one 180 hp Régnier 6B-01 engine, designed as an aerodynamic model for Air-Delanne 10 C2 fighter aircraft (2 built 1938).
Type 30 P2 was a two-seat glider, with gull wing and an aspect ratio of 15 (1 built 1938).
Type 40 was twin engined tandem wing transport aircraft project, intended to carry 25-passengers and a crew of three, it had an estimated speed of 560 km/h and maximum range 1600 km, powered by two 1650 hp 18 P engines (1937).
Type 50 P1 was a single seat high-performance glider project (1939).
Type 60 E1 was a training sailplane, designed to enable pilots to graduate from their C certificate to the more demanding D (1 built, 1938).
Type 70 was a transatlantic seaplane project intended to carry 52-passengers designed to compete with the SNCASE 200 and the Latécoère 631, powered by six Gnome-Rhône 14 R.0/1 engines (1938).
DL-120 was a tandem wing twin engined fighter-bomber monoplane project, powered by two 670 hp Gnome-Rhone 14M.4/5 engines (1938).
DL-150 was a tandem wing medium bomber monoplane project, in B5 category, powered by two 1500 hp Gnome-Rhône 14 R.28/29 or two 2000 hp 18 P engines (1938).
DL-151 was a developed version, with major changes, powered by two 1580 hp Gnome-Rhone 14 R28 / 29 engines (1939).
DL-160 was a tandem wing heavy fighter monoplane project, powered by two 1800 hp Hispano-Suiza 12Y-89 engines buried in the fuselage (1939).
DL-190 P2 was a two-seat tandem-wing military assault glider, two prototypes were put into construction, but never completed (1940).
DL-230 was a tandem wing six-seat transport monoplane project, powered by two 185 hp engines (1946).
DL-240 was a tandem wing ten-seat transport monoplane project, powered by two 500 hp engines (1946).
DL-250 was a tandem wing four-seat transport monoplane project, powered by one 220 hp engine (1946).
D-360 was a tandem delta wing interceptor project of 1950s, with a new design, twin tail fins, and a bubble canopy. It had a single jet engine, 2.5 Mach speed and 15,000 m altitude (1946).
Nord-Delanne was the manufactured version planned by SNCAN of D-360 project. Never built.
D-400 was a tandem wing four-seat touring and light monoplane project, powered by one pusher engine.
C-800 was a tandem wing long-distance twin-rocket project (1964).
D-1200 was a twin jet four-seat transport tandem wing monoplane project, propelled by by two Turboméca Palas jet engines (1961).
D-1300 was a tandem wing transport monoplane project, intended as a business jet project, powered by two Turbomeca Marboré II engines (1961).

Other Delanne designs:

Delanne-Westland DWG-10 was a tandem delta wing single-seat turbo jet.
Westland Delanne “Design B” was a tandem delta wing single-seat turbo jet and rocket propelled interceptor fighter, powered by two Armstrong-Siddeley Viper in stage 1, with one additional DH “Spectre” rocket engine in stage 2.
Ars.1401 was a generic study for single-seat jet propelled light interceptor with versions that included application of Delanne tandem wing aerodynamic formula (1951).
Ars.1910 was a study for single-seat jet propelled light interceptor with versions that included application of Delanne tandem delta wing aerodynamic formula (1952).
Latécoère 700 was a civil amphibious aircraft project based on Delanne design planned to be manufactured by Latécoère (1955).

Last edited:
I tried to rework your list by removing plenty of designation you have invented and that never existed

Thank you,but please don't say that,because all of those concepts are
really existed,and mentioned in a many reliable sources,I ONLY guessed
what their designations ?!.

Thank you,but please don't say that,because all of those concepts are
really existed,and mentioned in a many reliable sources,I ONLY guessed
what their designations ?!.
In that case, please just list them as "unknown designation".

The patents are just concepts, not projects. So they don't had any designations.
Most of the other ones are just hypothesis about possible variants of existing projects, without evidences. By providing false designation to these hypothetical studies, you introduce errors in the history and create legends, which are very difficult to trrace and to distinguish from reality.

In that case, please just list them as "unknown designation".

The patents are just concepts, not projects. So they don't had any designations.
Most of the other ones are just hypothesis about possible variants of existing projects, without evidences. By providing false designation to these hypothetical studies, you introduce errors in the history and create legends, which are very difficult to trrace and to distinguish from reality.

You don't know,and they are not all a patents,but most of them are unknown
Models,even a patents,they may got a designations,and we have generally
a thousands of these in huge number of companies,and there is a picture to
a collection of models,it contains more than six different concepts,and we
recognized only two from them.

You don't know,and they are not all a patents,but most of them are unknown
Models,even a patents,they may got a designations,and we have generally
a thousands of these in huge number of companies,and there is a picture to
a collection of models,it contains more than six different concepts,and we
recognized only two from them.
Yes, I know this photo of collection of models and agree that some of them are unknown models.
I disagree when you suggest that Delanne patent drawings may have a designation. This is not the case.


Attachments

  • Delanne models.png
    Delanne models.png
    386.9 KB · Views: 5
You don't know,
Neither you.
For information, I have a part of Delanne archives, including some other drawings with no designation, as well as other ones completely different with the same designations. The history of Maurice Delanne is one of my projects.

Last edited:
On the right side of the photo, this is just a toy.

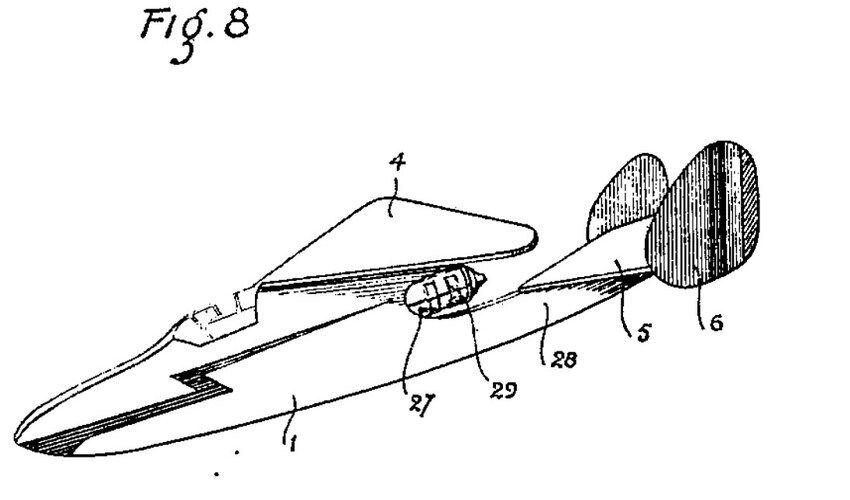

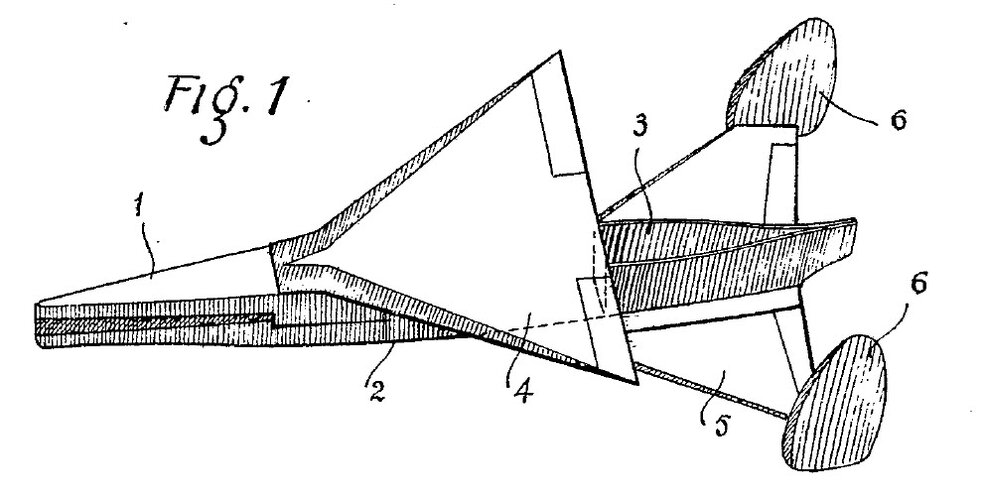

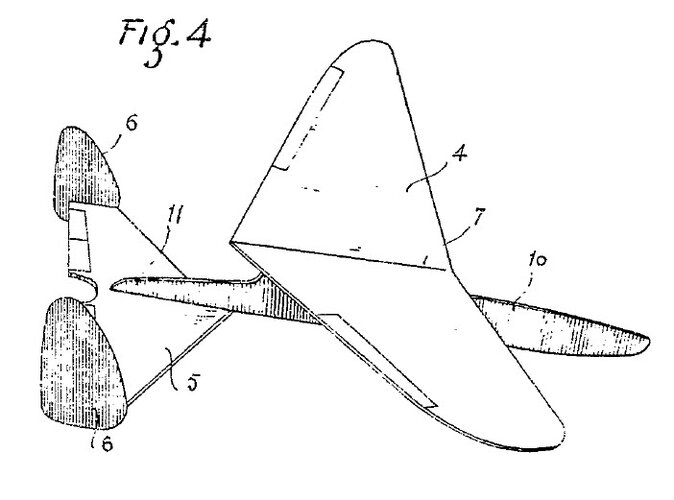

Maurice Delanne filed a patent in 1950 for such toys.


Attachments

  • delanne-toy1.jpg
    86.8 KB · Views: 5
  • delanne-toy2.jpg
    112.5 KB · Views: 1
  • delanne-toy3.jpg
    49 KB · Views: 1
  • delanne-toy4.jpg
    78.5 KB · Views: 5
