Hi,

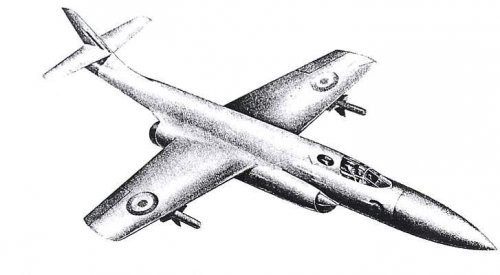

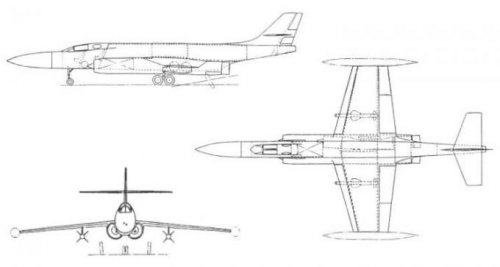

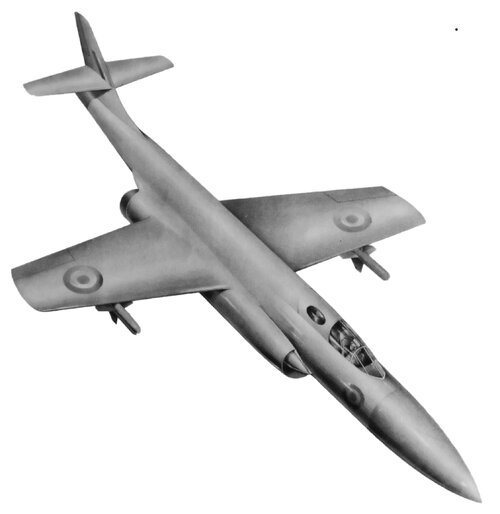

a well known fighter to Specification F.155T,the De Havilland DH-117.
http://prototypes.free.fr/fd2/fd2-3.htm


Attachments

  • dh117_01.jpg
    41.3 KB · Views: 765
It looks pretty good. A bit similar to the Hawker entries, only the respective Hawker planes had either one engine (DH Gyron, RR Thames, Iroqious (sp?)) or two (DH Gyron Jr), one on/under each wing.

I assume the DH.117 would have Gyron Jr.

:eek: :eek: :eek: For the life of me I can see no similitude between this and the X-3 !!! ??? ??? ???

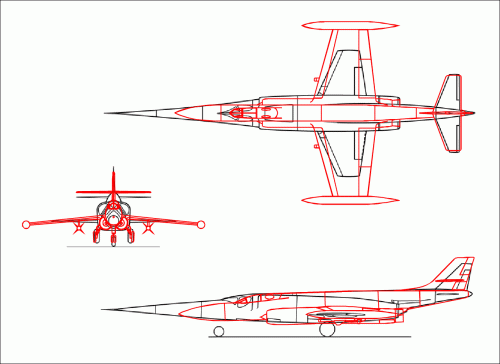

If we don't care for the actual dimensions of both aircraft, but just for the shape,
well, then at least a similar layout could be seen, why not. The long pointed nose
replaced by the radom and the wings elongated ... perhaps a clue to a modeller, building
a 1/72 DH.117 from a 1/48 X-3 ? ;)


Attachments

  • comp.GIF
    43.4 KB · Views: 691
I see as much (or as little) similarity to the X-3 as I do an F-104 or even a Lear Jet or........

Jemiba said:
If we don't care for the actual dimensions of both aircraft, but just for the shape,
well, then at least a similar layout could be seen, why not. The long pointed nose
replaced by the radom and the wings elongated ... perhaps a clue to a modeller, building
a 1/72 DH.117 from a 1/48 X-3 ? ;)

I think it's an interesting philosophical consideration to analyze and define what constitutes similarity in aircraft design. To me, basic layouts are mainly defined by fundamental features roughly at the level of definition used in patents, e.g. wing and stabilizer shape, arrangement and position, type, number and arrangement of engines, etc., rather than quantitative dimensions. Thus, if one design can be approximated by or morphed into another through geometrical distortions such as stretching or compressing of length, span, wing area and sweep, etc., they share the same basic configuration. In this case, the DH-117 and X-3 are compatible to me, while they are both set apart from the Starfighter and Learjet by the T-tails of the latter two as well as the number respectively position of engines. Perhaps it exists already, but it might be an interesting exercise to try to construct a truly comprehensive generic morphological box for aircraft designs that would branch down to cover successive levels of details - the logic would be somewhat analogous to the V/STOL wheel at http://vstol.org/wheel.htm or the twin-engine propeller-driven aircraft configuration survey shown on page 17 of http://www.mp.haw-hamburg.de/pers/Scholz/arbeiten/TextMuellerS.pdf, but it would include all types of aircraft and not just these particular subsets.

Martin

I may be wrong, but I see a lot more resemblance between the DH.117 and McDonnell's XF-88 Voodoo prototype (wings excepted)...

I agree as far as body proportions go, but once again, in my view the wing shape is a qualitative configuration discriminator, while the length of the fuselage forebody is not - note that there is a whole number of planes that had body modifications that notably changed the silhouettes while retaining the basic layout and most of the airframe, e.g. Mirage V vs. III, the Israeli Mirage IIICJs with long Tzniut noses, the Nimrod AEW3, the EC-135, the compressed B-747SP, etc. Also, while a Super Guppy looks like a 'super deformed' caricature of an airplane, it is the very same basic configuration as the C-97/B-377, or for that matter, even the B-29. So focusing on proportions while comparing basic configurations can in my opinion be misleading.

Martin

Hi!
http://warfiles.ru/show-66009-proekt-istrebitelya-perehvatchika-de-havilland-dh117.html

"Powerplant: 2 × Gyron Junior (moustache) + 1 × Spectre Spe. 5 (maximum thrust 2 × 12000 lbs (2 × 53.3 kN) + 1 × 10000 lbs (1 × 44.4 kN))
Dimensions:
wingspan 38.0 ft (11.6 m)
length of 66.8 ft (20.3 m)
wing area: 450 CFT ² (41.8 m ²)
the relative thickness of the profile of the wing 5%
Weight:
total flight 54775 lbs (24845 kg)
Flight characteristics:
maximum speed: Mach 2.35
Armament: 2 × Blue Jay MK. 4

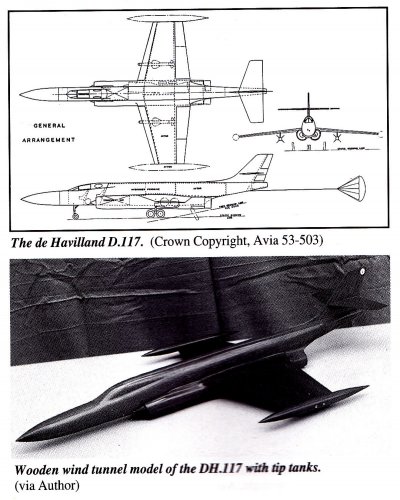

Bottom picture source : AIR ENTHUSIAST 61.
Rocket engine located tail of the aircraft.


Attachments

  • De_Havilland_D_H_117-01-680x363.jpg
    18.4 KB · Views: 494
  • De_Havilland_D.H.117 - 2.jpg
    De_Havilland_D.H.117 - 2.jpg
    129.8 KB · Views: 451
  • De_Havilland_D.H.117 - 7.jpg
    De_Havilland_D.H.117 - 7.jpg
    135.1 KB · Views: 417
  • De_Havilland_D_H_117%20-%209.jpg
    46.5 KB · Views: 195
  • DH.117.jpg
    403 KB · Views: 271
Thansk a lot. Excellent drawings!!

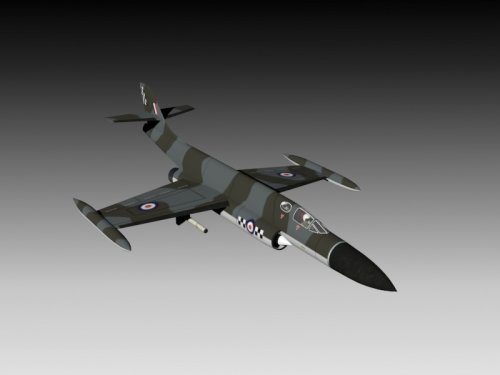

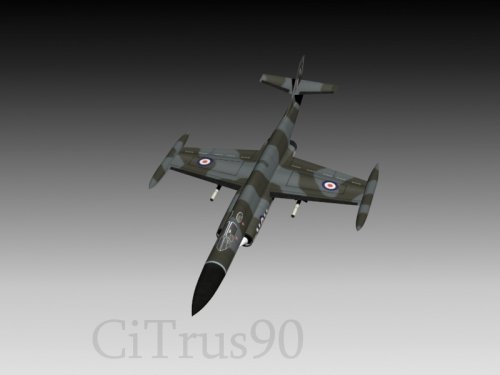

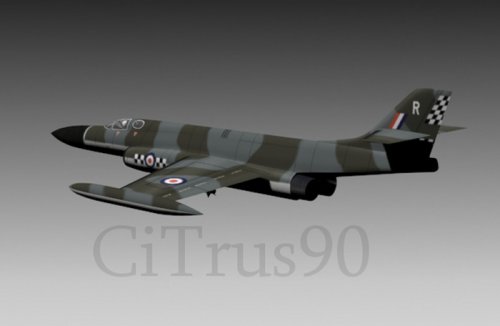

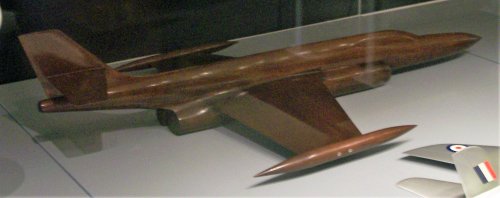

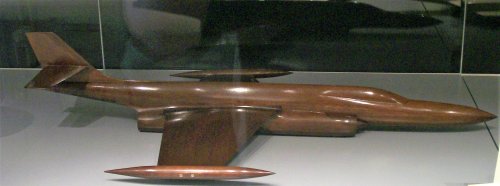

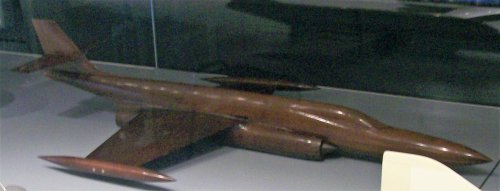

The windtunnel model shown in Blackite's earlier post still exists and is on display at the RAF Museum Hendon.
Apologies for the roughness of these pictures but its in a rather dark area and behind perspex.


Attachments

  • 100_6197 (2).JPG
    100_6197 (2).JPG
    795.2 KB · Views: 234
  • 100_6195 (2).JPG
    100_6195 (2).JPG
    509.1 KB · Views: 228
  • 100_6194 (2).JPG
    100_6194 (2).JPG
    357.6 KB · Views: 254

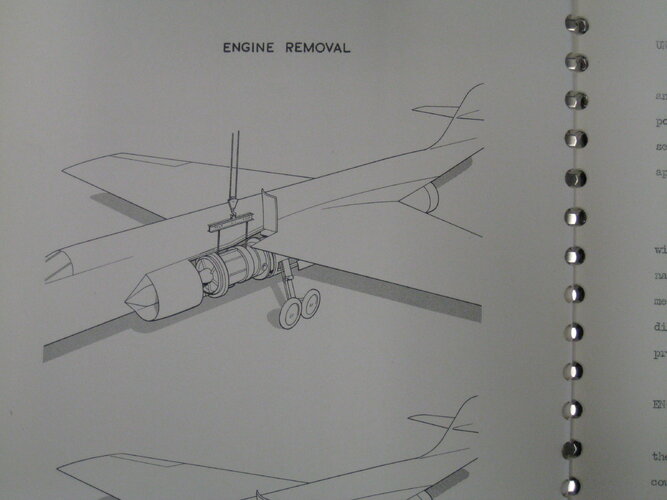

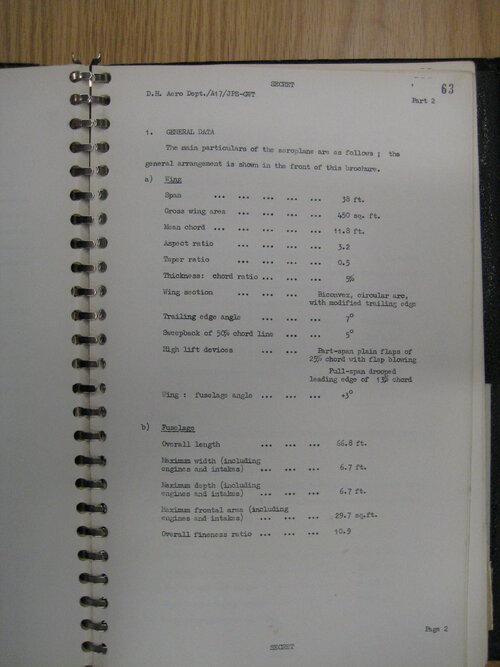

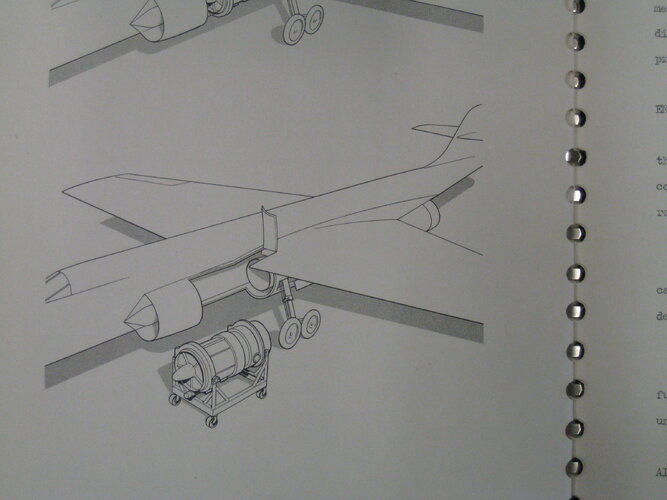

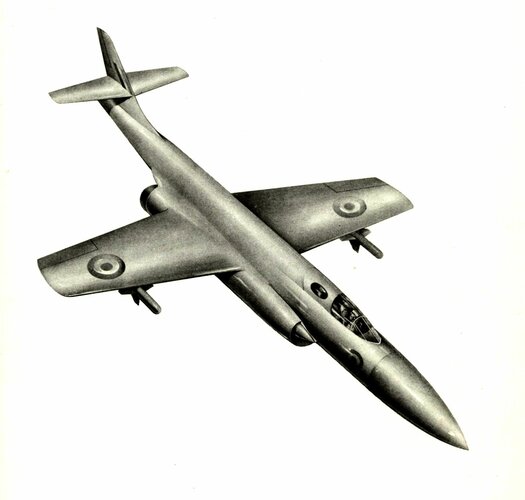

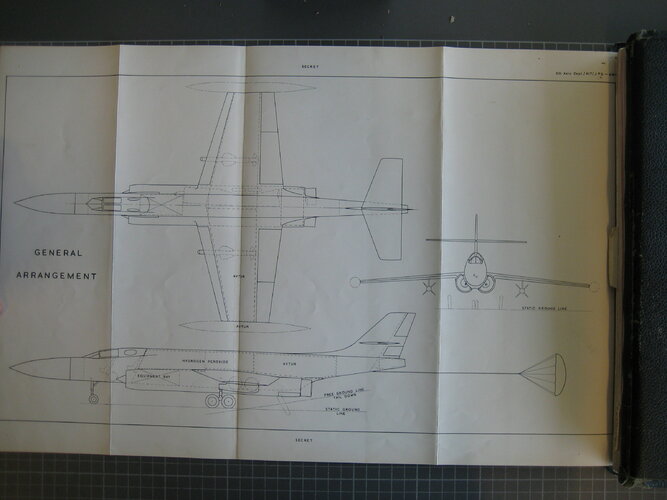

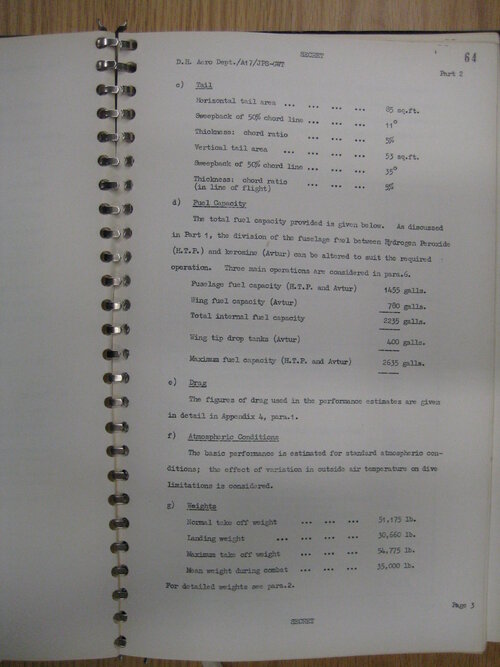

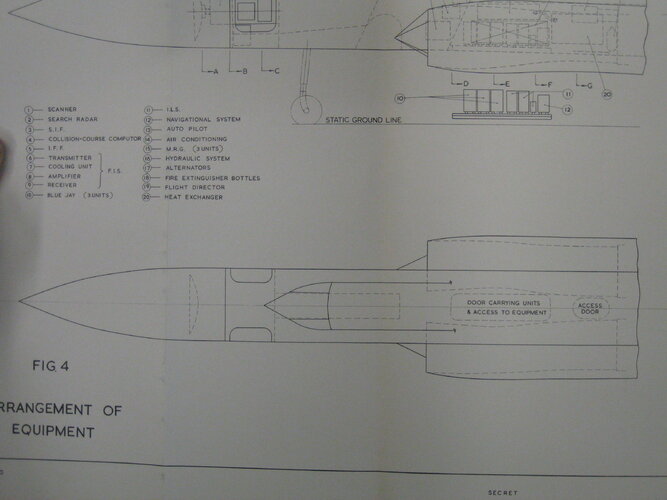

Attachments

  • D.H.117.jpg
    83.3 KB · Views: 134

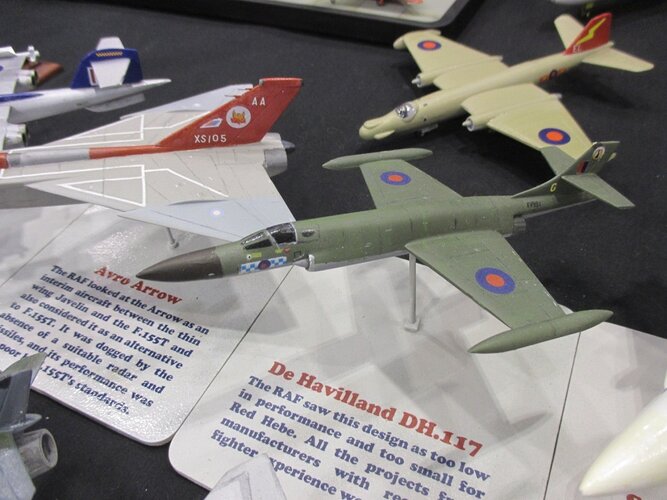

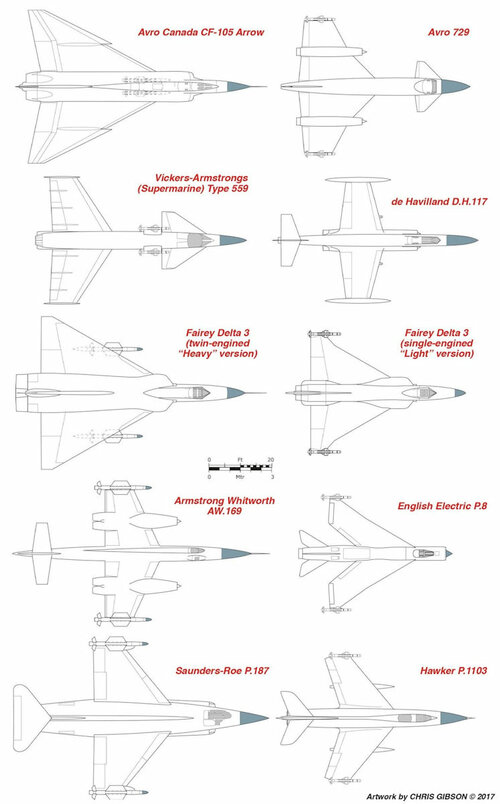

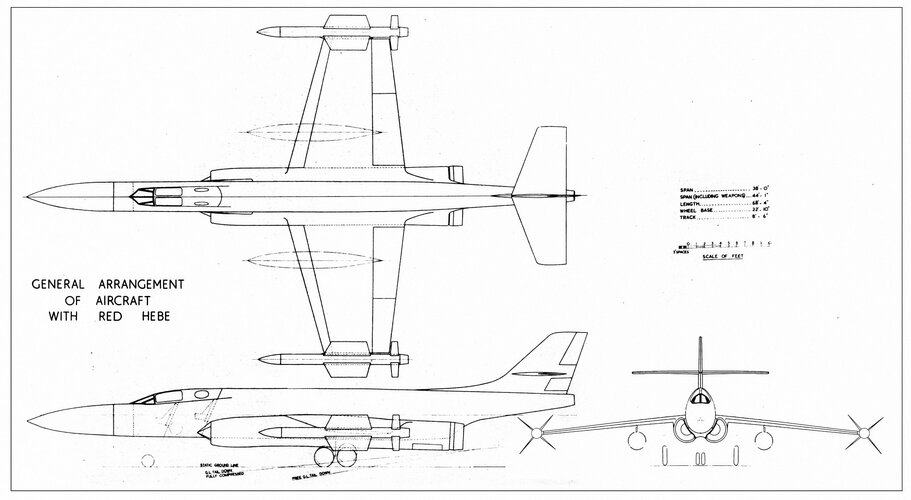

  • D.H.117 three side view drawing.jpg
    D.H.117 three side view drawing.jpg
    208.7 KB · Views: 159
  • 15-1.jpg
    109.1 KB · Views: 164
  • 0847-IMG_2075.JPG
    185.8 KB · Views: 140
Last edited:
The windtunnel model shown in Blackite's earlier post still exists and is on display at the RAF Museum Hendon.
Apologies for the roughness of these pictures but its in a rather dark area and behind perspex.

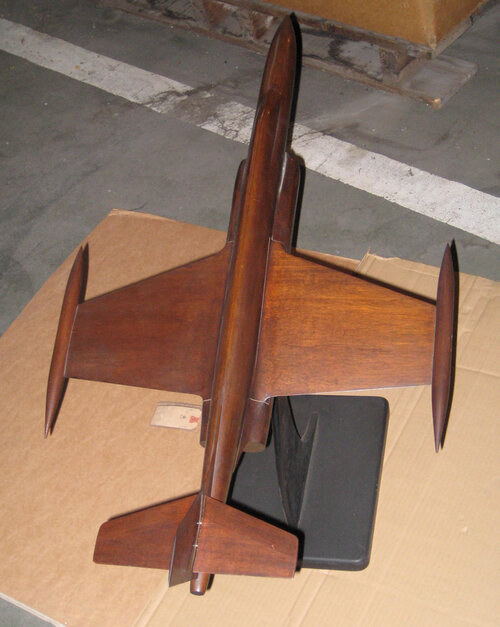

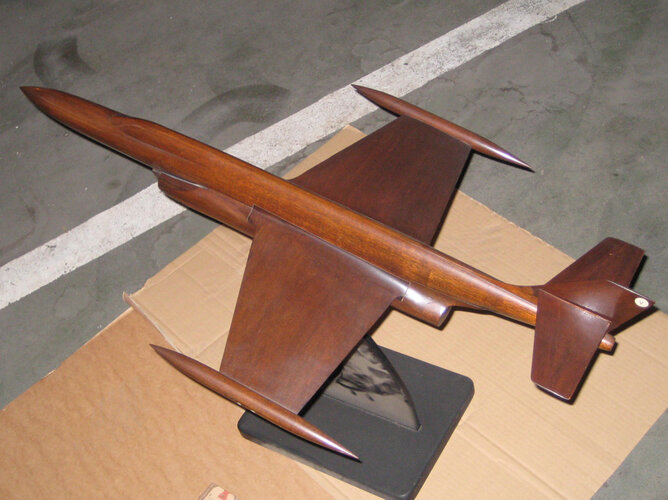

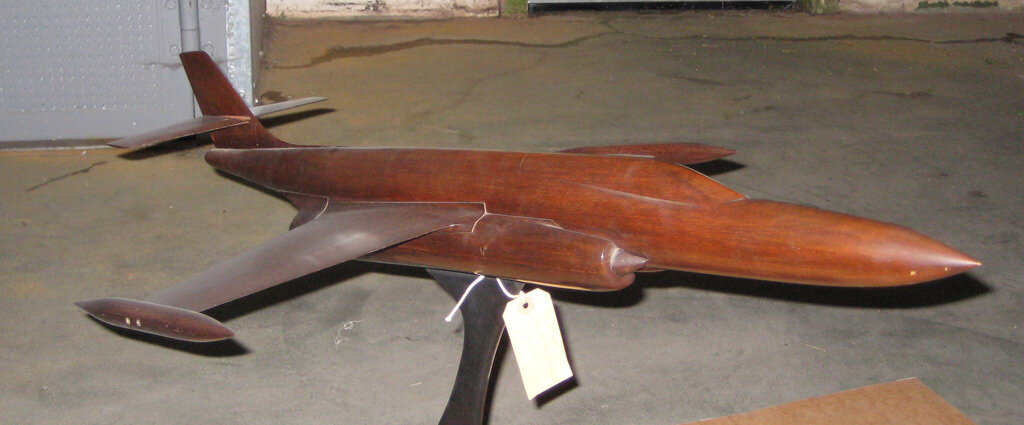

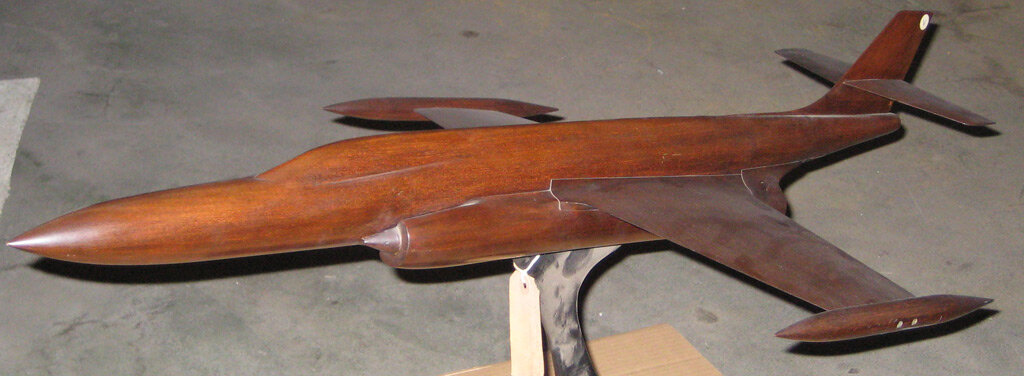

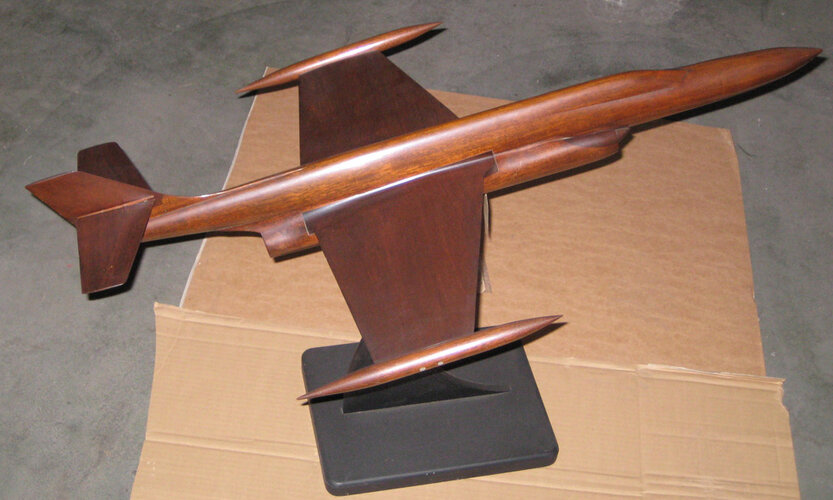

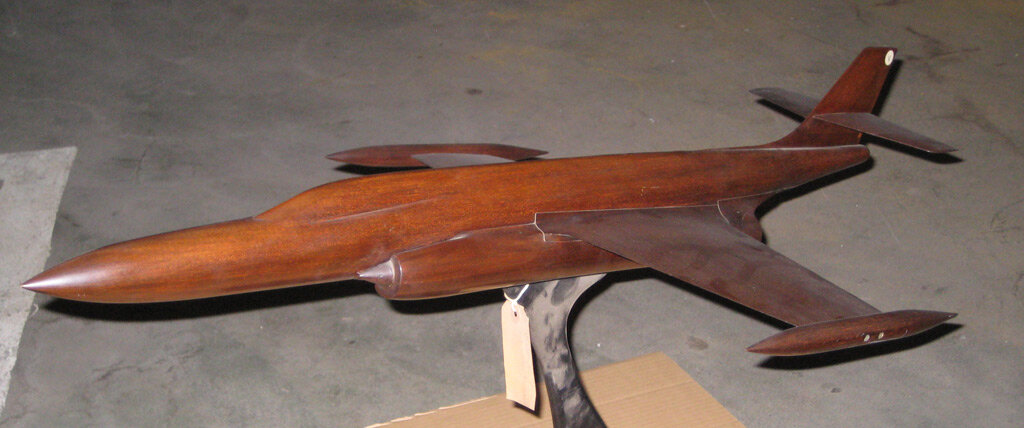

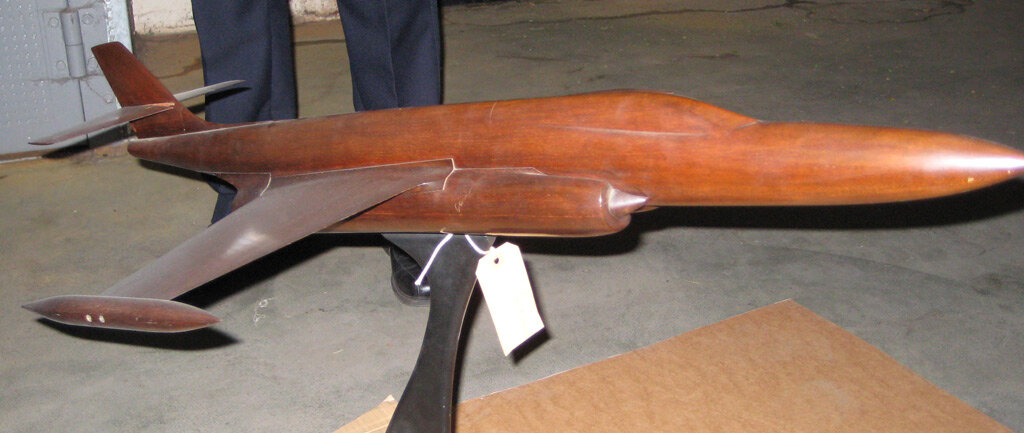

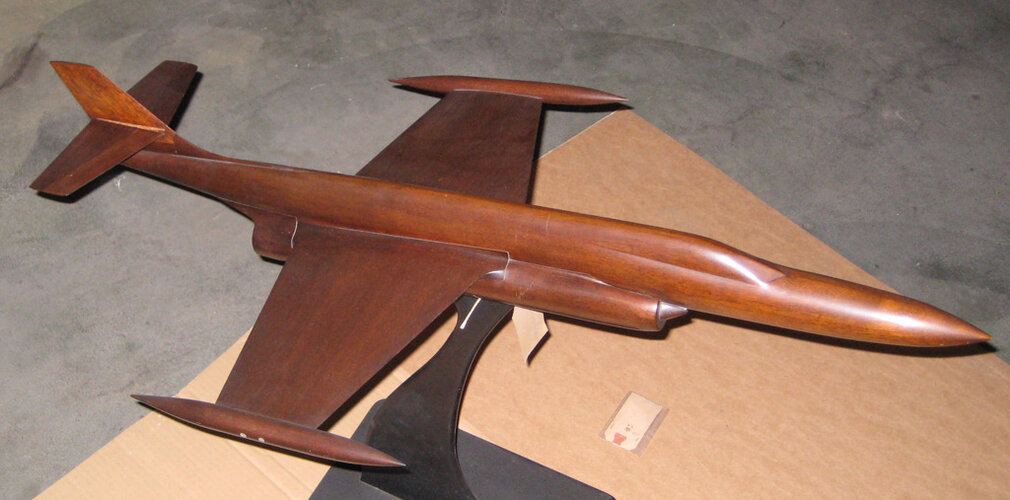

Before the model was sent to Hendon it was at the RAF Museum Stores at Stafford where I was able to photograph it.


Attachments

  • Stafford2-064.jpg
    151 KB · Views: 73
  • Stafford2-065.jpg
    123.3 KB · Views: 62
  • Stafford2-066.jpg
    112.9 KB · Views: 59
  • Stafford2-067.jpg
    118.4 KB · Views: 53
  • Stafford2-068.jpg
    221.4 KB · Views: 53
  • Stafford2-069.jpg
    202.3 KB · Views: 52
  • Stafford2-070.jpg
    172.5 KB · Views: 54
  • Stafford2-071.jpg
    127.2 KB · Views: 59
More.


Attachments

  • Hendon and Kew 435.jpg
    Hendon and Kew 435.jpg
    650.3 KB · Views: 111
  • Hendon and Kew 436.jpg
    Hendon and Kew 436.jpg
    625.1 KB · Views: 93
  • Hendon and Kew 441.jpg
    Hendon and Kew 441.jpg
    622.5 KB · Views: 94
  • Hendon and Kew 442.jpg
    Hendon and Kew 442.jpg
    635.4 KB · Views: 91
  • Hendon and Kew 443.jpg
    Hendon and Kew 443.jpg
    707.9 KB · Views: 89
  • Hendon and Kew 444.jpg
    Hendon and Kew 444.jpg
    710 KB · Views: 109
