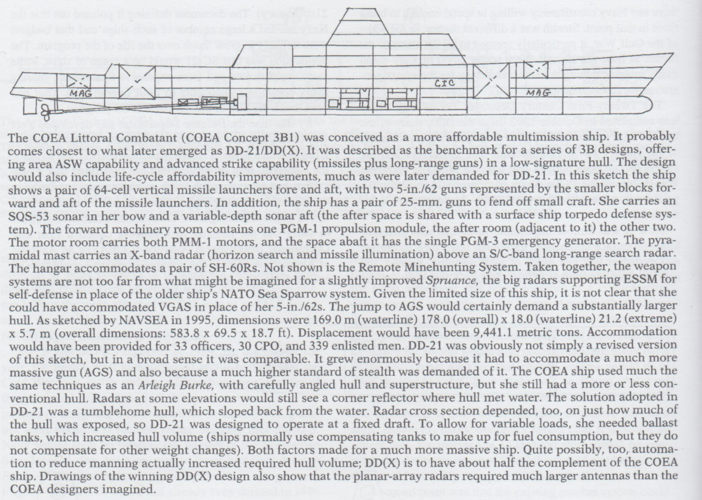

DD 21, DD(X), DDG-1000 Zumwalt Concepts

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

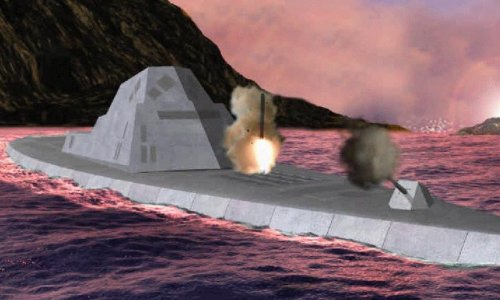

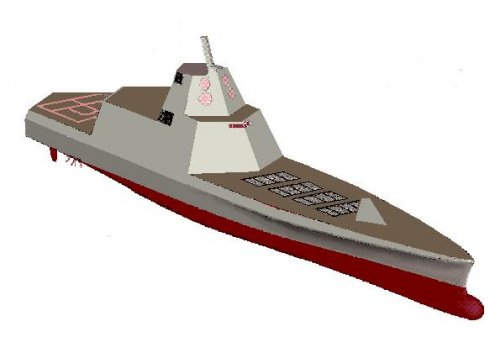

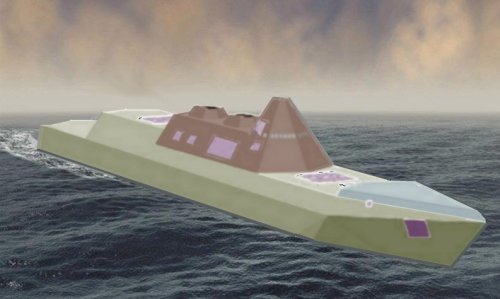

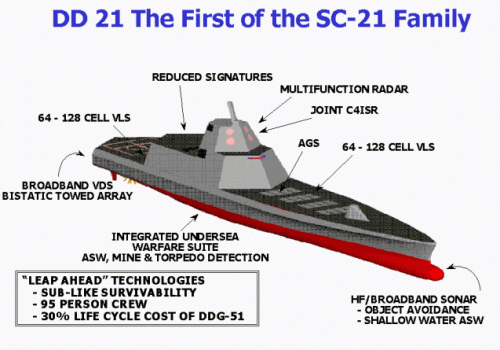

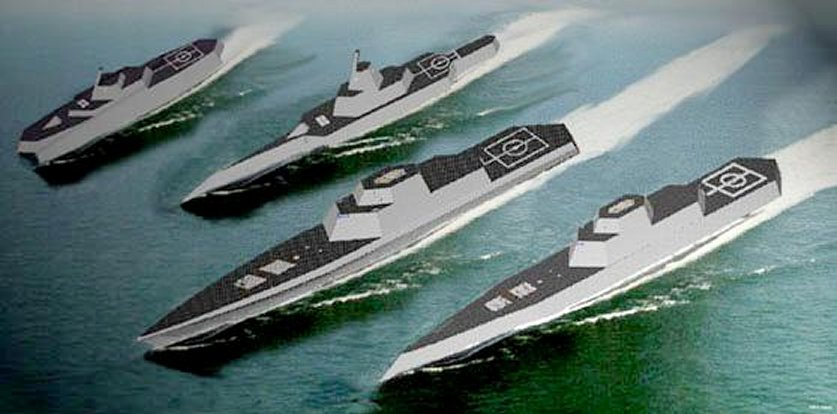

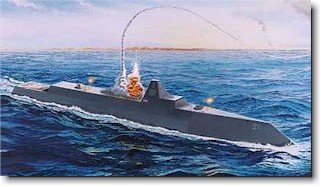

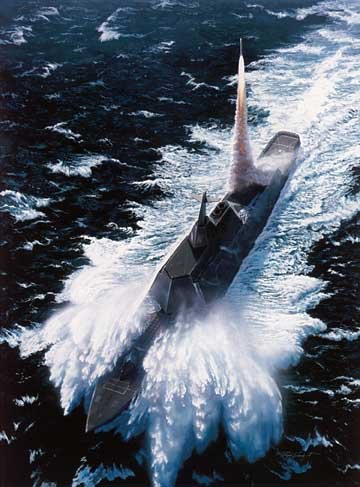

Artist impressions of land-attack destroyer using the "Sea Blade" design by Lockheed Martin. Lockheed Martin would later use the "Sea Blade" design for the Freedom-class littoral combat ship.

Source:
http://www.globalsecurity.org/military/systems/ship/dd-21.htm


Attachments

  • dd21_2.gif
    86.8 KB · Views: 1,034
  • dd-21-2.jpg
    19 KB · Views: 945
  • dd-21-3.jpg
    39.4 KB · Views: 938

donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
996
Reaction score
80

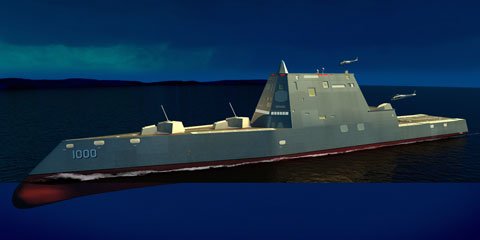

Anyone got hi-res?


Attachments

  • ddg_main_485.jpg
    21.7 KB · Views: 913
  • ddg_ss_night.jpg
    14.1 KB · Views: 904

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

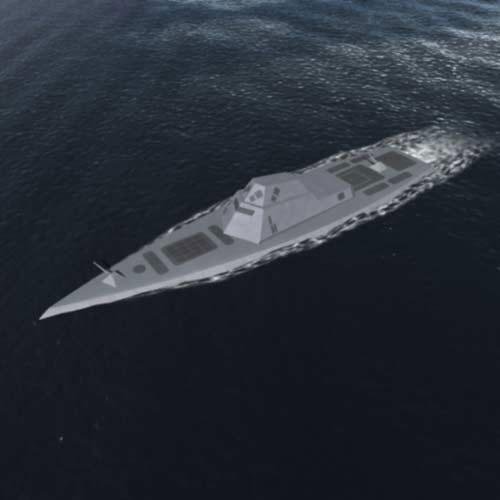

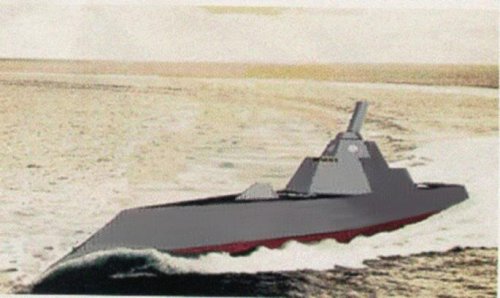

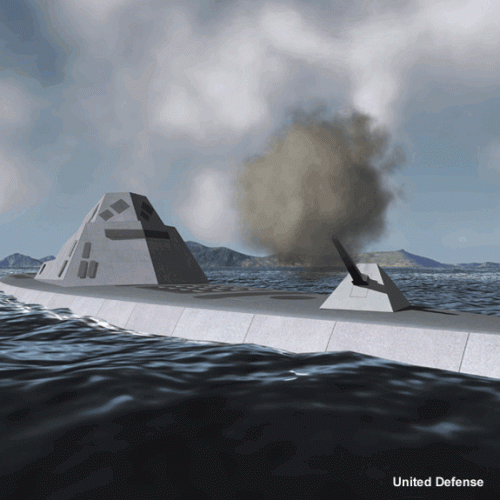

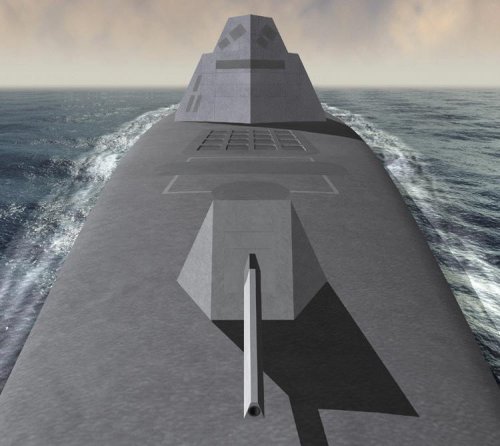

Artist's impression of United Defense concept.

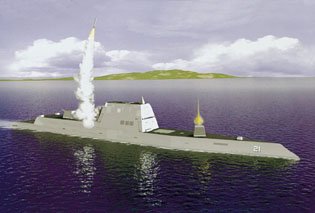

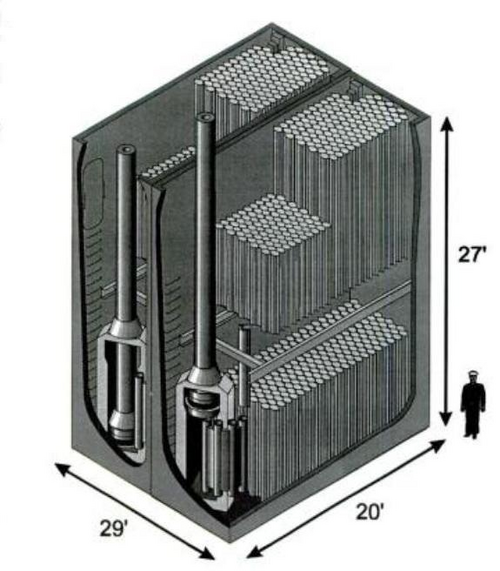

An artist's stylized concept of a land-attack missile destroyer, showing a ship with a very small RCS, a large vertical-launch missile battery, and two 155-mm long-range guns (one aft of the superstructure). Such a design would be a major departure from previous surface ships, which have substantial RCS and infrared signatures. The DD 21 is shown with conformal radar and communication antennas. (United Defense)

Sources:
The Naval Institute Guide to the Ships and Aircraft of the US Fleet, Seventeenth Edition by Norman Polmar, Naval Institute Press, 2001

http://www.globalsecurity.org/military/systems/ship/dd-21.htm


Attachments

  • DD21.gif
    87 KB · Views: 71
  • dd-21-line.gif
    4.1 KB · Views: 70
  • dd-21_sc2.jpg
    55.6 KB · Views: 58
  • dd-21-pict-litoral.jpg
    56.1 KB · Views: 72
  • dd-21-pict-horizontal.jpg
    42.7 KB · Views: 75
  • 7471_210607120314.jpg
    19.1 KB · Views: 117
  • 7471_210607120327.jpg
    15.7 KB · Views: 149

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

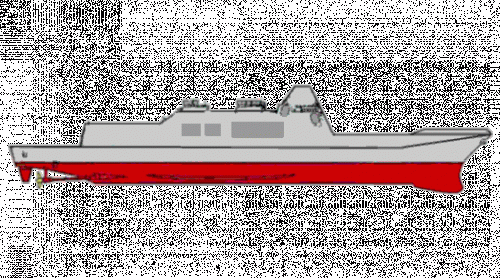

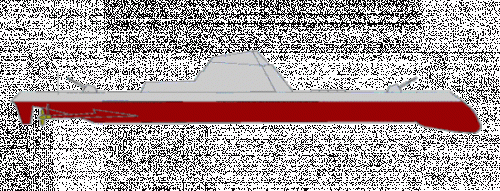

Artist impressions of an Ingalls Shipbuilding, now part of Northrop Grumman Shipbuilding, land-attack destroyer concept.

Source:
http://www.globalsecurity.org/military/systems/ship/dd-21.htm


Attachments

  • dd-21-ingalls2.jpg
    52.2 KB · Views: 121
  • dd-21-line3-scale.gif
    4.9 KB · Views: 124

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
971
Website
deeptowild.blogspot.com

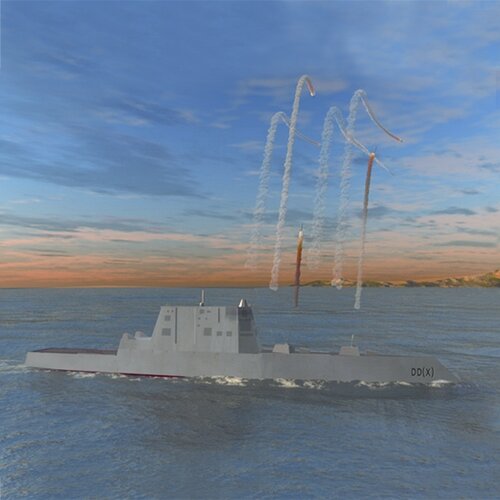

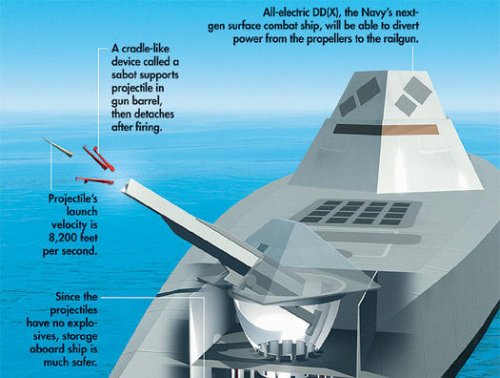

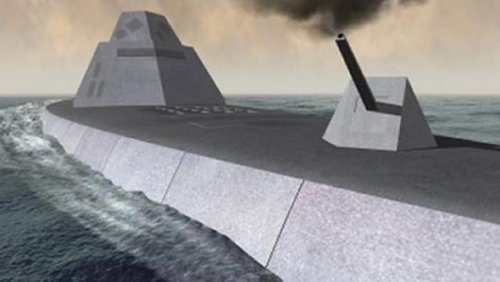

Artist's impression of electromagnetic rail gun installed on DD(X).

Projectiles fired from an electromagnetic railgun will travel up to 290 miles in less than six minutes, exiting the atmosphere before hurling into their target at a velocity of 5,000 feet per second. The force of the impact will obliterate targets without an explosive aid.

Source:
http://www.popsci.com/scitech/article/2004-06/electromagnetic-railgun


Attachments

  • tech0604magnet_730x550.jpg
    43.8 KB · Views: 258

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,650
Reaction score
6,213
From an old 2002 USN budget document relating to FY2003:
Distributive Aperture System:
Initiate:
(U) For Surface Ships, the Navy will launch a technology program (FY02 through FY06) for a ship based Distributive
Aperture System (DAS) Infrared Search and Track (IRST) for transition to DDX, CGX, and CVNX. The staring IRST system
will enable a passive self-protection capability for U.S surface ships. The system will address the need for low
radar cross-section sensor for surface naval ships. The system will provide 360-degree staring panoramic view and
awareness at-sea and in port of the surface, air, and asymmetric target set. Each module of the staring system will
consist of focal plane arrays, anemorphic optics, stabilization, and modularization techniques. The ship’s combat
center will control the DAS through a central computer high-speed processor. The DAS, consisting of eight modules
for surface combatant ships will vary based on the size of ship. It will provide surface ships with a 360-degree
panoramic staring view on the horizon to line of sight, and be able to detect, declare, and track air contacts and
surface contacts within 2-3 seconds. The sensor modules will also be able to pan its view downward to view the
surface from the ship to line of sight for in port counterterrorism awareness. DAS will address the surface naval
ships needs for a passive fighting and in-port security ability. The Navy will demonstrate a three-module prototype
with a high-speed central computer in FY06. It is critical to demonstrate the technique to seam stitch three sensors
panoramic view.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,650
Reaction score
6,213
http://www.dtic.mil/dtic/tr/fulltext/u2/a511508.pdf


donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
996
Reaction score
80
.....


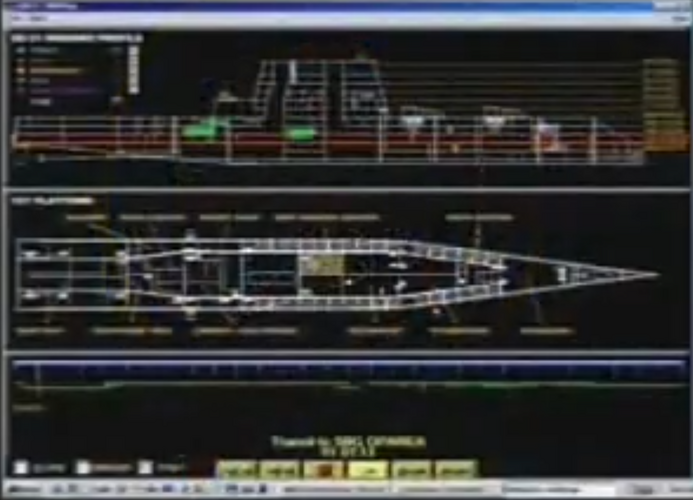

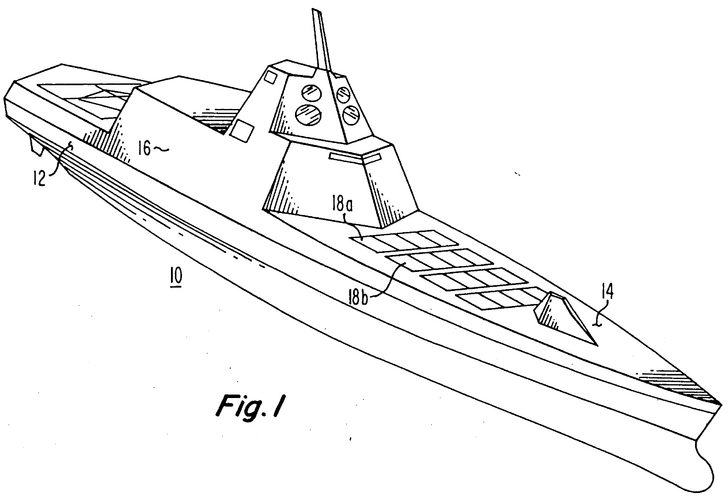

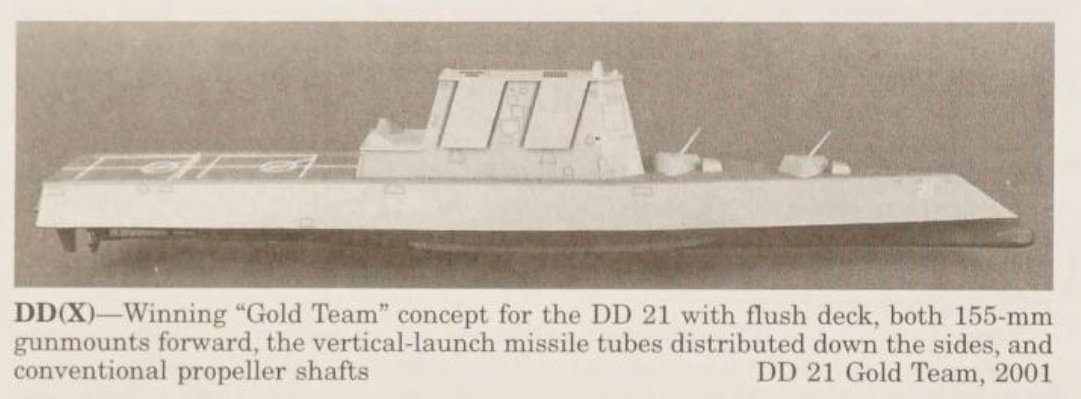

Attachments

  • dd21.jpg
    22 KB · Views: 122
  • DD-21.jpg
    21 KB · Views: 119
  • dd-21-image7.jpg
    35.9 KB · Views: 84
