Davidson Air-Car monoplane and biplane gyropters

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
92
Website
sites.google.com

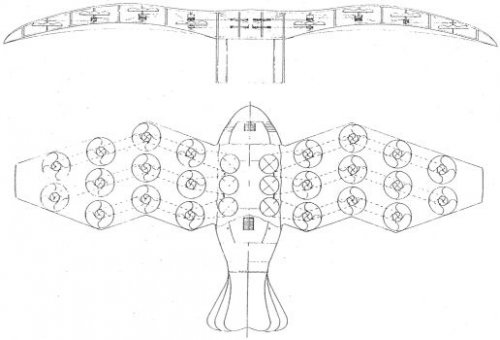

The original 1897-1898 version was to have 22 lift-fans, however it was never built and only small model tests were done, as well as separate full-scale propeller tests.

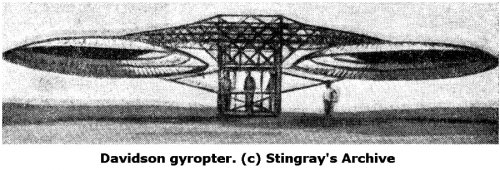

The next design was still a monoplane, but had two large lifters instead of 22 smaller ones. It was built in 1906 (or '07?), but failed the test in 1908 because of only one underpowered 10hp Stanley steam engine, instead of the two 50hp engines.

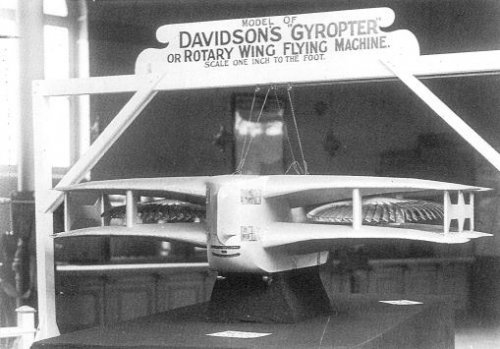

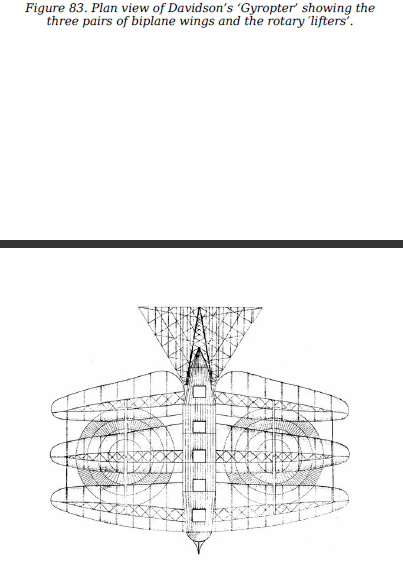

Davidson returned to Britain and attempted another design based on the previous ones. This time it was a tandem biplane with two large lifters, similar to that on the 1906 model. A wooden frame was built with the lifters and one engine was installed, but the project was abandoned because of lack of sufficient funds.


Attachments

  • davidson2.jpg
    25.4 KB · Views: 538
  • SA-007.jpg
    198.2 KB · Views: 537
  • davidson1.jpg
    37.8 KB · Views: 507

Stingray

Resident retro rainbow rotorhead nerdy girl, uwu
Senior Member
Joined
Nov 30, 2007
Messages
415
Reaction score
92
Website
sites.google.com
Tophe said:
Is the "Air-Car" name here related to a roadable ability?


I doubt it. I think it was named as such for the sake of it being aerial transport, specifically regarding the third design.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,974
Reaction score
94
Well it means "air carriage" (which is right for the era)
It would be fascinating if someone were to do estimates and figure out how far this was from feasible...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,620
Hi,


I spoke before about this aircraft,here;
http://www.secretprojects.co.uk/forum/index.php/topic,3564.msg40794.html#msg40794


it was anther aircraft designed by L.O. Davidson;


http://www.flightglobal.com/pdfarchive/view/1936/1936%20-%201580.html?search=l.o.%20Davidson


Attachments

  • Davidson.png
    158.7 KB · Views: 169

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,620

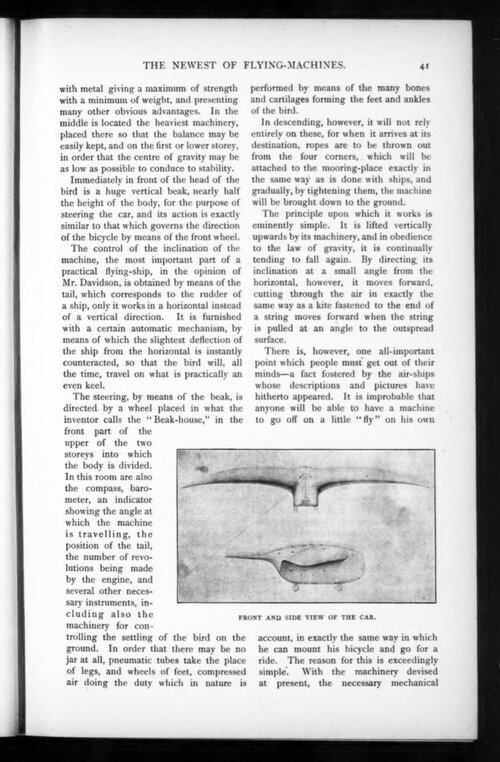

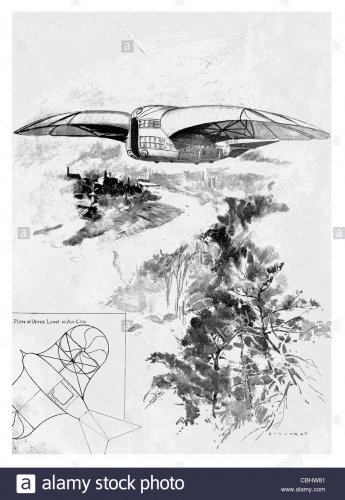

Anther drawing to Davidson flying machine.

http://www.alamy.com/stock-photo-flying-machine-designed-by-mr-glo-davidson-aircraft-air-flight-plane-41574961.html?pv=1&stamp=2&imageid=69BB0A0C-D594-40BC-8F78-C57925A9CE84&p=147702&n=0&orientation=0&pn=1&searchtype=0&IsFromSearch=1&srch=foo%3dbar%26st%3d0%26pn%3d1%26ps%3d100%26sortby%3d2%26resultview%3dsortbyPopular%26npgs%3d0%26qt%3dfixed%2520air%26qt_raw%3dfixed%2520air%26lic%3d3%26mr%3d0%26pr%3d0%26ot%3d0%26creative%3d%26ag%3d0%26hc%3d0%26pc%3d%26blackwhite%3d%26cutout%3d%26tbar%3d1%26et%3d0x000000000000000000000%26vp%3d0%26loc%3d0%26imgt%3d0%26dtfr%3d%26dtto%3d%26size%3d0xFF%26archive%3d1%26groupid%3d%26pseudoid%3d%26a%3d%26cdid%3d%26cdsrt%3d%26name%3d%26qn%3d%26apalib%3d0%26apalic%3d%26lightbox%3d%26gname%3d%26gtype%3d%26xstx%3d0%26simid%3d%26saveQry%3d%26editorial%3d1%26nu%3d%26t%3d%26edoptin%3d%26customgeoip%3d%26cap%3d1%26cbstore%3d1%26vd%3d0


Attachments

  • flying-machine-designed-by-mr-glo-davidson-aircraft-air-flight-plane-CBHW81.jpg
    202.9 KB · Views: 82

csefi

ACCESS: Restricted
Joined
Mar 23, 2021
Messages
4
Reaction score
15
The original 1897-1898 version was to have 22 lift-fans, however it was never built and only small model tests were done, as well as separate full-scale propeller tests.

The next design was still a monoplane, but had two large lifters instead of 22 smaller ones. It was built in 1906 (or '07?), but failed the test in 1908 because of only one underpowered 10hp Stanley steam engine, instead of the two 50hp engines.

Davidson returned to Britain and attempted another design based on the previous ones. This time it was a tandem biplane with two large lifters, similar to that on the 1906 model. A wooden frame was built with the lifters and one engine was installed, but the project was abandoned because of lack of sufficient funds.

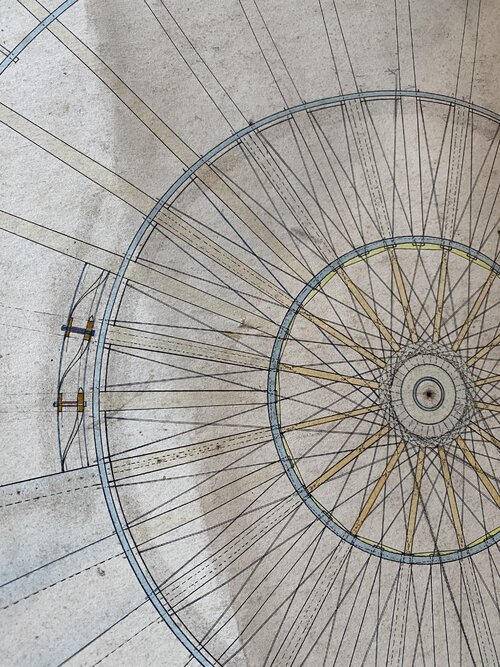

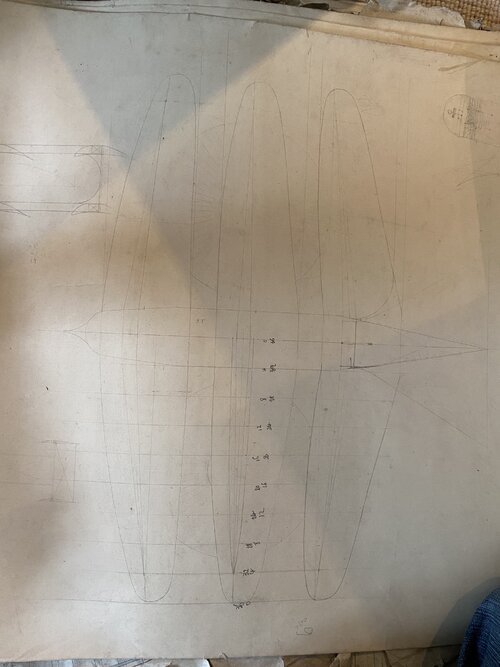

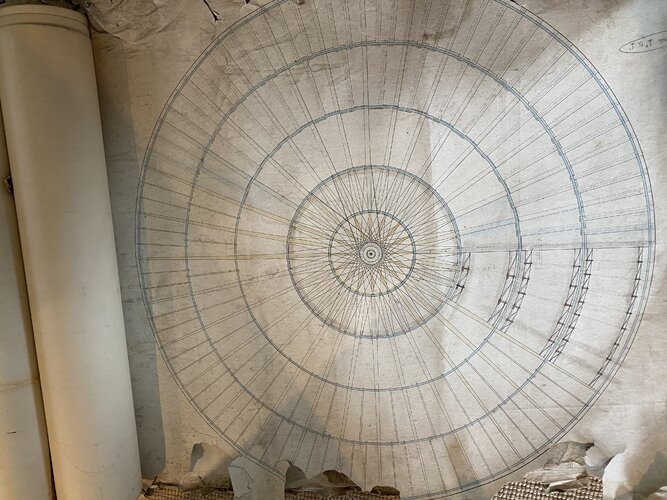

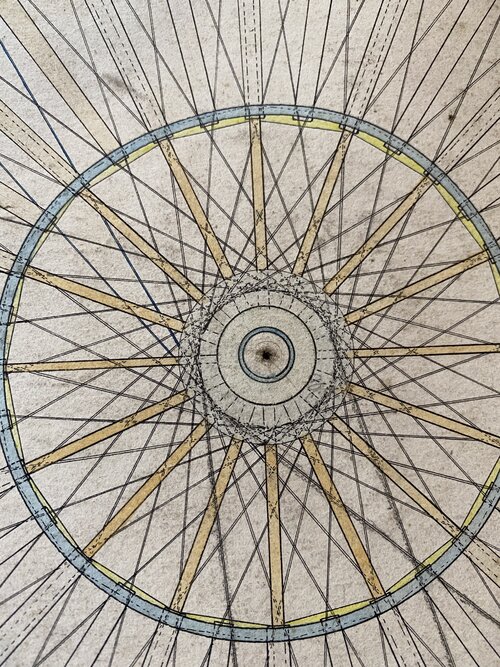

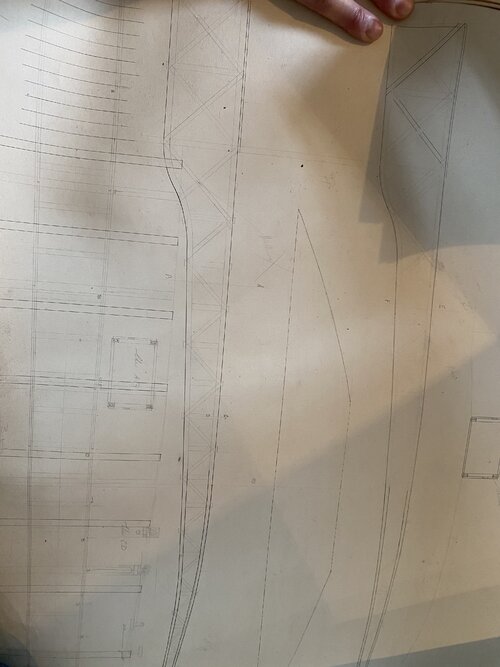

I have some of the original hand-drawn drafts for this. Davidson was my GG Uncle.
