Dassault Rafale Projects

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,362
Reaction score
3,396

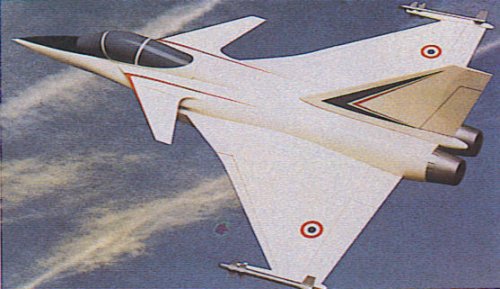

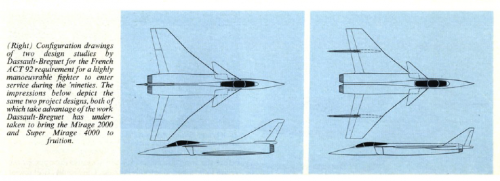

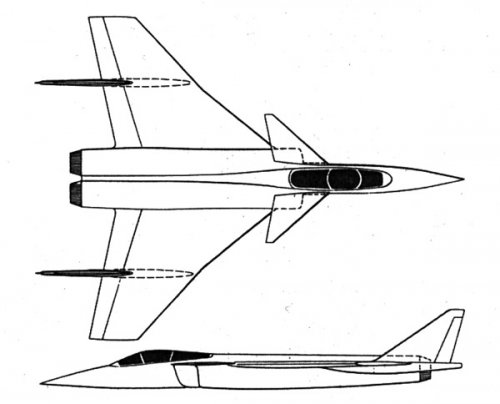

Two early ACT.92 configurations

Source:
  • 'A New Fighter for Europe' Air International, Sept 1980


Attachments

  • ACT92.jpg
    39.8 KB · Views: 1,717
  • ACT92b.jpg
    39.2 KB · Views: 1,649

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Isn't it interesting that every European canard-delta fighter (Eurofighter, Rafale and Gripen) started with a cranked delta wing planform? Even the Su-37 (1991) was a cranked delta.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,362
Reaction score
3,396
According to Yefim Gordon the production MFI would have gone the other way- from pure to cranked delta.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu

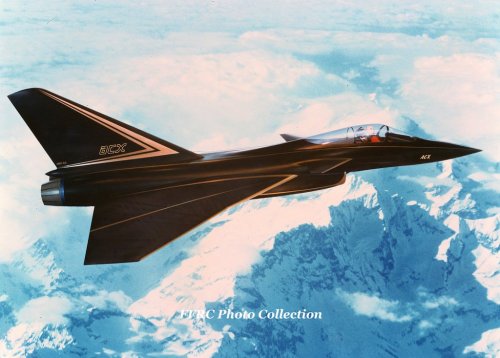

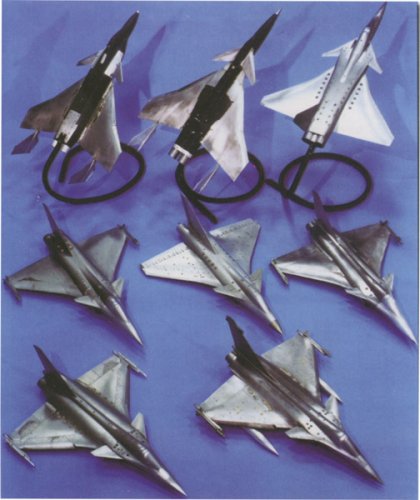

Some pre-Rafale studies from AWST april 1980, Dassault archives and some I foud on internet.


Attachments

  • ACX_early_studies.jpg
    29 KB · Views: 1,693
  • ACT-92-1.JPG
    15.5 KB · Views: 1,660
  • ACT-92-2.jpg
    139.4 KB · Views: 1,623
  • ACX_different_air_intakes.JPG
    142.6 KB · Views: 445

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,362
Reaction score
3,396
The first, grainy pic is mine; I tried copying from a library book using a digital camera. It didn't work too well.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
You should use digital camera with CMOS chip. For example I have Nikon D50. CMOS has the lowest noise from ISO 200 to ISO 1600. However copying book with camera is a bit complicated idea :)


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,222
Reaction score
1,743
This picture is very because the plane really look like the Mirage 4000, but the air intakes had been moved to the Rafale position... This is really the link between the two (there's many features of the 4000 in the Rafale)


Attachments

  • Diapositive1.JPG
    147.9 KB · Views: 333

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,226
Reaction score
933
If my eyes don't fool me, all shown designs/designstudies are showing
twin engined aircraft. IIRC several years ago in the AirInternational,
a single engined version with a M53 engine was mentioned, intended
for export customers, who were already using this engine and wanting
more commonality. I've never heard again of such a proposal.
Anybody else ?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,616
Reaction score
116
Website
www.hitechweb.genezis.eu
I have never heard it too. However it is not very good idea. When customer wants single-engined advanced (at that time) fighter, than he should buy Mirage 2000. Why to develop in some aspects similar plane?


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Jemiba said:
Heureka !
Although I haven't found the statement about the single engined export version,
I've found in AirInternational June, '97, that there was "a short-lived project powered
by a single engine", during the earlier stages designated Rafale C, before this
designation was used otherwise.

I have the same article.

I can also remember seeing a very small, low quality rendering of what appeared to be a single engine Rafale on a French website...about a decade ago.

No, I didn't save it


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,362
Reaction score
3,396

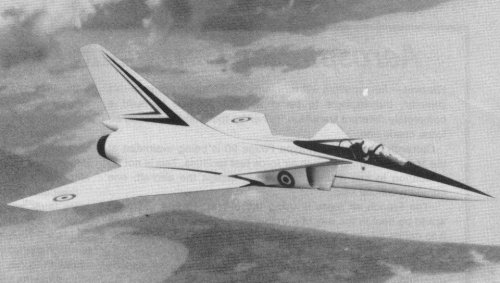

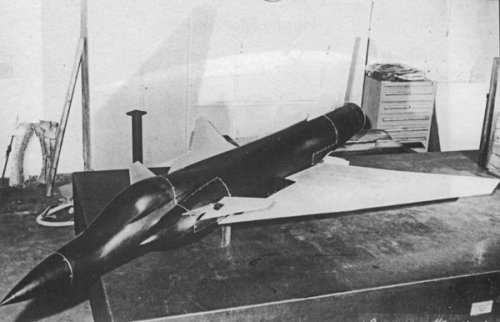

1978-1979: ONERA's "Rapace" fighter study


Attachments

  • ONERA Rapace(b).jpg
    ONERA Rapace(b).jpg
    56.3 KB · Views: 240
  • ONERA Rapace.jpg
    ONERA Rapace.jpg
    70.9 KB · Views: 231

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,362
Reaction score
3,396

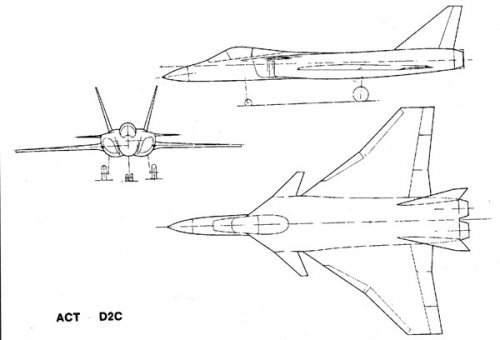

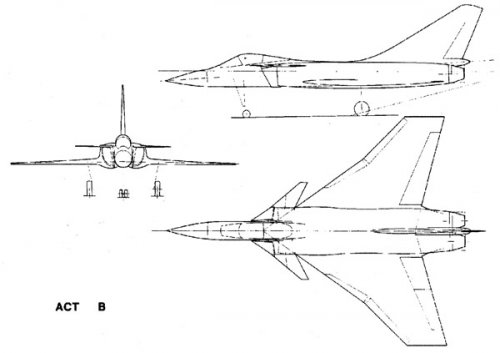

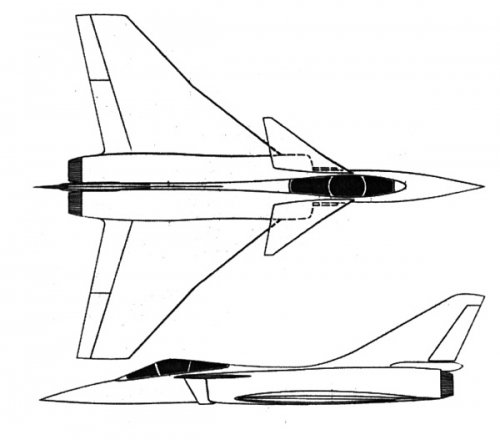

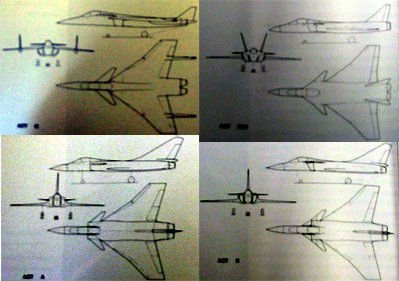

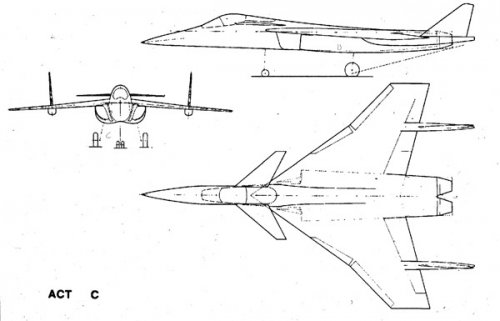

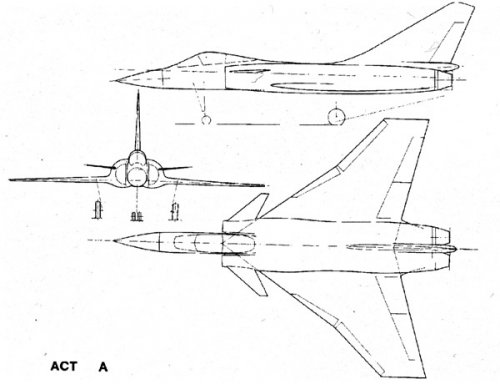

Early ACT 92 studies


Attachments

  • ACT-A.jpg
    46.5 KB · Views: 868
  • ACT-B.jpg
    32.5 KB · Views: 853
  • ACT-C.jpg
    36.4 KB · Views: 860
  • ACT-D2C.jpg
    33.1 KB · Views: 888

datafuser

ACCESS: Confidential
Joined
Dec 2, 2006
Messages
121
Reaction score
13

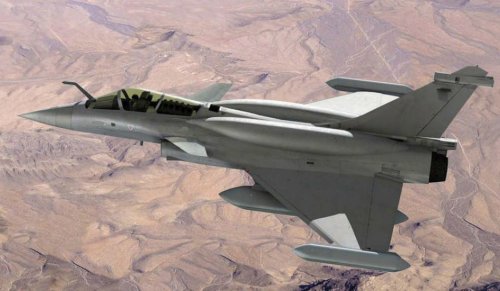

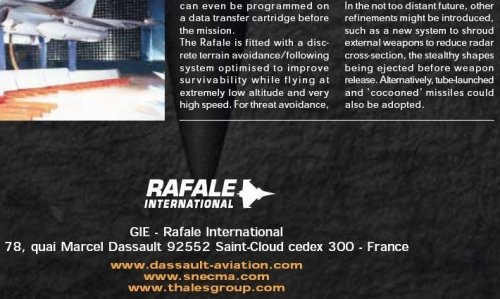

Kryptid said:
Stealth cocoons? Are those basically external housings to hold missiles in?

Yes, also called "shrouded weapons".

Source: http://www.dassault-aviation.com/fileadmin/user_upload/redacteur/AUTRES_DOCS/Fox_three/Fox_Three_nr_4.pdf


Attachments

  • image.jpg
    111.7 KB · Views: 1,138

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482
Hi,

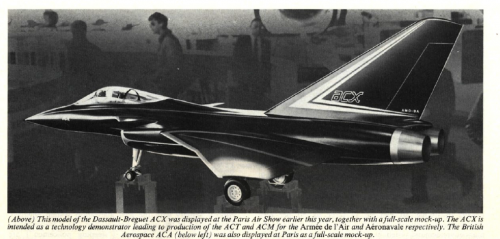

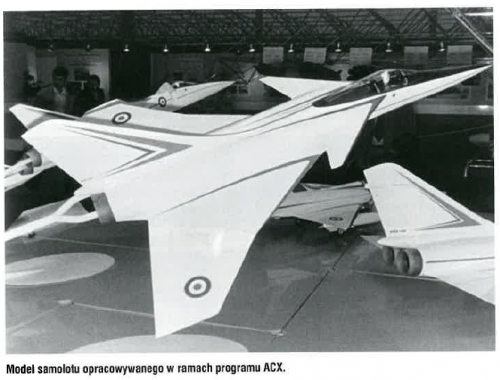

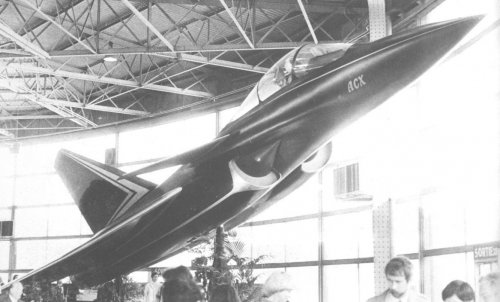

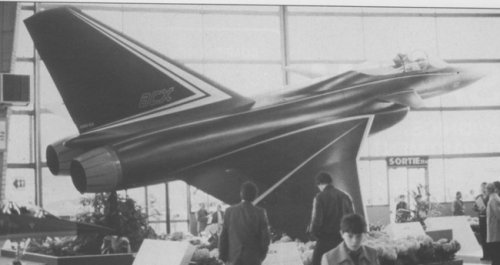

here is Dassault-Breguet ACX aircraft Model,Air International 9/1983.


Attachments

  • ACX.png
    608.2 KB · Views: 1,068

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482

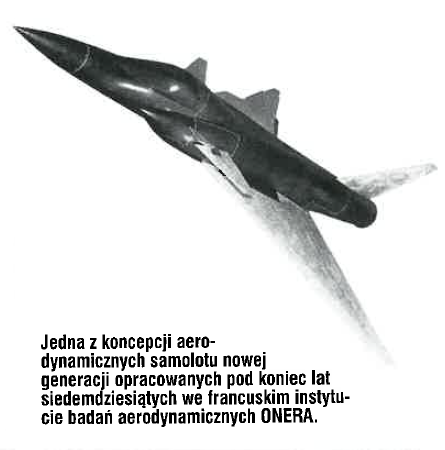

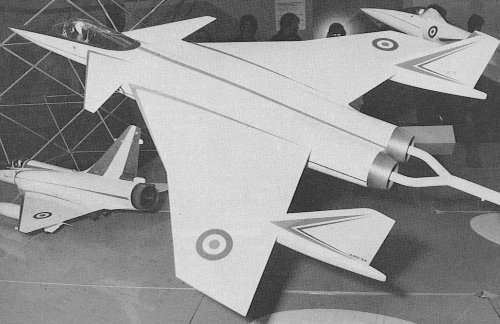

From Lotnictwo 9/2016,

here is a two Models for Dassault ACX and ONERA Fighter.


Attachments

  • a.png
    352.2 KB · Views: 845
  • ONERA.png
    80.9 KB · Views: 218

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,482

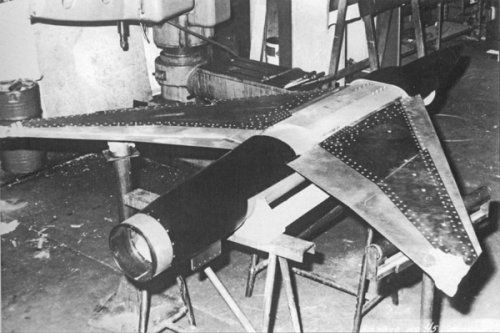

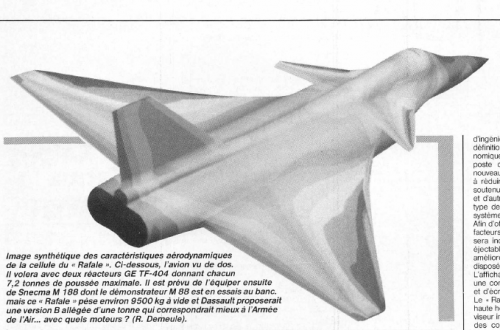

From Le Fana 195.


Attachments

  • 1.png
    265.1 KB · Views: 198

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74

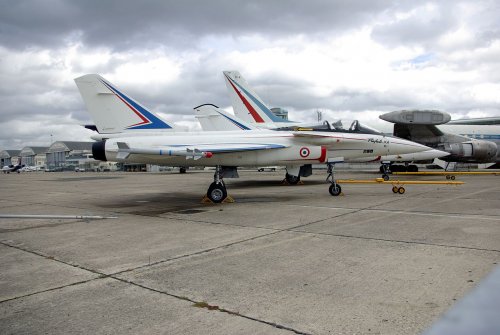

Does anyone know a good source about the Rafale A demonstration programme? French language is ok


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,559
Hi!

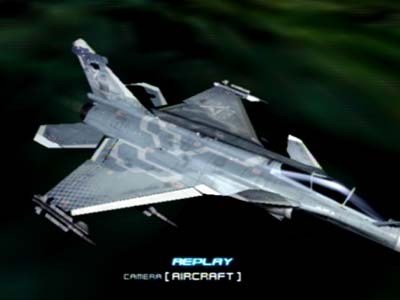

http://www.moddb.com/games/vector-thrust
Paul-san already posted ACT92A/B/C/D2C three side view drawings in this topic.


Attachments

  • 1280px-Dassault_Rafale_A_(MAE).jpg
    184.5 KB · Views: 157
  • ACX LATE.jpg
    ACX LATE.jpg
    113 KB · Views: 121
  • ACX EARLY.jpg
    ACX EARLY.jpg
    142.3 KB · Views: 1,271

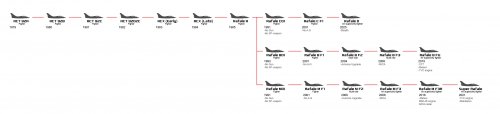

  • rafale_evolution_w.jpg
    139.2 KB · Views: 200

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,559
Hi!


Attachments

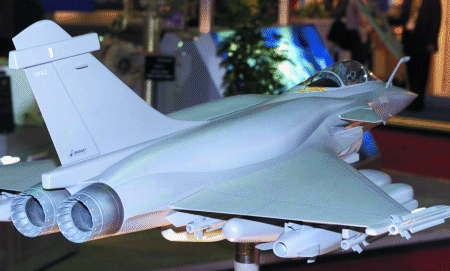

  • Rafale FU.gif
    Rafale FU.gif
    78.1 KB · Views: 233
  • Super Rafale.jpg
    Super Rafale.jpg
    20.9 KB · Views: 292

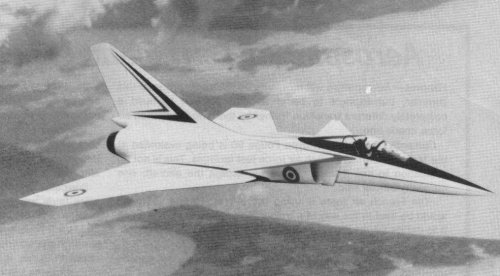

  • Rafale D.jpg
    Rafale D.jpg
    35.7 KB · Views: 287

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,222
Reaction score
1,743
hesham said:
From Lotnictwo 9/2016,

here is a two Models for Dassault ACX and ONERA Fighter.

the first one looks uncannily like a Mirage 4000. Truly the missing link between the two aircrafts.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,559
Hi! More clear ACX(late) image and prototype Rafale A video.

https://fighterman35.deviantart.com/art/ACX-Avion-de-Combat-Experimental-580105688

https://www.youtube.com/watch?v=6oa2RX7a3Pk


Attachments

  • ACX LATE.jpg
    ACX LATE.jpg
    132.8 KB · Views: 160

Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,015
Reaction score
343
blackkite said:
Where does this no-delta "Super Rafale" come from ? I never saw it before.

Is it real Dassault design, or fake ?


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,015
Reaction score
343
Well,

As far as I can understand, this "Super Rafale" does not come from Dassault, but from gamers world :

http://www.indiedb.com/games/vector-thrust/news/report-061-rafale

https://forum.ysfhq.com/viewtopic.php?t=9123


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,378
Reaction score
2,559
Terribly sorry for not proper information. :'(


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,226
Reaction score
933
In view of the occasion, please all of us should recall point 5 of the forum rules
"Please do not post [your own] "fantasy" projects ..."
and especially point 16 "Give your sources. This is vital to allow other forum members
to judge your contribution ..."

To fall for a What-If or a fancy CGI is not condemnable, but only with a given source
other members have a fair chance to correct such things quickly, without having to
search for the sources by themselves first !


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,222
Reaction score
1,743
Looking at the ACT-A design again, the main difference with the Mirage 4000 is really the air intakes.

I have this suspicion that Dassault probably found (from Milan, Kfir, Mirage 2000, Mirage III NG experience) that putting the canards on the rounded air intakes was not efficient enough.

The familiar Mirage intakes were a nuisance in the sense the canards could not be blended in the fuselage semi conformally as for the Rafale. I would say that, as far as canard efficiency goes, the aircrafts would rank as follow 1) Rafale 2) Typhoon 3) Mirage 4000.

This is just speculative.

http://www.air-defense.net/forum/topic/1680-instabilit%C3%A9-typhoon-vs-rafale/?page=2


TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
2,336
Reaction score
881
LoL Very funny indeed Mr Archibald.

Arjen, I own you an explanation:

"Wrong" was for my edited post. Obviously, I should have wriitten :" EDITED, REASON; wrong assumption.

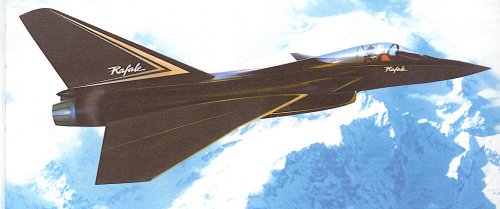

I stated earlier (and deleted the text) that the Black & gold scheme is sourced from Dassault (true - appeared in some late 80's brochure and then in other aero publication) and appeared when the Rafale model was famously unveiled during the 1986 Le Bourget Airshow (it's probably the 1984 one). I had in mind Mr Marcel Dassault standing aside of the model, smiling. In fact, it appears that this early representation of the model was gold/bright yellow tinted.

So, sorry for twice inducing the reader wrongly in the same post. An early 2018 record?


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,107
Reaction score
552
TinWing said:
Isn't it interesting that every European canard-delta fighter (Eurofighter, Rafale and Gripen) started with a cranked delta wing planform? Even the Su-37 (1991) was a cranked delta.
-----------------------------------------------------------------

Double deltas (SAAB Draken) function similar to canards or chines on the forward fuselage. The sharply-swept inboard portion creates large vortices at high angles of attack. These vortices are huge wingtip vortices. The spiral swirl re-energizes airflow over the main wing. Strakes also develop lots of lift - at high angles of attack - improving maneuverability.
The disadvantage is that strake or canard vortices are difficult to predict.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,362
Reaction score
3,396
For Typhoon, the stated reason the cranked delta wing was discarded was to improve supersonic maneuverability.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,045
Reaction score
871
...


Attachments

  • gettyimages-475769732-1024x1024.jpg
    293.8 KB · Views: 896
  • gettyimages-475769730-1024x1024.jpg
    320 KB · Views: 862
  • gettyimages-475769728-1024x1024.jpg
    373 KB · Views: 839

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
Dassault died after he took over in 1986. Focussing on secure markets and using CAD to disempower the designers worked for business jets, not for fighters.


dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
769
Reaction score
291
Archibald said:
My message vanished through a black hole
Nope. The first version was removed by moderators. For being un-necessarily rude.

Personally I'd hope this triggers an awakening. Repeated use of crude and dirty language does nothing for the professional, knowledgeable and pleasant atmosphere of the forum.
Culturally, foul language may be a sign of masculinity in some sub-cultures, but in most places it is just rude and unclassy. And unwelcome in quality sites.
