Daimler Benz Aircraft Engines 1935 - 1945

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,949
Reaction score
1

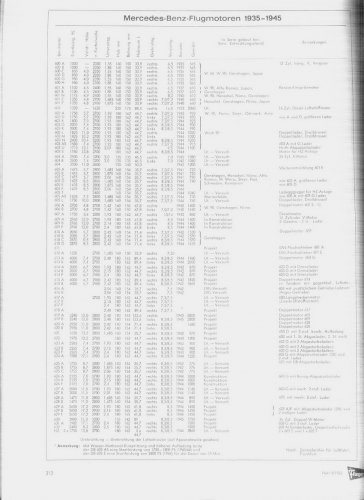

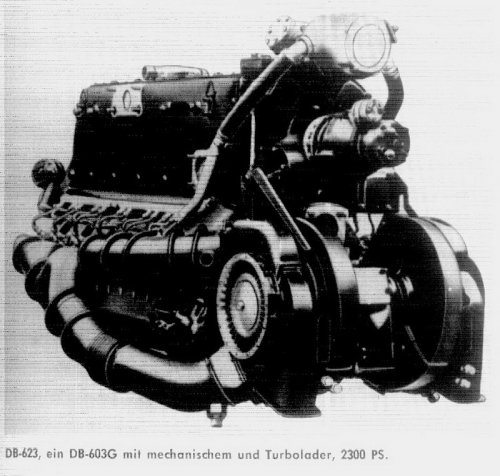

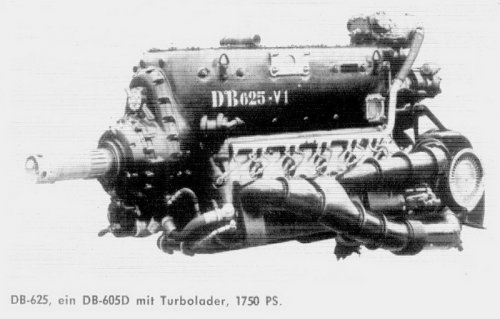

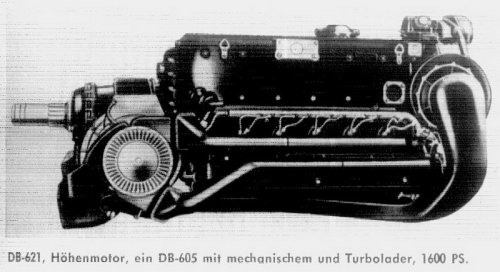

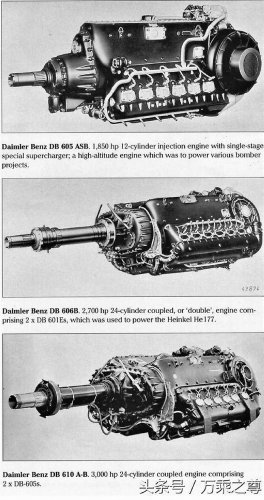

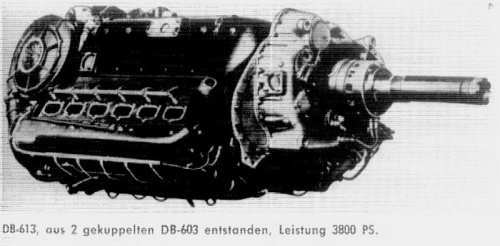

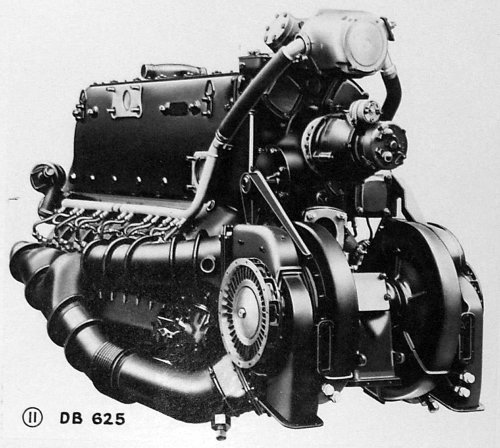

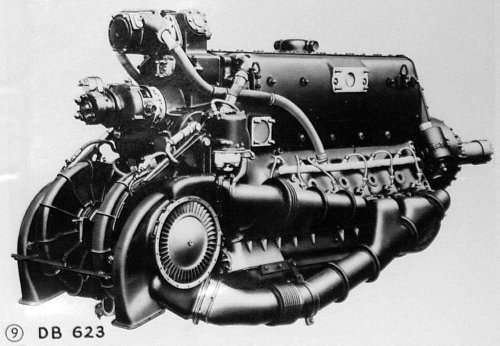

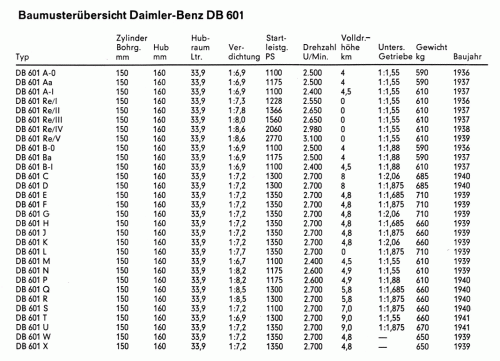

From "Der Flieger", August 1962, maybe interesting for one or two, as one-offs and projects are mentioned, too.


Attachments

Wurger

CLEARANCE: Top Secret
Joined
Oct 25, 2007
Messages
844
Reaction score
1
It sure is very interesting to me, Jens. Thanks for sharing this. Can I be rude enough to ask if that magazine has illustrations on DB engines :) ?


Wurger

CLEARANCE: Top Secret
Joined
Oct 25, 2007
Messages
844
Reaction score
1

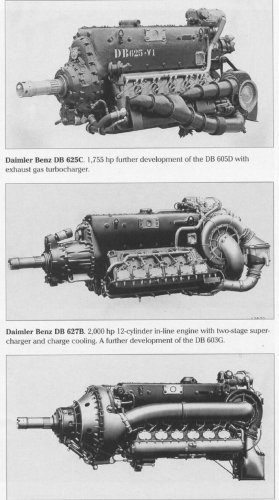

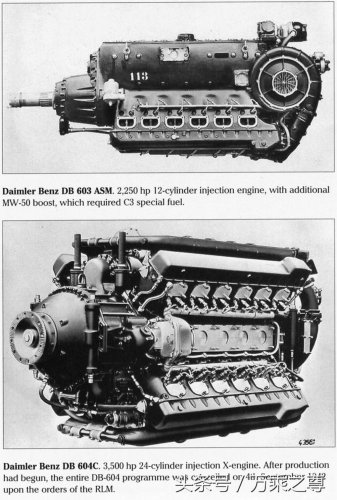

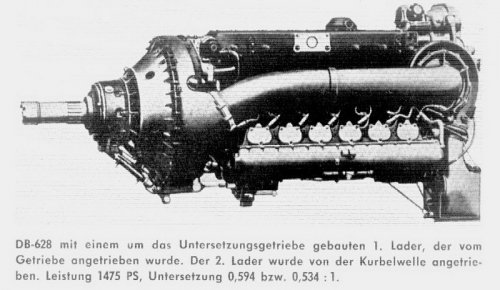

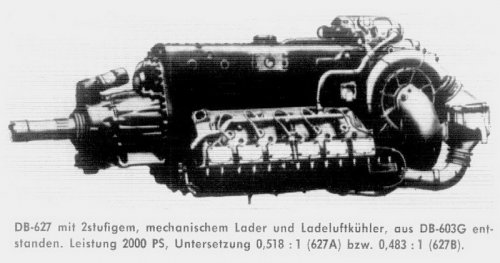

I can tell that the DB 608 is missing from that thorough list. It was a development of the DB 601 optimized for high altitudes, with 37l displacement and producing 1650Hp.

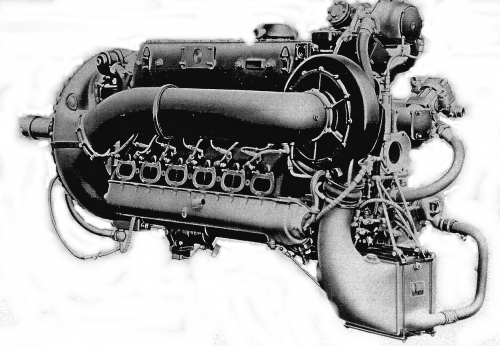

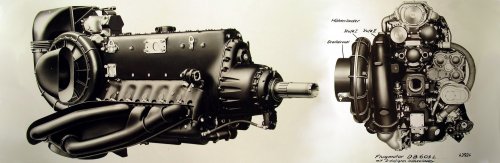

I`ve never seen that DB 624 photo. Great!!


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
0
& a rare vid of a brace of DB 603s in action.. ..these are not running in opposite rotation..

http://www.youtube.com/watch?v=jAcgUPjb16Q&feature=plcp


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
0
Here, a wartime British translation of an early D-B effort in the piston engine performance technology race..

http://kurfurst.org/Engine/Boostclearances/DB601AN_RPM_increse_nov40.PNG


This concerns the D-B way of increasing rpm, even from a fairly long stroke mill, & limiting boost while
maintaining high-ish static compression ratios as a means of maintaining fuel efficiency..


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,602
Reaction score
1
Website
beyondthesprues.com
J.A.W. said:
& a rare vid of a brace of DB 603s in action.. ..these are not running in opposite rotation..

Errr...this video doesn't see to play. Can you please provide a link to it in YouTube?


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
0
Suggestion..
If it is of sufficient interest..
You could try pushing the "'view on youtube" option..


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,602
Reaction score
1
Website
beyondthesprues.com
J.A.W. said:
Suggestion..
If it is of sufficient interest..
You could try pushing the "'view on youtube" option..

It s not giving me that option which is why I asked.


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
0
Sorry GTX, & - I don't know why it wont work for you, I have had no issues running it thusly.

( Try - hitting the 'youtube' logo & take from there, I just did, & it runs, sans issues..)


Hot Breath

I really should change my personal text
Joined
Mar 12, 2014
Messages
196
Reaction score
0
hesham said:

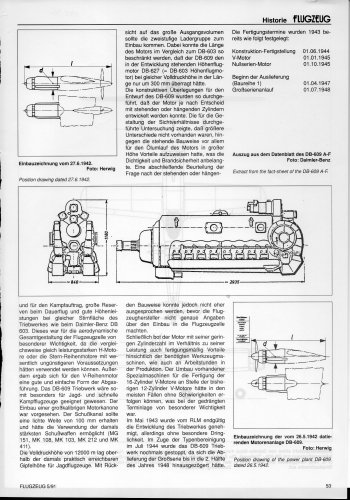

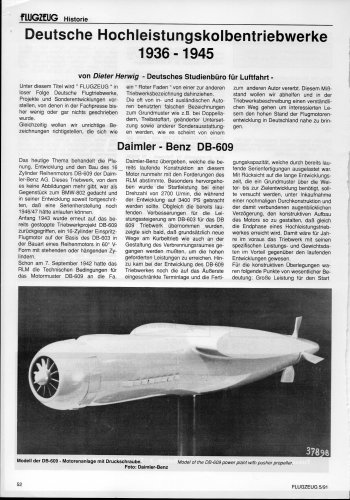

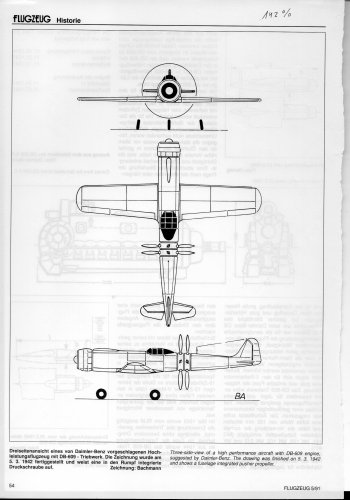

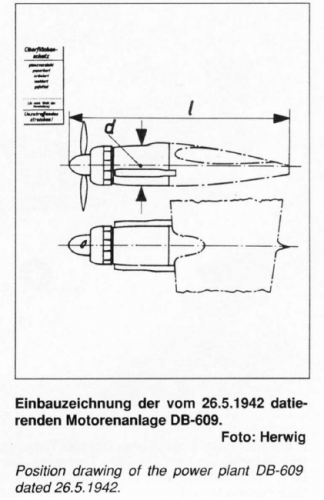

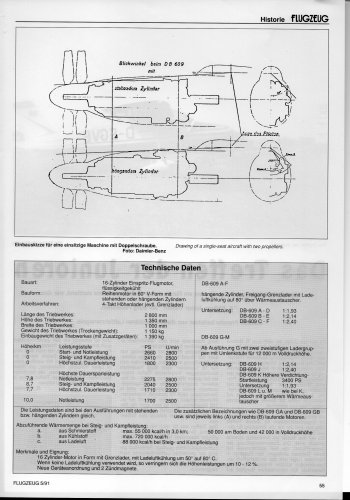

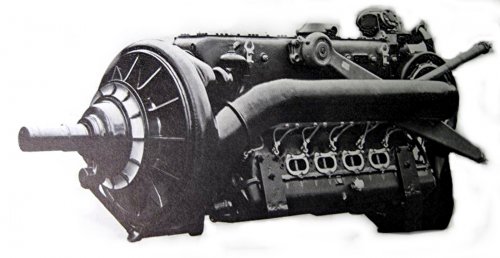

From Flugzeug 5/1991,


here is the DB-609.
Is there any clue as to what project was going to use the pusher installation?


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
0
This link provides some data concerning the D-B effort technologically - to uprate the later Bf 109 power-wise..
& specifically.. the longstanding rivalry with R-R/Spitfire..

http://kurfurst.atw.hu/articles/MW_KvsXIV.htm


tartle

CLEARANCE: Top Secret
Joined
Oct 12, 2009
Messages
557
Reaction score
0
J A W- that is food for thought. Comparisons of aircraft performance around the BoB by both sides was biased by their doctrines ... they were pretty closely matched leapfrogging each other as new marks were introduced. When I have a moment I'll revisit the specific power vs year curves of the Merlin and DB's. David Isby's Decisive Duel book certainly explains the operational viewpoints in Chapter 18 but we should continue to focus on the power to fly. I'll post a revised curve if necessary when I've studied and considered the results.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,066
Reaction score
3
Hi Hot Breath,

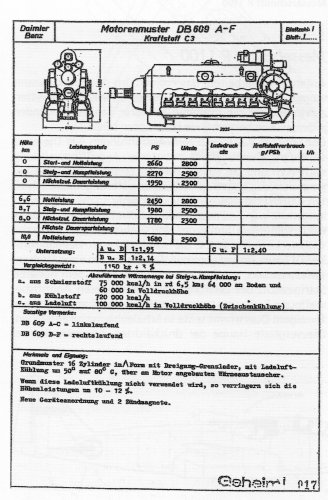

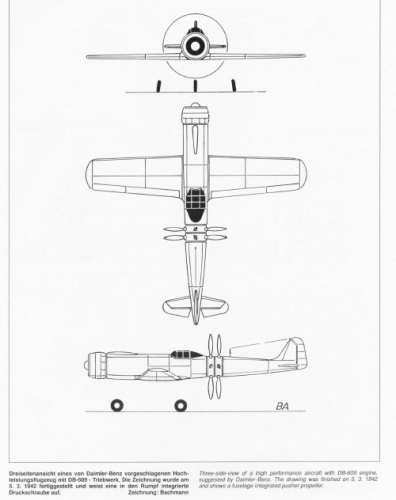

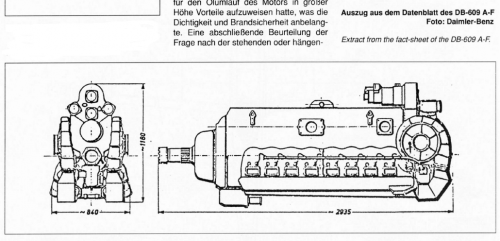

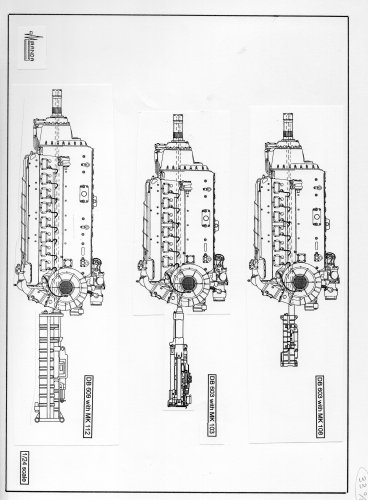

the DB-609 was intended to use on Daimler-Benz DB Jager project;


http://www.luft46.com/db/dbjager.html


Attachments

Hot Breath

I really should change my personal text
Joined
Mar 12, 2014
Messages
196
Reaction score
0
Thanks but the illustrated nacelle for the DB609 that I asked about looks more like it is intended for a twin-engine aicraft, hanging under a wing. If anything, it looks very similar to a He219 nacelle to my eye but it might just be the annular radiator that does that.


tartle

CLEARANCE: Top Secret
Joined
Oct 12, 2009
Messages
557
Reaction score
0
Didn't DB have a fighter project with the 609 in the nose and two contra rotating props just aft of cockpit?


J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
0

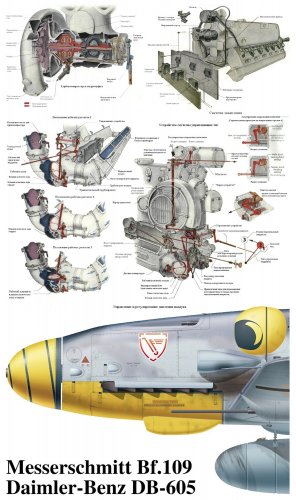

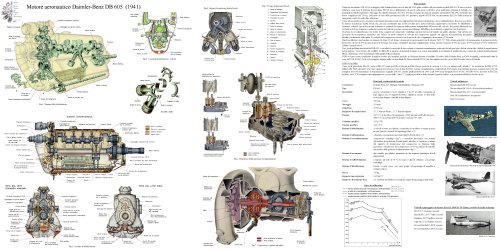

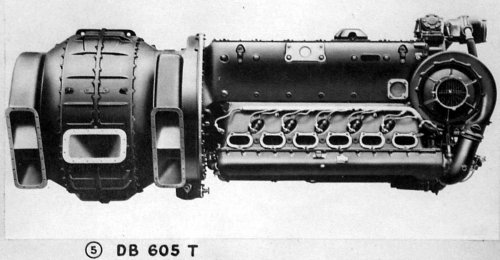

This link gives some guff on the late D-B 605 as employed by the final wartime Bf109 types..

http://109lair.hobbyvista.com/techref/systems/engine/as_vs_d/as_vs_d.htm


Johnbr

CLEARANCE: Top Secret
Joined
May 6, 2007
Messages
693
Reaction score
1

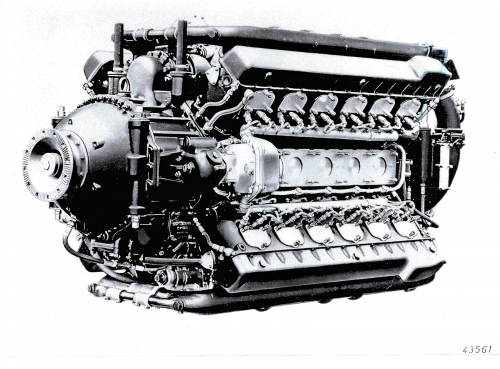

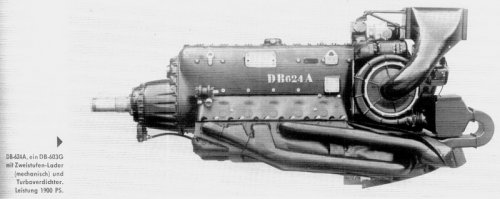

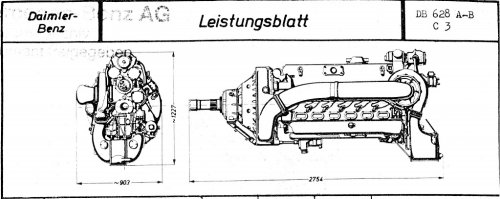

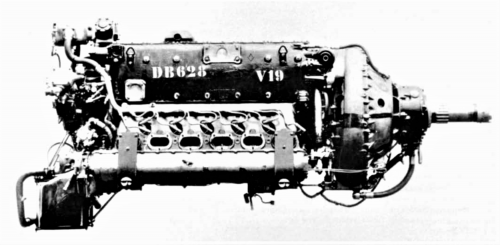

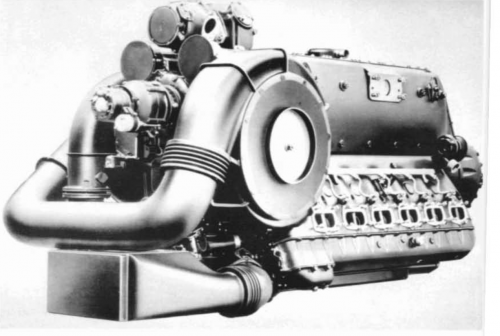

This the best photo of the db-624 I have seen.


Attachments

Johnbr

CLEARANCE: Top Secret
Joined
May 6, 2007
Messages
693
Reaction score
1

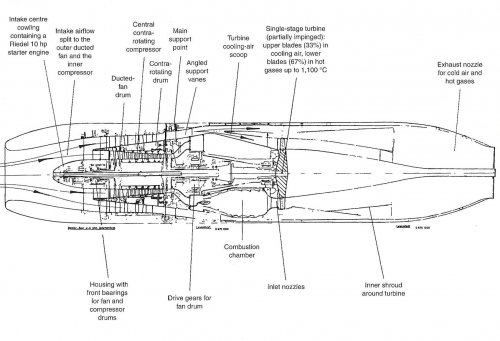

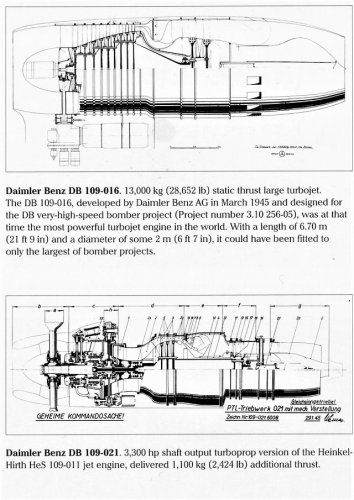

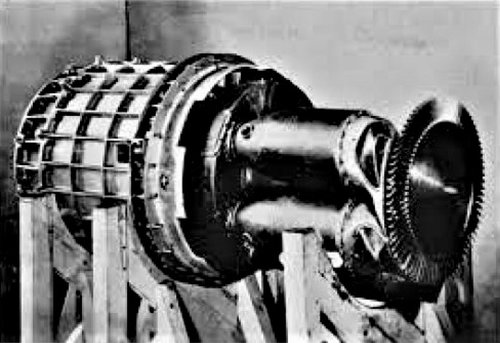

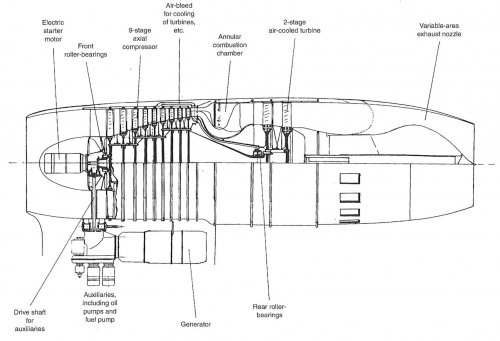

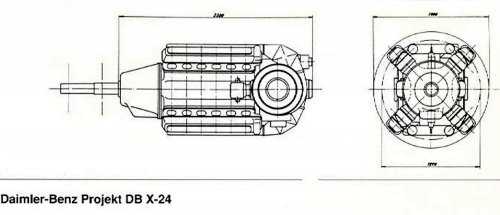

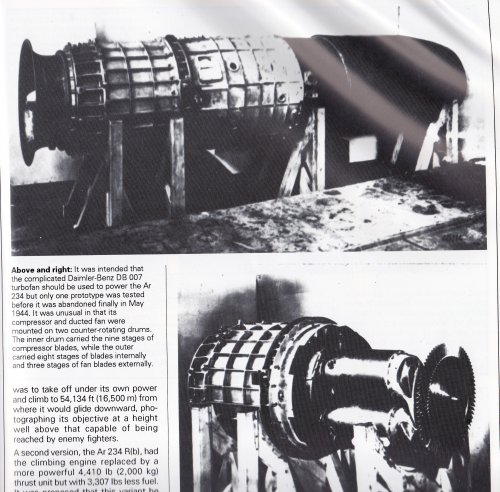

Db-007 and db-016 Thrust: 1,275kg (static), 960kg (sea level, 900 km/h), 560kg (6,000m, 900 km/h)

Compressor speed: 12,600 rpm

Ducted fan speed: 6,200 rpm

Weight: 1,300 kg (prototypes), 1,100 kg (production)

Specific fuel consumption: 1.05 per hour (12,000m, 520 km/h), 1.45 per hour (sea level, 810 km/h)

Airflow (compressor): 8.2 kg/sec

Airflow (ducted fan): 19.9 kg/sec

Diameter: 1.625 m

Length: 4.725m
Db-016 Thrust: 13,000kg (static)

Compressor speed: 3,500 rpm

Airflow: 400 kg/sec

Diameter: 2.0 m

Length: 6.70 m


Attachments

moin1900

CLEARANCE: Secret
Joined
Jan 28, 2008
Messages
458
Reaction score
0

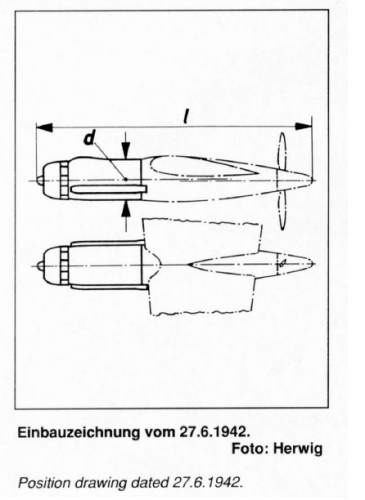

Here the Daimler-Benz Jäger DB609 Patent

DE852943
Daimler Benz 07.05.1942
"Flugzeugtriebwerk mit frei angeströmtem, in einer Ringdüse
vor dem Motor angeordnetem Ring- oder Trommelkühler"

https://depatisnet.dpma.de/DepatisNet/depatisnet?action=einsteiger


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
664
Reaction score
0
How does one find the information there when I have no idea what is what or where? Thanks.


Johnbr

CLEARANCE: Top Secret
Joined
May 6, 2007
Messages
693
Reaction score
1

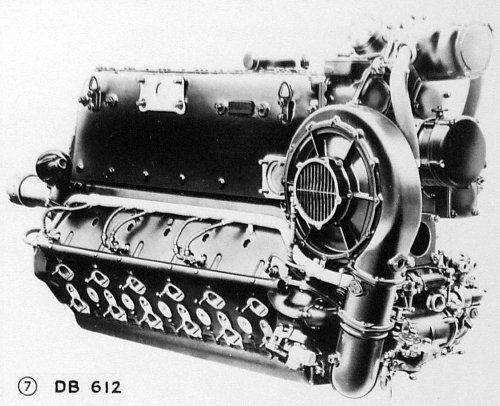

DB-612, a cylinder head engine, because it did not use "mushroom" valves but rotating discs with ports that in their turn coincided with the exhaust and intake ports of the cylinder head.
outer gear teeth that connected with all the discs, turning at the same time in its position of correct draft. A butt without the disks and another with them installed. This system can be a variant of the famous Burt-McCollum-style sliding tube engines (without valves


Attachments

Johnbr

CLEARANCE: Top Secret
Joined
May 6, 2007
Messages
693
Reaction score
1

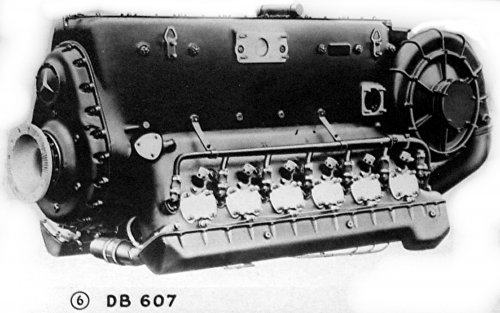

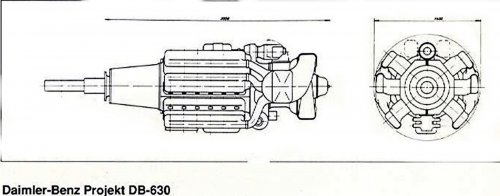

:-X The DE-607 was a similar diesel in architecture and size at "603" for 1750 hp. It was abandoned and did not go into production.This was a four-stroke diesel engine, whose initial development was at the behest of Lufthansa, later however its usefulness to long-range military aircraft was also realised. The first engine was running in 1939, however the V3 and V4 (1940/41) were only experimental engines. Dimensions were similar to the DB 603. Take-off power was 1100 KW (1,500 HP) and with development should have reached 1285 KW (1750 HP) at 1500 rpm. If this had been successful then with a weight of 860 kg a power to weight ratio of 0,49 kg/HP would have resulted. Sources differ as to when it was cancelled, the earliest states 1941 the latest October 1942.DB 630, a 36 cylinder Double W engine with a capacity of 89 litres and output in the 4,000 HP class (2,940 KW). Dr. Berger calculated the optimal cylinder arrangement angles should be 40° + 40° + 100° and it was designed to use only one crankshaft. Development was abandoned in April 1943.


Attachments

Wurger

CLEARANCE: Top Secret
Joined
Oct 25, 2007
Messages
844
Reaction score
1
Hi John,

the DVL`s sliding discs (drehscheiben) were a clever and simpler method when compared with the Burt McCollum system, itself ingenius.Had they time enough to develop it would be functional.
Stay aware because there are another edition of Bernard & Graefe`s "Flugmotoren & Strahltreibwerke" on the run.


Pasoleati

I really should change my personal text
Joined
Jun 29, 2012
Messages
156
Reaction score
0
How did the rotating disc valves perform in testing? As for the comparison with sleeve valves, I think these rotary valves are inferior due to the fact that the combustion chamber design is pretty much the same for rotary and poppet valves whereas the sleeve valve system allows optimum combustion chamber design. Sleeve valves coupled with direct injection (direct injection allows better cylinder scavenging that carbs/singe point injection) would have been a truly great design.

Earlier it was mentioned how DB chose to increase compression ratio while keepiong boopst low. That was an utterly stupic decision. While raising compression ratio improves fuel consumption a bit and power too, it raises maximum cylinder pressure (factor determining how strong the engine construction has to be plus how detonation-resistant fuel one needs) while BMEP curve rises only gradually. On the other hand, keeping CR low and using high boost as the means of increasing power, cylinder max. pressure rises much less in comparison with BMEP (power) rise while allowing the power increase with lower octane fuel. Remember that Allison reduced the CR with the ultimate G-series V-1710.

I have been reading old Shell Aviation News magazines. A certain Sir Harry Ricardo was one of the authors writing for it and he has a most interesting graph showing the effect of CR on BMEP and max. peak pressure. Needs opnly a quick look to make one wonder what the hell was DB thinking. BTW, the DB 605A was prone to burned pistons and for considerable time the use of emergency rating was banned due to this. And burned pistons indicate high peak pressure and temperature within cylinders.
