Cvetan Lazerev's planes

[piko1]

Known projects:
planes:
DAR-6
DAR-6A
DAR-9
DAR-10
Laz -7
Laz -7M
Laz -8
Laz-12
Laz-14


Laz-14
Wingspan: 8.29m
Length: 8.50m
Height: 2.58m
Wing area: 12.80m2
Empty weight: 700kg
Max takeoff weight: 1300kg
Powerplant: 1x Тuгbоmеса Магbоге-II
Maximum speed 610 km/h.
Cruising speed 515km/h.
Rate of climb: 1104 m./min
Service ceiling: 12000m.
Crew: 2

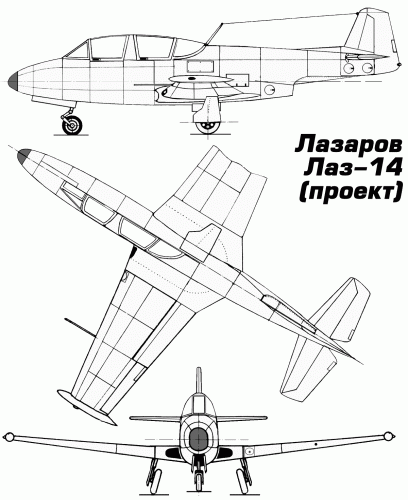

the drawings are of the plane how should be but on the original once dated form 26 July 1958 on them the plane is with T-tail as on L-29

- Ivan Borislavov "Forgotten Glory" 1997



[hesham]

If you use the search;

you will find this topic;

http://www.secretprojects.co.uk/forum/index.php/topic,1332.0/highlight,laz.html



[piko1]

Uh strange i we searched and didn't find anything about him on the forum sorry for the mistake
it will be very good if the moderators can merge the two topics pleas
