Hi,

here is the Curtiss SB3C-1 scout-bomber and Grumman TSF-1
carrier-based torpedo-carring projects.

http://books.google.com.eg/books?id=GmFhOCYckfQC&pg=PA418&dq=MARTIN+xa-15&lr=&num=100&as_brr=3&as_pt=BOOKS&cd=1#v=onepage&q=MARTIN%20xa-15&f=true


Attachments

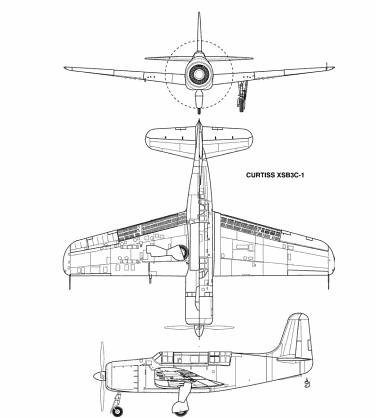

  • SB3C-1.JPG
    17.5 KB · Views: 325

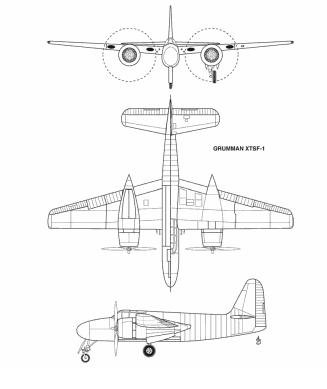

  • TSF-1.JPG
    13.2 KB · Views: 302

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
296
Info and specs about the SB3C and TSF can be found in these books:

American Secret Projects: Fighters, Bombers, and Attack Aircraft, 1937-1945
U.S. Experimental & Prototype Aircraft Projects: Fighters 1939-1945


The TSF was basically the torpedo-carrying combat plane proposed by Grumman to replace the TBF/TBM Avenger after the Navy found the TB2F too big for the Midway-class carriers. But the TSF too was way too big for the new carriers, so the Navy chose the simpler TB3F/AF Guardian as the successor to the Avenger.
