Curtiss Mystery Five-Wing Hover Airplane Concept of 1927

[hesham]

Hi,


here is a Curtiss mystery aircraft,it was a five wing hover airplane,may be had a VTOL
characteristic,I can't understand the concept of this design ?,does anyone hear about
it before ?.


http://books.google.com.eg/books?id=EysDAAAAMBAJ&printsec=frontcover&dq=popular+science+1927&hl=en&sa=X&ei=jl0EVO_wPMHnOvu7gMAG&ved=0CBkQ6AEwADgK#v=onepage&q=popular%20science%201927&f=false



[Jemiba]

...I can't understand the concept of this design ?,...



[hesham]

Yes my dear Jemiba,


but a very strange concept.



[Stargazer]

Although a Curtiss buff for all my adult life, I had somehow never seen this article before, for which I'm extremely grateful to you, hesham.

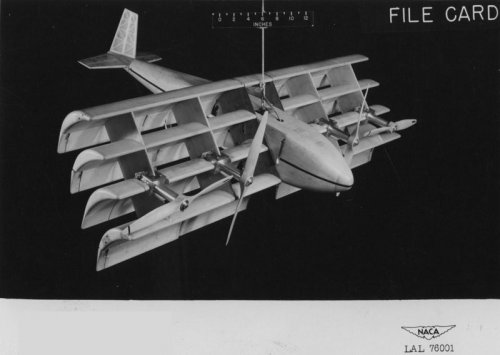

The concept was so interesting and advanced that NACA worked on it some thirty years later!



[hesham]

Thank you my dear Skyblazer,


and really it's a very odd design,the Curtiss company had many unknown projects.



[Jemiba]

It looks odd with this "ladder" indeed, but the concept is the same, as that of the
Fairchild M-224-1 Fledgling (http://www.secretprojects.co.uk/forum/index.php/topic,10121.msg94671.html#msg94671),
or the Ryan 92 VZ-3 Vertiplane (http://www.secretprojects.co.uk/forum/index.php/topic,10763.msg20459.html#msg20459),
I think.



[hesham]

My dear Jemiba,


you feel the Curtiss concept is a little different,even I don't know how those five wings swing
in vertical ?.



[hesham]

Hi,

http://archive.aviationweek.com/issue/19551219#!&pid=28



[hesham]

Hi,

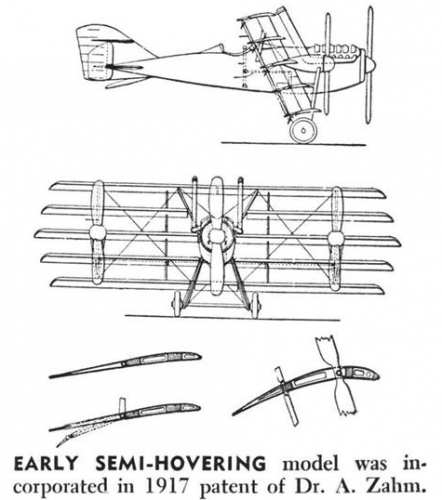

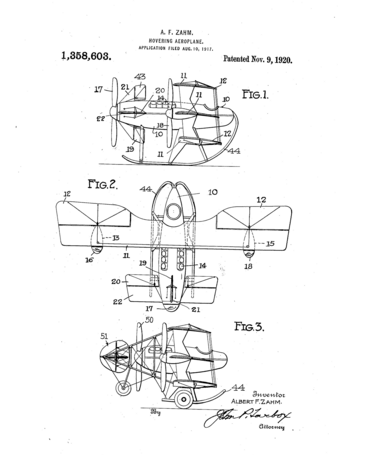

Mr. Albert Zahm had anther hovering aeroplane patent design;

https://www.google.com/patents/US1358603?dq=albert+zahm+aircraft&hl=ar&sa=X&ved=0ahUKEwi_obHbm-3KAhWCyxoKHcdnCkoQ6wEIIDAA
