Curtiss CW-21 Demon

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,317
Reaction score
245
This little plane was endowed with a phenomenal rate of climb (4,500 fpm+). Three were sent to the AVG in China. Gen. Chennault intended to use them to get on top of attacking zero formations and dive from the top to scatter them, and then letting P-40s finish the attack. Unfortunately all three were lost on a delivery flight. I have heard three different versions, but contaminated fuel was one possibility.


Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
19
The CW-21 was also used by the air force of the Netherlands East Indies (ML-KIL).
The CW-21 was first demonstrated in the NEI from 18 to 27 June 1939 but, as the ML-KNIL was interested in twin engined escort fighters, no ordered was placed. In January 1940 the type was demonstrated in The Netherlands and, after an offer by Curtiss to deliver 36 aircraft immediately, 24 were ordered on 8 April 1940. With the outbreak of the May 1940 war, these aircraft were diverted to the NEI on 24 May 1940, with deliveries starting in August 1940.
Whilst test flown in the US the first two aircraft carried serials C-338 and C-339.
The ML-KNIL put them into service with 2-VLG-VI and the aircraft carried serials CW-343/366. An additional request for another 24 aircraft was not approved.
By the time of the Japanese invasion only 17 aircraft remained in a serviceable condition. Eleven CW-21Bs were lost in combat of which nine on 3 February 1942 at Soerabaja, including CW-347 (at Madoera) and CW-354 (at Perak). Other losses included CW-363 (24 February 1942 at Lembang) and CW-366 (on an unknown date) whilst another CW-21B was shot down on 5 March 1942. One aircraft is believed to have been crashed en route from Andir to Tjililitan on 5 February 1942 whilst one was shot down at Andir on 3 March 1942.
Of the remaining aircraft, only two were serviceable at the time of the surrender. They were captured and flown by the Japanese. One of these was found in Singapore after the September 1945 surrender.
The fate of the other aircraft is not known but they were most likely rendered inoperable or destroyed through enemy action.


memaerobilia

ACCESS: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
8
Website
www.memaerobilia.com
Original Curtiss Wright Designation/Production chart shows the following for the CW-21.

In 1938 one was sent to China under S.O. D-5. It was built at St. Louis and powered by a Wright R-1820-65

In 1939, under S.O. D-8, 3 were built for China, and with SO D-9 and SO D-10 , Curtiss built 32 sets of material and one set of tools for China, with Model specs 21-Z4 & 7737, with same Wright R-1820-65.

CW production chart column for CW21A *with Allison engine, says “The Chinese 21 is sometimes erroneously referred to as 21A” and lists the 21A a “proposal of a 21B,with flush landing gear. Designation was later changed to P-248A.”

21B listed as 1940 with 25 built at St. Louis, under S.O. D-12 for Netherlands E. Indies, with Model specs 21-Z5 & 21-Z51 (hard to tell if it is a typed one or a small “L”-but it matches the numeral one, in other places on the page.)These were powered by a Wright 1820-G-5


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com

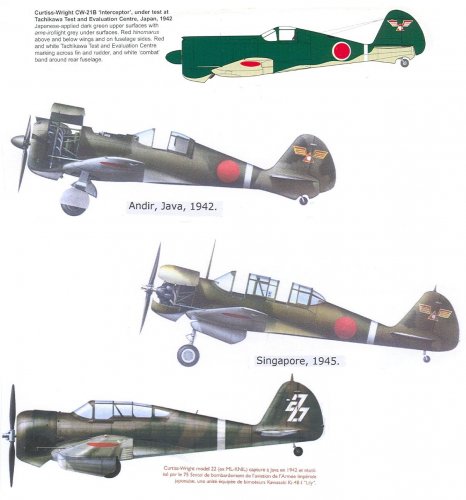

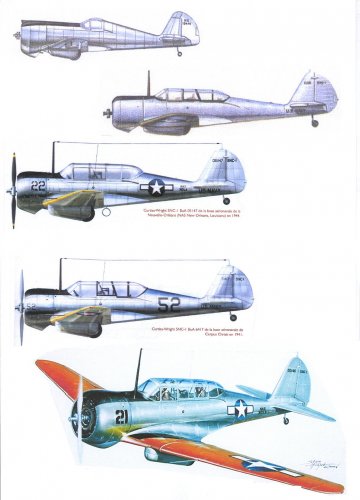

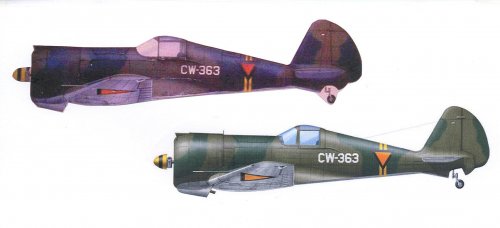

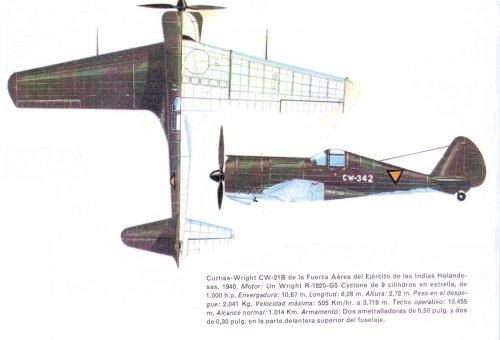

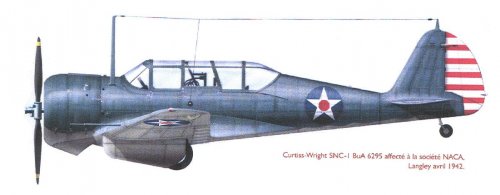

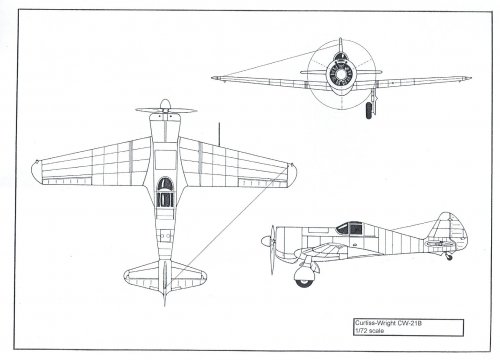

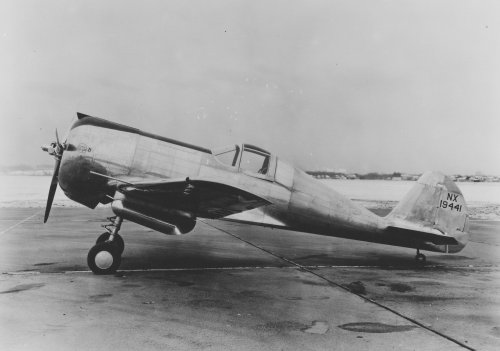

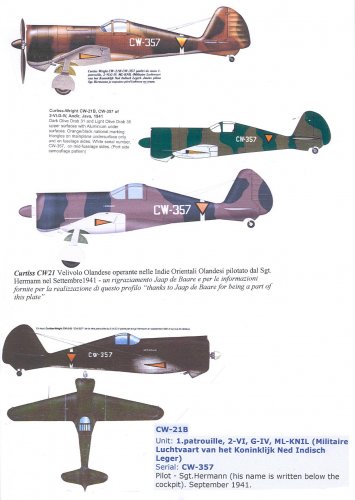

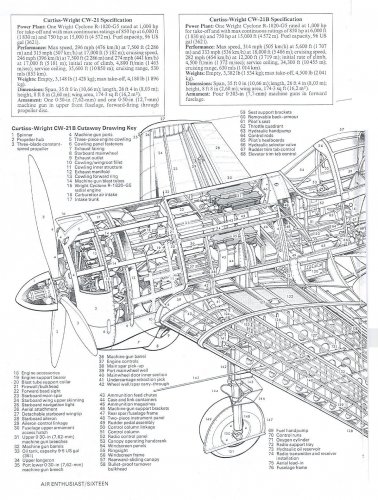

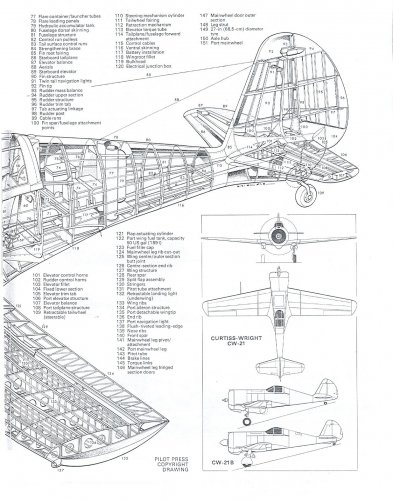

Here some additional info -Post-1
From
-Le Fanatique de l'Aviation Février 2001
-Air Enthusiast-Sixteen
-Cazas 1919-39 by Kenneth Munson-Ed.San Martin 1971
-Packfile nº1
-APMA 3-85
-Model Aire International
-Bob Banka Collection
-Unknown source


Attachments

  • Escanear0001.jpg
    475.5 KB · Views: 673
  • Escanear0002.jpg
    350 KB · Views: 650
  • Escanear0003.jpg
    419.2 KB · Views: 622
  • Escanear0004.jpg
    134.6 KB · Views: 211
  • Escanear0005.jpg
    138 KB · Views: 179

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com
Here some additional info -Post-2
From
-Le Fanatique de l'Aviation Février 2001
-Air Enthusiast-Sixteen
-Cazas 1919-39 by Kenneth Munson-Ed.San Martin 1971
-Packfile nº1
-APMA 3-85
-Model Aire International
-Bob Banka Collection
-Unknown source


Attachments

  • Escanear0010.jpg
    156.9 KB · Views: 138
  • Escanear0009.jpg
    121 KB · Views: 113
  • Escanear0008.jpg
    126.9 KB · Views: 130
  • Escanear0007.jpg
    123.3 KB · Views: 159
  • Escanear0006.jpg
    133.6 KB · Views: 154

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com
Here some additional info -Post-3
From
-Le Fanatique de l'Aviation Février 2001
-Air Enthusiast-Sixteen
-Cazas 1919-39 by Kenneth Munson-Ed.San Martin 1971
-Packfile nº1
-APMA 3-85
-Model Aire International
-Bob Banka Collection
-Unknown source


Attachments

  • Escanear0006.jpg
    106.2 KB · Views: 132
  • Escanear0005.jpg
    223.2 KB · Views: 137
  • Escanear0004.jpg
    255.5 KB · Views: 146
  • Escanear0003.jpg
    214.5 KB · Views: 180
  • Escanear0002.jpg
    66.2 KB · Views: 186
  • Escanear0001.jpg
    207.9 KB · Views: 185

Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,750
Reaction score
3,348
Website
www.amazon.com
Here some additional info -Post-4
From
-Le Fanatique de l'Aviation Février 2001
-Air Enthusiast-Sixteen
-Cazas 1919-39 by Kenneth Munson-Ed.San Martin 1971
-Packfile nº1
-APMA 3-85
-Model Aire International
-Bob Banka Collection
-Unknown source


Attachments

  • Escanear0012.jpg
    143.9 KB · Views: 159
  • Escanear0011.jpg
    65.6 KB · Views: 102
  • Escanear0010.jpg
    154 KB · Views: 130
  • Escanear0009.jpg
    152 KB · Views: 142
  • Escanear0008.jpg
    147.3 KB · Views: 113
  • Escanear0007.jpg
    172.5 KB · Views: 121

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,539
Reaction score
320
¡Madre del Amor Hermoso!

Gracias Justo :)


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Brilliant as usual... Perhaps this post could be renamed "Curtiss CW-21 Demon and CW-22 Falcon" ?


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
387
Reaction score
57
Website
www.aviationart.aero
Not really X-planes, but a fascinating topic nonetheless. I've always liked these delicate looking birds.

My contribution:

Interceptor:

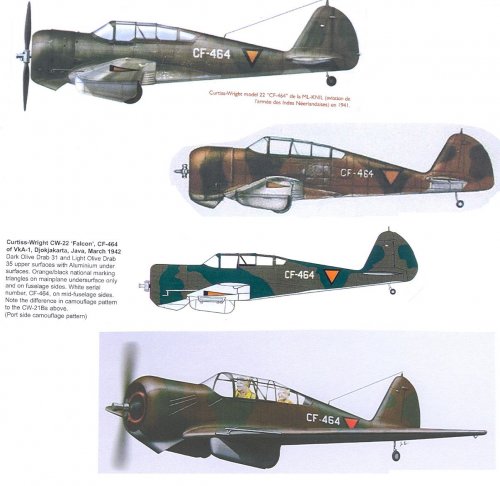

Falcon:













PS. Please note that the CW-21b as used by the Dutch was a good bit different from the CW-21. One of the main differences was the new landing gear arrangement.

PPS. One of the "Scale Drawings of Memorable Aircraft" volumes from Model Art has fantastic scale drawings of the Interceptor and Falcon. Interesting really, seeing as this book is made in Japan and the Japanese captured some examples of both planes in the NEI. I wonder what data they have about these birds in their archives...(!)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
I am just asking;


the twin engined variant is completely fake design,am I right ?,please see;


http://p-d-m.livejournal.com/336146.html


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
hesham said:
the twin engined variant is completely fake design,am I right ?,please see;

Completely imaginary. The author/artist even says: "I've increased the tail's size. Perhaps this way it will fly!"

I think you really should be using Google Translate more systematically...
1°) Go to https://translate.google.com/
2°) Paste original text in text box.
3°) Select original language over text box.
4°) Select your language over the gray area.
5°) Click the translate button and see the results.
6°) If not very good, click in the gray box on certain words to see possible alternate translations.

Hope this helps.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,760
Reaction score
4,874
Thank you my dear Stargazer,


I want only to check,I know it's fake,but we faced many twin engined version developed
from famous single engined aircraft and not known or little known,such as Curtiss P-40.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
hesham said:
Thank you my dear Stargazer

It's Skyblazer now... To me, the "Stargazer" has always been Burt Rutan, that's the name I gave him on the eponymous website, and it should stay that way... ;)


Artie Bob

ACCESS: Confidential
Joined
Jan 6, 2008
Messages
171
Reaction score
39
Not a project, but the CW-25 (AT-9) shows some signs of possibly being a descendant of some of the earlier CW series and has a general configuration that might resemble a twin engine version of the CW-21.

Best Regards,

Artie Bob


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
264
Reaction score
161
Re: Curtiss CW-21 was NOT the "Demon"

Curtiss never named this aircraft. However, a crated CW-21 had DEMON sprayed on it, short for DEMONSTRATOR, that was being shipped to a recipient that I cannot recall off the top of my head.
In the same manner so many other "facts" have been distributed (like all Consolidated B-24Js had Consolidated/Southern Aircraft nose turrets and all Hs the Emerson - half correct), so has this misidentification become Truth.
AlanG


Hot Breath

I really should change my personal text
Joined
Mar 12, 2014
Messages
196
Reaction score
1
Re: Curtiss CW-21 was NOT the "Demon"

ACResearcher said:
Curtiss never named this aircraft. However, a crated CW-21 had DEMON sprayed on it, short for DEMONSTRATOR, that was being shipped to a recipient that I cannot recall off the top of my head.
In the same manner so many other "facts" have been distributed (like all Consolidated B-24Js had Consolidated/Southern Aircraft nose turrets and all Hs the Emerson - half correct), so has this misidentification become Truth.
AlanG

Very similar to how tanks became christened "tanks". Originally, the tank hulls were shipped with the words "St.Petersburg" and "water tank" on them with the cover story being they were "water tanks" for Russia. So the nickname "tank" stuck and that is what they've been known as ever since.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
644
Re: Curtiss CW-21 was NOT the "Demon"

ACResearcher said:
Curtiss never named this aircraft. However, a crated CW-21 had DEMON sprayed on it, short for DEMONSTRATOR, that was being shipped to a recipient that I cannot recall off the top of my head.
In the same manner so many other "facts" have been distributed (like all Consolidated B-24Js had Consolidated/Southern Aircraft nose turrets and all Hs the Emerson - half correct), so has this misidentification become Truth.
AlanG

Very interesting. I wasn't aware of that story but have always wondered how Curtiss, whose aircraft were mostly named after birds, could have come up with such a weird monicker. Now it all makes sense: they didn't!!


tallguy

I really should change my personal text
Joined
Jan 31, 2012
Messages
30
Reaction score
6

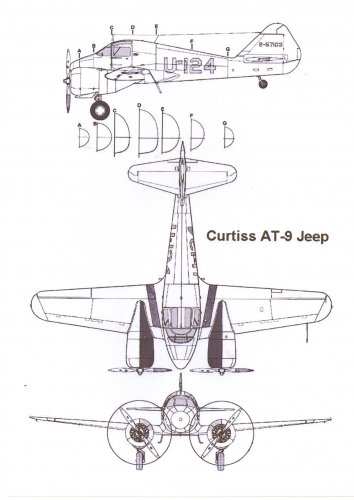

The AT-9 used the CW-21/22 wings as the outer panels and I believe the tail as well. somewhat relatedly, the Commonwealth Woomera, an indigenous design, used the wings of the Wirraway(NA Texan license) as the outer panels, and the tail also looks simular.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
661
Reaction score
156

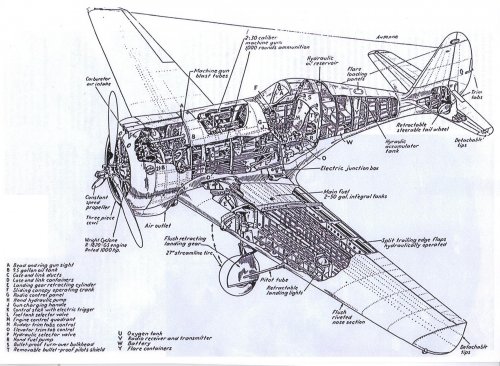

Cutaway Curtiss Wright CW-21B:

https://farm8.staticflickr.com/7465/15845578060_a828119af6_o.jpg

Success


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,725
Reaction score
1,173
tallguy: Any source for the claim that the Woomera used Wirraway outer panels? CAC certainly took direct inspiration from NA-16/Wirraway construction but it seems highly unlikely that actual Wirraway outer wing panels were used to create the CA-4 Woomera.

Derek Buckmaster (of DB Design Bureau) noted that "both have the same leading edge sweep and single-spar construction, but that's where the similarities end. The Woomera has a forward-swept trailing edge, and closer spaced ribs (hence stronger construction)."

http://www.warbirdinformationexchange.org/phpBB3/viewtopic.php?t=30195

That "forward-swept trailing edge" may just be the result of an inaccurate CAC drawing. But rib spacing differences are harder to get around.


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
686
Reaction score
344

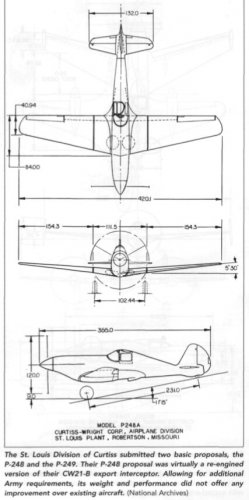

From American Secret Pusher Fighters of World War II: XP-54, XP-55, and XP-56, by Gerald Balzer

R40-C submission, essentially a V-1710 powered CW-21B


Attachments

  • tmp_4352-IMG_20150930_113748450680292.jpg
    71.8 KB · Views: 241

memaerobilia

ACCESS: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
8
Website
www.memaerobilia.com
tallguy said:
The AT-9 used the CW-21/22 wings as the outer panels and I believe the tail as well.

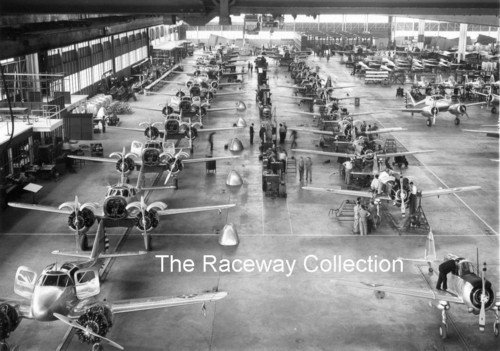

and the related SNC-1 version. Here is a original Curtiss archives photo showing the AT-9 production line, right next to CW-22/SNC-1?.


Attachments

  • cp732w.jpg
    59.9 KB · Views: 224
