Curtiss CW-20 commercial aircraft project

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
Wasn't the prototype design of the C-46 twin-tailed? Maybe its forerunner.

J

joncarrfarrelly

Guest

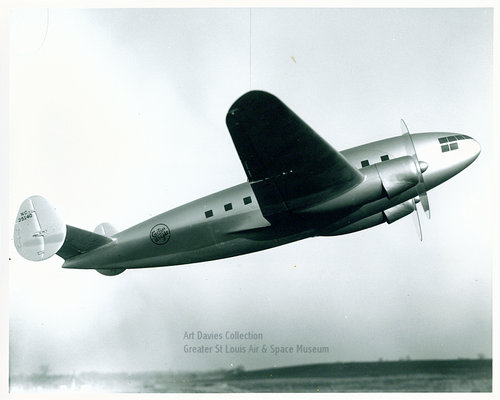

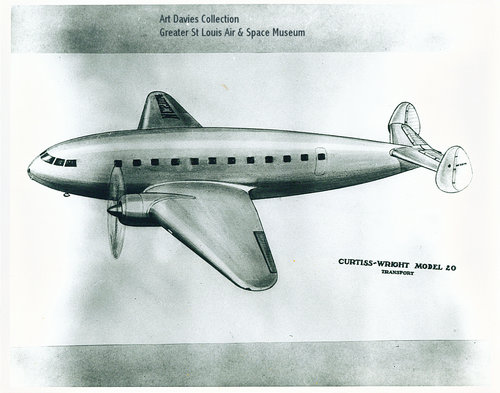

That is the Curtiss CW-20 which did indeed become better known as the C-46.
Nothing 'unknown' about it.

Jon


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
313
Reaction score
151

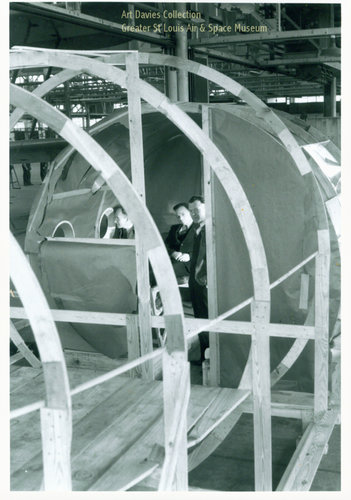

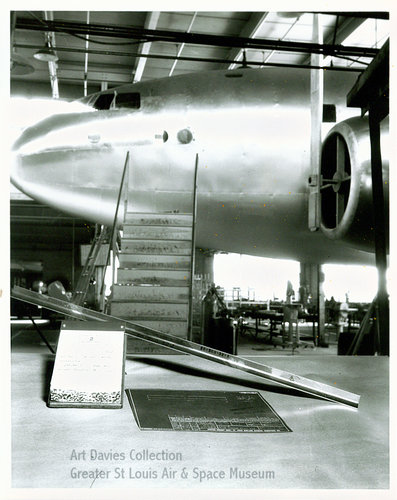

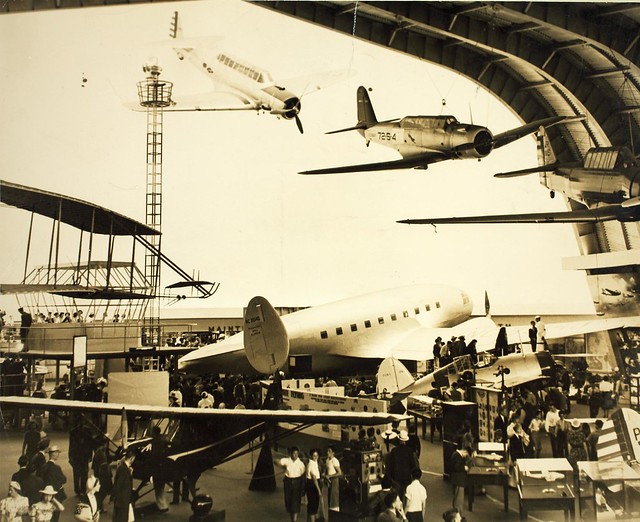

Looks like there's a photo of the C-46 forerunner, the Curtiss CW-20 mock-up, twin-tail and all (well, at least one half of it), at the San Diego Air & Space Museum (SDASM) Flickr photostream. As per aerofiles (link) it appears this photo was taken at the 1939 World's Fair in Queens, New York.


http://www.flickr.com/photos/sdasmarchives/8091706786/in/photostream


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Hi,

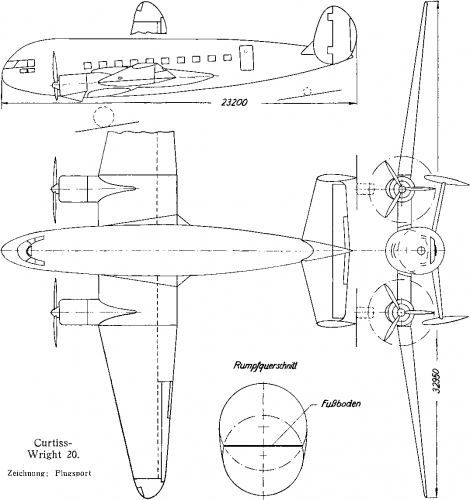

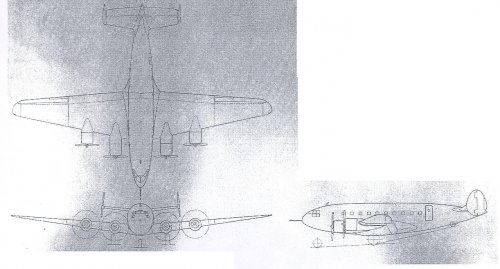

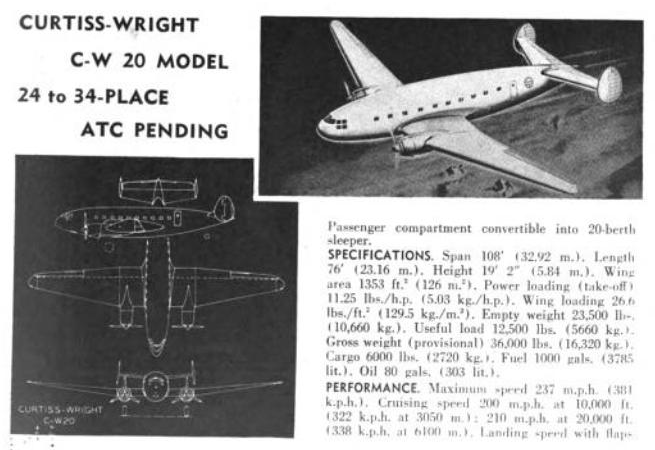

anther early drawing to Curtiss-Wright CW-20.


http://www.luftfahrt-bibliothek.de/zeitschrift-flugsport-oskar-ursinus-luftsport-luftfahrt-luftverkehr/luftsport-luftfahrt-luftverkehr-flugsport-1938/zeitschrift-flugsport-1938-luftsport-luftverkehr-luftfahrt.htm


Attachments

  • zeitschrift-flugsport-1938 CW-20.png
    zeitschrift-flugsport-1938 CW-20.png
    30.1 KB · Views: 547

ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
265
Reaction score
161
Hesham, is this final drawing from Curtiss files or is it a European "guess" at what the aircraft would look like?

Thanks in advance.

AlanG


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,878
Reaction score
4,829
The drawing is created by the magazine in question. No details as to whether its based on an original drawing.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
54

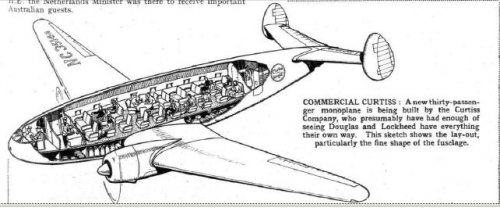

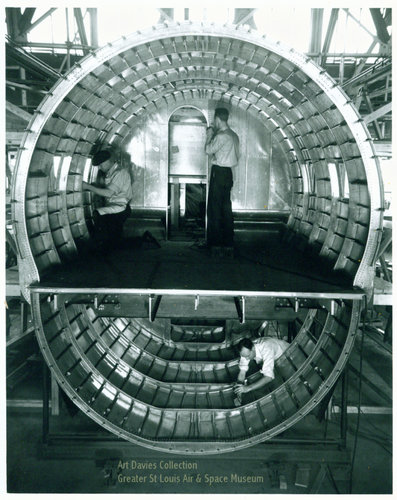

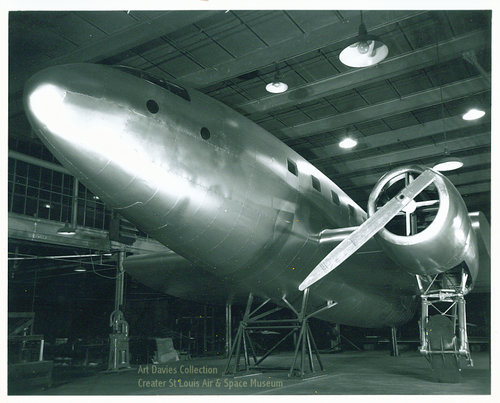

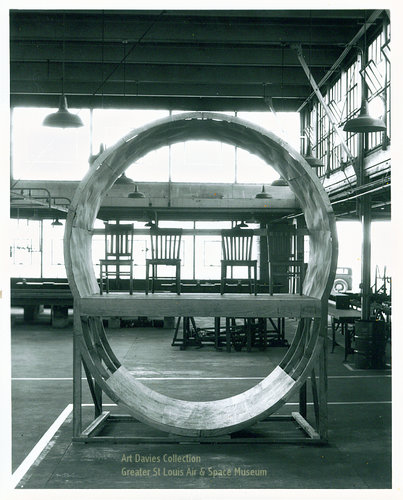

These may be of interest. -SP


Attachments

  • Curtiss-Wright Model 20 cutaway.jpg
    Curtiss-Wright Model 20 cutaway.jpg
    202.7 KB · Views: 469

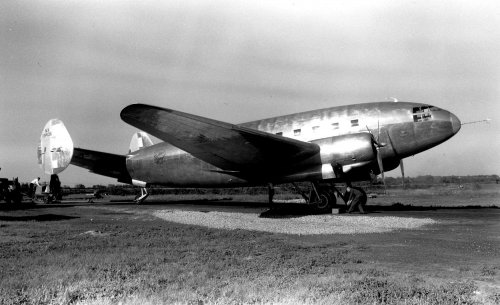

  • CW-20T DaveOstrowskiCollection.jpg
    CW-20T DaveOstrowskiCollection.jpg
    372.2 KB · Views: 157

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
My dear Alan,


the CW-20 was displayed to the public first time at 1939,so the two drawings
from Flightglobal (1938) and Flugsport (1938) are just a good speculation or
very close d drawing to the aircraft actually built.


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
265
Reaction score
161
Paul, Steve and Hesham,

Thanks for the quick comeback. I could not imagine that monstrosity was an official document - not even for Curtiss!

Steve, very nice images. I see one of them is from my friend Dave Ostrowski. The man has a magnificent collection even now and is generous to a fault.

While not a huge student of transports in any era, I still love seeing these photos, drawings and reading new information.

Many thanks!

AlanG


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979

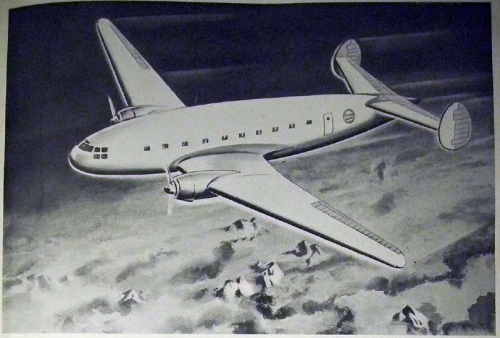

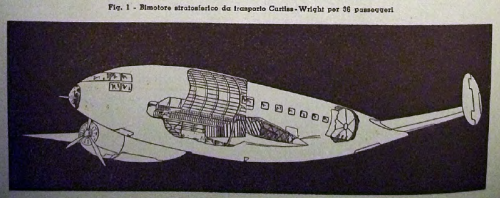

Hi,

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201939%2008.pdf


Attachments

  • 3.png
    950.5 KB · Views: 65

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,810
Reaction score
4,979
Hi,

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201940%20011.pdf


Attachments

  • 1.png
    591.3 KB · Views: 82

lleu

ACCESS: Restricted
Joined
Jul 10, 2009
Messages
13
Reaction score
4
I'm not see "figure-eight" (or "double-bubble") at CW-20T. It is very strange. Or not?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,828
Reaction score
711
The visible crease in the C-46's fuselage was faired over in the CW-20 prototype. In use, any performance gains because of a more streamlined shape were negligible. The fairings didn't make it to the C-46. Slightly cheaper to build that way.
<edit> 'Curtiss Aircraft 1907-1947' by Peter M Bowers, Putnam 1979, states all C-46 production aircraft retained a fairing over the fuselage crease 'for a small portion over the very rear '.
