From Aerophile 1921,


here is the Crocker-Hewitt helicopter project of 1917,which designed in USA and
intended to involve in WW1;


http://aerofiles.com/_cl.html


Crocker-Hewitt
Francis B Crocker and Peter Cooper-Hewitt.
1917 = Helicopter intended for use in WW1. Configuration was a coaxial rotor system with two wing-like blades per rotor. Was not built, but an advanced rig was built and tested in Ampere NJ in 1918—rotors were 51'0" diameter, and with two 100hp electric motors a maximum lift of 4000# was achieved.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017

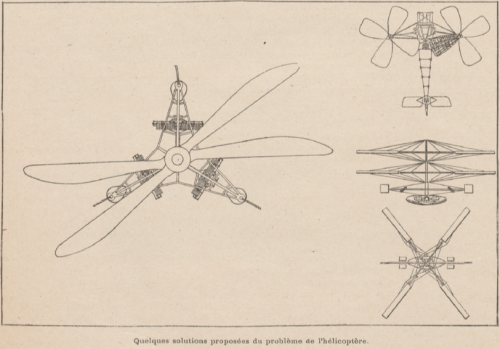

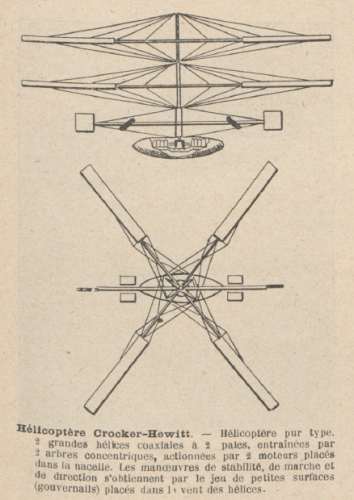

Also from Aeronautique;


http://gallica.bnf.fr/ark:/12148/cb343878271/date.r=.langFR


Attachments

VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
280
Reaction score
442

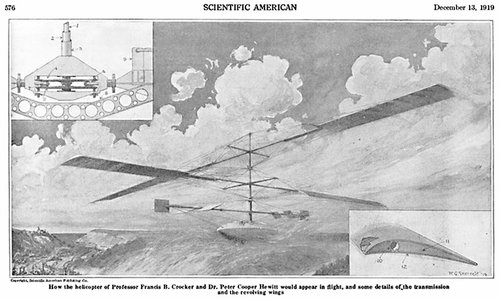

For further info on Cooper-Hewitt, you may want to read this:
