Convair Two Engine Tailless

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
761
Reaction score
318
Hi!

Thanks for the high-res picture.

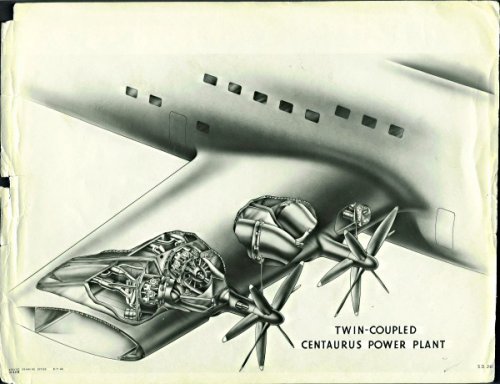

Slightly off-topic - there is something common in project's engine layout with Bristol Brabazon...
Is it possible, that British designers have been famliar with this Convair papers?

Cheers!

Source - http://www.aviationarchive.org.uk/stories/getobjectstory.php?rnum=g1526&enum=GE121&pnum=4&maxp=9
(many others interesting pictures of UK aircraft)


Attachments

  • Brabazonengines.jpg
    121.2 KB · Views: 178

hole in the ground

ACCESS: Secret
Joined
Aug 6, 2008
Messages
232
Reaction score
13

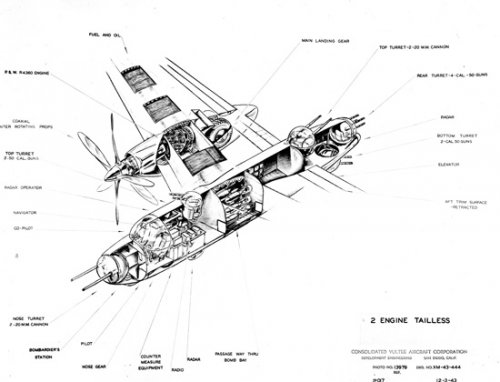

That is some serious rear defensive fire power they have got there! 4 cannons and 4 .50s

Interesting too that it appears to have 4 separate single wheel main landing gear


Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,874
Reaction score
3,499

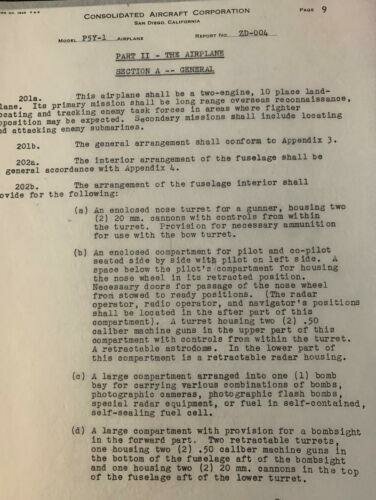

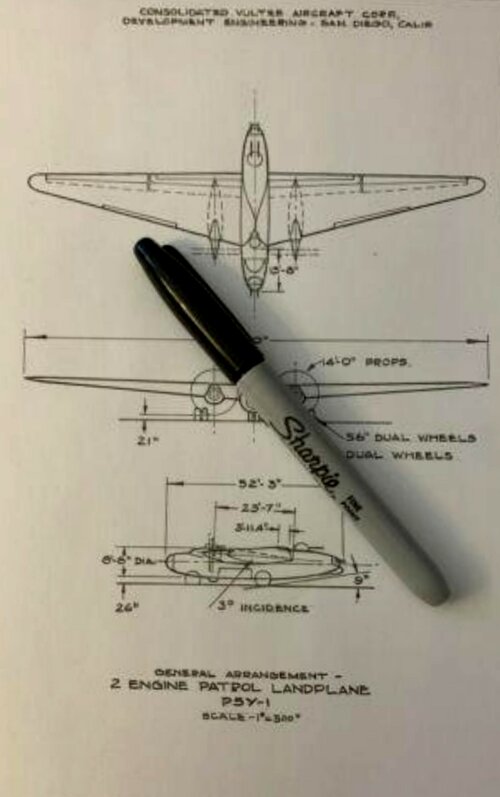

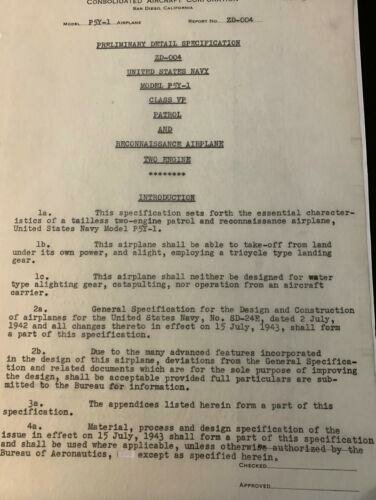

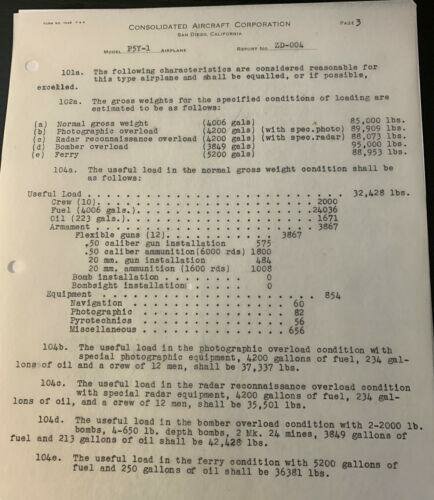

those were Convair proposals for Taillless Patrol/Bomber

labeled "Model P5Y-1" or" two-engine Patrol Landplane"
the project was abandoned in 1944

you need more info ?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,295
Reaction score
255
An art of a still later configuration, maybe ?


Attachments

  • Consolidated-Patrol-Bomber-.gif
    901.4 KB · Views: 268

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,817
Reaction score
142
From 'Convair Advanced Designs' , Robert E.Bradley-Specialty Press.

...In this context it seems that Convair's tailless concept was aimed
at the PV replacement program.
In fact it is interesting that several of the graphics associated with this proposal
use the designation P5Y in the title,but it is doubtful that the designations had
any official standing and reflects the rather undisciplined use of designations
at the time...


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
Triton said:
Thanks for the information Michel.

Rename topic to "Convair Model P5Y-1"?

I don't think it's a good idea. "P5Y-1" was the first designation of the Tradewind flying boat.

The first couple of pictures at the beginning of this thread strongly remind me of a Miles project of the same era.

J

joncarrfarrelly

Guest
Convair also applied the designation XP5Y-1 to the Model 38 twin-engine B-24 development.

page 163 - 164, Convair Advanced Designs, Robert E, Bradley


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,219
Reaction score
1,013
joncarrfarrelly said:
Convair also applied the designation XP5Y-1 to the Model 38 twin-engine B-24 development.

page 163 - 164, Convair Advanced Designs, Robert E, Bradley

If that was assigned by Convair, it was more wishful thinking than anything else. Companies sometimes tried to push an aircraft by anticipating its designation, which in the case of the Navy was an easy thing to do... There only ever was a real XP5Y-1, the Tradewind prototype, but it's nice to learn that Convair initially had other plans for the designation, anyway...


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
617
Reaction score
178

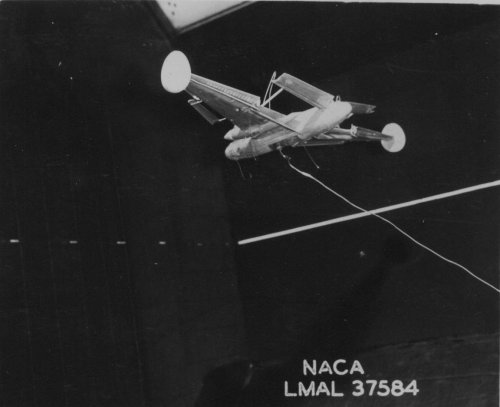

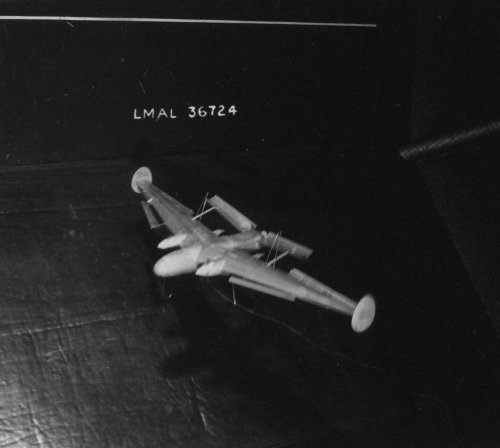

Two interesting photos of the wind-tunnel model with the high-lift devices and "tail" extended (from Langley Research Center Web-site):
http://crgis.ndc.nasa.gov/historic/File:LMAL_36724.jpg
http://crgis.ndc.nasa.gov/historic/File:LMAL_37584.jpg


Attachments

  • LMAL_36724.jpg
    80.2 KB · Views: 142
  • LMAL_37584.jpg
    71 KB · Views: 77

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
617
Reaction score
178

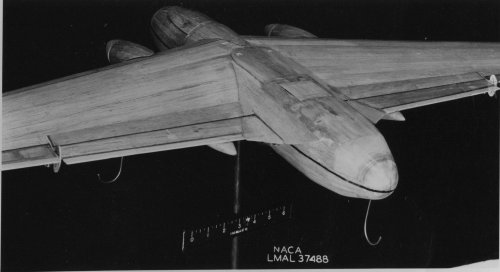

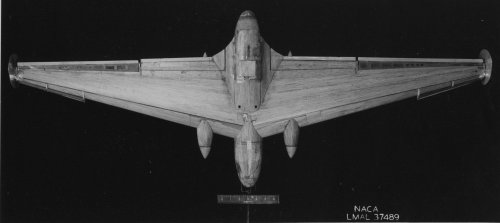

And two with the devices retracted:
http://crgis.ndc.nasa.gov/historic/File:LMAL_37488.jpg
http://crgis.ndc.nasa.gov/historic/File:LMAL_37489.jpg


Attachments

  • LMAL_37488.jpg
    231.6 KB · Views: 52
  • LMAL_37489.jpg
    243.3 KB · Views: 60

Michel Van

ACCESS: Above Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
5,874
Reaction score
3,499
Stargazer2006 said:
Triton said:
Thanks for the information Michel.

Rename topic to "Convair Model P5Y-1"?

I don't think it's a good idea. "P5Y-1" was the first designation of the Tradewind flying boat.

The first couple of pictures at the beginning of this thread strongly remind me of a Miles project of the same era.

i look in book "Secret projects: Flying Wings and Tailless Aircraft" by Bill Rose
the "P5Y-1" was called also "Two Engine Patrol Landplane"
the high-lift devices and "tail" extended are only used during start landing and slow flight
and is retracted for high speed and cruise speed
by the way nice find Retrofit
