On the Convair 200/201, is the canard fixed or moveable? The concept art suggests Viggen-like flaps but the Secret Projects book states that Convair claimed it would be a destabilized CCV platform. Doesn't CCV require moving canard surfaces or have I got terms confused?

O

Overkiller

Guest
Errrrrr.......


WOW!

Thats a beautiful render :)

cheers

Duncan


Michel Van

CLEARANCE: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,197
Reaction score
70
wounderfull piece of work


HeavyG

CLEARANCE: Confidential
Joined
Aug 21, 2009
Messages
73
Reaction score
0
Has a Gerry Anderson-like quality to it...very nice...


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
76
Just so we can compare to the original design, here's a collage of the images I had of the Convair Model 201, which was a CTOL variant of the Model 200 V/STOL.


Attachments

Evil Flower

CLEARANCE: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
1
Mine is set up with an all-moving canard. I know the pic you posted has Viggen-like flaps but none of the other drawings seem to have them. Not sure here which configuration is the correct one. Also I've always thought the 4 hardpoints of which only 2 have any sort of SAHM/A2G capability is a bit lacklustre. Since they also offered this design as the GD 218 for VFAX competition that spawned F/A-18, is it fair to assume some kind of additional underwing hardpoints were planned?


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,376
Reaction score
617
Most of the artwork shows definite flaps - this is not incompatible with CCV. e.g.

http://www.aoe.vt.edu/~mason/Mason_f/AIAA96-4058.pdf

The goal of CCV design was to improve aircraft performance through the use of active control. CCV concepts under study at the time included: improved handling qualities, flight envelope limiting, relaxed static stability, gust alleviation, maneuver load control, and active structural mode control.
Modern airliners benefit from CCV without canards at all. I expect the Model 200/201 was a "relaxed static stability" design which used computer controlled FBW active controls to keep the aircraft stable. We can speculate that it was probably in the lower end of unstable - say 5-10% not 35% like X-29 - due to the lack of large, all-moving canard surfaces - but that is really just speculation on my part.


Evil Flower

CLEARANCE: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
1
So they'd act just like flaps with pitch control by the elevons or like canard mounted flap/elevators, if such a combination can exist?

Also, I haven't quite figured out if the wing is supposed to be slatted or not.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
170
Website
deeptowild.blogspot.com
This topic should be moved from the "Postwar Aircraft Projects" section to the "Scale Modelling, CGI and Profiles" section.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
76
Triton said:
This topic should be moved from the "Postwar Aircraft Projects" section to the "Scale Modelling, CGI and Profiles" section.
Thought that's where it was. Has it been moved by a mod, or am I getting old?


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,376
Reaction score
617
Nothing to see... move along...

;D

(I merged the topic with a post from another topic and the merged topic was placed in the wrong forum)


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
0
Website
www.io.com
Stargazer2006 said:
Triton said:
This topic should be moved from the "Postwar Aircraft Projects" section to the "Scale Modelling, CGI and Profiles" section.
Thought that's where it was. Has it been moved by a mod, or am I getting old?
...Triton just got conbefuddled, as there's no notice on the PAP forum of the post being moved.


Sundog

CLEARANCE: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,595
Reaction score
25
Outstanding work! Thanks for sharing. :)


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,819
Reaction score
222
thefrecklepuny said:
Any 3 views of this? Looks like a sensible fighter design to me.
For the 70's it was. Between the 200A and 201 it could have been an earlier (albeit far less capable) JSF.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
76
thefrecklepuny said:
Any 3 views of this? Looks like a sensible fighter design to me.

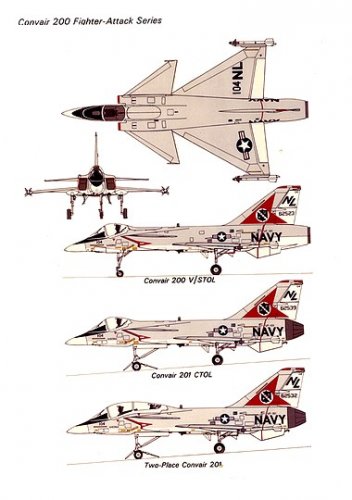

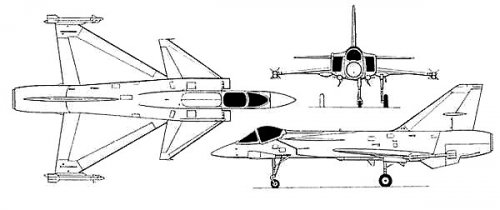

There is a topic somewhere on this design, but allow me to offer here two reworked (enhanced) images. Not very large but it's all I could find.


Attachments

overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,376
Reaction score
617
http://www.secretprojects.co.uk/forum/index.php/topic,103.0/highlight,convair+201.html





Evil Flower

CLEARANCE: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
1
On the subject of weapons carriage, I did take some artistic liberty with the hardpoints. Tony Buttler's American Secret Projects book mentions that the 200A was supposed to carry 2 Harpoons or bombs etc in place of the AIM-7's. However mounting twin pylons (The Sparrows are obviously semi-recessed so other stores won't fit without a pylon) there simply looks flat out wrong IMO so I've added a centerline station that can take a droptank or bombrack. Since this later iteration has had it's AIM-9 underwing stations moved to the wingtips, I decided it doesn't make sense to delete the underwing hardpoints so I've retained those for varying kinds of weapons including Harpoons, GBU's etc.

Given that this was a VFAX contender as well, had it been adopted I presume one of the Sparrow recesses would be used for mounting a lantirn system as on the F-18.


sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,819
Reaction score
222
The Jolly Rogers never gets old.


Evil Flower

CLEARANCE: Secret
Joined
Oct 12, 2006
Messages
223
Reaction score
1
I see now I got the intake geometry completely wrong. How embarrassing!

Nothing that cannot be fixed, however...


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,658
Reaction score
31
Evil Flower said:
So here are the schemes I've been bothered to paint so far:
Hey love your 'what if' profiles Evil Flower!! :p

Any chance of a series of these (in both single & two seat variants!!)?
Say RAN, RN and French navy colours and markings ;D

Regards
Pioneer


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
76
Some great Convair 201 what-if illustrations here:
http://secure.simmarket.com/razbam-convair-fa-201-kestrel.phtml


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Also a good view;


http://www.pcaviator.com.au/store/product.php?productid=218981


Attachments
