Consolidated-Vultee Flying Boat Projects

Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
7

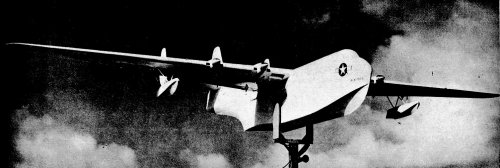

The July 1946 issue of Air Trails magazine has an article on large-scale flying models used for aerodynamic research. There are several images of a four-engine flying boat -- obviously if CVAC went to the expense of doing this, then it expected to build something. The legend on the nose reads "8 [or 0] 61-08-1". Does anybody recognize the result?


Attachments

  • Air Trails Jul 46 CVAC Seaplane Scan.jpg
    Air Trails Jul 46 CVAC Seaplane Scan.jpg
    209.6 KB · Views: 1,148

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
570
Reaction score
194
Re: Consolidated-Vultee Flying Boat Project -- ID?

On page 62-63 of Robert E. Bradley's Convair Advanced Projects there is a larger image of the above 21 foot wingspan model mounted on the front of a car for aerodynamic testing.

The section of the book is entitled Generic Four-Engine Research Model (1945). It was part of a Navy sponsored research program during the development of the Model 31 to test various hydrodynamic characteristics of full size aircraft.

The Convair photo reference is T-4463 dated 16 April 1945.


Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
7
Re: Consolidated-Vultee Flying Boat Project -- ID?

Thanks -- that's the same photo, then. I had cropped out the vehicle (a real woody!) to save pixels.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Re: Consolidated-Vultee Flying Boat Project -- ID?

The photo obviously seems squeezed horizontally. I've applied a 125% horizontal resize to obtain this much better-proportioned model (a number appears on the nose but I can't really decipher it, it's something like "H-61-08-1"):


Attachments

  • convair-retouched.jpg
    229.7 KB · Views: 999

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Re: Consolidated-Vultee Flying Boat Project -- ID?

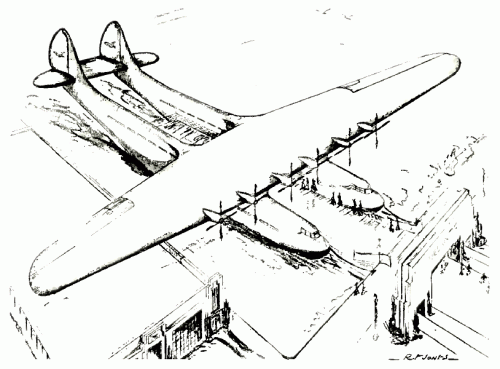

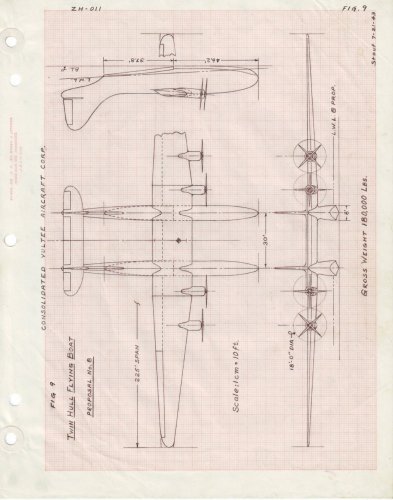

I haven't been able to trace the Consolidated twin-hull flying boat projects on the forum, so I'm including them here (first two images courtesy of Tophe, third one from an old company magazine — the text that came with it is reproduced below):
Flying three hundred thousand pounds through the air at more than four miles per minute may seem fantastic but present design trends indicate that we may expect flying boats of this size and speed within the near future. Larger and faster flying boats with long range and commodious passenger facilities for fast inter-continental transportation at lower cost.

Our Engineering Department has made a study of a flying boat based on characteristics of racing type seaplanes which have attained speeds of 440 miles per hour. Making appropriate changes in size and improvements consistent with present day knowledge the general appearance and performance of a large flying boat has been determined. A maximum speed of 260 miles per hour with a cruising speed of 230 miles per hour are attainable.

One hundred and fifty passengers can travel in this air liner amid luxurious facilities for recreation and traveling comfort. Extra-fare passengers can enjoy the privacy of staterooms while others will be provided with commodious pullman seats convertible to sleeping berths for overnight travel. The state rooms and recreational facilities will be housed in the wing. The twin hulls will carry a majority of the passengers and part of the crew of twenty, as well as tons of express and mail. Fuel tanks in the outer wing panels will carry over 1 5,000 gallons of gasoline which will be sufficient for 4000 miles of flight.

The design of the twin hulls is based on the most advanced type tested by the National Advisory Committee for Aeronautics at Langley Field, Virginia. This type gives very low water and air resistance. Each of the six 16 '4 foot propellers is driven by two 1 500 horsepower engines housed in the leading edge of the wing where they can be serviced in flight. The streamlined structure supporting the propellers will contain the power plant accessories. The total combined output of the engines will be 18,000 horsepower approximately half of which could be disconnected for servicing in flight.

Although this design study was based on light gasoline engine design, great strides are being made in Diesel engine development so that it is reasonable to believe that they also may be available for airplanes of this size. The Diesel engine would give even greater efficiency resulting in lower cost of operation. A landing speed of 60-75 miles per hour (dependent upon loading) will be obtained by the use of wing flaps and is considered entirely safe for a flying boat of this size. The application of twin hulls to this design permits a wider distribution of weight along the wing span with a corresponding reduction in wing weight.

An initial wing loading of 46 pounds per square foot will insure riding comfort hitherto unknown. Although the range of the airplane would permit circumnavigation of a storm area, it is not believed that the craft would be uncomfortable if driven through mild storms. Wing loadings have successfully increased from 15 to 30 pounds per square foot with increase in size of much smaller flying boats. This increase in loading has been accompanied with increased comfort and therefore, a still further increase is logical especially for long range where a considerable change in weight occurs due to consumption of fuel.

More technical data are accumulating daily toward the solutions of the problems accompanying the development of large aircraft. Devices for control of super-sized aircraft are rapidly being worked out so that great forward strides are inevitable.


Attachments

  • Twin-Hull Flying Boat Proposal No.8.jpg
    Twin-Hull Flying Boat Proposal No.8.jpg
    12 KB · Views: 769
  • Twin-Hull Flying Boat Proposal No.10, Ventnor type.jpg
    Twin-Hull Flying Boat Proposal No.10, Ventnor type.jpg
    14.1 KB · Views: 758
  • Twin-hull project, September 1936.gif
    Twin-hull project, September 1936.gif
    76.2 KB · Views: 772

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,162
Reaction score
62
Re: Consolidated-Vultee Flying Boat Project -- ID?

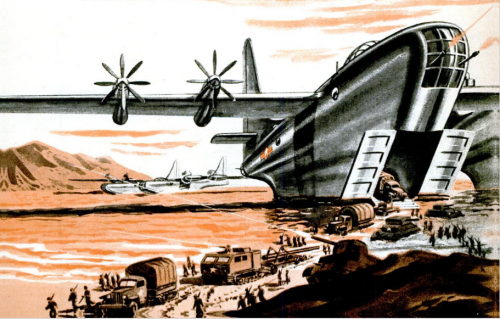

I'm sure this goes in Postwar, but that twin-hull looks like his one from the Sep. 1949 Popular Mechanics


Attachments

  • cover.jpg
    1.1 MB · Views: 95

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Re: Consolidated-Vultee Flying Boat Project -- ID?

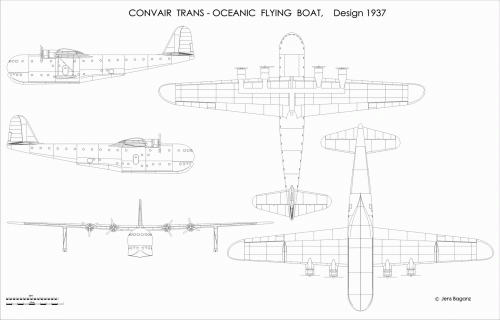

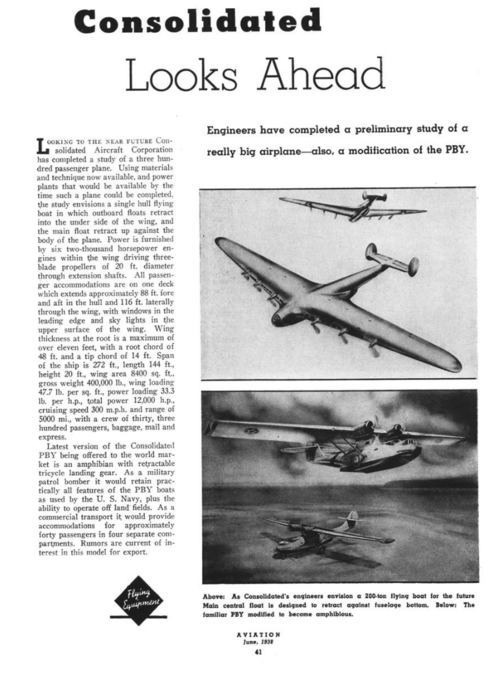

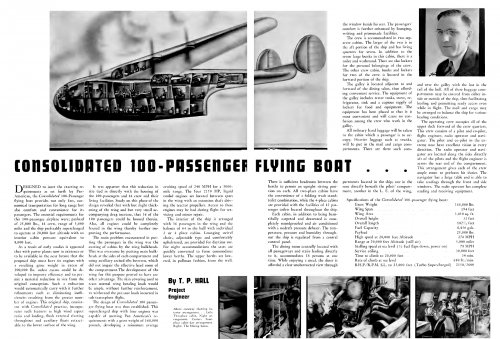

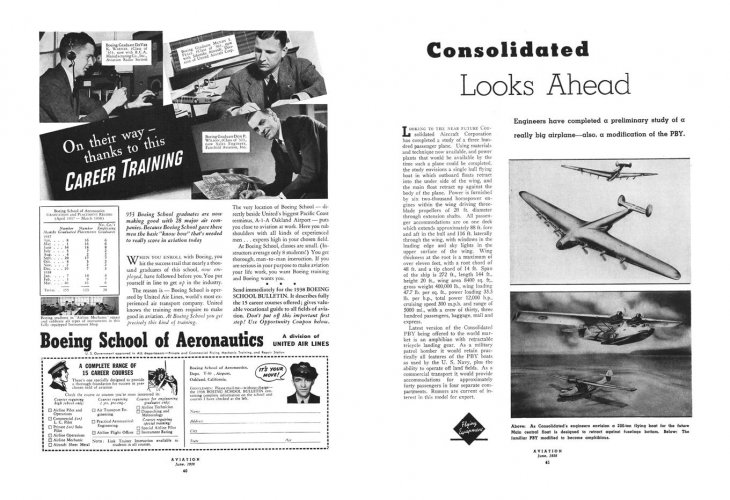

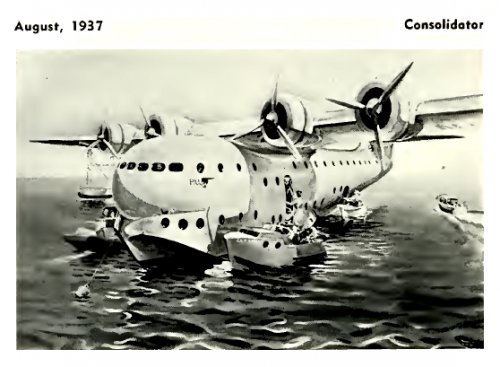

More flying boat projects from Consolidated Aircraft, dated 1938 and 1939:


Attachments

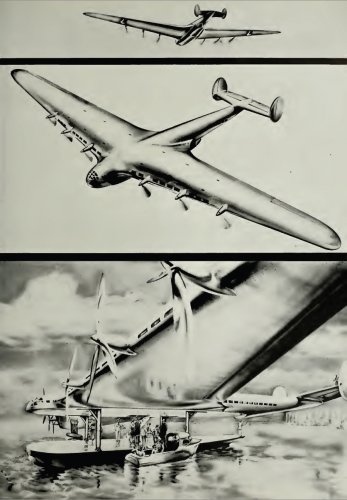

  • 100-passenger flying boat (Consolidator, July 1938 - article).jpg
    100-passenger flying boat (Consolidator, July 1938 - article).jpg
    1.2 MB · Views: 66
  • 100-passenger flying boat (Consolidator, July 1938 - cover).jpg
    100-passenger flying boat (Consolidator, July 1938 - cover).jpg
    381 KB · Views: 75
  • Retracting-hull project, May 1938.jpg
    Retracting-hull project, May 1938.jpg
    505.8 KB · Views: 101

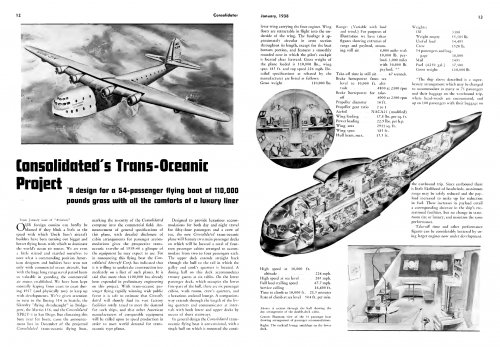

  • Trans-Oceanic (Consolidator, January 1938).jpg
    Trans-Oceanic (Consolidator, January 1938).jpg
    1 MB · Views: 109
  • Pan Am project.jpg
    Pan Am project.jpg
    138.1 KB · Views: 76

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Re: Consolidated-Vultee Flying Boat Project -- ID?

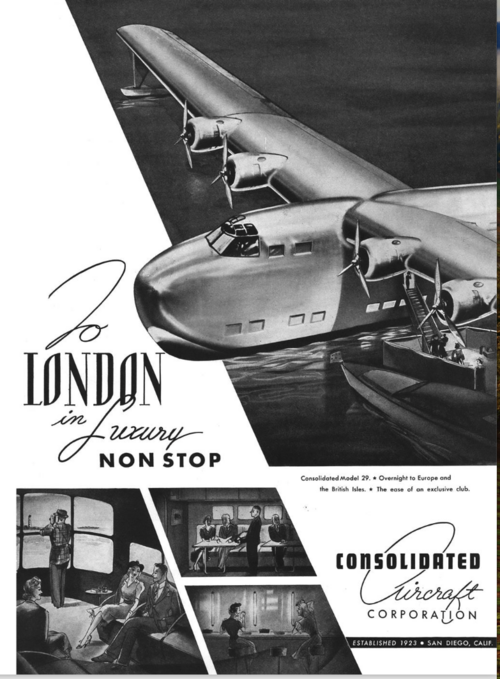

And the projected commercial version of the Model 29 (which wasn't yet called the Coronado):


Attachments

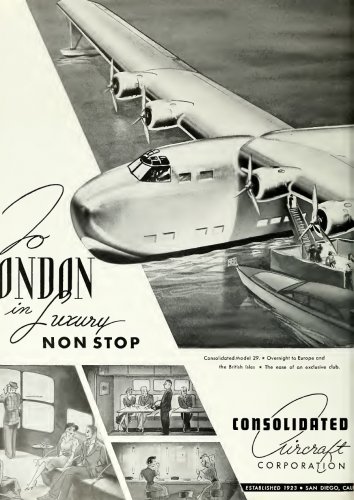

  • commercial Model 29 (May 1938).jpg
    commercial Model 29 (May 1938).jpg
    462.3 KB · Views: 47

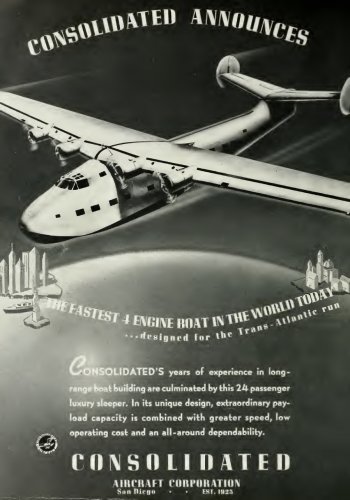

  • commercial Model 29 (September 1939).jpg
    commercial Model 29 (September 1939).jpg
    597.7 KB · Views: 61

foiling

ACCESS: Secret
Joined
Aug 12, 2007
Messages
286
Reaction score
17
Re: Consolidated-Vultee Flying Boat Project -- ID?

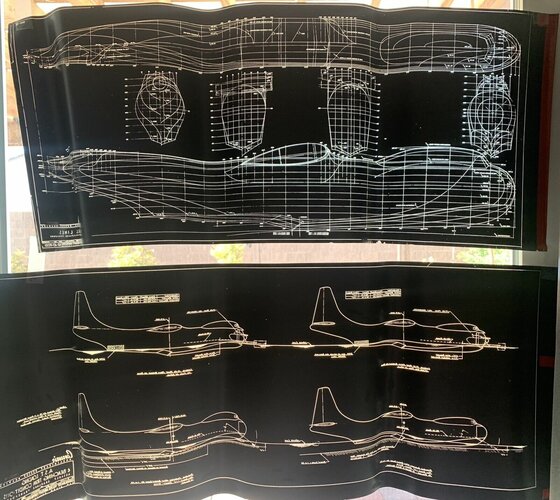

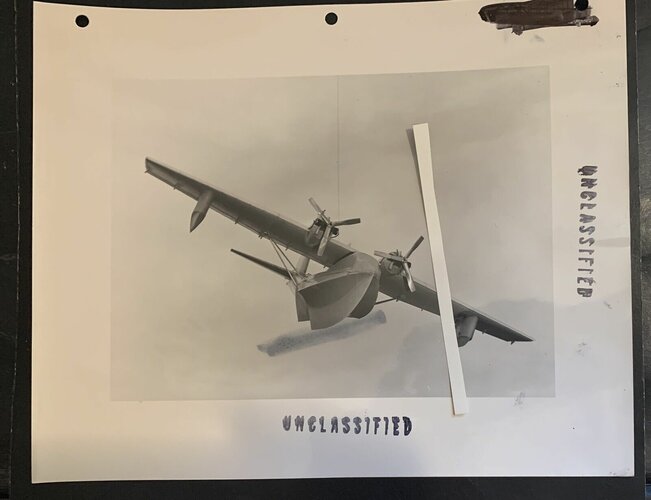

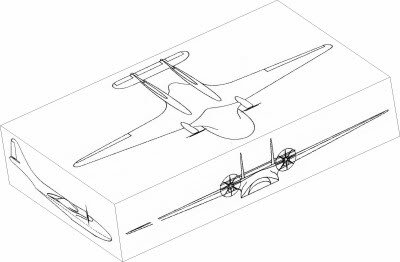

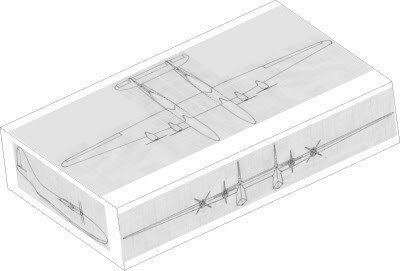

Great drawing Jemiba. Thanks.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,

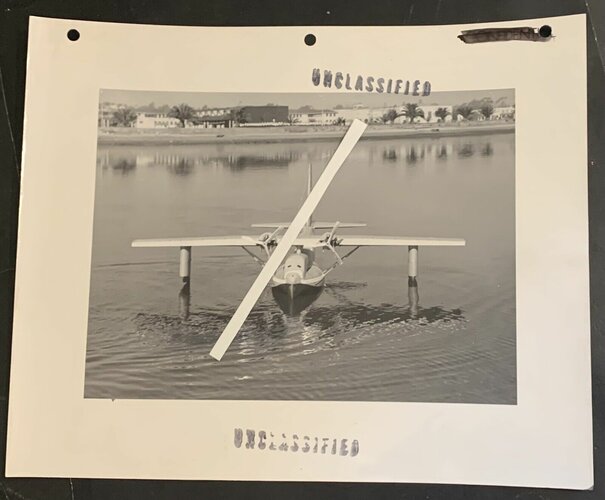

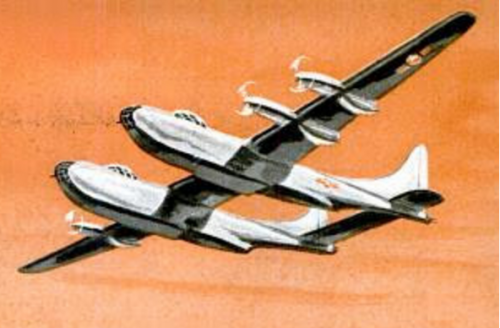

also a twin hull flying boat from Consolidated-Vultee (Convair) during the WW2,maybe the
source is from Scott's site,but I don't the direct link.

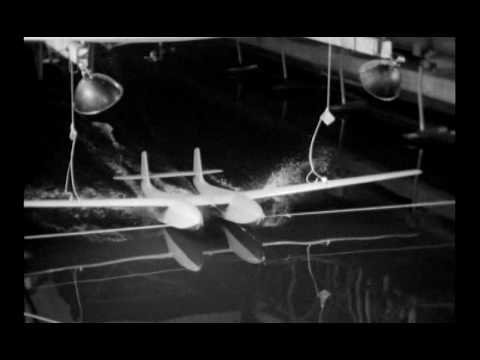

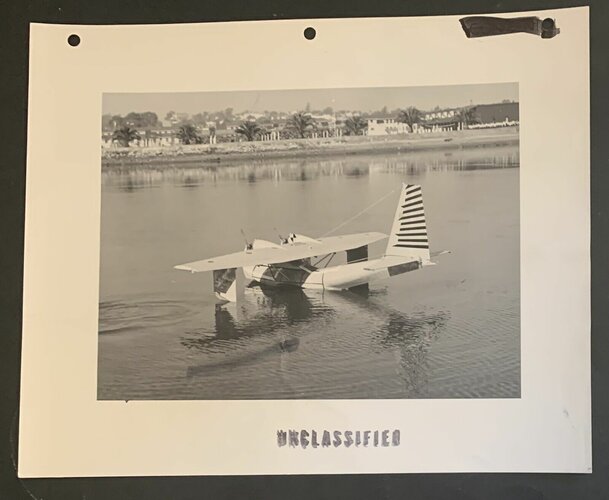

And a twin hull flying amphibian glider,tested by NASA in 1943,I guess it was
from Convair ?.


https://www.youtube.com/watch?v=UQNPdS5cj8Y


Attachments

  • hqdefault.jpg
    10.8 KB · Views: 77
  • image212.jpg
    237.6 KB · Views: 87

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Hi,

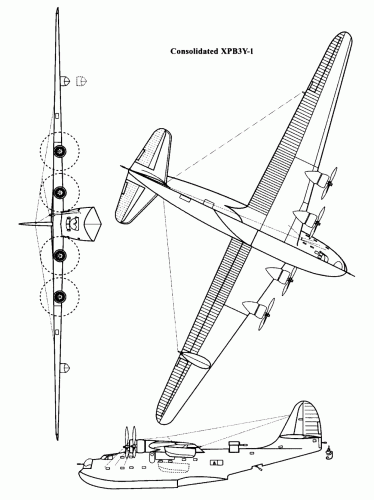

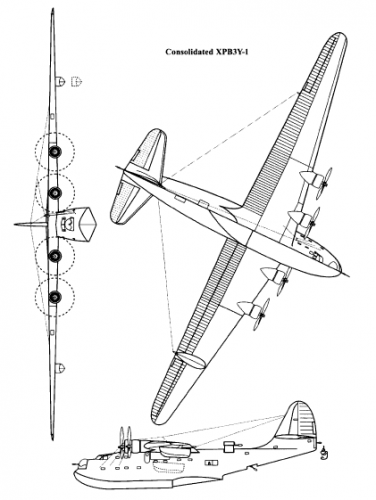

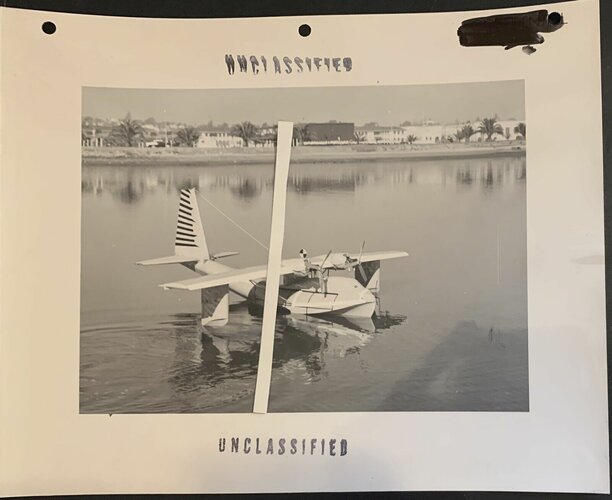

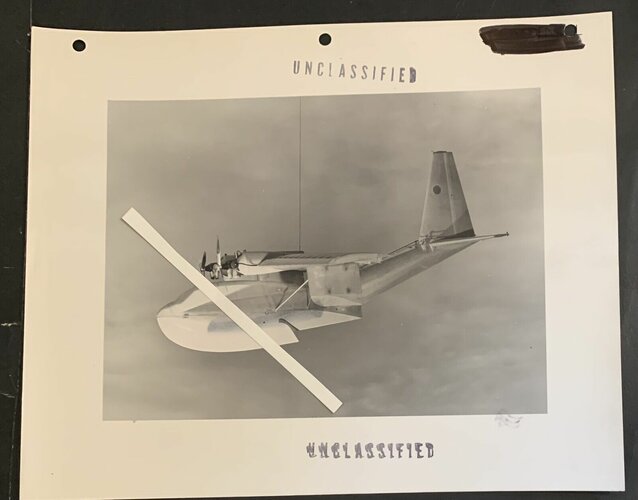

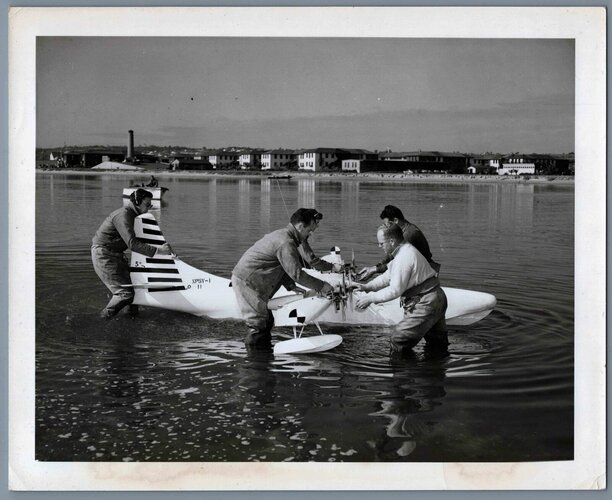

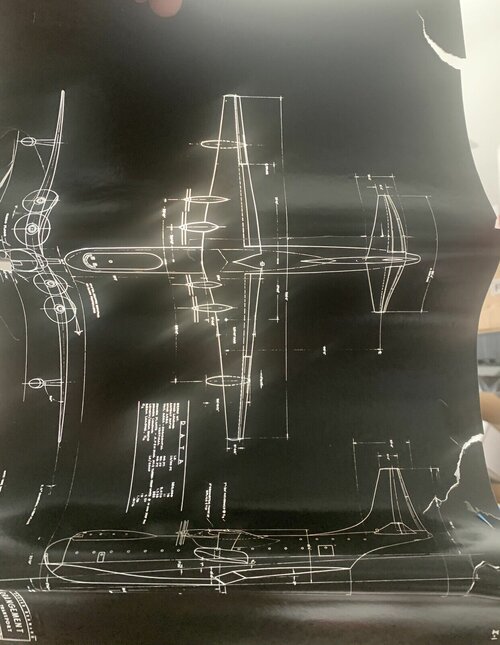

the Consolidated XPB3Y-1 was a project developed from PB2Y-1,with four 2000 hp
Pratt & Whitney R-2800-18 Double Wasp engines.

American Flying Boats and Amphibious Aircraft


Attachments

  • XPB3Y-1.png
    40.6 KB · Views: 93

Jos Heyman

ACCESS: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
17
The XPB3Y-1 was also known as the Consolidated 34.
The XPB3Y-1 (model 34) was the prototype of a long range flying boat for patrol and bombardment missions. A single example was ordered in April 1942 with serial 32386 but was subsequently cancelled in November 1942.
Specifications:
span: 169', 51.51 m
length: 104’8”, 31.90 m
engines: 4 Pratt & Whitney R-2800-18
max. speed: 214 mph, 344 km/h
Bradley, R.E., Convair Advanced Designs - Secret Projects from San Diego 1923-1962, p. 30, published 2010, gives some alternative designs for this designation.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
540
Same plan from the same book, in much better quality:


Attachments

  • XPB3Y-1 (small).gif
    XPB3Y-1 (small).gif
    114.8 KB · Views: 106

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,807
Reaction score
80
The 3-view shown by Skyblazer and Hesham presents the 1939 shape
of the XPB3Y-1. A windtunnel model of it is shown in Mr.Bradley's first book
about the Convair advanced designs.
This author also remarks that both Model 30 and Model 34 were used
by Convair for this concept. Beginning with '30' at the start of the development and later on
changed into '34'.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,333
Reaction score
4,117
Re: Consolidated-Vultee Flying Boat Project -- ID?

XP67_Moonbat said:
I'm sure this goes in Postwar, but that twin-hull looks like his one from the Sep. 1949 Popular Mechanics

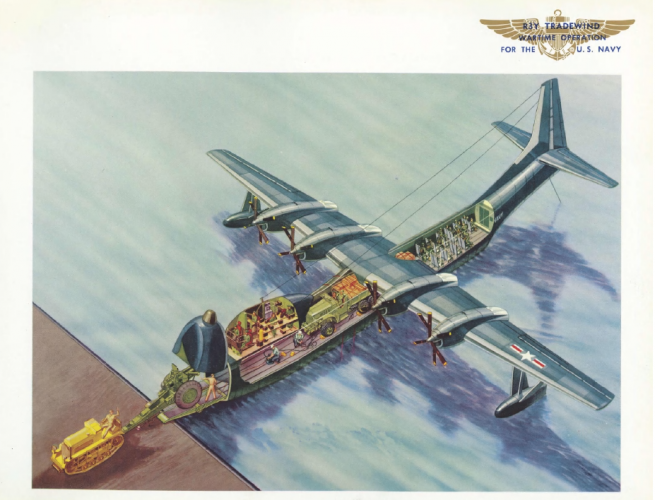

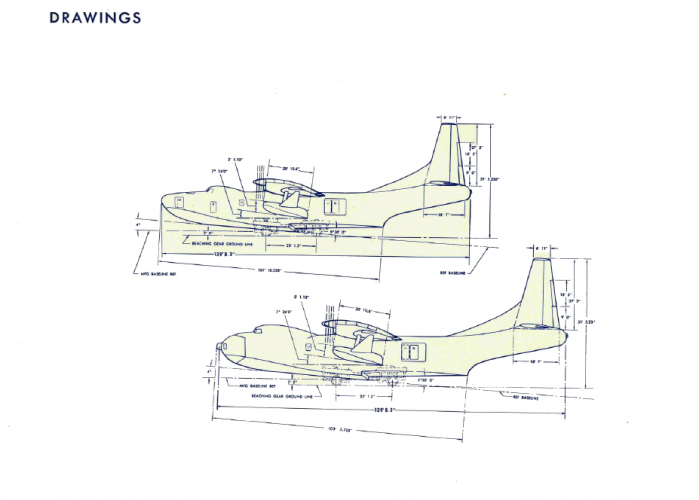

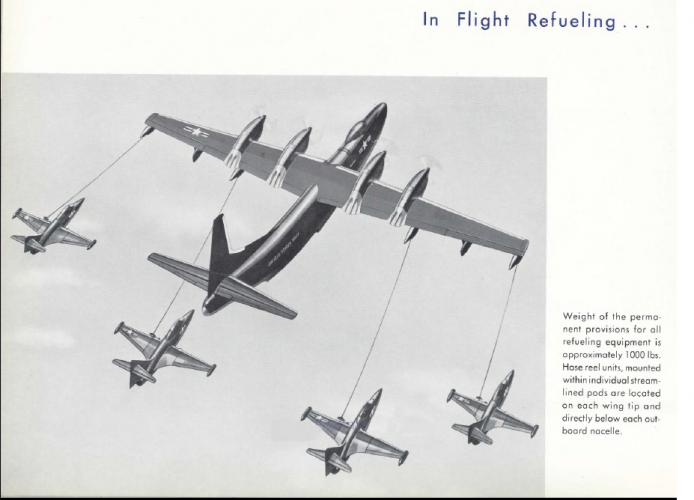

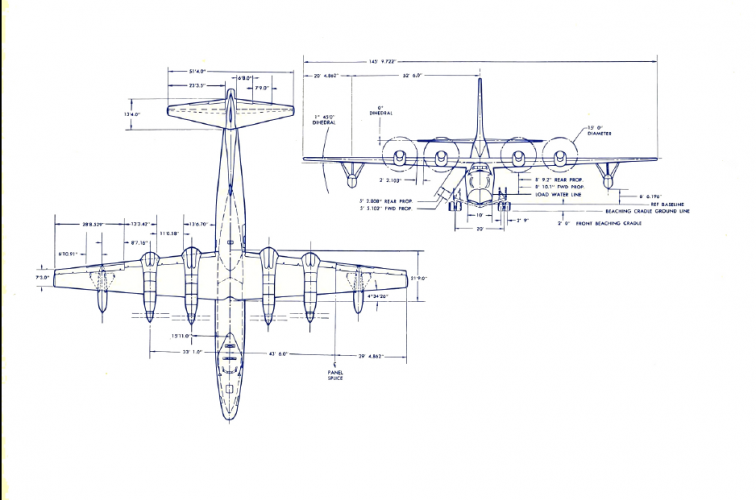

From the same source.


Attachments

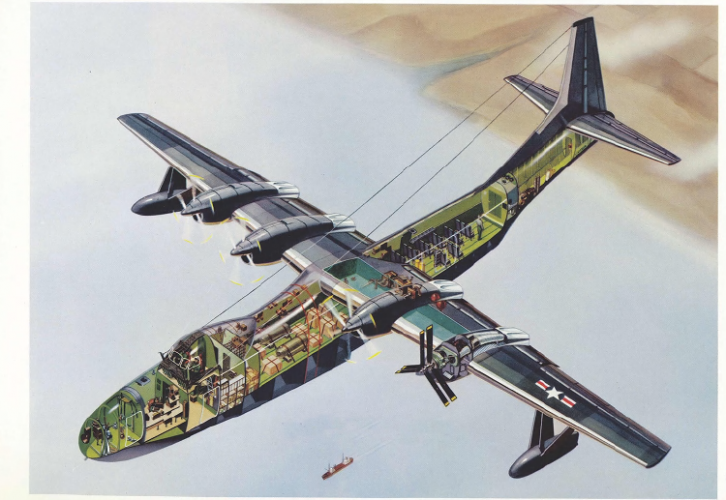

  • 1.png
    478.5 KB · Views: 138

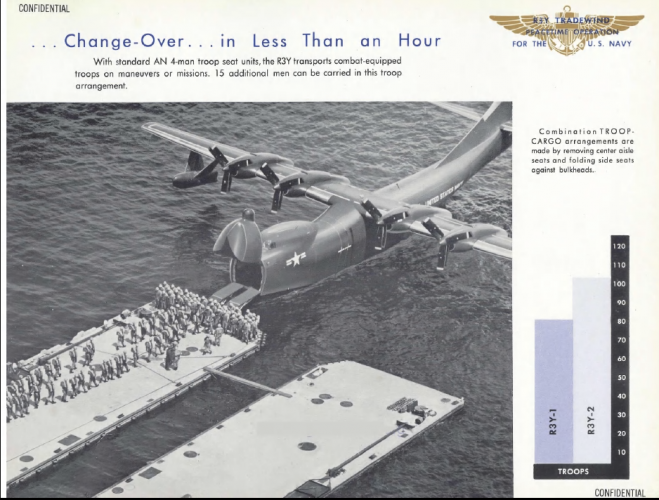

  • 2.png
    1 MB · Views: 134
