Hi Triton

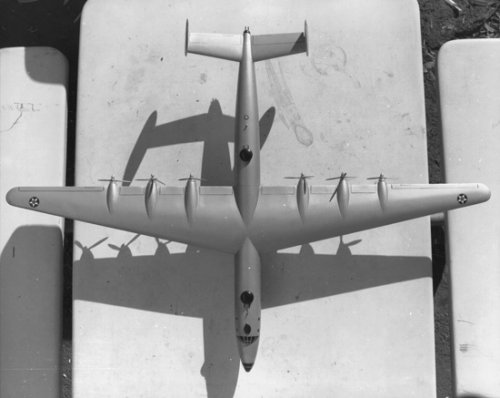

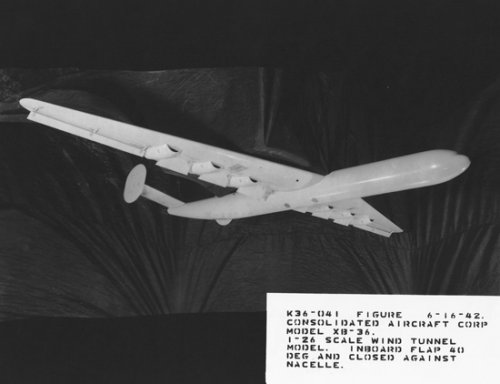

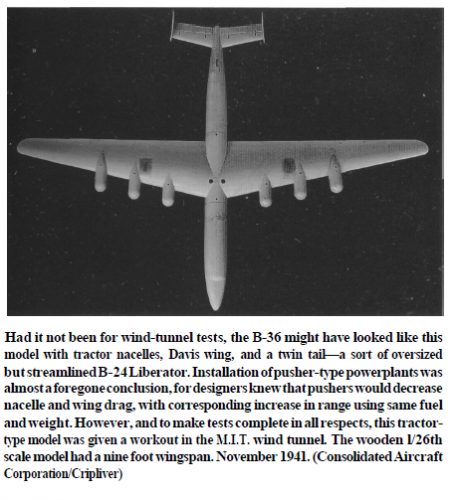

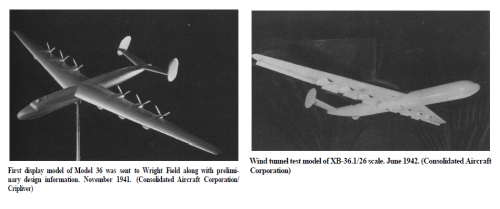

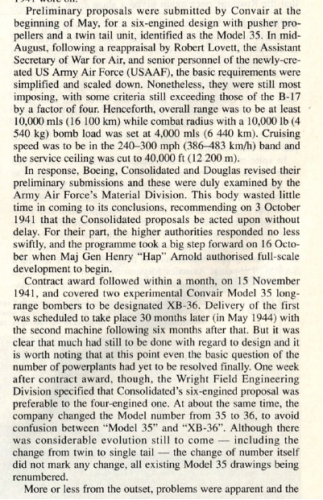

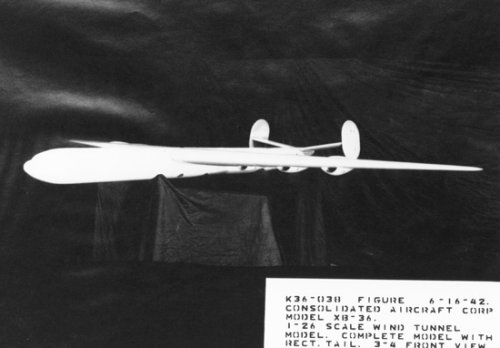

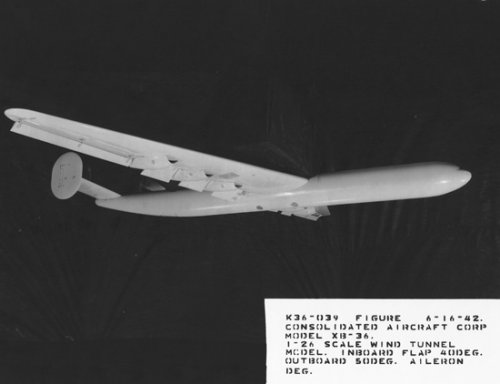

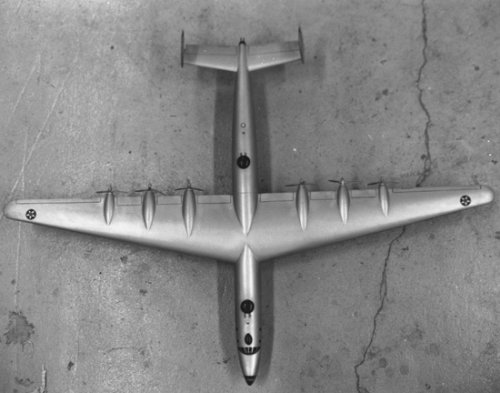

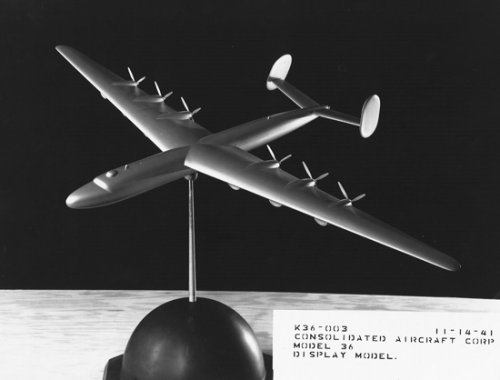

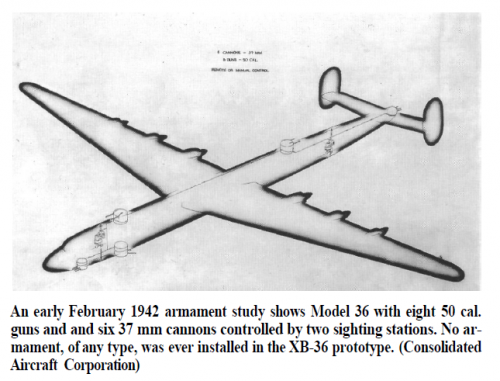

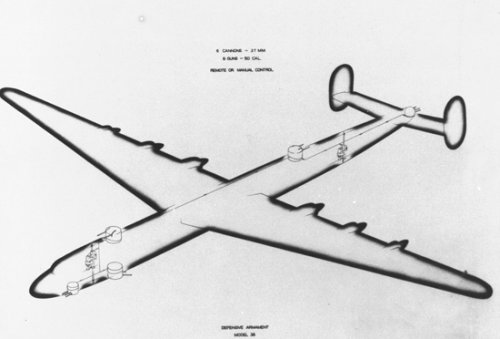

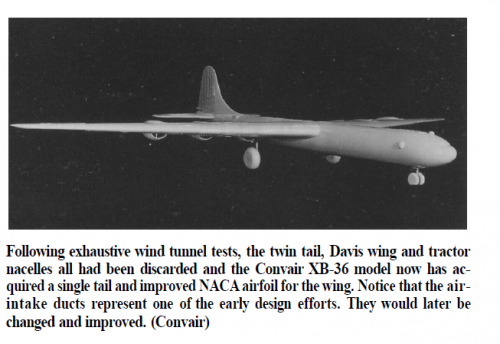

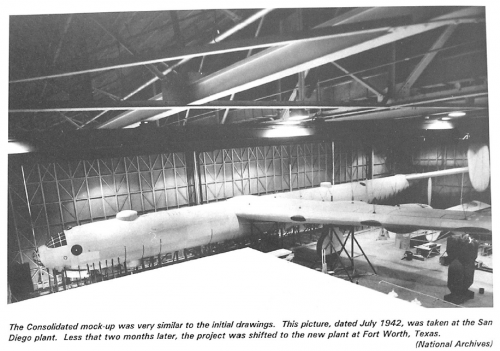

Very interesting evolution from november 1941 to
july 1942 from the model to the mock up.

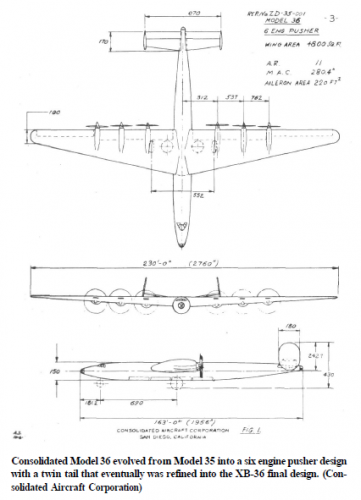

Before the model 36, we have the model 35
which seems to be smaller and with push pull engines ?
Have someone some details ?
Thanks
toura

toura said:
Hi Triton
Very interesting evolution from november 1941 to
july 1942 from the model to the mock up.
Before the model 36, we have the model 35
which seems to be smaller and with push pull engines ?
Have someone some details ?
Thanks
toura

Some of the guys over at the HP&CA forum might be able to help you there.

Grey Havoc said:
toura said:
Hi Triton
Very interesting evolution from november 1941 to
july 1942 from the model to the mock up.
Before the model 36, we have the model 35
which seems to be smaller and with push pull engines ?
Have someone some details ?
Thanks
toura

Some of the guys over at the HP&CA forum might be able to help you there.

The what forum? I don't recognize the abbreviation.

Sorry, History, Politics & Current Affairs forum. Home of the TBOverse. I used to be a member, but when they moved to their current home, I didn't get around to re-registering and have being lurking since. Must decloak one of these days. Anyway, I'll send you the link via PM.

Courtesy of Bring the heat, Bring the Stupid:

http://www.youtube.com/watch?v=lpYcvQGIZgc&feature=player_embedded

From YouTube description:
Uploaded on Dec 26, 2010
11th Bomb Wing crew from Carswell AFB, Fort Worth, Texas, loading Convair B-36 Peacemaker with 500# bombs and dropping them on practice range at Eglin AFB, Florida, circa 1949.

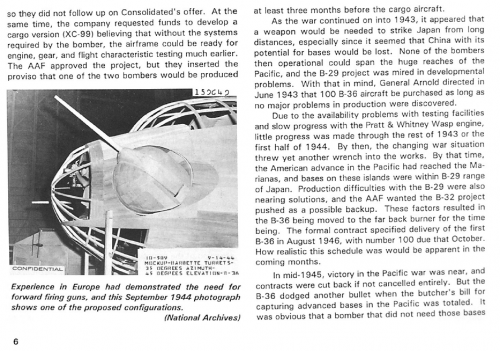

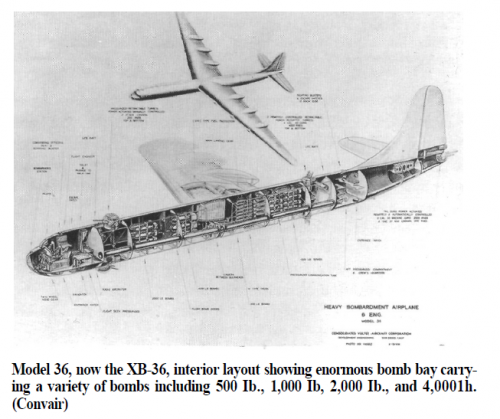

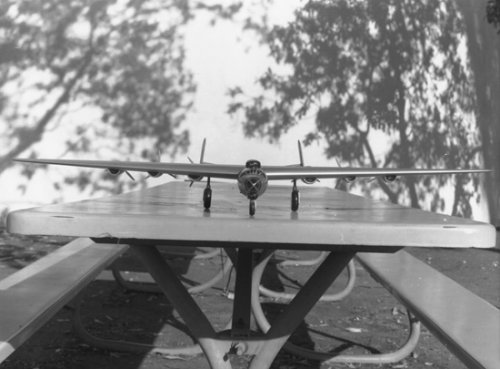

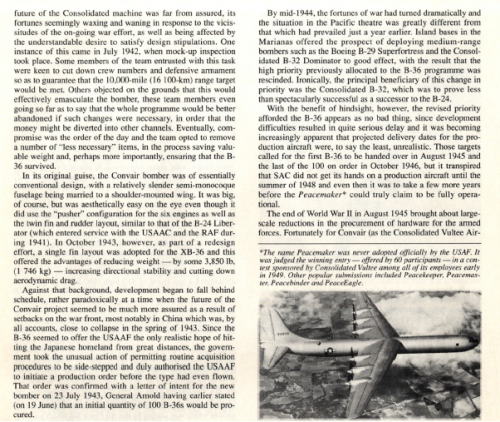

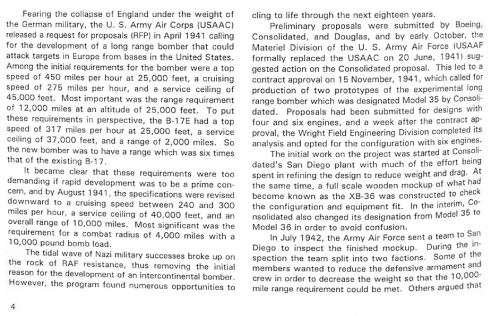

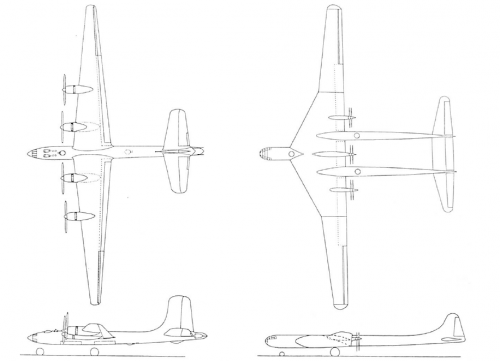

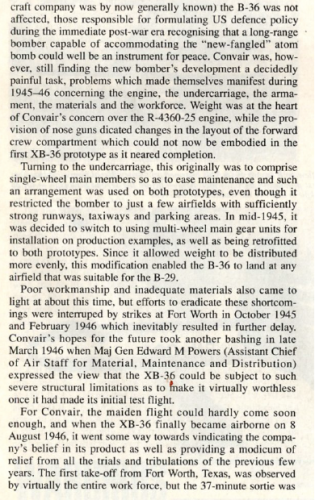

From Air International 10/1990,

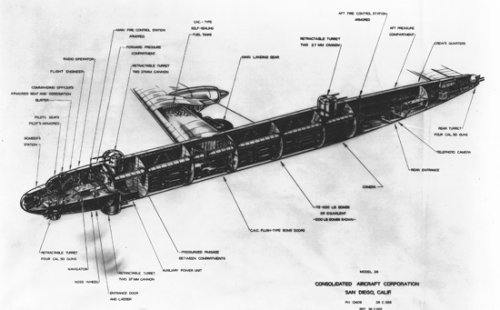

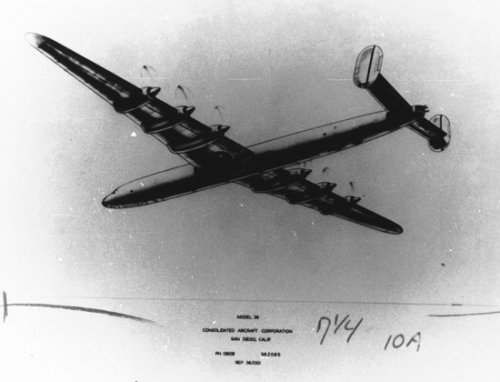

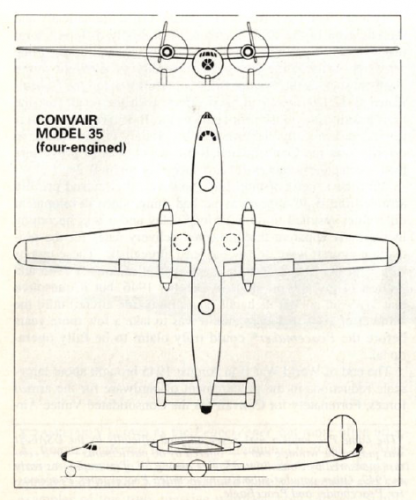

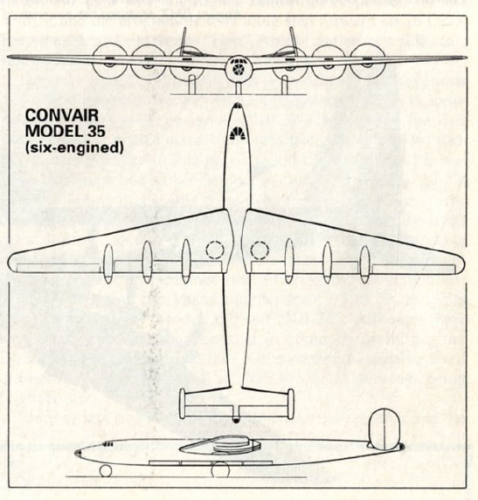

here is a 3-view to Convair Model 35 four and six engined bomber projects.


Attachments

  • Convair-35-4.png
    371.4 KB · Views: 227
  • Convair-35-6.png
    504.5 KB · Views: 232
Hesham, my friend, were there any dimensions on the 4-engine aircraft?

AlanG

My dear Alan,


nothing more than those info about both designs.


Attachments

  • 3.png
    518.8 KB · Views: 174
  • 2.png
    621.4 KB · Views: 139
  • 1.png
    529.7 KB · Views: 135

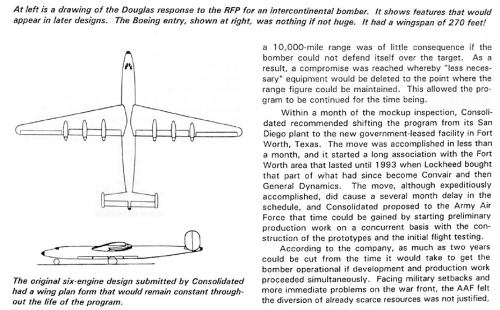

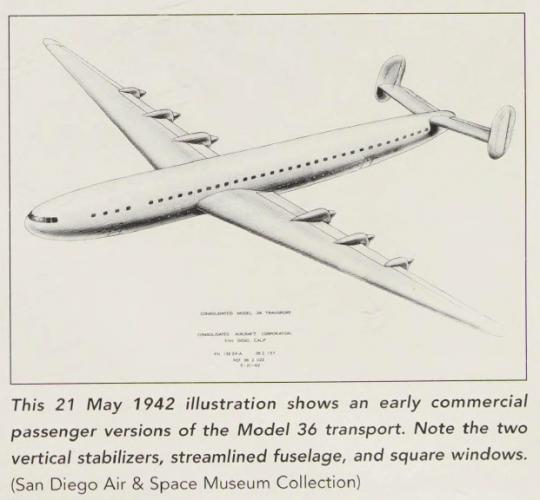

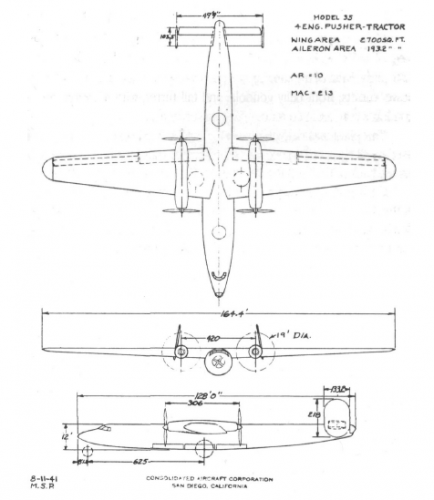

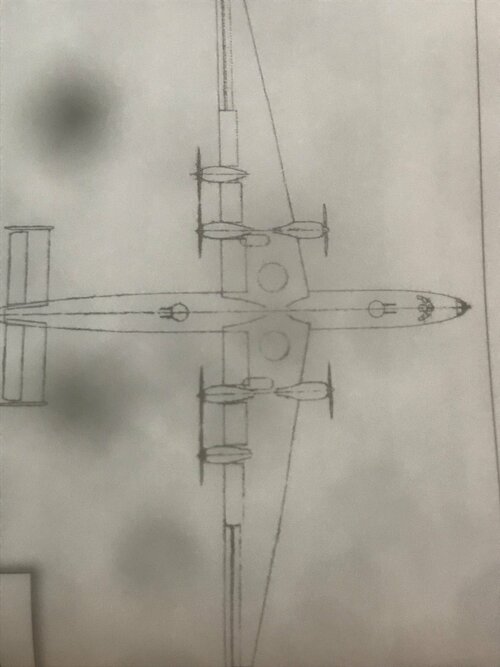

about the Consolidated model 35.

from what I could decypher on a drawing dated 8.11.1941
of the 4 engined model 35.

span: 164.4'
lenght: 128'0''
prop.diam : 19'
wing area: 2700 sq.ft.

source : Convair B-36 Peacemaker. Meyers Jacobson & Bill Yenne -Schiffer U.S.page 19.
