Consolidated Model 31/XP4Y-1 Corregidor. 3-view sought ....

J

joncarrfarrelly

Guest
Does anyone have a drawing of this aircraft in any of its permutations?

I'm looking at modelling the Model 31 as built and the Model 38 project (Model 31 wings, engines and empennage on a B-24D fuselage)
so any drawing would be helpful.

Thanks, Jon


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

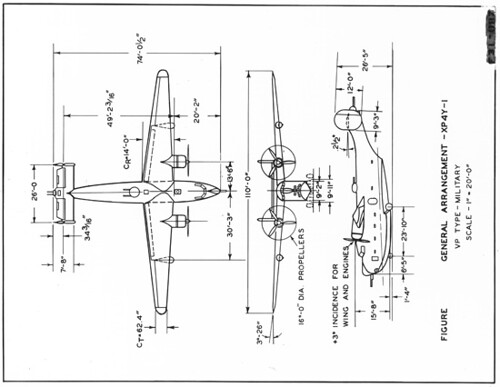

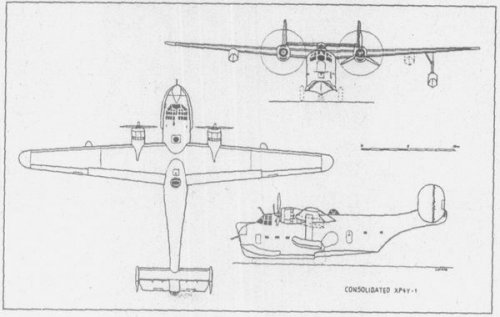

From "Fliegerrevue" :


Attachments

  • Consolidated_XP4Y-1_01.JPG
    27.4 KB · Views: 676

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49
There was a little better drawing in Czech magazine L+K (Letectvi+Kosmonautika) No. 16-1991. I can scan it this week, if you can wait. It isn't large and detailed too, but at least it has bottom view and some cross-sections.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,233
Reaction score
953

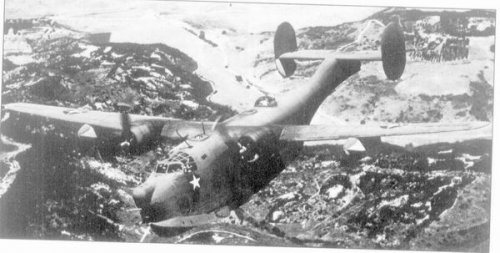

Not really a good, nor very clear photo, nevertheless, here
it is :
(from "Flugzeuge von A - Z, Bd.2")


Attachments

  • Consolidated_XP4Y-1_02.JPG
    40.7 KB · Views: 511

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
547
Reaction score
26

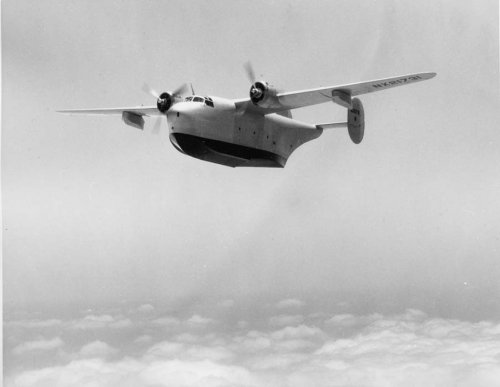

I supose you have seen
http://en.wikipedia.org/wiki/File:XP4Y-1_in_flight.jpg

J

joncarrfarrelly

Guest
redstar72 said:
There was a little better drawing in Czech magazine L+K (Letectvi+Kosmonautika) No. 16-1991. I can scan it this week, if you can wait. It isn't large and detailed too, but at least it has bottom view and some cross-sections.

That would be great, thanks much.

Jon

J

joncarrfarrelly

Guest

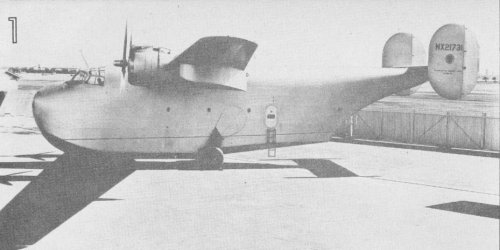

Here is a fairly good side-view shot in full military trim for saturncanuck:


Putnam, General Dynamics Aircraft and their Predecessors, John Wegg.

Jon


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,046
Reaction score
876
nice looking birdy with an attitude


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,589
Reaction score
891
Jon, In William Green's War Planes of the Second World War Vol.5, there is a small sideview of the Model 31 as originally flown -- ie: no up-turn to rear fuselage, add-on chines, or turrets, and smaller tip floats.

I'm curious about your comment on the empennage. Since the Model 31 and Model 32 Liberator were designed in tandem, I'd assumed that the twin tails and Davis wings were identical (other than engine and float fittings). Is that not the case? Or was this Model 38 essentially to be a twin-engined B-24?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
The model 31,later spawned an interesting offspring: the Model 38.
Marrying the wing R-3350 engine package and tailsurfaces from the
Model 31 to a standart B-24D fuselage with modified armament.
CAC offered the result to the US Navy as a land-based search attack aircraft.
Although it did not progress beyond the study stage, he Model 38 was
in effect, a twin-engined B-24.

so far:'B-24 Liberator' Allan G.Blue-Ian Allan .London.1976.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,589
Reaction score
891
Thanks Lark! That seems to confirm that the Model 31/38 tail surfaces were indeed different from those of the Liberator.


redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
517
Reaction score
49

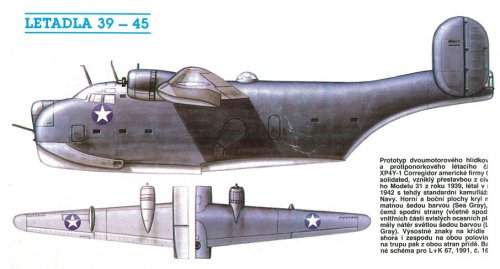

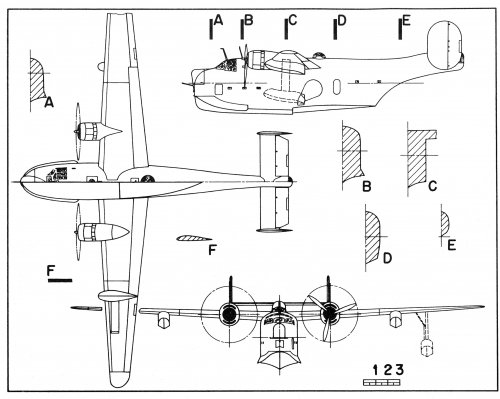

Here is that promised Czech drawing of the XP4Y-1 and a color profile of the same aircraft from the same magazine.


Attachments

  • Corregidor_draw.jpg
    445.5 KB · Views: 548
  • Corregidor_color.jpg
    111 KB · Views: 502

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
73
Reading the Consolidated Model 31 chapter in 'General Dynamics Aircraft
and their Predecessors' John Wegg-Putnam ,mention was made that many
alternative Model 31's were studied.
One was a replacement for the PBY dated August 1938,another a luxury Air Yacht
for five crew and six passengers (December 1938)
The BM-14 variant was a bomber with three power turrets and R-2800 engines
proposed in April 1940.

Is there anybody who have's more info about these proposals?
(Illustrations or other documentation)

Much thanks in advance.


Boxman

ACCESS: Secret
Senior Member
Joined
May 6, 2007
Messages
311
Reaction score
127

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
317

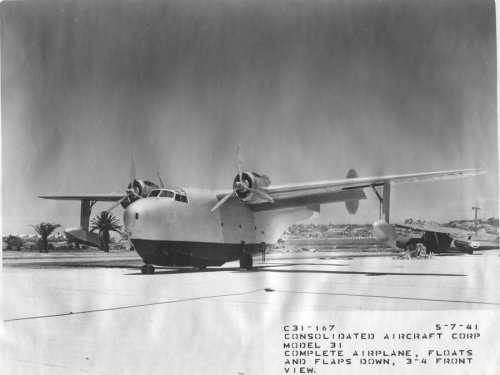

Not adding much to what has already been shared. I scanned a few Model 31 images during a recent visit to NARA II.
These repeat the flicker linked images but are a little larger.


Attachments

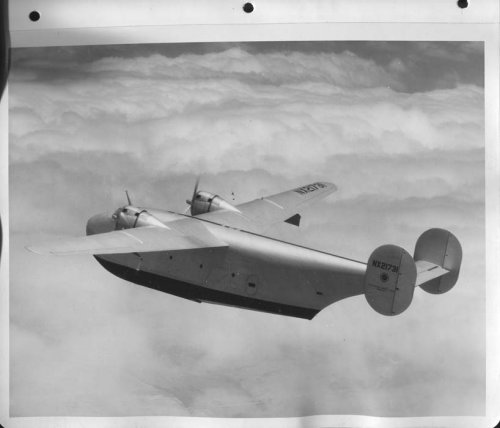

  • 72-AC-108-C31-168-Consolidated-Model-31-19410507_1.jpg
    63.8 KB · Views: 62

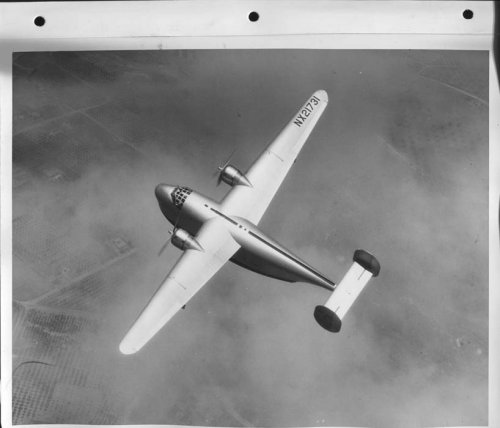

  • 72-AC-108-C31-167-Consolidated-Model-31-19410507_1.jpg
    63.1 KB · Views: 322
  • 72-AC-108-C31-1xx-Consolidated-Model-31-Date-unkn_1.jpg
    43.5 KB · Views: 325

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
561
Reaction score
317

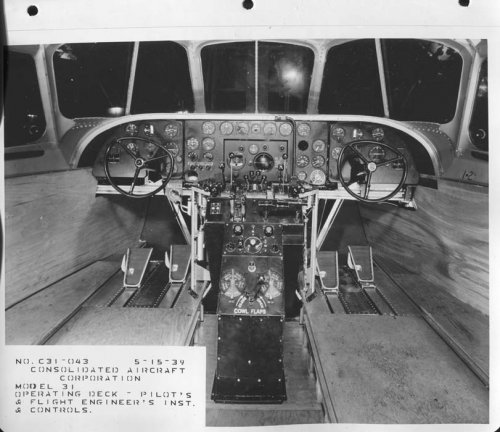

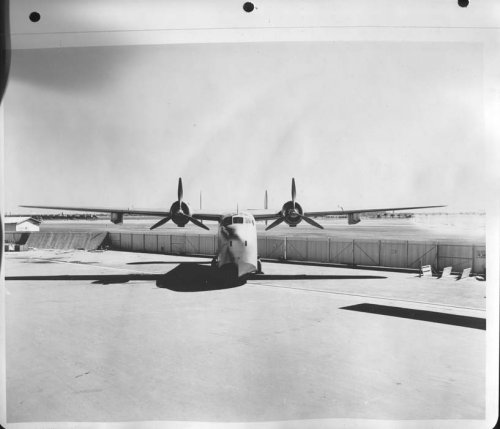

A few more of my NARA RG 72 scans


Attachments

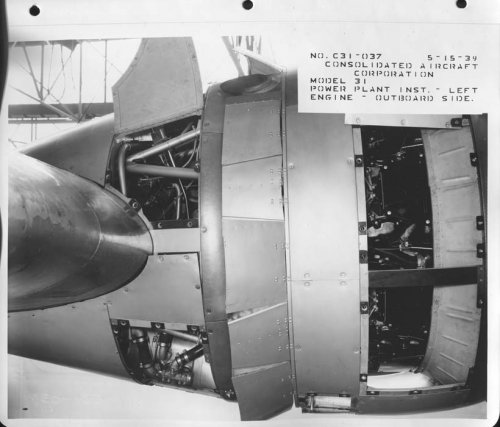

  • 72-AC-108-C31-037-Consolidated-Model-31-19390515.jpg
    75.8 KB · Views: 38

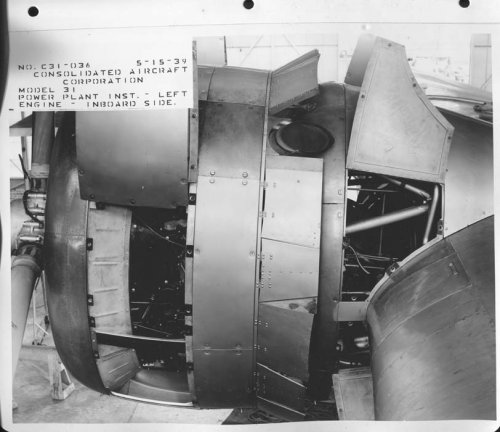

  • 72-AC-108-C31-036-Consolidated-Model-31-19390515.jpg
    77.8 KB · Views: 43
  • 72-AC-108-C31-043-Consolidated-Model-31-19390515.jpg
    99.6 KB · Views: 46
  • 72-AC-108-C31-1xxF-Consolidated-Model-31-19410507.jpg
    52.5 KB · Views: 49
  • 72-AC-108-C31-1xxD-Consolidated-Model-31-19410507.jpg
    47.1 KB · Views: 47
  • 72-AC-108-C31-1xxB-Consolidated-Model-31-19410507.jpg
    51.1 KB · Views: 44

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
Great pics, thanks!

Just to add a little something to this thread, a little compilation of the Model 31 in Popular Aviation/Flying:


Attachments

  • Popular Aviation, January 1940.jpg
    Popular Aviation, January 1940.jpg
    31.7 KB · Views: 29

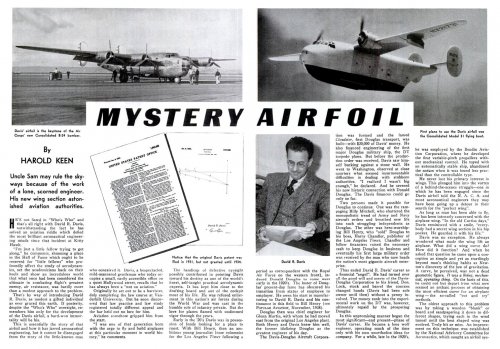

  • Popular Aviation, June 1940 a.jpg
    Popular Aviation, June 1940 a.jpg
    412.5 KB · Views: 46

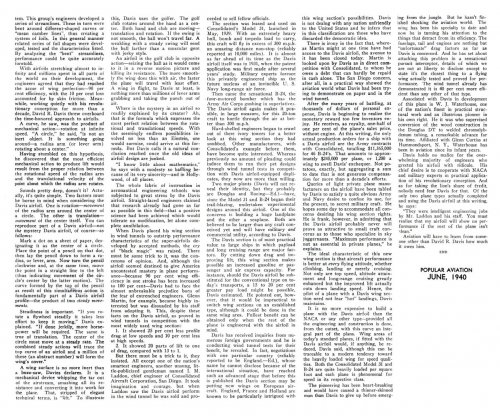

  • Popular Aviation, June 1940 b.jpg
    Popular Aviation, June 1940 b.jpg
    462.5 KB · Views: 45

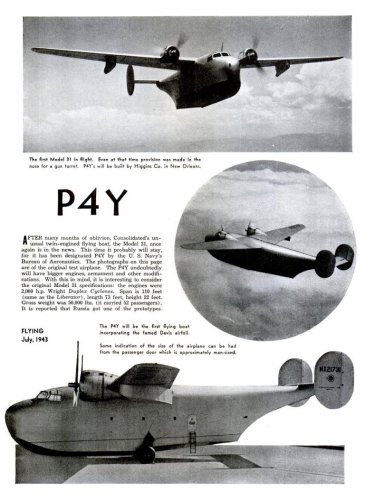

  • Flying, July 1943.jpg
    Flying, July 1943.jpg
    148.4 KB · Views: 39

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
458
WhiteDemon said:
Hi, this is the other 3-view of the hidro...

Hi WhiteDemon, and welcome aboard. Your attachment doesn't show, that's because our forum doesn't allow new members to post until they've been properly identified as real people as opposed to bots (automated fake members generated by troublemakers to advertise, spam or spread all kinds of undesired messages). A simple private message to PaulMM (the admin and founder of this site) will normally get you moved to the "white list"... ;)
