Coanda Jet aircraft

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,283
Reaction score
6,261

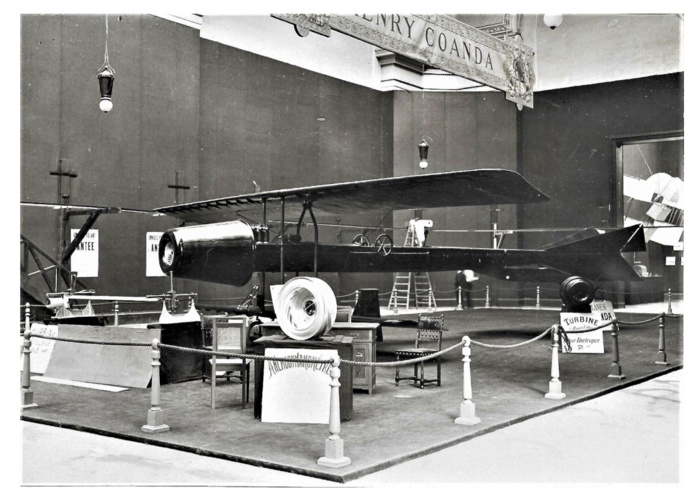

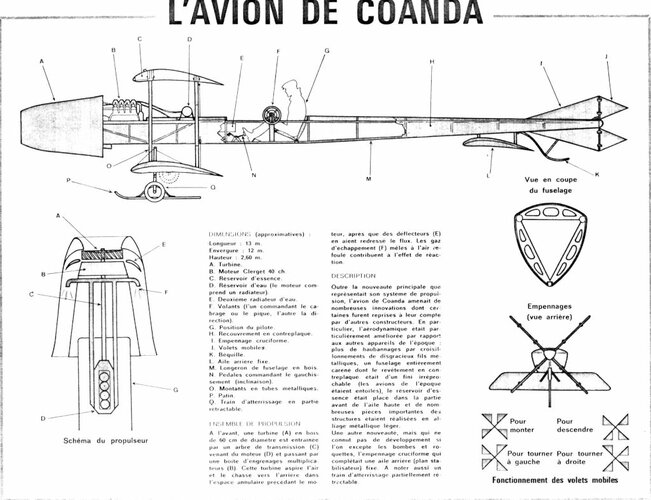

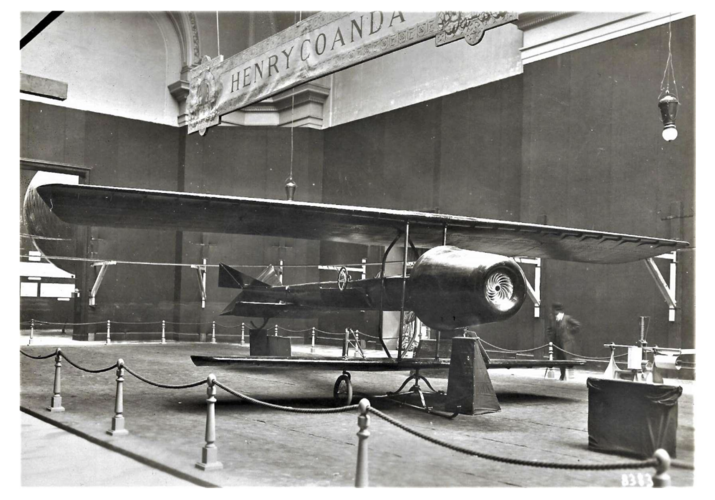

In 1910 near Paris (Issy-les-Moulineaux) a flight atempt ended in crash. The plane was piloted by Henri Coanda and had a kind of primitive jet engine. A piston engine drove a fan linked to a combustion chamber and an exhaust. this kind of engine is named thermojet and was also used 30 years laters in the Caproni Campini N.1

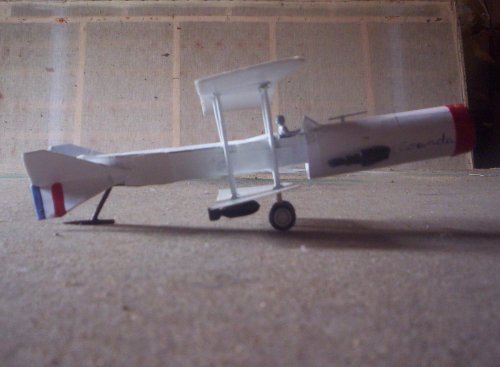

I imagined that Coanda flight had been more succesfull and that the French Army asked him a fighter-bomber in 1917. Here's the result...


Attachments

  • Diapositive1.JPG
    255.3 KB · Views: 364

tomcat1974

ACCESS: Restricted
Joined
Feb 16, 2006
Messages
17
Reaction score
1
Nice
Few people know how advanced was Coanda 1910.. It was in fact the first jet ever build.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,283
Reaction score
6,261
I agree with that.. in fact if few people recognize the coanda its because of two major issues
- first, its crash
- secondly, its engine. the fact that a piston engine drive the compressor (and not a turbine) mean that the engine is not really a GAS TURBINE.
That's why Coanada atempt cannot change really aviation history...

But I think this engine (despite its weaknesses) could have been a stopgap waiting the real reaction engine. I mean, thermojet or motorjet (it's up to you!) could have propell various aircrafts between WWI and WWII. I like imagining a Heyford bomber with such engines :p


JC Carbonel

ACCESS: Secret
Joined
Sep 7, 2006
Messages
223
Reaction score
138
intersting. What made you modify the position of the wing from the proto version ?

JCC


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,283
Reaction score
6,261
Its mainly because it is scratchbuid...and because I have a rebel imagination (I have to modify :) )
It is also an "operational" variant from WWI
Glad you enjoy it :)


JC Carbonel

ACCESS: Secret
Joined
Sep 7, 2006
Messages
223
Reaction score
138
Someway the most intriguing aspect is why Mr Archibald's aircraft does not exist in real life ? I mean during WW1 Coanda returned to just improving Sopwith (?) biplanes instead of developping a jet which looked fairly promising ...I wonder why he did not pursue his jet way ....
Lorin's ramjets were probably limited by material resistance and Riffard powder-rockets interceptor looks unflyable but the Coanda Jet looks really promising ....

Additional question : do you know if there were any jet research in Germany/Austria/Turkey during WW1 ?

JCC


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,283
Reaction score
6,261
You can call me Archie if you want ;D
I tried to imagine aircrafts of the 1919-1939 period with Thermojet.

For example there was the first modern american fighter, the P-24/
P-29/P-31. First "modern" aircraft such as the Lockheed and Northrop (Gamma, Vega, Sirius and the like). The P-39 would have been the ideal candidate, with its central engine.

Biplane bomber with this engine would be particularly strange :eek:


Kim Margosein

ACCESS: Confidential
Joined
Feb 10, 2007
Messages
101
Reaction score
10
Archie, NACA did work on an airplane along the lines of the Caproni Campini. Google "NACA jet" and see what you get. What today we would call a piston powered ducted fan with afterburner, it got around 1000lb of thrust, but used up to 9gpm of fuel.

Kim M
