Hi all

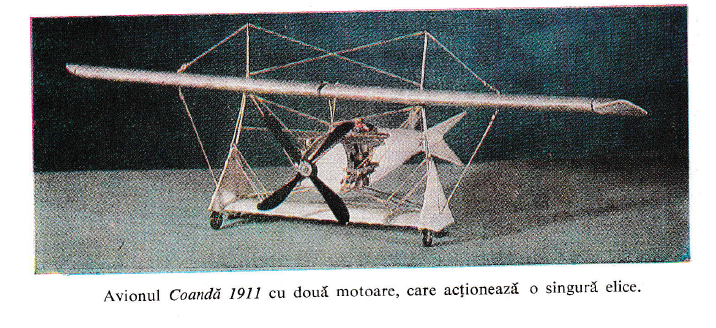

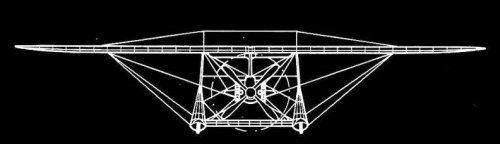

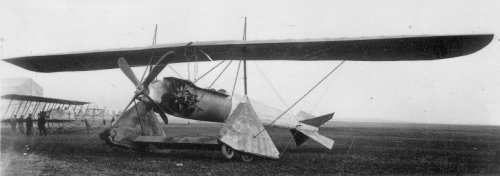

Here is the Coanda of 1911 which appears at the "Concours militaire de Reims"
(I've found it on "PPRuNE silhouette challenge")
Who know more ?
Thanks


Attachments

  • Coanda1911.jpg
    35 KB · Views: 493
  • TC-wtf178.jpg
    21.6 KB · Views: 473

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
857
Technically, I'm not quite certain this type qualifies as a "biplane". Monoplane is more like it...


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,361
Reaction score
1,599

Attachments

  • Dr-1.jpg
    319.8 KB · Views: 429

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
Thanks Malcolm
Jens and Stephane, I read biplane and I write this ???
Bye


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154

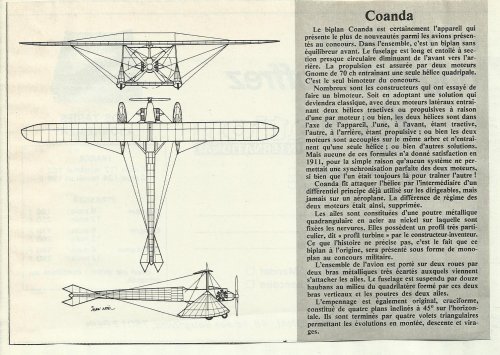

The ""Coanda biplane""
I try to found !!


Attachments

  • coanda.jpg
    333.3 KB · Views: 397

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
857
Very interesting! The text says that this aircraft started off as a biplane but was eventually entered as a monoplane for the military competition.


memaerobilia

ACCESS: Confidential
Senior Member
Joined
Oct 29, 2009
Messages
137
Reaction score
8
Website
www.memaerobilia.com

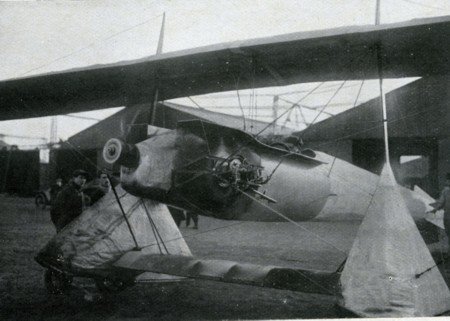

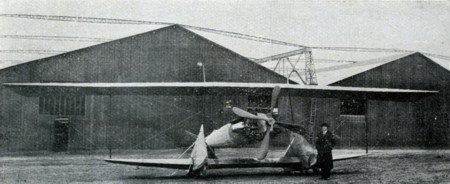

Actually, it was the Concours Militaire (Military) version that was the biplane. and the monoplane version was a "Type Monoplane du Course" (racer version). They simply left off the lower outer wings. Both versions were available with the twin, side mounted 50 hp or 70hp Gnome rotary motors linked to central drive. This is from Original 1911 Coanda Catalogue.


Attachments

  • cmcs.jpg
    36.8 KB · Views: 148
  • cbcs.jpg
    25.8 KB · Views: 131
  • coacovs.jpg
    35.8 KB · Views: 329

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
154
HHi all

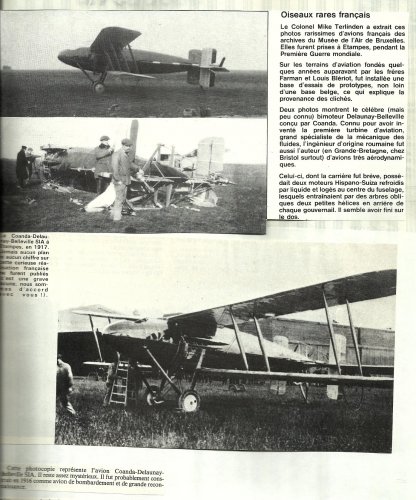

From "Le Fana" et "aviation magazine"


Attachments

  • coanda delaunay beleville.jpg
    coanda delaunay beleville.jpg
    610.4 KB · Views: 367

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
992
Reaction score
577
SIA is not the name of the plane, it is the name of the company which built it:
Société Industrielle d'Aviation - Etablissements Delaunay-Belleville, with premises at Angers and St Denis.
[font=arial, sans-serif][/size]It had expertise in construction out of Duralumin alloy. [/font][font=arial, sans-serif]Henri Coandă worked there during WW1[/font].

[/size]
[/size]I wonder if the plane is their entry to the 2Bn competition ?
[/size]
[/size]
[/size]PS: in the title, Belleville should be spelled with 4 "L", for future searches, please


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
857

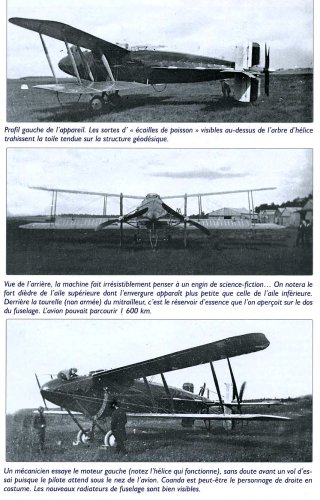

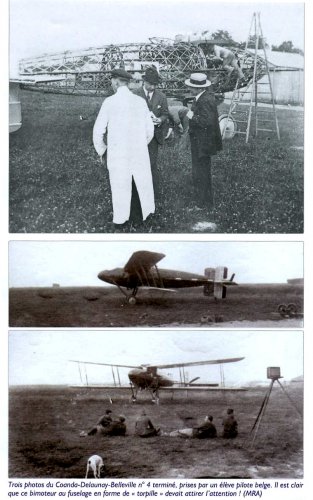

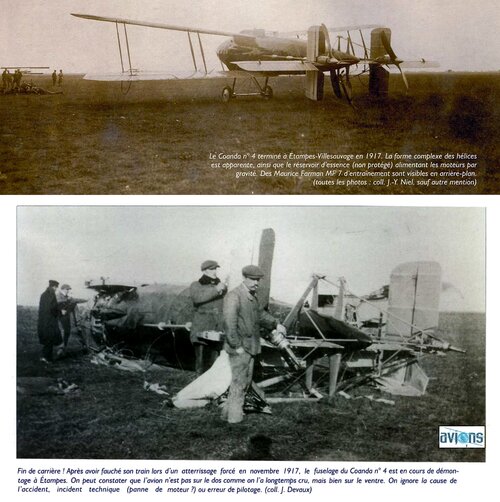

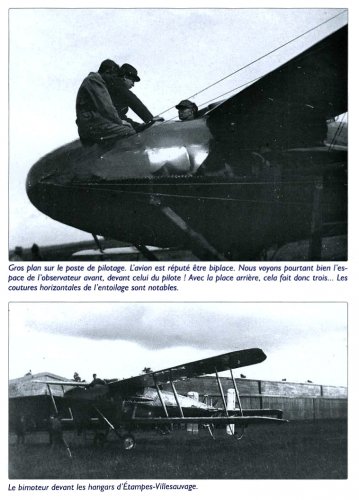

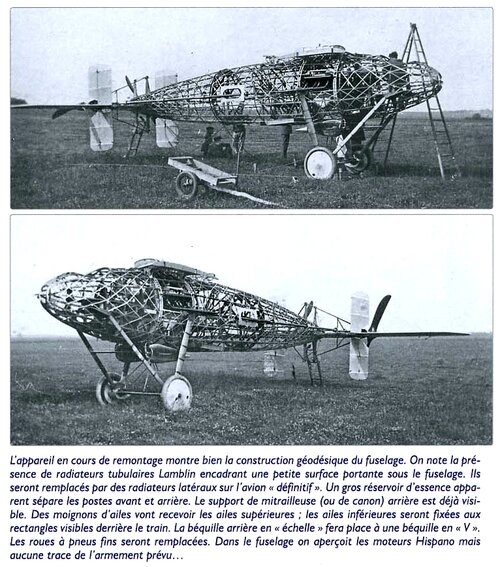

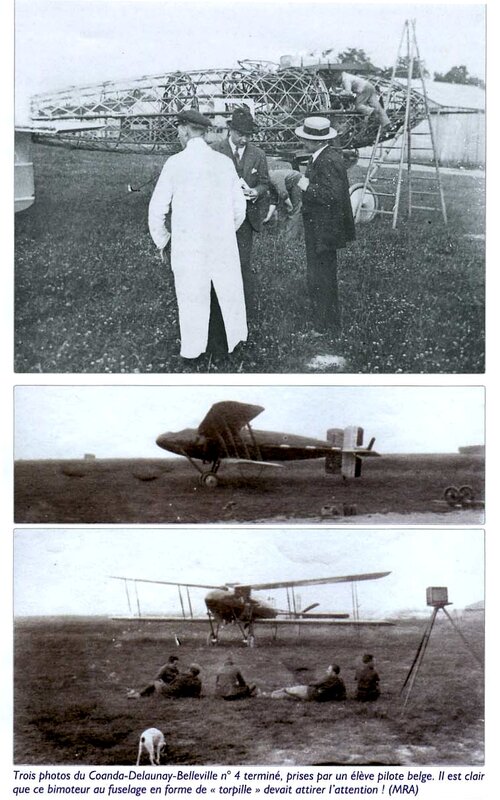

From a superb article in Avions No.157:


Attachments

  • Coanda_4.jpg
    605.2 KB · Views: 147
  • Coanda_3.jpg
    380.5 KB · Views: 175
  • Coanda_2.jpg
    487.1 KB · Views: 187
  • Coanda_1.jpg
    503.7 KB · Views: 210
  • Coanda_0.jpg
    482 KB · Views: 220

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291

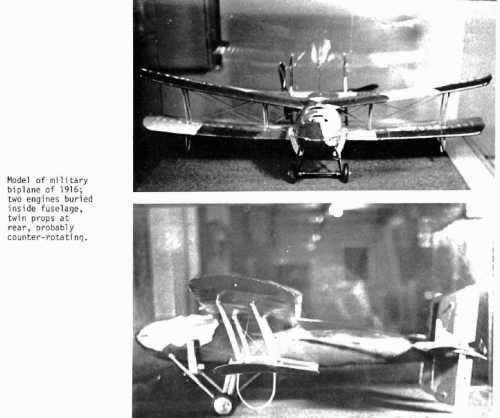

From WW1 Aero magazine.


Attachments

  • a.png
    331.7 KB · Views: 133

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291

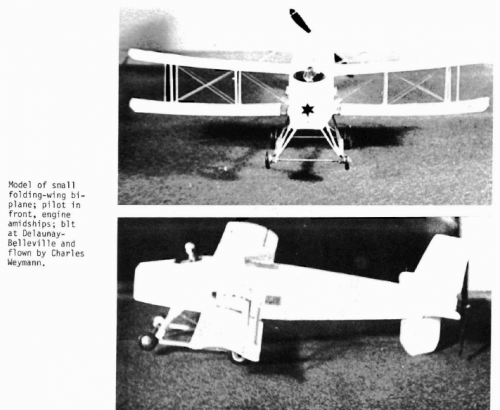

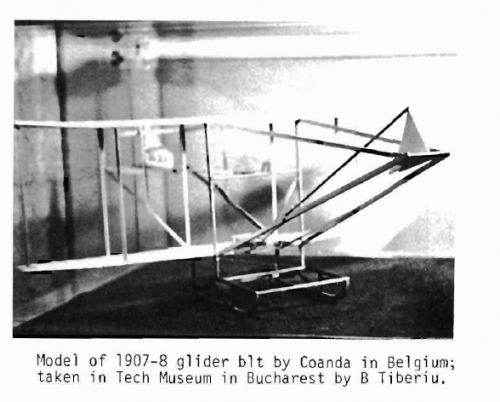

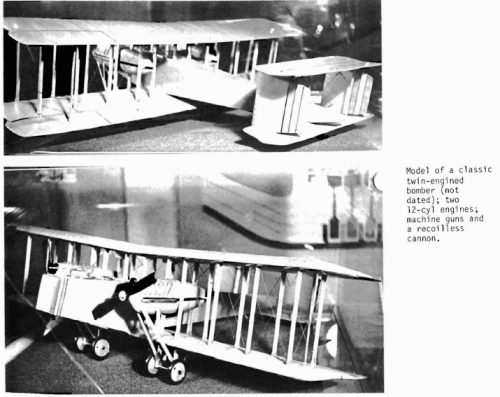

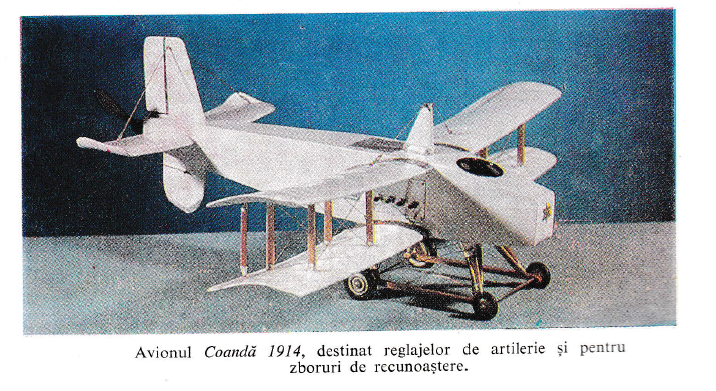

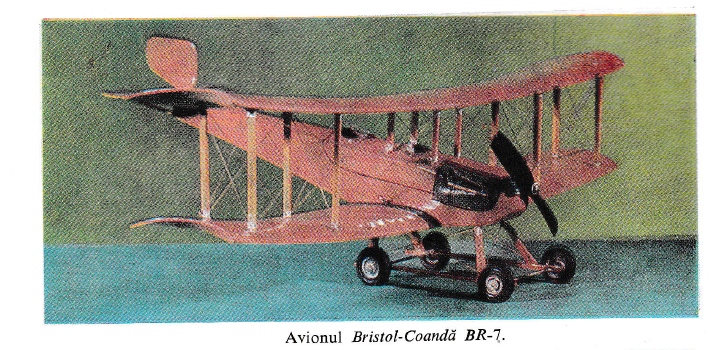

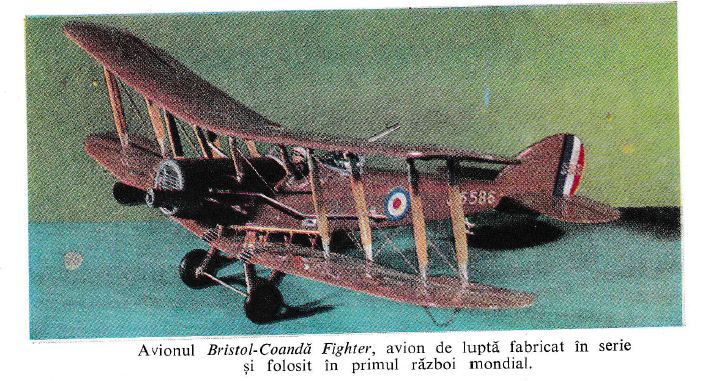

From WW1 Aero 97,


here is a little known Coanda designs.


Attachments

  • 4.png
    329.4 KB · Views: 118
  • 3.png
    267.1 KB · Views: 104
  • 2.png
    347.1 KB · Views: 91
  • 1.png
    192.1 KB · Views: 82
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
That's right my dear Skyblazer,


and thank you Moderator.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Hi,

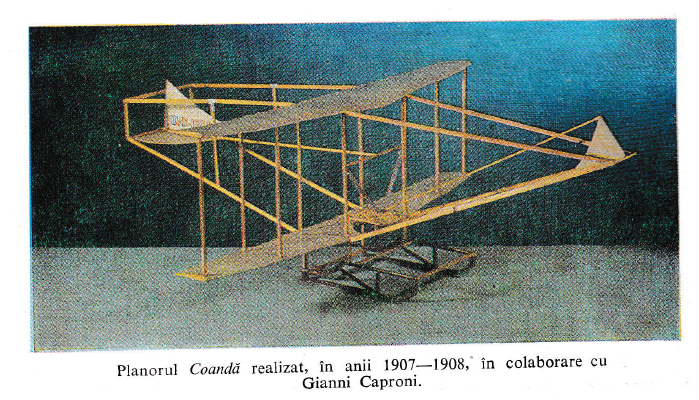

here is a Coanda-Joachim-Caproni glider,

http://chezpeps.free.fr/0/pre-1914/03-101_150-copy_paste_Breguet-Pre-1914-Aircraft-Challenge.html


Attachments

  • Coanda.jpg
    36.3 KB · Views: 206

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
Hi,

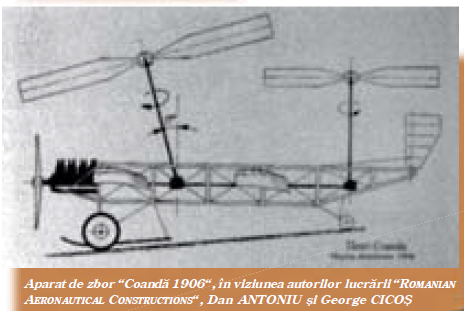

here is a drawing to tandem helicopter Project of 1906,for Henri Coanda;

http://www.roaf.ro/ro/cer_senin/arhiva/2010/cer_senin_3_2010.pdf


Attachments

  • 1.png
    137.7 KB · Views: 189

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291

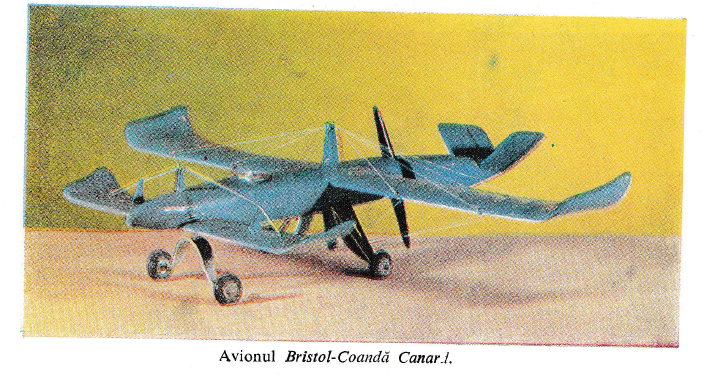

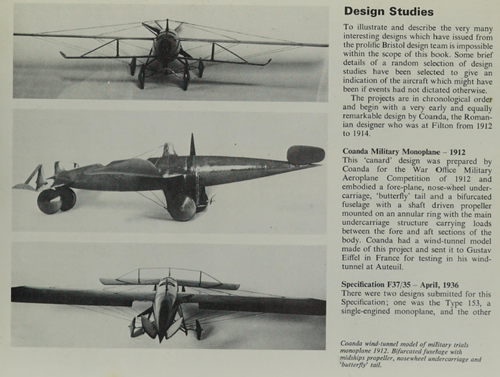

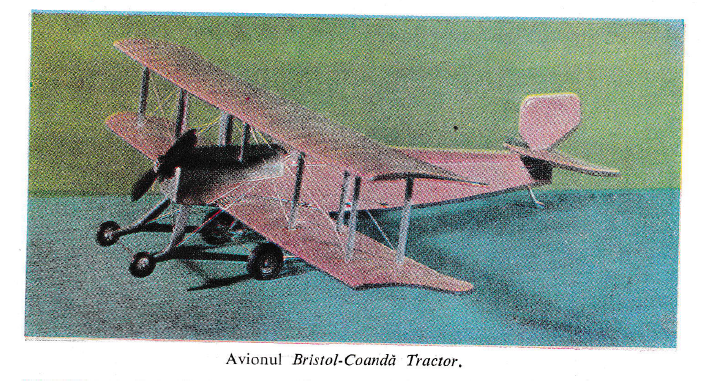

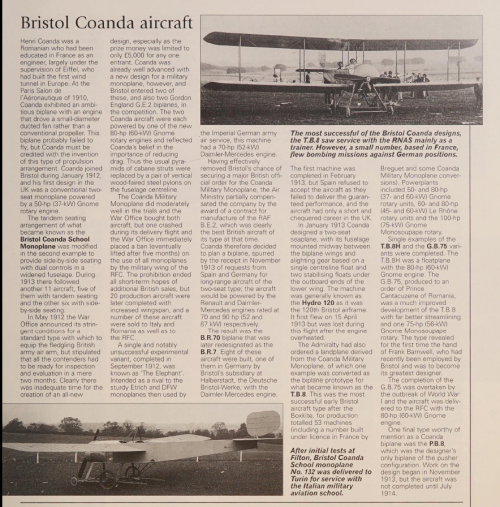

From; Bristol an Aircraft Album


Attachments

  • 1.png
    616.7 KB · Views: 113

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291
From AFM13,

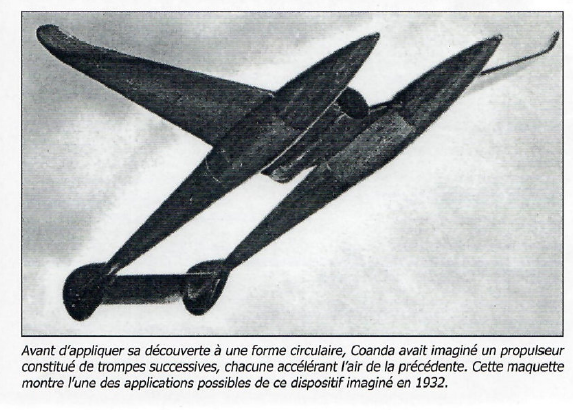

Before applying his discovery to a circular shape, Coanda had imagined
a propellant made up of successive horns, each accelerating the air of
the previous one. This model shows one of the possible applications of
this airplane imagined in 1932.


Attachments

  • 1.png
    422.3 KB · Views: 79
Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,551
Reaction score
6,291

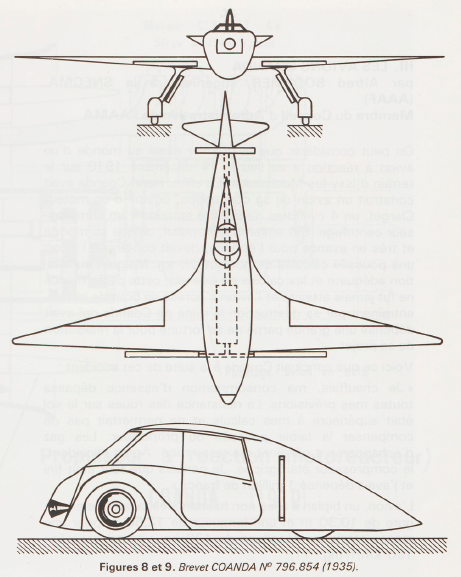

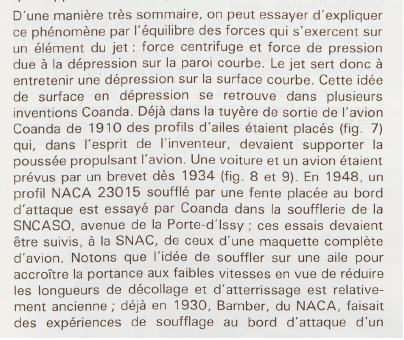

From Pegase magazine 1983,

here is a two patents in 1934/35.


Attachments

  • 1-1983.png
    324.8 KB · Views: 51
  • 1.png
    241.5 KB · Views: 55

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
104
Reaction score
62
I've found these pictures on the net and it seems that they were found in a folder coming from the Caproni collection.
From the flag on the fins it looks like a French Aircraft and it can be dated in the 1917-1925 period
The identification remains unknown at least for me. Any info on this bird?


Attachments

  • aereo caproni non identificato (1).jpg
    aereo caproni non identificato (1).jpg
    267.3 KB · Views: 34
  • aereo caproni non identificato (2).jpg
    aereo caproni non identificato (2).jpg
    268.9 KB · Views: 33
  • aereo caproni non identificato (3).jpg
    aereo caproni non identificato (3).jpg
    308.2 KB · Views: 44

iverson

ACCESS: Top Secret
Joined
Sep 24, 2009
Messages
537
Reaction score
461
I've found these pictures on the net and it seems that they were found in a folder coming from the Caproni collection.
From the flag on the fins it looks like a French Aircraft and it can be dated in the 1917-1925 period
The identification remains unknown at least for me. Any info on this bird?

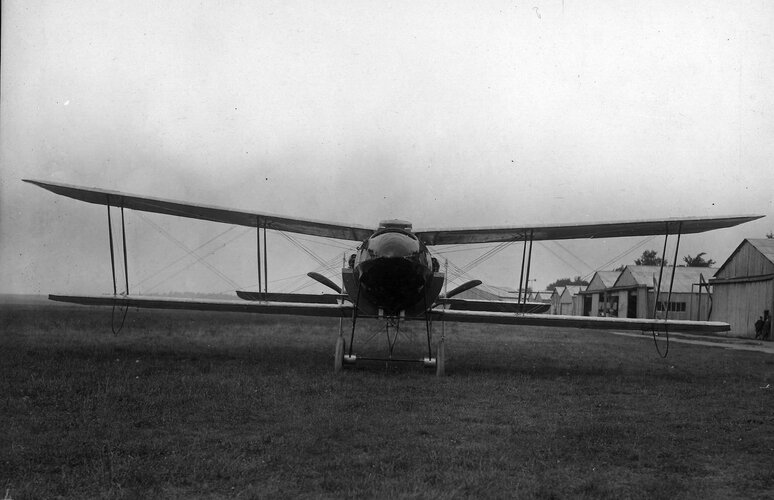

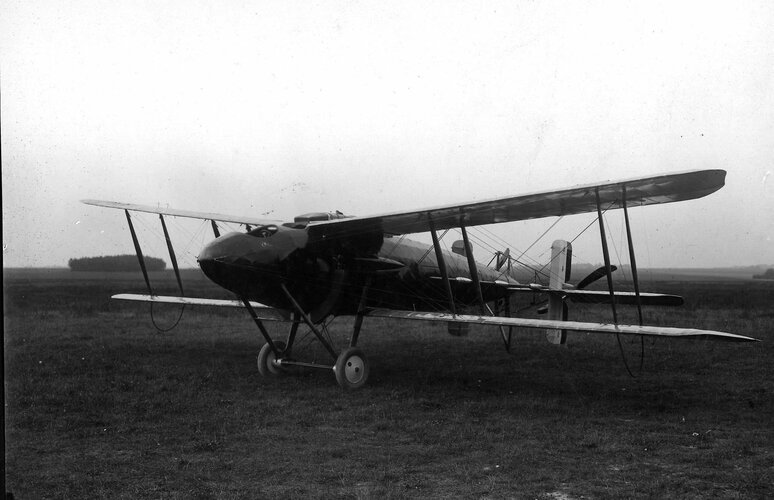

This is the 1917, French, Coanda-Delauney-Bellevile fighter, powered by twin Hispano-Suiza V-8 engines.


Attachments

  • Coanda_0.jpg
    482 KB · Views: 39
  • Coanda_1.jpg
    503.7 KB · Views: 36
  • Coanda_4.jpg
    605.2 KB · Views: 39

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
104
Reaction score
62
I am adding some data about the Coanda-Delauney-Belleville 1916-1917 aircraft (source: https://raigap.dreamwidth.org/886054.html )
Wingspan, m 17.40
Length, m 8.20
Engine type 2 PD Hispano-Suiza 8Aa
Power, hp 2 х 150
Crew, pers. 2-3
Armament: one 7.7-mm front Lewis machine gun, one of the same machine gun in the rear cockpit on a movable turret, bombs.

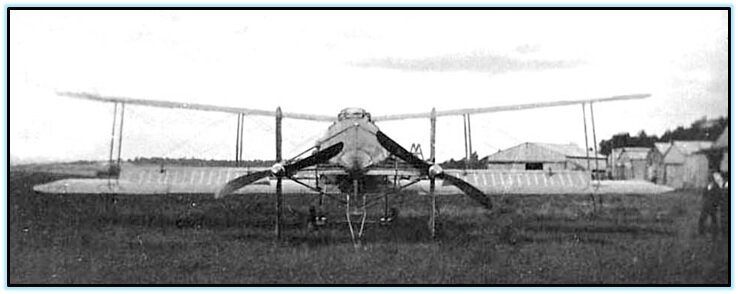

and a picture


Attachments

  • CDB-rearview.jpg
    56.5 KB · Views: 26
